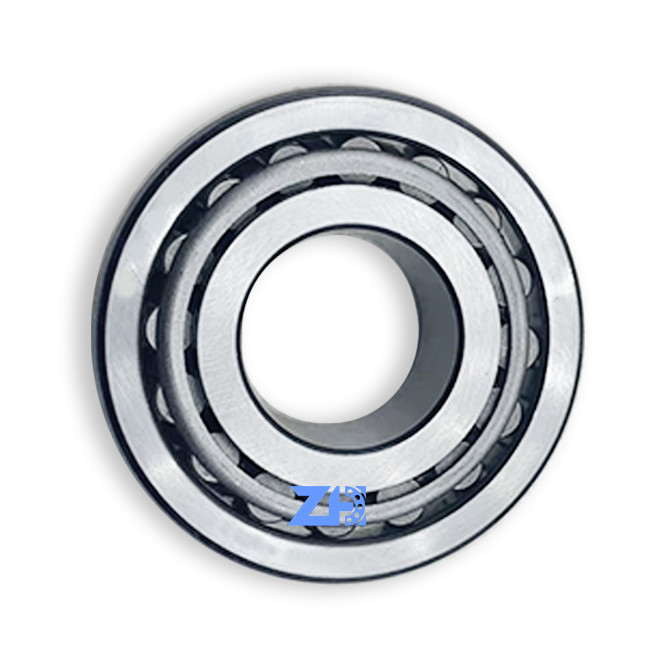

Taper Roller Bearing 2709-2720 2709/2720Taper Roller Bearing Factory supply
Technical Parameters:
model |
2709-2720 2709/2720 |
Size(d*D*B) |
Standard size |
Type | Taper Roller Bearing |
Precision | P0/P6/P5/P4 |
Feature |
Long Life,Stable Performance and Durable |
Material | GCR15 |
After-sales Service |
Online Support Professional Service |
Stock |
Sufficient |
Product Description

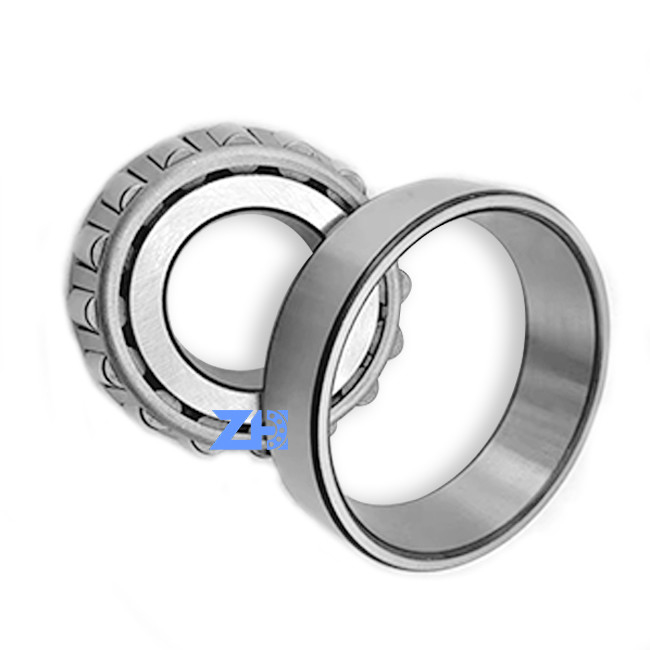

A tapered roller bearing is a type of rolling-element bearing that is designed to handle both radial and axial loads by carrying them in one direction. It consists of multiple tapered rollers, typically arranged in a single row, allowing for the bearing to handle high radial and thrust loads. Tapered roller bearings are commonly used in automotive applications, such as wheel bearings, as well as in industrial machinery and equipment where heavy loads and high speeds are present.
Tapered roller bearings typically have a cage or retainer that separates and maintains the proper spacing between the rolling elements. The cage prevents the rollers from contacting each other, reducing friction and wear. Common cage materials include steel, brass, or synthetic resins.
Tapered roller bearings can be used in different arrangements to accommodate specific load and mounting requirements. These arrangements include single-row, double-row, and four-row configurations. Double-row tapered roller bearings have a higher load-carrying capacity and are often used in heavy-duty applications.
Versatility: Tapered roller bearings come in various designs and sizes, allowing them to be used in a wide range of applications, including automotive, industrial machinery, and heavy equipment.
Temperature resistance: Tapered roller bearings can withstand high temperatures, making them suitable for demanding operating conditions.
Other bearing model catalog:
Cone Bearing | Cup Bearing | d(mm) | D(mm) | T(mm) |
EE107060 | 107105CD | 152.4 | 268.3 | 160.3 |
EE450601 | 451215CD | 152.4 | 308.0 | 200.0 |
HH234048 | HH234011CD | 152.4 | 308.0 | 200.0 |
HH234049 | HH234011CD | 152.4 | 308.0 | 200.0 |
81606 | 81963CD | 154.0 | 244.5 | 108.0 |
46780 | 46720CD | 158.8 | 225.4 | 85.7 |
81629 | 81963CD | 160.0 | 244.5 | 108.0 |
81630 | 81963CD | 160.0 | 244.5 | 108.0 |
HM237532 | HM237510CD | 160.3 | 288.9 | 142.9 |
46790 | 46720CD | 165.1 | 225.4 | 85.7 |
67780 | 67720CD | 165.1 | 247.7 | 103.2 |
M235145 | M235113CD | 165.1 | 254.0 | 101.6 |
94649 | 94114CD | 165.1 | 288.9 | 142.9 |
HM237535 | HM237510CD | 165.1 | 288.9 | 142.9 |
46792 | 46720CD | 166.7 | 225.4 | 85.7 |
67782 | 67720CD | 168.3 | 247.7 | 103.2 |
M235149 | M235113CD | 170.0 | 254.0 | 101.6 |
94675 | 94114CD | 171.5 | 288.9 | 142.9 |
67786 | 67720CD | 174.6 | 247.7 | 103.2 |
67787 | 67720CD | 174.6 | 247.7 | 103.2 |
94687 | 94114CD | 174.6 | 288.9 | 142.9 |
HM237542 | HM237510CD | 174.6 | 288.9 | 142.9 |
36990 | 36920CD | 177.8 | 227.0 | 66.7 |
67790 | 67720CD | 177.8 | 247.7 | 103.2 |
67791 | 67720CD | 177.8 | 247.7 | 103.2 |
M238840 | M238810CD | 177.8 | 269.9 | 119.1 |
94700 | 94114CD | 177.8 | 288.9 | 142.9 |
HM237545 | HM237510CD | 177.8 | 288.9 | 142.9 |
HM237545H | HM237510CD | 177.8 | 288.9 | 142.9 |
EE222070 | 222127CD | 177.8 | 320.7 | 185.7 |
H239640 | H239612CD | 177.8 | 320.7 | 185.7 |
93708 | 93127CD | 180.0 | 317.5 | 146.1 |
67883 | 67820CD | 184.2 | 266.7 | 103.2 |
67884 | 67820CD | 187.3 | 266.7 | 103.2 |
M238849 | M238810CD | 187.3 | 269.9 | 119.1 |
H239649 | H239612CD | 187.3 | 320.7 | 185.7 |
67885 | 67820CD | 190.5 | 266.7 | 103.2 |
93750 | 93127CD | 190.5 | 317.5 | 146.1 |
EE420751 | 421451CD | 190.5 | 368.3 | 193.7 |
67887 | 67820CD | 192.1 | 266.7 | 103.2 |
LM739749 | LM739710CD | 196.9 | 257.2 | 85.7 |
