| Place of Origin: | CHINA |
| Brand Name: | ZH |
| Model Number: | 30205 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 1-2 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 per day |

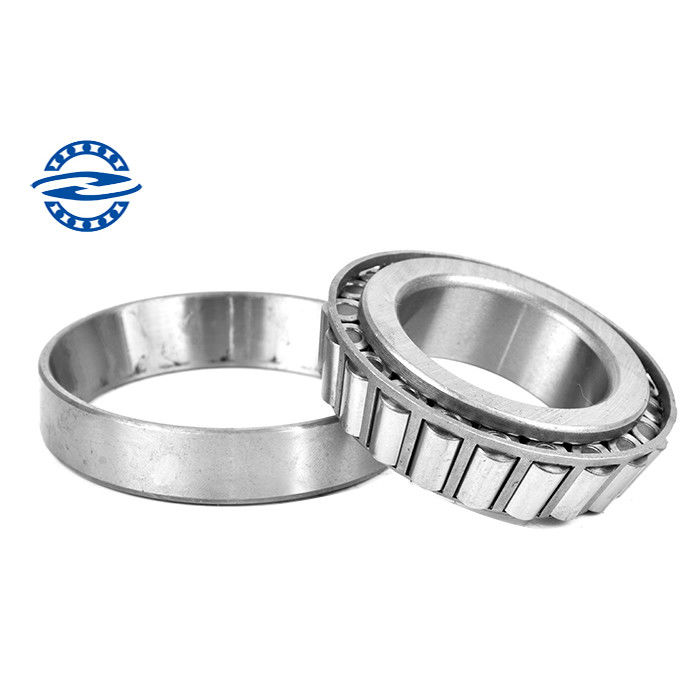

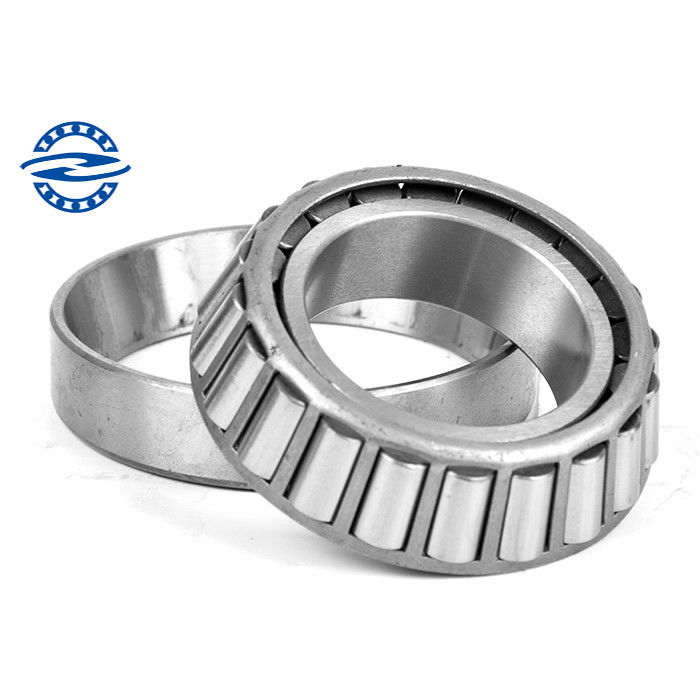

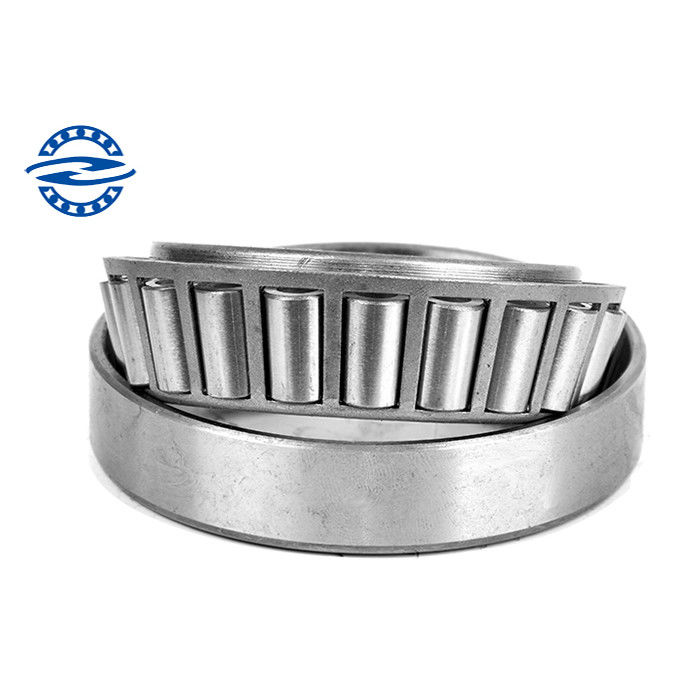

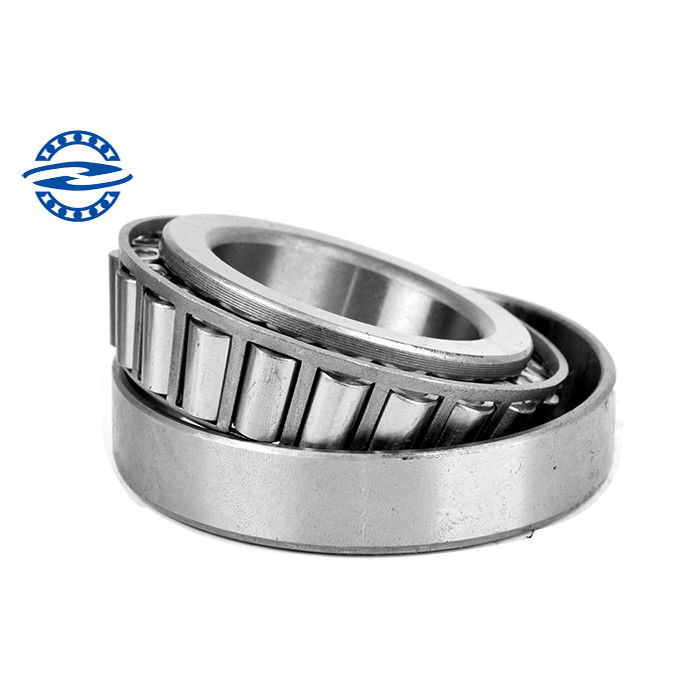

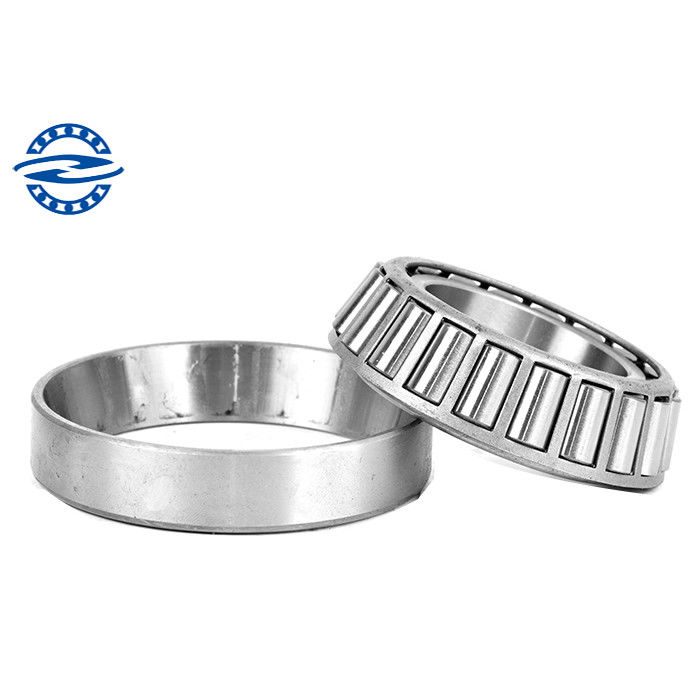

| Product Name: | Tapered Roller Bearing | Model: | 30206 |
|---|---|---|---|
| Precision: | P0,P6,P5,P4,P2 | Weight: | 0.232KG |
| Service: | OEM Serive | Material: | GCR15 Material (Chrome Steel) |
| Viberation Level: | V1,V2,V3,V4 | SIZE: | 25*52*16.5 |
| Feature: | High Speed | Packaging: | Chinese Style Packaging |
| Number Of Row: | Single Row | ||
| High Light: | precision tapered roller bearings,taper roller bearing assembly |
||
High quality Taper Roller bearing30205 with lowest price for automotive components, pumps and machinery High quality T
The bearing capacity of tapered roller bearing is determined by the raceway Angle of the outer ring. The larger the Angle, the greater the bearing capacity
1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride
2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride
3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride
4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride
5.CTN1: Double row symmetrical rollers ,nylon cage
6.K: Tapered bore bearing, the taper is 1:12
7.K30: Tapered bore bearing,the taper is 1:30
8.W33: With lubriexcavatorion groove in outer ring,with three oil holes
9.C2/C3/C4: Internal clearance series: C2,C0,C3, and C4
|
The bearing capacity of tapered roller bearing is determined by the raceway Angle of the outer ring. The larger the Angle, the greater the bearing capacity
| china supplier high quality bearing Spherical roller Bearing 22322 CC/22322E | |||
| Model | 22322CC/22322E | ||
| Size | 110*240*80mm | ||
| Material | Gcr15 | ||
| Cage | Brass ,Steel | ||
| Seal Type | ZZ;RS;Open | ||
| Quality | ISO9001 2000 Standard;CE | ||
| Port | Qingdao,Shanghai,Beijing,Tianjin,Guangzhou,Shenzhen,Hongkong | ||
| Package | Standard exported package or according to our customers' requirement | ||
| Delivery Time | within 3 days after confirm, it will be 3~7 days if the goods are not in stock , The specific time need refer to the quantity | ||
| Related Model | ||||||
| Bearing Number | Principal dimensions(mm) | |||||
| Cylindrical Bore | Tapered Bore | d | D | B | r1min | Weight (KG) |
| 22220 | 22220K | 100 | 180 | 46 | 2.1 | 4.90 |
| 23220 | 23220K | 100 | 180 | 60.3 | 2.1 | 6.85 |
| 21320 | 21320K | 100 | 215 | 47 | 3.0 | 8.80 |
| 22320 | 22320K | 100 | 215 | 73 | 3.0 | 13.50 |
| 23022 | 23022K | 110 | 170 | 45 | 2.0 | 3.80 |
| 24022 | 24022K | 110 | 170 | 60 | 2.0 | 5.00 |
| 23122 | 23122K | 110 | 180 | 56 | 2.0 | 5.75 |
| 24122 | 24122K | 110 | 180 | 69 | 2.0 | 7.10 |
| 22222 | 22222K | 110 | 200 | 53 | 2.1 | 7.00 |
| 23222 | 23222K | 110 | 200 | 69.8 | 2.1 | 9.86 |
| 22322 | 22322K | 110 | 240 | 80 | 3.0 | 18.40 |
| 23024 | 23024K | 120 | 180 | 46 | 2.0 | 4.20 |
| 24024 | 24024K | 120 | 180 | 60 | 2.0 | 5.45 |
| 23124 | 23124K | 120 | 200 | 62 | 2.0 | 8.00 |
| 24124 | 24124K | 120 | 200 | 80 | 2.0 | 10.30 |
| 22224 | 22224K | 120 | 215 | 58 | 2.1 | 8.70 |
| 23224 | 23224K | 120 | 215 | 76 | 2.1 | 12.00 |
| 22324 | 22324K | 120 | 260 | 86 | 3.0 | 23.00 |
Why chose us? What advantage do we have?
1, high evaluation
2, OEM is acceptable
3, Small order is ok, goods is in stock.
4, Sample lead time: 1 days, bulk delivery day: 1-3 days
5, Our moldings are over 4000 sets.
6, Our company is factory manufacturer with 10 years experience.
7, gold service, diamond quality, stone price
FAQ
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
