Home ProductsTaper Roller Bearing

T7FC065 4T-T7FC065STPX3 TCHROME STEEL Taper Roller fluid bearingBearing P0 P6 P5 P4 P3 QUALITY LEVER Single Row

T7FC065 4T-T7FC065STPX3 TCHROME STEEL Taper Roller fluid bearingBearing P0 P6 P5 P4 P3 QUALITY LEVER Single Row

  • T7FC065  4T-T7FC065STPX3 TCHROME STEEL Taper Roller  fluid bearingBearing P0 P6 P5 P4 P3 QUALITY LEVER Single Row
  • T7FC065  4T-T7FC065STPX3 TCHROME STEEL Taper Roller  fluid bearingBearing P0 P6 P5 P4 P3 QUALITY LEVER Single Row
  • T7FC065  4T-T7FC065STPX3 TCHROME STEEL Taper Roller  fluid bearingBearing P0 P6 P5 P4 P3 QUALITY LEVER Single Row
T7FC065  4T-T7FC065STPX3 TCHROME STEEL Taper Roller  fluid bearingBearing P0 P6 P5 P4 P3 QUALITY LEVER Single Row
Product Details:
Place of Origin: China
Brand Name: ZH
Certification: IS09001
Model Number: 4T-T7FC065STPX3
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1USD/PCS
Packaging Details: carton
Delivery Time: 2-7days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs
Contact Now
Detailed Product Description
Name: Tapered Roller Bearing Model: 4T-T7FC065STPX3
Size: 65*130*33.5 Material: CHROME STEEL
Type: 4T-T7FC065STPX3 Weight: 2.19
MOQ: 1 Quality: P0、P2、P4、p5、p6
High Light:

4T-T7FC065STPX3 Taper Roller Bearing

,

Single Row Taper Roller Bearing

,

2600r/min Taper Roller Bearing



P0 P6 P5 P4 P3 QUALITY LEVER T7FC065 4T-T7FC065STPX3 TCHROME STEEL Taper Roller Bearing Single Row
4T-T7FC065STPX3 Taper Roller Bearing





Product introduction
Single row tapered roller bearings can withstand the axial load in one direction, and can limit the axial displacement of the shaft relative to the bearing seat in one direction, tapered roller bearings are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries







Product presentation:


Product model 4T-T7FC065STPX3 specification Standard - Dust proof Inner and outer ring material steel Oil lubrication speed 3600
Product type TAPPER ROLLER BEARING Rolling element material steel Size specifications metric system Model 4T-T7FC065STPX3
General shipping date Inquiry Seal part structure Open type Inner diameter d 65 Internal clearance symbol CM
Load direction radial Internal clearance symbol CM Outer diameter D 130 Accuracy (JIS) Level 0
Raceway wheel shape roller Accuracy (JIS) Level 0 Width B(mm) 33.5 Grease lubrication speed 2600


T7FC065  4T-T7FC065STPX3 TCHROME STEEL Taper Roller  fluid bearingBearing P0 P6 P5 P4 P3 QUALITY LEVER Single Row 0
T7FC065  4T-T7FC065STPX3 TCHROME STEEL Taper Roller  fluid bearingBearing P0 P6 P5 P4 P3 QUALITY LEVER Single Row 1


  • A hot item these days

055ZC 32012ZC 2304ZC 6014ZC 208ZC 354520ZC 30211ZC 304020ZC 206ZC 33207ZC 30209ZC
060ZC 32013ZC 2305ZC 6206ZC 208ZC 502515ZC 30212ZC 5904ZC 207ZC 345233ZC 3020ZC
065ZC 32207ZC 243320ZC 6208ZC 209ZC 503303ZC 30213ZC 2212ZC 30314ZC 553830ZC 2211ZC
070ZC 32211ZC 2820ZC 6213ZC 2206ZC 503806ZC 30302ZC 2209ZC 6906ZC 5908ZC 308ZC
205ZC 32212ZC 30205ZC 6905ZC 2207ZC 503807ZC 6932ZC 306ZC 6922ZC 6008ZC 309ZC

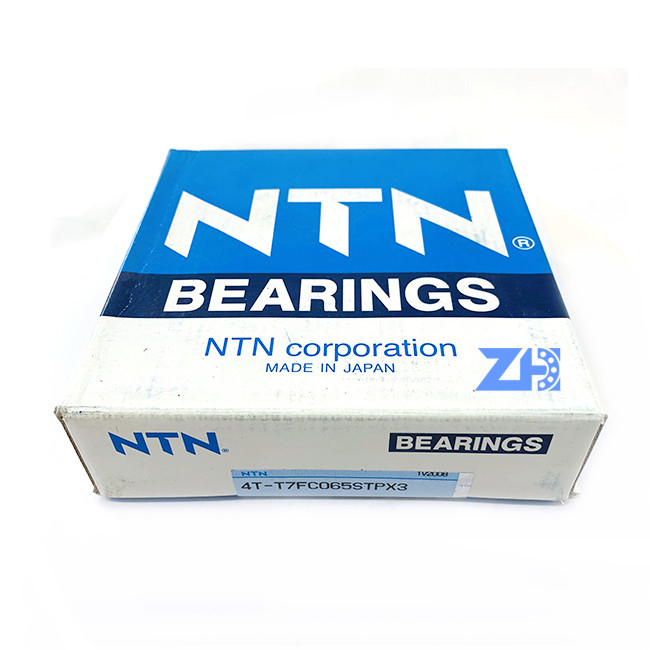

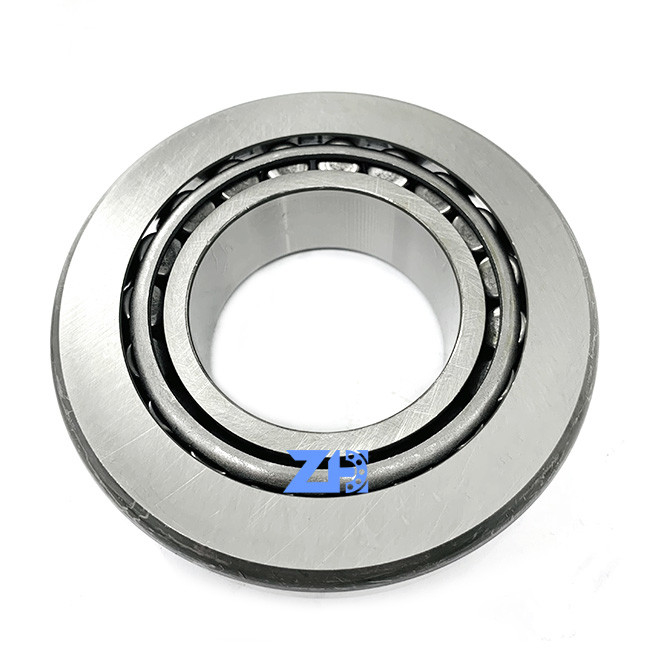

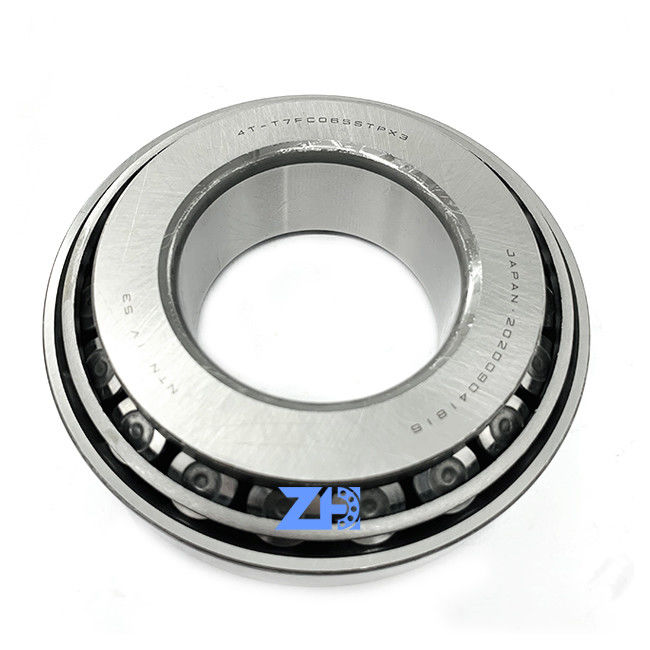

Product picture

T7FC065  4T-T7FC065STPX3 TCHROME STEEL Taper Roller  fluid bearingBearing P0 P6 P5 P4 P3 QUALITY LEVER Single Row 2

T7FC065  4T-T7FC065STPX3 TCHROME STEEL Taper Roller  fluid bearingBearing P0 P6 P5 P4 P3 QUALITY LEVER Single Row 3
T7FC065  4T-T7FC065STPX3 TCHROME STEEL Taper Roller  fluid bearingBearing P0 P6 P5 P4 P3 QUALITY LEVER Single Row 4









Dimensions

Bore diameter

133.375mm

Outside diameter

177.033mm

Width, total

27.59mm






Performance

Basic dynamic load rating

37 318 lbf

Basic static load rating

62 947 lbf

Reference speed

2 600 r/min

Limiting speed

3 200 r/min

ZH performance class

ZH Explorer






Properties

Bearing part

Complete bearing

Number of rows

1

Locating feature, bearing outer ring

None

Bore type

Cylindrical

Cage

Sheet metal

Arrangement of contact angle (double-row bearing)

Not applicable

Matched arrangement

No

Coating

Without

Sealing

Without

Lubricant

None

Relubrication feature

Without







Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C.







FQA

Q1: I want to buy your products, how do I pay?
A: You can contact me via Whatsapp to send you the bank account.



Q2: What should we do if we can't find what we want on your website?
A: You can send us the product description and pictures you need by email or Whatsapp, we will check if there are any, we will release new products every month,Some of them are not uploaded to the net in time or you can send us samples by express, we will develop this product for purchasing.



Q3: Can we buy one piece per item for quality measurement?
A: Yes, if we have the item you need in stock, we are happy to send lpc for quality testing.
