| Brand Name: | Z&H |
| Model Number: | SN516 |
| Certifiexcavatorion: | ISO9001-2000 / CE / ROHS / UL / SGS |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | neutral package |
| Delivery Time: | 4-7work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 300pieces per day |
| Place Of Origin: | Shang Dong （China） | Product Name: | Pillow Block Bearing |
|---|---|---|---|
| Old Model: | SN516 | Certifiexcavatorion:: | ISO9001, ISO14001 |
| Precision Rating: | P0 P6 P5 P4 | Clearance: | C0 C2 C3 C4 |
| Applicable Industries: | Food, Textile, Mining, Rolling Mill | Feature: | High Speed |
| Service: | OEM & ODM For Bearing SN516 | ||
| High Light: | Gcr15 Plummer Block Bearing Housing,SN516 Plummer Block Bearing Housing |
||
Brand :Z&H

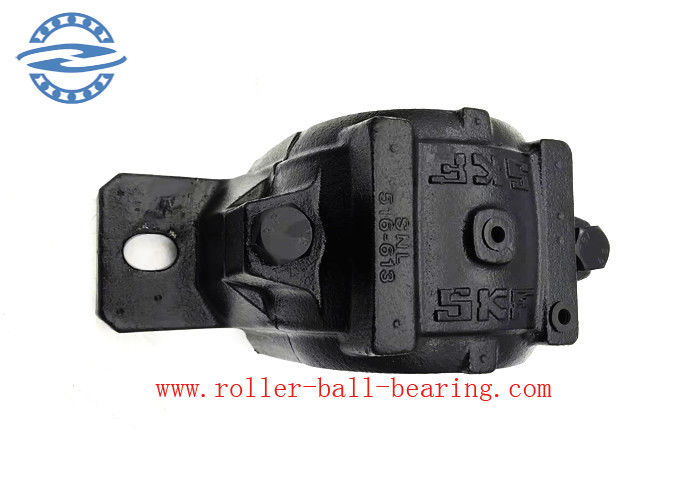

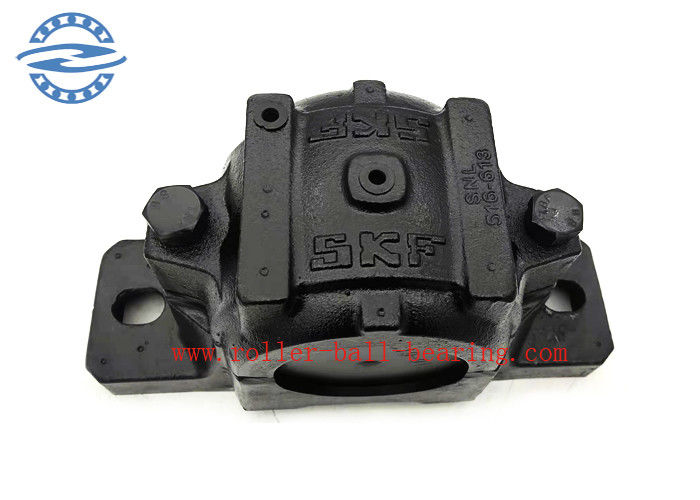

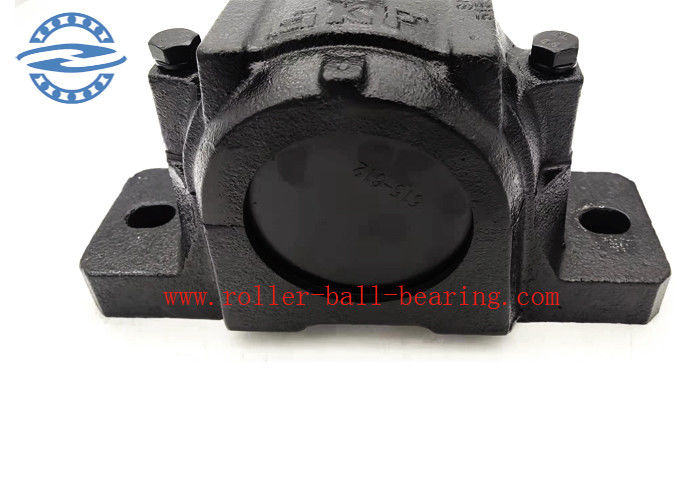

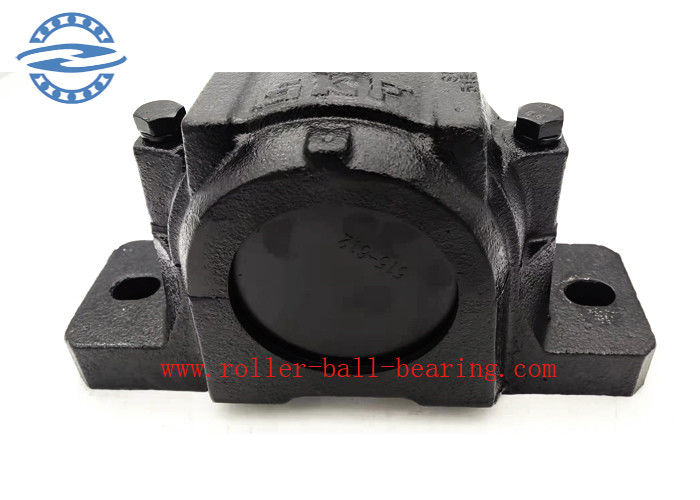

Item Pillow block bearing SN516 plummer block bearing SN516 from China factory
Ball Bearing seals NO
Material :GCr15 steel,carbon steel,stainless steel etc.
Precision: P0,P2,P5,P6,P4
Clearance :C0,C2,C3,C4,C5
Bore size: 0-200 mm outer diameter 0-400mm
Cage type brass;steel plate,nylon,aluminium alloy etc.
Seal type: open,sealed(ZZ,RS,2RS)
Bearings Feature :Long-life with high quality
Low-nosie with strict controlling the quality of SaiFan bearing
High-load by the advanced high-technical design
Competitive price, which has the most valuable
OEM service offered, to meet the customers'requirements
Appliexcavatorion :gearbox,auto,reduction box,engine machinery,mining machinery,bicycles,etc Insert Bearing Units With Housing
Bearing Package Pallet,wooden case,commercial packaging or as customers' requirement.
Price terms FOB,CFR,CIF,EXW delivery time 3-5 days acccording the quantity
3 . CONPANY PROFILE
ZhongHong Bearing Manufacturing Co. Ltd is a bearing production, sales - based company,
the company in the industrial field has many years of bearing supporting and industrial service experience.
Types involved: deep groove ball bearings, joint bearings, conical bearings, cylindrical bearings and so on Our products are widely used in machine tools,
coal mine, railway, petroleum printing, power plant, ship, aviation, automobile and other industries
| Type | Shaftdia | HousingDimensions | Weight | |||||||||
| A | A1 | H | H1 | H2 | J | L | N | N1 | T | |||
| SN505 | 20 | 67 | 46 | 75 | 40 | 19 | 130 | 165 | 20 | 15 | 12 | 1.12 |
| SN506 | 25 | 77 | 52 | 90 | 50 | 22 | 150 | 185 | 20 | 15 | 12 | 1.63 |
| SN606 | 25 | 82 | 52 | 95 | 50 | 22 | 150 | 185 | 20 | 15 | 12 | 1.85 |
| SN507 | 30 | 82 | 52 | 95 | 50 | 22 | 150 | 185 | 20 | 15 | 12 | 1.93 |
| SN607 | 30 | 90 | 60 | 110 | 60 | 25 | 170 | 205 | 20 | 15 | 12 | 2.8 |
| SN508 | 35 | 85 | 60 | 110 | 60 | 25 | 170 | 205 | 20 | 15 | 12 | 2.63 |
| SN608 | 35 | 95 | 60 | 115 | 60 | 25 | 170 | 205 | 20 | 15 | 12 | 3.15 |
| SN509 | 40 | 85 | 60 | 110 | 60 | 25 | 170 | 205 | 20 | 15 | 12 | 2.85 |
| SN609 | 40 | 105 | 70 | 130 | 70 | 28 | 210 | 255 | 23 | 18 | 16 | 4.3 |
| SN510 | 45 | 90 | 60 | 115 | 60 | 25 | 170 | 205 | 20 | 15 | 12 | 3 |
| SN610 | 45 | 115 | 70 | 135 | 70 | 30 | 210 | 255 | 23 | 18 | 16 | 4.9 |
| SN511 | 50 | 95 | 70 | 130 | 70 | 28 | 210 | 255 | 23 | 18 | 16 | 4 |
| SN611 | 50 | 120 | 80 | 150 | 80 | 30 | 230 | 275 | 23 | 18 | 16 | 5.5 |
| SN512 | 55 | 105 | 70 | 135 | 70 | 30 | 210 | 255 | 23 | 18 | 16 | 4.6 |
| SN612 | 55 | 125 | 80 | 155 | 80 | 30 | 230 | 280 | 23 | 18 | 16 | 7.1 |
| SN513 | 60 | 110 | 80 | 150 | 80 | 30 | 230 | 275 | 23 | 18 | 16 | 5.95 |
| SN613 | 60 | 130 | 90 | 175 | 95 | 32 | 260 | 315 | 27 | 22 | 20 | 9.2 |
| SN515 | 65 | 115 | 80 | 155 | 80 | 30 | 230 | 280 | 23 | 18 | 16 | 6.85 |
| SN615 | 65 | 140 | 100 | 195 | 100 | 35 | 290 | 345 | 27 | 22 | 20 | 11.65 |
| SN516 | 70 | 120 | 90 | 175 | 95 | 32 | 260 | 315 | 27 | 22 | 20 | 8.45 |
| SN616 | 70 | 145 | 100 | 210 | 112 | 35 | 290 | 345 | 27 | 22 | 20 | 12.9 |
| SN517 | 75 | 125 | 90 | 185 | 95 | 32 | 260 | 320 | 27 | 22 | 20 | 9.35 |
| SN617 | 75 | 155 | 110 | 215 | 112 | 40 | 320 | 380 | 32 | 26 | 24 | 15.5 |
Material photo
Exhibition photo
4. PACKAG and SHIPPING
1.Single box packing, then in carton then in Pallet.
2.Standard export packing.
3. According customer demand.
4. Negotiable
5 . FAQ
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
