Place of Origin:
China
Brand Name:
CNZH
Model Number:
UC202

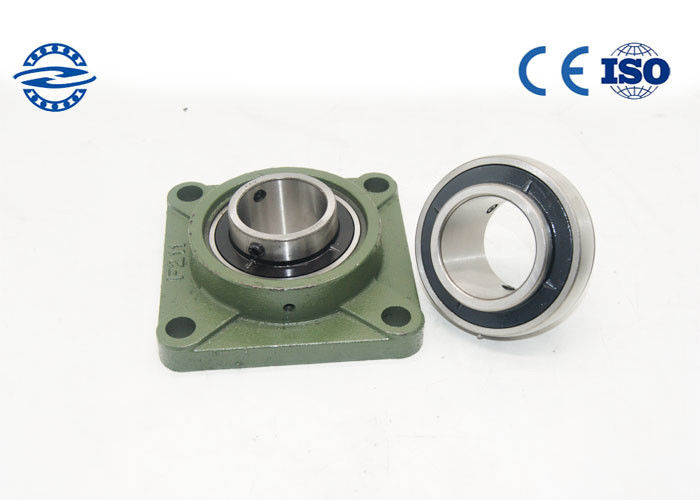

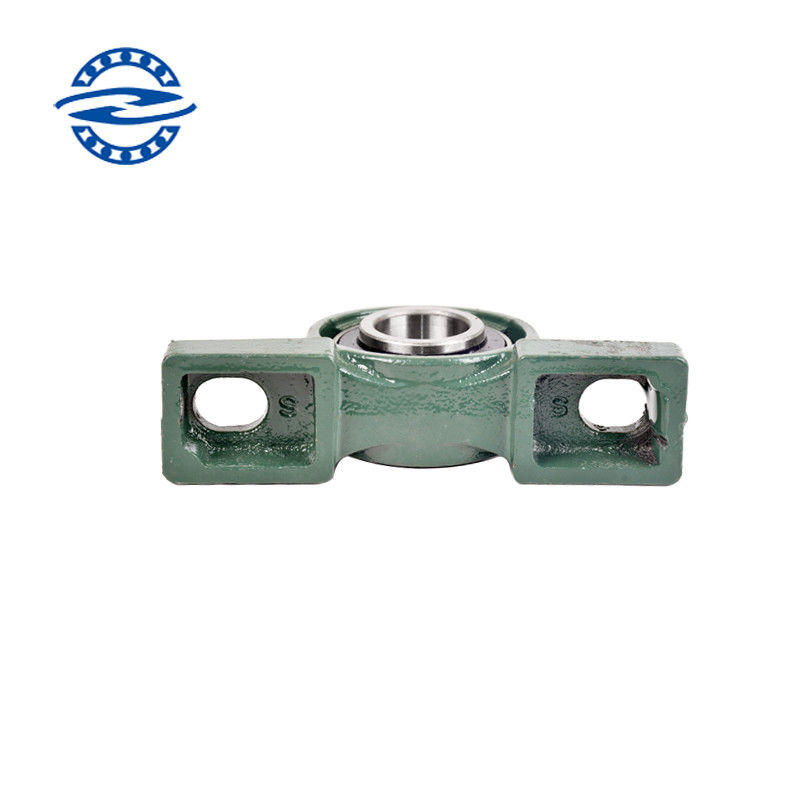

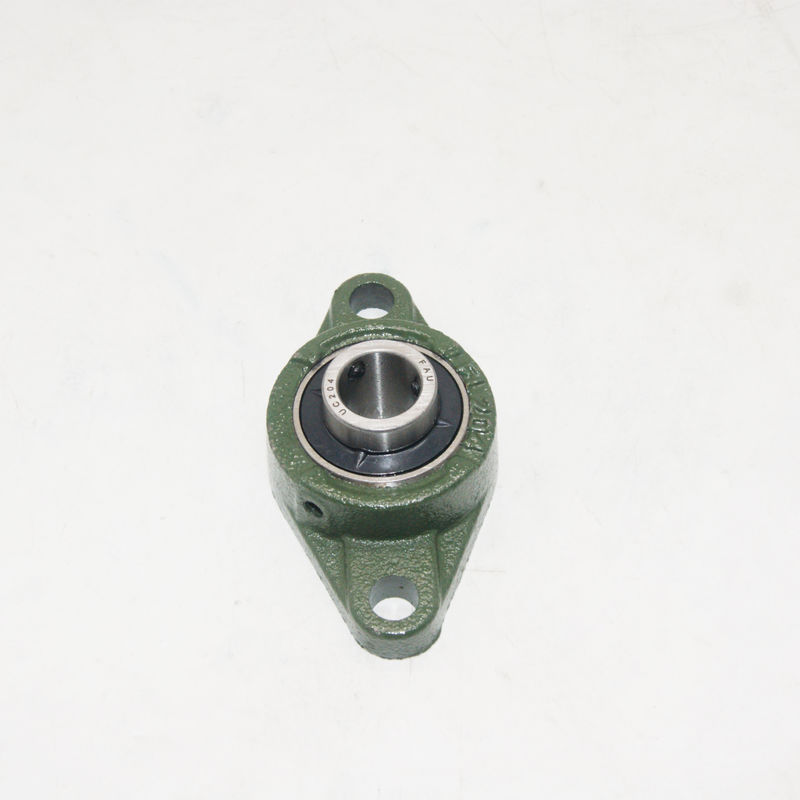

Pillow Ball Bearing UC202 bearing combined radial and axial load with radial load chiefly
Parameter
| Structure | ROLLER BEARING |
| Precision Rating | P0 P1 P2 P3 P4 P5 |
| Model Number | UC200 |
| Number of Row | SINGLE Row |
| Material | gcr15 BEARING STEEL |
| Feature | High Speed |
| Place of Origin | Shandong, China (Mainland) |
| Appliexcavatorion | Machinery and equipment |
| Color | gray |
| Brand Name | CNZH |
| Packaging | Chinese style packaging |
The information about pillow block bearing
An outer spherical bearing with a seat is a bearing unit that combines the rolling bearing with the housing. Most of the outer spherical bearings are spherical to the outside diameter, with a spherical bore bearing housing installed together, the structure of various forms, versatility and interchangeability is good. at the same time, the bearings in the design also has a certain modulation, easy to install, with a dual structure of the sealing device, can work in the harsh environment. Housings are generally made of cast molding. The common seat has a standing seat (P), a square seat (F), a convex square seat (FS), a boss round seat (FC), a rhombus block (FL), a ring seat (C), a slider block, etc.
Other size
| UC200 | |||||||||
| Bearing model | Dimension | Weight(kg) | |||||||
| d | D | B | S | C | R | G | ds | ||
| UC201 | 12 | 47 | 31 | 12.7 | 18.3 | 1 | 5 | M6X0.75 | 0.21 |
| UC202 | 15 | 47 | 31 | 12.7 | 18.3 | 1 | 5 | M6X0.75 | 0.19 |
| UC203 | 17 | 47 | 31 | 12.7 | 17 | 0.6 | 4.5 | M6x1 | 0.18 |
| UC204 | 20 | 47 | 31 | 12.7 | 17 | 1 | 4.6 | M6x0.75 | 0.16 |
| UC205 | 25 | 52 | 31.4 | 14.3 | 17 | 1 | 5 | M6x0.75 | 0.22 |
| UC206 | 30 | 62 | 38.1 | 15.9 | 19 | 1 | 5 | M6x0.75 | 0.35 |
| UC207 | 35 | 72 | 42.9 | 17.5 | 20 | 1.1 | 6 | M8x1.0 | 0.52 |
| UC208 | 40 | 80 | 49.2 | 19 | 21 | 1.1 | 8 | M8x1.0 | 0.7 |
| UC209 | 45 | 85 | 49.2 | 19 | 22 | 1.1 | 8 | M8x1.0 | 0.74 |
| UC210 | 50 | 90 | 51.6 | 19 | 24 | 1.1 | 9 | M10x1.0 | 0.83 |
| UC211 | 55 | 100 | 55.6 | 22.2 | 25 | 1.5 | 9 | M10x1.0 | 1.16 |
| UC212 | 60 | 110 | 65.1 | 25.4 | 27 | 1.5 | 10 | M10x1.0 | 1.56 |
| UC213 | 65 | 120 | 65.1 | 25.4 | 28 | 1.5 | 10 | M10x1.0 | 1.95 |
| UC214 | 70 | 125 | 74.6 | 30.2 | 29 | 1.5 | 12 | M 12x1.25 | 2.18 |
| UC215 | 75 | 130 | 77.8 | 33.3 | 30 | 1.5 | 12 | M 12x1.25 | 2.42 |
| UC216 | 80 | 140 | 82.6 | 33.3 | 33 | 2 | 14 | M 12x1.25 | 2.82 |
| UC217 | 85 | 150 | 85.7 | 34.1 | 35 | 2 | 14 | M 12x1.25 | 3.4 |
| UC218 | 90 | 160 | 96 | 39.7 | 37 | 2 | 14 | M 12x1.25 | 4.3 |
| UC220 | 100 | 180 | 108 | 42 | 41 | 2 | 14 | M 12x1.25 | 4.5 |
Our company
Linqing zhonghong bearing co., LTD. Is a company with bearing production and sales, our company has many years of bearing support and industrial service experience in the industrial field. The company specializes in imported bearings, including Swedish bearing, German FAG bearing. INA bearing, Japan NSK bearing, NTN bearing, IKO bearing, KOYO bearing, American TIMKEN bearing, etc. Domestic brands include: ZWZ bearing. Harbin HRB bearing, luoyang LYC bearing, etc. Involving type: deep groove ball bearings, self-aligning ball bearings, cylindrical roller bearing, spherical roller bearings, angular contact bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings, needle roller bearings, joint bearings, outer spherical bearings, bearing special appliexcavatorions.
We seek development by reputation, benefit from management, and use service to compete with customers. In the face of increasingly fierce market competition, we constantly improve ourselves and grow stronger. We have a group of professional and technical personnel. and fusion
international well-known large companies operating management mode, actively explore the market, easy to provide users from all walks of life from product introduction to technical communiexcavatorion and product after-sales service one-stop service. Over the years,with good reputation and excellent quality, a complete set of sales system has been established, which has established long-term cooperative relations with hundreds of customers throughout the country.
Certifiexcavatorions
Quality management system (QMS) certifiexcavatore
Certifiexcavatore of international certifiexcavatorion
China Certifiexcavatore for Ecolabelling Products
FAQ
Q1. Do you have what other types of bearings?
A: We have deep groove ball bearing , self- aligning ball bearing , cylindrical roller bearing ,spherical roller bearings , angular contact ball bearings , thrust ball bearing , thrust ball bearing , pillow block bearing , joint bearng ,needle bearing. You can choose according to your needs.
Q2. Can I choose the bearing number I need ?
A: Sure , you can choose the model you need. We will design the model you decide.
Q3. Can you adjust the price again ?
A: We can talk to each other.
