Place of Origin: | China |
Brand Name: | Z&H ,OEM ,Customer Requirement |
Model Number: | 33022 |
Certifiexcavatorion: | ISO9001:2008 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case,By carton ,Customer Requirement |
Delivery Time: | 2-8 work days |
Payment Terms: | L/C,,D/P,T/T, Alibaba online payment,Paypal,etc. |
Supply Ability: | 500 per day |
Name: | Taper Roller Bearing | Appliexcavatorion: | Automotive,Machinery, |
---|---|---|---|
Number Of Row: | Single Row | Precision Rating: | P0 P6 P5 P4 P2 |
Clearance: | C1 C2 0 C3 C4 C5 | Vibration: | Z1V1 Z2V2 Z3V3 Z4V4 |
Size: | 110x170x47MM | Weight: | 3.83KG |
Material: | Chrome Steel,bearing Steel | Service: | OEM Service.Design Service |
High Light: | Z2V2 Taper Roller Bearing,33022 Taper Roller Bearing,110x170x47Mm Taper Roller Bearing |

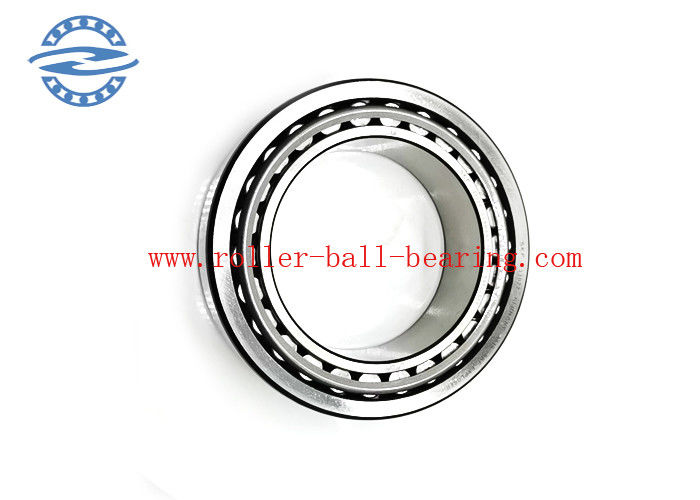

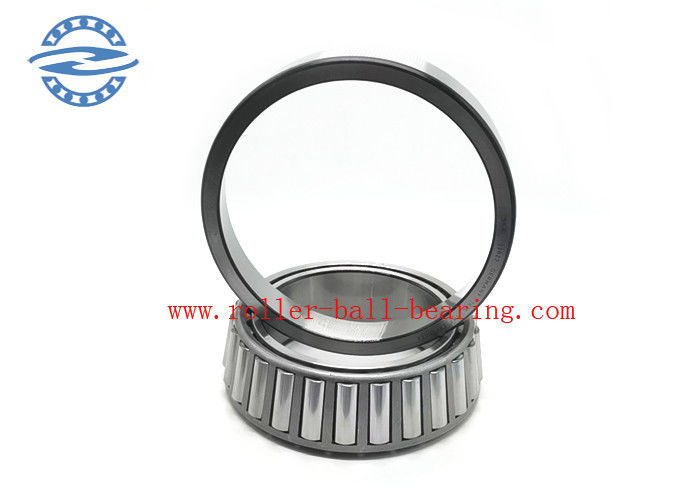

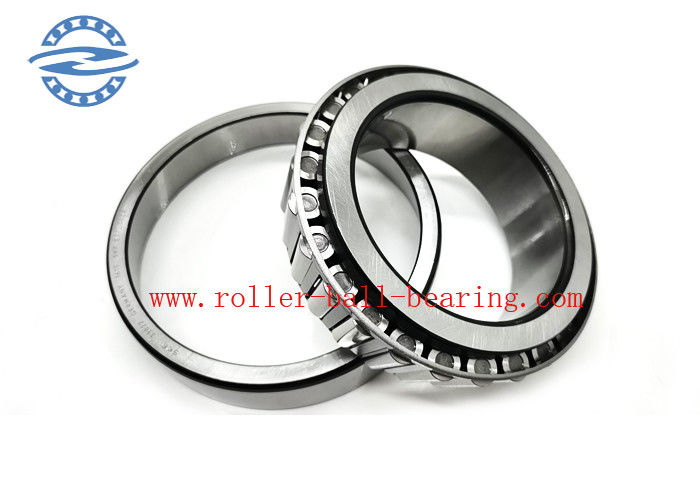

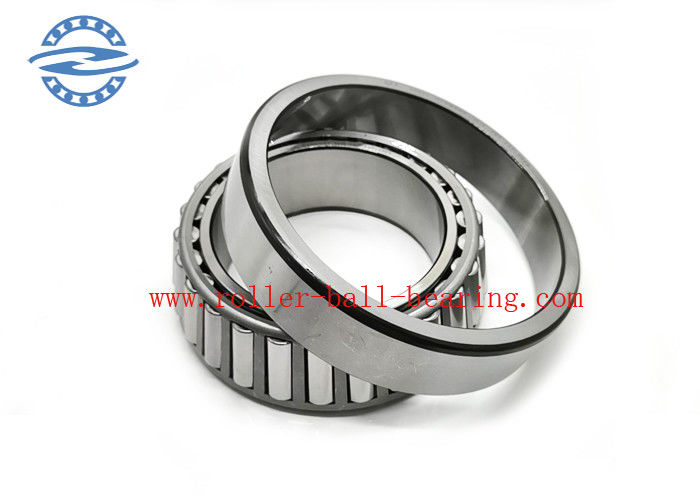

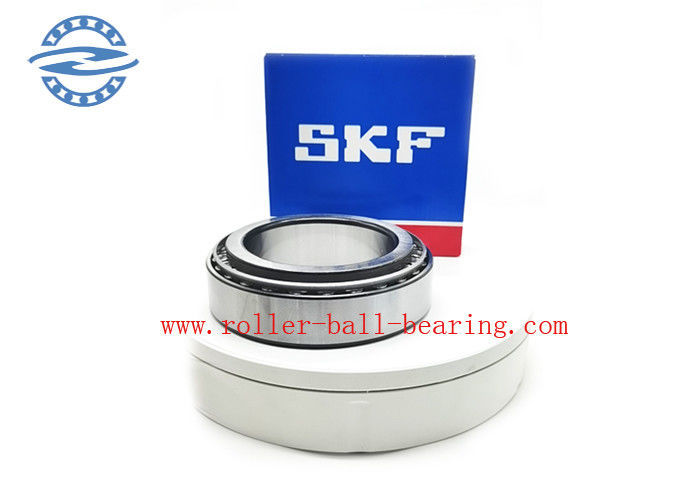

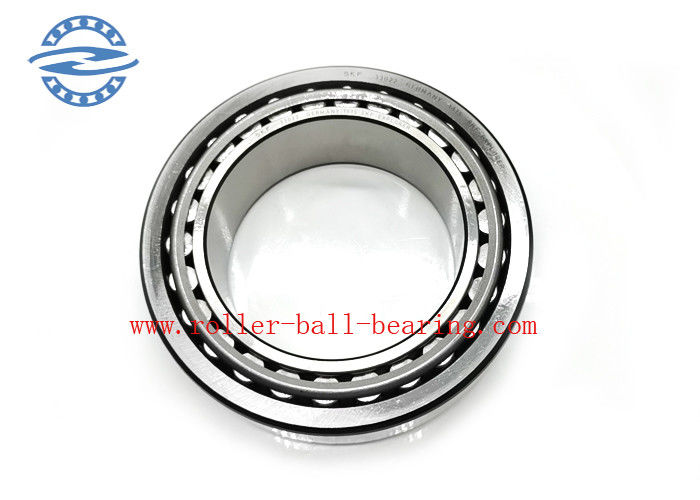

33022 Taper Roller Bearing Size 110x170x47 MM For Automotive
Overview
Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.Tapere roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.
Others models
Bearing No. | Shape Dimension (mm) | Weight | |||||
New | Old | d | D | T | B | C | (kg) |
30200 Series | |||||||
30202 | 7202E | 15 | 35 | 11.75 | 11 | 10 | 0.053 |
33022 | 7203E | 17 | 40 | 13.25 | 12 | 11 | 0.079 |
30204 | 33022 | 20 | 47 | 15.25 | 14 | 12 | 0.126 |
30205 | 7205E | 25 | 52 | 16.25 | 15 | 13 | 0.154 |
30206 | 7206E | 30 | 62 | 17.25 | 16 | 14 | 0.231 |
30207 | 7207E | 35 | 72 | 18.25 | 17 | 15 | 0.331 |
30208 | 7208E | 40 | 80 | 19.75 | 18 | 16 | 0.422 |
30209 | 7209E | 45 | 85 | 20.75 | 19 | 16 | 0.474 |
30210 | 7210E | 50 | 90 | 21.75 | 20 | 17 | 0.529 |
30211 | 7211E | 55 | 100 | 22.75 | 21 | 18 | 0.713 |
30212 | 7212E | 60 | 110 | 23.75 | 22 | 19 | 0.904 |
30213 | 7213E | 65 | 120 | 24.75 | 23 | 20 | 1.13 |
30214 | 7214E | 70 | 125 | 26.75 | 24 | 21 | 1.26 |
30215 | 7215E | 75 | 130 | 27.25 | 25 | 22 | 1.36 |
30300 Series | |||||||
30303 | 7303E | 17 | 47 | 15.25 | 14 | 12 | 0.129 |
30304 | 7304E | 20 | 52 | 16.25 | 15 | 13 | 0.165 |
30305 | 7305E | 25 | 62 | 18.25 | 17 | 15 | 0.263 |
30306 | 7306E | 30 | 72 | 20.75 | 19 | 16 | 0.387 |
30307 | 7307E | 35 | 80 | 22.75 | 21 | 18 | 0.515 |
30308 | 7308E | 40 | 90 | 25.25 | 23 | 20 | 0.747 |
30309 | 7309E | 45 | 100 | 27.25 | 25 | 22 | 0.984 |
30310 | 7310E | 50 | 110 | 29.25 | 27 | 23 | 1.28 |
30311 | 7311E | 55 | 120 | 31.5 | 29 | 25 | 1.63 |
30312 | 7312E | 60 | 130 | 33.5 | 31 | 26 | 1.99 |
32000 Series | |||||||
32004 | 2007104E | 20 | 42 | 15 | 15 | 12 | 0.0947 |
32005 | 2007105E | 25 | 47 | 15 | 15 | 11.5 | 0.11 |
32006 | 2007106E | 30 | 55 | 17 | 17 | 13 | 0.17 |
32007 | 2007107E | 35 | 62 | 18 | 18 | 14 | 0.224 |
32008 | 2007108E | 40 | 68 | 19 | 19 | 14.5 | 0.267 |
32009 | 2007109E | 45 | 75 | 20 | 20 | 15.5 | 0.337 |
32010 | 2007110E | 50 | 80 | 20 | 20 | 15.5 | 0.366 |
32011 | 2007111E | 55 | 90 | 23 | 23 | 17.5 | 0.551 |
32200 Series | |||||||
32205 | 7505E | 25 | 52 | 19.25 | 18 | 16 | 0.187 |
32206 | 7506E | 30 | 62 | 21.25 | 20 | 17 | 0.287 |
32207 | 7507E | 35 | 72 | 24.25 | 23 | 19 | 0.445 |
32208 | 7508E | 40 | 80 | 24.75 | 23 | 19 | 0.532 |
32209 | 7509E | 45 | 85 | 24.75 | 23 | 19 | 0.573 |
32210 | 7510E | 50 | 90 | 24.75 | 23 | 19 | 0.626 |
32211 | 7511E | 55 | 100 | 24.75 | 25 | 21 | 0.713 |
32212 | 7512E | 60 | 110 | 29.75 | 28 | 24 | 1.17 |
32213 | 7513E | 65 | 120 | 32.75 | 31 | 27 | 1.55 |
32300 Series | |||||||
32305 | 7605E | 25 | 62 | 25.25 | 24 | 20 | 0.368 |
32306 | 7606E | 30 | 72 | 28.75 | 27 | 23 | 0.568 |
32307 | 7607E | 35 | 80 | 32.75 | 31 | 25 | 0.763 |
32308 | 7608E | 40 | 90 | 35.25 | 33 | 27 | 1.04 |
32309 | 7609E | 45 | 100 | 38.25 | 36 | 30 | 1.4 |
32310 | 7610E | 50 | 110 | 42.25 | 40 | 33 | 1.89 |
32311 | 7611E | 55 | 120 | 45.5 | 43 | 35 | 2.37 |
32312 | 7612E | 60 | 130 | 48.5 | 46 | 37 | 2.9 |
32313 | 7613E | 65 | 140 | 51 | 48 | 39 | 3.51 |
Tips: Please contact us for details of other models. |
Main Products
1 | Deep Grove Ball Bearings | |
2 | Needle & Cylindrical roller bearings | |
3 | Angular contact ball bearings | |
4 | Thrust ball & roller bearings | |
5 | China bearing factorys | |
6 | Spherical roller bearings | |
7 | Pillow blocks | |
8 | Rollers and wheels | |
9 | Self-aligning ball bearings | |
10 | Ball screws & linear motion guide |
FAQ
A: We are 15 years' manufacturer with professional sales team.
A: Generally it is 2-3 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to order quantity.
A:Yes, we could offer the sample for free but the freight cost on yourself.
