| Place of Origin: | China |
| Brand Name: | Z&H |
| Model Number: | NP078914 |
| Certifiexcavatorion: | ISO9001:2008 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case,By carton ,Customer Requirement |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C,,D/P,T/T, Alibaba online payment,Paypal,etc. |
| Supply Ability: | 1000 per day |
| Bearing Type: | Taper Roller Bearing | Name: | Truck Wheel Hub Bearing |
|---|---|---|---|
| Material: | Chrome Steel,Gcr15 | Precision Rating: | P0 P6 P5 P4 P2 |
| Clearance: | C2 C0 C3 C4 C5 | Size: | 68*127*115MM |
| Weight: | 6.15kg | Feature: | Long Life High Speed,low Noise |
| Lubriexcavatorion: | Grease Or Oil | Service: | OEM Customized Services |
| High Light: | NP078914 Wheel Hub Bearing,ZZ Wheel Hub Bearing,Gcr15 Wheel Hub Bearing |
||

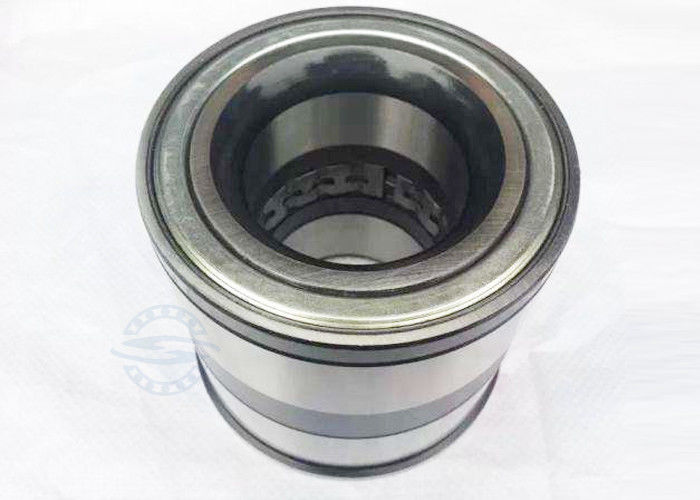

Truck Wheel Hub Bearing NP078914 Taper Roller Bearing Size 68*127*115MM
Product Details
| Specifiexcavatorions front wheel bearing | |
| Inside Diameter | 68 mm |
| Outside Diameter | 127 mm |
| Width, Outer Race | 115 mm |
| Position | Left/Right |
| ABS Equipped | No |
| Generation | 1 |
| Type | Truck Wheel Hub Bearing,double row |
Features
- High Precision and Long Lifespan
- Tolerance grade: ABEC-1,ABEC-3,ABEC-5,ABEC-7
- It is designed to manage high radial loads even when misalignment
- Extreme speeds or critical appliexcavatorion stresses are present.
- It can carry radial load and axial load in double directions.
Automotive wheel bearing size list:
| P.N. | d | D | B | Mass (kg) |
| 25BWD01 | 25 | 52 | 42 | 0.36 |
| 27BWD01J | 27 | 60 | 50 | 0.36 |
| 28BWD03A | 28 | 58 | 42 | 0.4 |
| 28BWD01A | 28 | 61 | 42 | 0.53 |
| 30BWD08 | 30 | 55 | 26 | 0.26 |
| 30BWD01A | 30 | 63 | 42 | 0.55 |
| 30BWD04 | 30 | 68 | 45 | 0.69 |
| 32BWD05 | 32 | 72 | 45 | 0.8 |
| 34BWD04B | 34 | 64 | 37 | 0.82 |
| 34BWD11 | 34 | 64 | 37 | 0.46 |
| 34BWD10B | 34 | 66 | 37 | 0.51 |
| 34BWD07B | 34 | 68 | 42 | 0.64 |
| 34BWD09A | 34 | 68 | 37 | 0.54 |
| 35BWD19E | 35 | 65 | 37 | 0.48 |
| 35BWD07 | 35 | 68 | 30 | 0.48 |
| 35BWD07A | 35 | 68 | 30 | 0.48 |
| 35BWD16 | 35 | 68 | 36 | 0.48 |
| 35BWD06A | 35 | 72 | 31 | 0.55 |
| 36BWD04 | 36 | 68 | 33 | 0.48 |
| 36BWD03 | 36 | 72 | 42 | 0.68 |

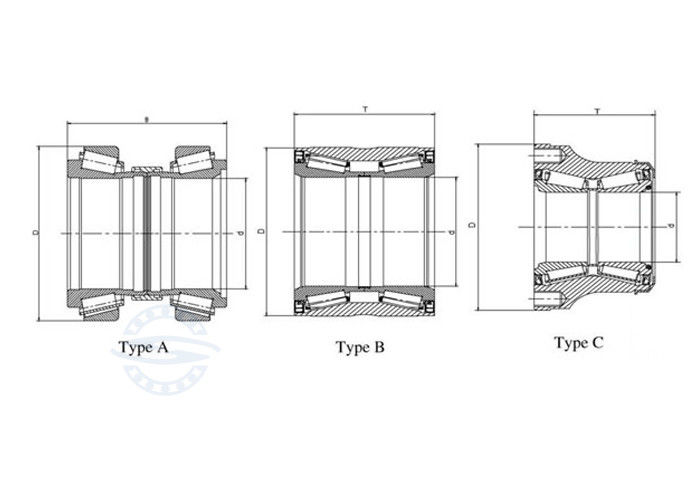

| Bearing No. | Other No. | Main dimensions (mm) | Type with integrated seal | Mass (kg) | |||
| d | D | B | B1 | Reference | |||
| F-803194.TR2U1 | F-803194.TR2U1 | 78 | 130 | 90 | 90 | YES | 4.45 |
| BTH-0018A (VKBA5314) |
NP078914-90UA | 68 | 127 | 115 | 115 | YES | 6.5 |
| 805003A.H195 | BTH-0055/BTH-0022 VKBA5412 |
82 | 140 | 115 | 115 | YES | 6.45 |
| DU60108-8CS32 | DU60108-11 /201050 | 60 | 108 | 75 | 75 | YES | 2.85 |
| BTH-0025 | BTH 0053/VKBA5397 201059/805012.06.H195 |
90 | 160 | 125 | 125 | YES | 10.2 |
| 566425.H195 | 20517952/20518661/2096 7828/21036050/800792 |
93.8 | 148 | 135 | 135 | YES | 6 |
| 566426.H195 | SET1312/20518637/20967 831/21021391/3988673 |
68 | 125 | 115 | 115 | YES | 4.81 |
| 804162A | VKBA 5416/81.93420-0346 | 110 | 170 | 146 | 146 | YES | 8.53 |
| 584734.H195 | VKBA5549 /BTF0056 1002689/1003457/100167 600/100167601/32002001 51/3434365000/42002001 00/4200200101 |
82 | 196 | 110 | 110 | YES | 15.3 |
| 801974AE.H195 | VKBA5377/BTF0110/BTF0021A 201012/IVECO-42541578/5006207845 MAN-81.934200288/ 81.93420-0323/ 81.93420-0330 /81.93420-0349 |
70 | 196 | 139.5 | 139.5 | YES | 10 |
