Place of Origin: | CHINA |
Brand Name: | QIEAL ZH |
Model Number: | W210PP |
Certifiexcavatorion: | ISO-9001 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case,By carton ,Customer Requirement |
Delivery Time: | 2-7 work days |
Payment Terms: | L/C,,D/P,T/T, Alibaba online payment,Paypal,etc. |
Supply Ability: | Negotiation |
Weight: | 0,77 KGS | Inner Diameter [d: | 8 |
---|---|---|---|
Outer Diameter [D: | 8 | Inner Ring Width [B: | 8 |
Outer Ring Width [C: | 8 | Bore Type: | Cylindrical |
Outer Ring Shape: | Flat | Vibration Level Codes: | V4, V3, V2, V1 |
Internal Clearance Codes: | C2,C0,C3,C4,C5 | Precision Rating: | P0 P6 P5 P4 P2 |
High Light: | V2 Disc Harrow Bearing,W210PP Disc Harrow Bearing |

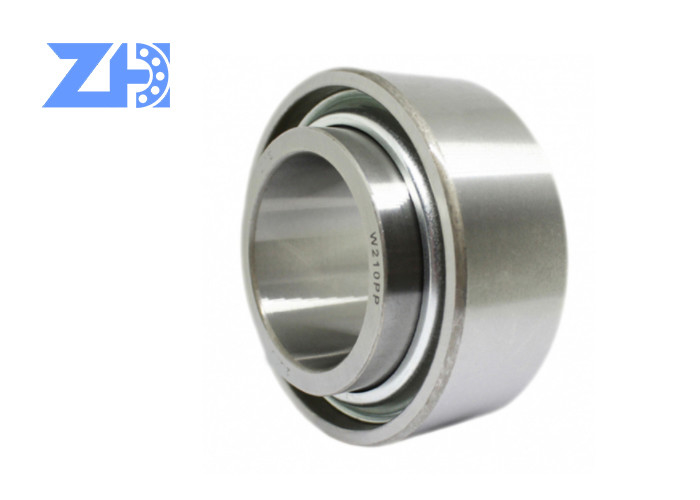

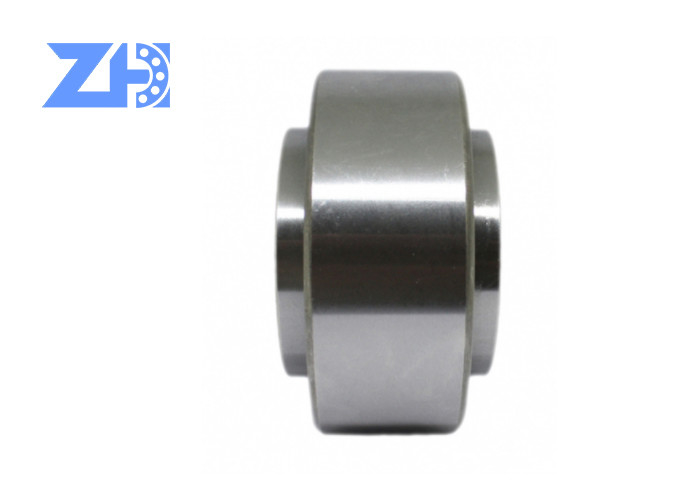

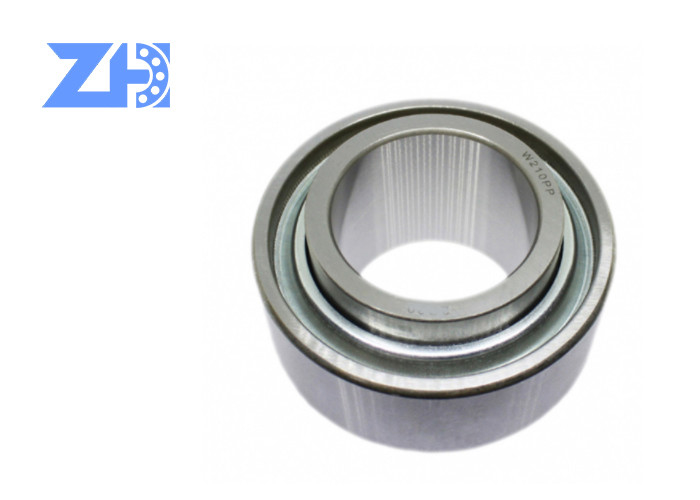

Disc Harrow Bearing W210PP Agriculture Heavy Duty Disc Harrow Bearing Bearing
Bore Size | 1.9380 in |
---|---|
Outside Diameter | 3.5433 in |
Overall Width | 1.1875 in |
Bore Type | Round |
Closure Type | Tri-Ply Seals |
Dynamic Load Capacity | 9000 lb |
Static Load Capacity | 5200 lbs |
Row Type & Fill Slot | Single Row Non-Fill Slot |
Maximum RPM | 500 RPM |
Cage Material | Nylon |
Finish/Coating | Uncoated |
Appliexcavatorion | Agriculture Bearing |
Packing &Delivery
Bearing No. | Type | Bearing Bore Size | Outside Dia. | Ring Width | |||||
A | B | Inner Ring | Outer Ring | ||||||
(in.) | (mm) | (in.) | (mm) | (in.) | (mm) | (in.) | (mm) | ||
205PPB7 | 1 | 0.9375 | 23.813 | 2.0472 | 52 | 1.3748 | 34.92 | 0.591 | 15 |
W208PPB7 | 1 | 1.1880 | 30.175 | 3.1496 | 80 | 1.189 | 30.2 | 0.709 | 18 |
W208PP10 | 4 | 1.5005 | 38.113 | 3.1496 | 80 | 1.691 | 42.96 | 0.827 | 21 |
W208PPB23 | 1 | 1.5005 | 38.113 | 3.1496 | 80 | 1.691 | 42.96 | 1.189 | 30.2 |
W209PPB2 | 2 | 1.7717 | 45 | 3.3460 | 85 | 1.189 | 30.2 | 1.189 | 30.2 |
W209PPB4 | 2 | 1.5350 | 39 | 3.3460 | 85 | 1.189 | 30.2 | 1.189 | 30.2 |
W210PP2 | 5 | 1.9380 | 49.225 | 3.5433 | 90 | 1.189 | 30.2 | 1.189 | 30.2 |
W210PPB2 | 2 | 1.9380 | 49.225 | 3.5433 | 90 | 1.189 | 30.2 | 1.189 | 30.2 |
W211PP2 | 5 | 2.1880 | 55.575 | 3.9370 | 100 | 1.313 | 33.34 | 1.313 | 33.34 |
W211PPB2 | 2 | 2.1880 | 55.575 | 3.9370 | 100 | 1.313 | 33.34 | 1.313 | 33.34 |
Bearing No. | Type | Square Shaft Size | Square Bore Size | Outside Dia. | Ring Width | ||||
B | Inner Ring | Outer Ring | |||||||
(in.) | (mm) | (in.) | (mm) | (in.) | (mm) | (in.) | (mm) | ||
W208PPB13 | 1 | 7/8 | 23.117 | 3.1496 | 80 | 1.437 | 36.5 | 0.709 | 18 |
W208PPB6 | 1 | 1 | 26.162 | 3.1496 | 80 | 1.437 | 36.5 | 0.709 | 18 |
W208PP5 | 4 | 1-1/8 | 29.972 | 3.1496 | 80 | 1.437 | 36.5 | 0.709 | 18 |
W208PPB5 | 1 | 1-1/8 | 29.972 | 3.1496 | 80 | 1.437 | 36.5 | 0.709 | 18 |
W208PP8 | 4 | 1-1/8 | 29.972 | 3.1496 | 80 | 1.437 | 36.5 | 1.189 | 30.2 |
W208PPB8 | 1 | 1-1/8 | 29.972 | 3.1496 | 80 | 1.437 | 36.5 | 1.189 | 30.2 |
W208PPB11 | 3 | 7/8 | 23.117 | 3.3760 | 85.75 | 1.437 | 36.5 | 1.189 | 30.2 |
W208PPB12 | 3 | 1-1/8 | 29.972 | 3.3760 | 85.75 | 1.437 | 36.5 | 1.189 | 30.2 |
W209PPB5 | 1 | 1-1/4 | 32.766 | 3.3460 | 85 | 1.437 | 36.5 | 1.189 | 30.2 |
W210PP4 | 5 | 1-1/8 | 29.972 | 3.5433 | 90 | 1.189 | 30.2 | 1.189 | 30.2 |
W210PPB4 | 2 | 1-1/8 | 29.972 | 3.5433 | 90 | 1.189 | 30.2 | 1.189 | 30.2 |
W211PP3 | 5 | 1-1/2 | 38.89 | 3.9370 | 100 | 1.313 | 33.34 | 1.313 | 33.34 |
W211PPB3 | 2 | 1-1/2 | 38.89 | 3.9370 | 100 | 1.313 | 33.34 | 1.313 | 33.34 |
W211PP5 | 4 | 1-1/2 | 38.89 | 4.0000 | 101.6 | 1.750 | 44.45 | 1.438 | 36.52 |
W211PPB6 | 3 | 1-1/2 | 38.89 | 4.0772 | 103.56 | 1.750 | 44.45 | 1.438 | 36.52 |
Features of agricultural machinery bearing
1) Series available: FDxxx, STxxx, GNExxxKRRB, xxxKRRB, xxxKPPB, WxxxPP, WxxxPPB, GWxxxPP, GWxxxPPB, GUWxxxPPB, PFxxx, SBXxxx, XFxxx, WIRxxx
2) Material: Beaing Steel, Stainless steel
3) Cage: PA66, Optional
4) Steel Ball: GCR15
5) Shaft: GCr15
6) Outer ring: Gcr15
Series of LDK agricultural machinery bearing
1)Round bore
2)Square bore
3)Hex bore
Advantage of agricultural machinery bearing
1) Strict quality control system with perfect QC facilities
2) High quality and High precision
3) Low friction; low vibration and low noise
4) Long life
5) Reasonable price
