M12649/M12610 Single Row Tapered Roller Bearing Auto Bearing Truck Gearbox Bearing

Product Details:

Place of Origin:	CHINA
Brand Name:	QIEAL ZH
Model Number:	M12649 M12610
Certifiexcavatorion:	ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Wooden case,By carton ,Customer Requirement
Delivery Time:	2-7 work days
Payment Terms:	L/C,D/A,D/P,T/T, Western Union, Alibaba online payment,Paipal,etc.
Supply Ability:	500 per day

Contact Now

Detailed Product Description

Type:	Roller	Structure:	Taper
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manuf	Precision Rating:	P0 P6 P5
Number Of Row:	Single Row	Vibration:	V1 V2 V3 V4
Package:	Individual Package+carton+pallet	Material:	Chrome Steel GCr15
Main Market:	Southeast Asia	Cage:	Steel Cage.copper Cage.nylon Cage
High Light:	6BT Belt Tensioner , 3914086 Belt Tensioner , 3922900

M12649/M12610 Single Row Tapered Roller Bearing Auto Bearing Truck Gearbox Bearing

Product Detail

tapered roller bearing

Tapered roller bearings are separable bearings. Both the inner and outer rings of the bearing have tapered raceways. This type of bearing is divided into single row, double row and four row tapered roller bearings according to the number of rows installed. Single row tapered roller bearings can bear radial load and single direction axial load. When the bearing bears radial load, it will produce an axial component force, so when it needs another bearing that can bear the axial force in the opposite direction to balance it. It is widely used in industries such as automobiles, rolling mills, mining, metallurgy, and plastic machinery. The single row tapered roller bearing has an outer ring, its inner ring and a set of tapered rollers are an inner ring assembly enclosed by a basket-shaped cage. The outer ring can be separated from the inner ring assembly. According to the ISO tapered roller bearing external dimension standard, any standard type of tapered roller bearing outer ring or inner ring assembly should be able to achieve internationality with the same type of outer ring or inner ring assembly exchange. That is to say, in addition to the external dimensions and tolerances of the outer ring of the same model, which must comply with the requirements of ISO492 (GB307), the cone angle and component cone diameter of the inner ring component must also comply with the relevant regulations for interchange. Generally, the tapered angle of the outer ring raceway of a single-row tapered roller bearing is 10°~19° before it can bear the combined action of axial load and radial load at the same time. The larger the cone angle, the greater the ability to withstand axial load. Bearings with large taper angle, add B to the rear code, and the taper angle is between 25°~29°, which can bear larger axial load. In addition, single-row tapered roller bearings can adjust the size of the clearance during installation. The outer ring (or inner ring) of a double-row tapered roller bearing is a whole. The small end faces of the two inner rings (or outer rings) are similar, with a spacer in the middle. The clearance is adjusted by the thickness of the spacer. The thickness of the spacer can also be used to adjust the pre-interference of the double-row tapered roller bearing. Four-row tapered roller bearings. The performance of this type of bearing is basically the same as that of double-row tapered roller bearings, but it bears greater radial load and lower limit speed than double-row tapered roller bearings. It is mainly used for heavy machinery, such as Rolling mills, etc. Multi-sealed double and four-row tapered roller bearings, ZWZ provides long-life, multi-sealed double and four-row tapered roller bearings. Carry out a new and personalized design of the bearing, change the traditional design method of fully sealed bearing, and adopt a new type of sealing structure that combines sealing and dust prevention to improve the sealing effect and improve the sealing performance. Compared with open structure bearings, multi-sealed double and four-row tapered roller bearings have an increased life span of 20%-40%; lubricant consumption can be reduced by 80%. Multi-sealed double and four-row tapered roller bearings, ZWZ provides long-life, multi-sealed double and four-row tapered roller bearings. Carry out a new and personalized design of the bearing, change the traditional design method of fully sealed bearing, and adopt a new type of sealing structure that combines sealing and dust prevention to improve the sealing effect and improve the sealing performance. Compared with open structure bearings, multi-sealed double and four-row tapered roller bearings have an increased life span of 20%-40%; lubricant consumption can be reduced by 80%. Multi-sealed double and four-row tapered roller bearings, ZWZ provides long-life, multi-sealed double and four-row tapered roller bearings. Carry out a new and personalized design of the bearing, change the traditional design method of fully sealed bearing, and adopt a new type of sealing structure that combines sealing and dust prevention to improve the sealing effect and improve the sealing performance. Compared with open structure bearings, multi-sealed double and four-row tapered roller bearings have an increased life span of 20%-40%; lubricant consumption can be reduced by 80%. and adopt a new type of sealing structure that combines sealing and dust prevention to improve the sealing effect and improve the sealing performance. Compared with open structure bearings, multi-sealed double and four-row tapered roller bearings have an increased life span of 20%-40%; lubricant consumption can be reduced by 80%. and adopt a new type of sealing structure that combines sealing and dust prevention to improve the sealing effect and improve the sealing performance. Compared with open structure bearings, multi-sealed double and four-row tapered roller bearings have an increased life span of 20%-40%; lubricant consumption can be reduced by 80%.

Tapered roller bearing 4T-M12649/M12610
d	21.43mm
D	50.005 mm
T	17.526 mm
B	18.288 mm
Ç	13.97mm
Weight	0.169 kg
Basic dynamic load rating (C)	38 kN
Basic static load rating (C0)	39 kN

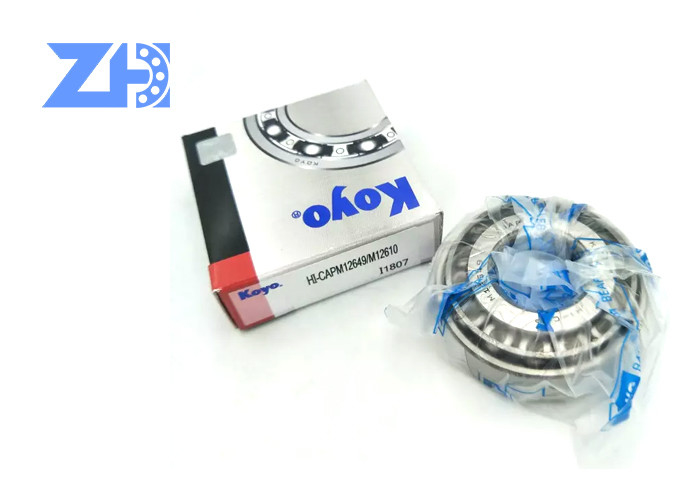

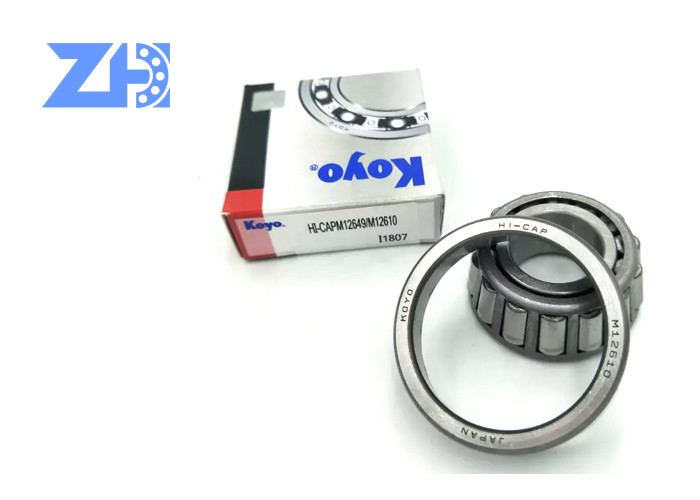

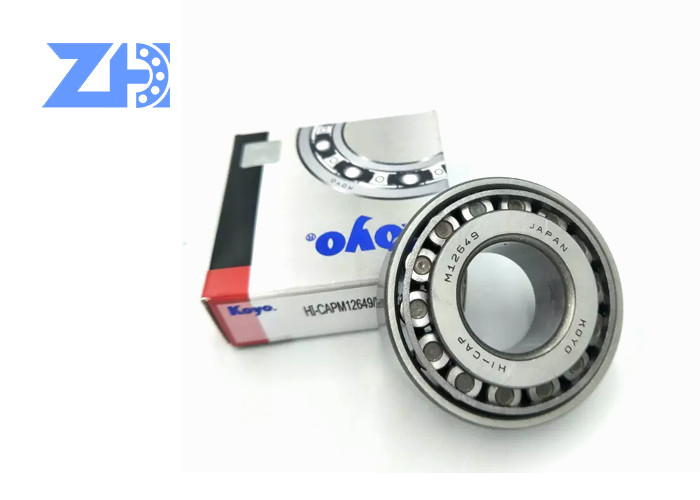

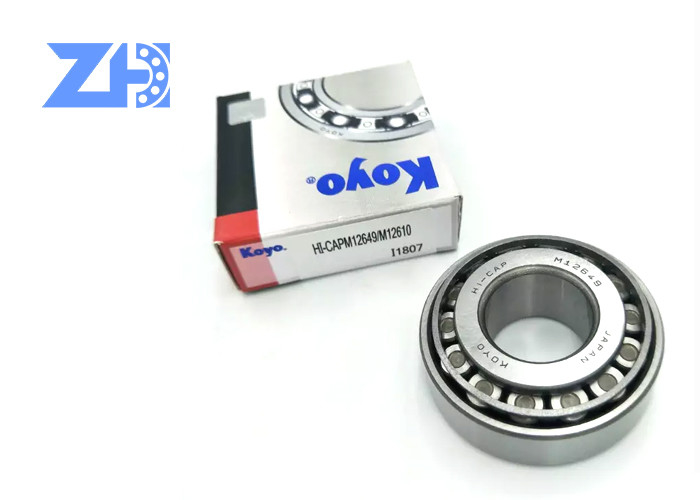

Product Pictures

M12649/M12610 Single Row Tapered Roller Bearing Auto Bearing Truck Gearbox Bearing 0

Appliexcavatorion

Shipping Detail

1. Who are we?
We are based in Shandong, China,sell to Mid East(30.00%),South Asia(20.00%),Northern Europe(15.00%),Africa(15.00%),Southeast Asia(10.00%),Western Europe(10.00%
) ,North America(10.00%).

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Ball Bearing,Roller Bearing,Wheel Bearing,Linear Bearing,Pillow Block Bearing

4. Why should you buy from us not from other suppliers?
Our company has gained rich experience: we know how to exactly handle every step of production.Our products possess the advantages of competitive price and good service.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash,Escrow;
