Bearing 29586YA/22YA Taper Roller Bearing 29586YA/29522YA taper roller bearing

Product Details:

Place of Origin:	CHINA
Brand Name:	QIEAL ZH
Model Number:	29586YA 29522YA
Certifiexcavatorion:	ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Wooden case,By carton or on request.
Delivery Time:	2-7 work days
Payment Terms:	L/C, T/T, Western Union,, D/P
Supply Ability:	3000 per day

Contact Now

Detailed Product Description

Structure:	Taper	Type:	Roller, 29586YA/22YA Tapered Roller Bearings
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Printing	Precision Rating:	P0
Number Of Row:	Single Row	Samples:	Available
Material:	Chrome Steel	Appliexcavatorion:	Automotive.tractor.construction Machinery.rolling Mill
High Light:	NT855 Excavator Engine Parts , 187420 Excavator Engine Parts , NTA855 Connecting Rod Bushing

Bearing 29586YA/22YA Taper Roller Bearing 29586YA/29522YA

Product Description

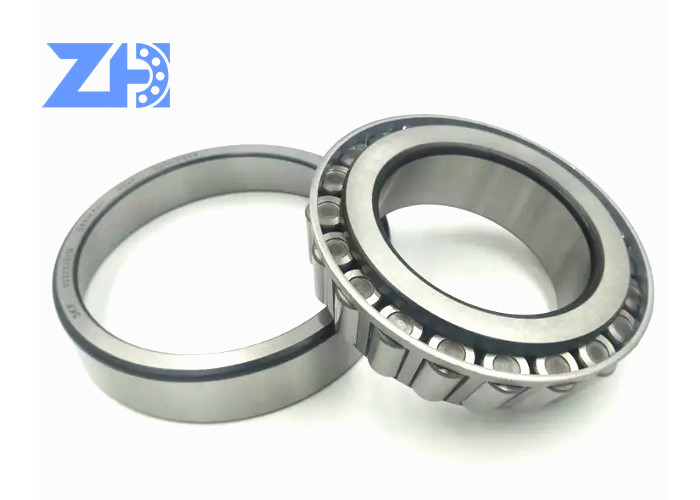

Tapered roller bearings consist of four basic components including: the cone (inner ring), the cup (outer ring), tapered rollers, and a cage (roller retainer). The cone, cup and rollers carry the load while the cage spaces and retains the rollers on the cone. The cone, rollers and cage components of our tapered roller bearings are referred to as the cone assembly. Individual cup and cone components of our tapered roller bearings are available as well as the complete assembly. In addition, We offers a variety of configurations to our tapered roller bearings such as single-row, double-row

29586-29522 Tim ken, Imperial Taper Roller Bearing

Manufacturer: Tim ken

Inner Cone Code -29586

Outer Cup Code -29522

Seals/Shields: None

Quality: Premium

Alternative Product Codes:29586YA/29522YA, 29586/22

Dimensions (Metric): 63.5×107.95×25.4 mm

(Inch): 2.5×4.25×1

Inside Diameter (d): 63.5mm / 2.5″

Outside Diameter (D): 107.95mm / 4.25″

Width (T): 24.5mm / 1″

Cup Width (C): 19.05mm / 0.75

Width (B): 24.5mm / 1″

Bearing	Taper Roller Bearing 29586YA/22YA
Appliexcavatorion / Structure	Automobile Bearing / Tapered Roller Bearing
Size ( d x D x T ) mm	63.5×107.95×25.4 mm 2.5×4.25×1
Weight /Mass (KG)	0.93 kg
Contact Person	jessi
Type	Single row
Material	Chrome steel/GCR15
Payment	30% T/T In Advance, 70% T/T before shipment
Brand	USA TIM KOYO ..As you want famous brand

Detailed Images

he koyo bearings models given as below in Stock:

Boundary dimensions				Mass	Bearing NO.
(mm)				(kg)	Bearing NO.
d	D	T	B		LSBC
61.912	136.525	46.038	46.038	3.47	H715334/H715311
61.912	139.7	46.038	46.038	3.65	H715334/H715310
61.912	146.05	41.275	39.688	3.13	H913842/H913810
61.912	146.05	41.275	39.688	3.11	H913843/H913810
61.912	152.4	47.625	46.038	3.98	9180/9121
61.912	152.4	47.625	46.038	3.99	9181/9121
61.912	158.75	50.8	46.038	4.61	9181/9120
61.912	158.75	50.8	46.038	4.6	9180/9120
61.912	158.75	55.562	52.388	4.86	9178/9120
61.976	99.979	23.812	24.608	0.7	28990/28919
62.737	100	25.4	25.4	0.69	28995/28921
62.737	101.6	25.4	25.4	0.73	28995/28920
63.5	92.075	13.495	12.7	0.26	LL510749/LL510710
63.5	94.458	19.05	19.05	0.45	L610549/L610510
63.5	104.775	21.433	twenty two	0.68	39250/39412
63.5	107.158	twenty two	twenty two	0.77	39250/39422
63.5	107.95	25.4	25.4	0.91	29585/29520
63.5	107.95	25.4	25.4	0.92	29585/29522
63.5	107.95	25.4	25.4	0.92	29586/29520
63.5	107.95	25.4	25.4	0.93	29586/29522
63.5	110	twenty two	21.996	0.85	395/394
63.5	110	twenty two	21.996	0.83	395/394A
63.5	110	twenty two	21.996	0.82	395/394AS
63.5	110	twenty two	21.996	0.83	390A/394AS
63.5	110	twenty two	21.996	0.84	390A/394A
63.5	110	25.4	25.4	0.98	29585/29521
63.5	110	25.4	25.4	0.99	29586/29521
63.5	110	29.37	30.048	1.1	3982X/3927AS
63.5	110	30.162	30.048	1.13	3982/3927X
63.5	110.058	twenty two	twenty two	0.8	39250/39433
63.5	112.712	26.967	21.996	1.02	395/3920
63.5	112.712	30.162	30.048	1.23	3982/3920
63.5	112.712	26.967	21.996	1.03	390A/3920
63.5	112.712	30.162	30.048	1.24	3982/3925
63.5	112.712	30.162	30.162	1.23	39585/39520
63.5	112.712	30.162	30.162	1.24	39585A/39520
63.5	112.712	33.338	30.048	1.31	3982/3926
63.5	117.475	30.162	30.162	1.42	33251/33462
63.5	120	29.002	29.007	1.43	483/472A
63.5	120	29.002	29.007	1.44	477/472A
63.5	120	29.794	29.007	1.52	477/473
63.5	120	29.794	29.007	1.46	483/472
63.5	120	29.794	29.007	1.47	477/472
63.5	122.238	38.1	38.354	1.95	HM212046/HM212010
63.5	122.238	38.1	38.354	1.94	HM212047/HM212010
63.5	130	36.937	36.17	2.21	565-S/562X
63.5	122.238	38.1	38.354	1.94	HM212047/HM212011
63.5	123.825	30.162	29.007	1.6	483/472X
63.5	122.238	43.658	43.764	2.27	5564/5535
63.5	122.238	43.658	43.764	2.28	5584/5535
63.5	123.825	38.1	36.678	2.03	559/552
63.5	122.238	38.1	38.354	1.95	HM212046/HM212011
63.5	123.825	38.1	36.678	1.98	559/552A
63.5	127	36.512	36.17	2.09	565/563
63.5	127	36.512	36.512	2.09	HM813842/HM813811
63.5	127	36.512	36.512	2.09	HM813842/HM813810
63.5	127	36.512	36.512	2.09	HM813842A/HM813810
63.5	130	36.937	36.17	2.24	565/562X
63.5	130	41.275	41.275	2.48	639/633X
63.5	130.175	41.275	41.275	2.49	639/633
63.5	135.755	53.975	56.007	3.69	6382/6320
63.5	136.525	36.512	33.236	2.28	78250/78537
63.5	136.525	36.512	33.236	2.38	78248C/78537
63.5	136.525	41.275	41.275	2.83	639/632
63.5	136.525	41.275	41.275	2.82	H414235/H414210
63.5	136.525	41.275	41.275	2.78	H414236/H414210
63.5	136.525	46.038	46.038	3.41	H715336/H715311
63.5	139.7	46.038	46.038	3.59	H715336/H715310
63.5	140.03	36.512	33.236	2.42	78250/78551
63.5	149.225	53.975	54.229	4.84	6475/6420
63.5	150.089	44.45	46.672	4.17	745-S/742
63.5	177.8	56.642	53.975	6.79	HH914447/HH914412
64.96	149.225	41.275	41.275	3.58	656/652A
64.96	149.225	53.975	54.229	4.77	6464/6420
64.963	127	36.512	36.17	2.04	569/563
64.987	107.95	25.4	25.4	0.88	29588/29520
64.987	112.712	30.162	30.924	1.21	39586/39520
64.987	119.985	32.75	30.924	1.55	39586/39528
64.987	140.03	36.512	32.923	2.37	78255X/78551
64.987	144.983	36	32.923	2.52	78255X/78571

Packing :

1. Industrial packing

2. Single box +carton +pallets /case

3. According to customers demand

Delivery time :

1. Generally after payment: within 3 days .

2. If need produce , about 30 days

Payment

A less USD1000 , 100% T/T in advance .

1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and trader .

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
