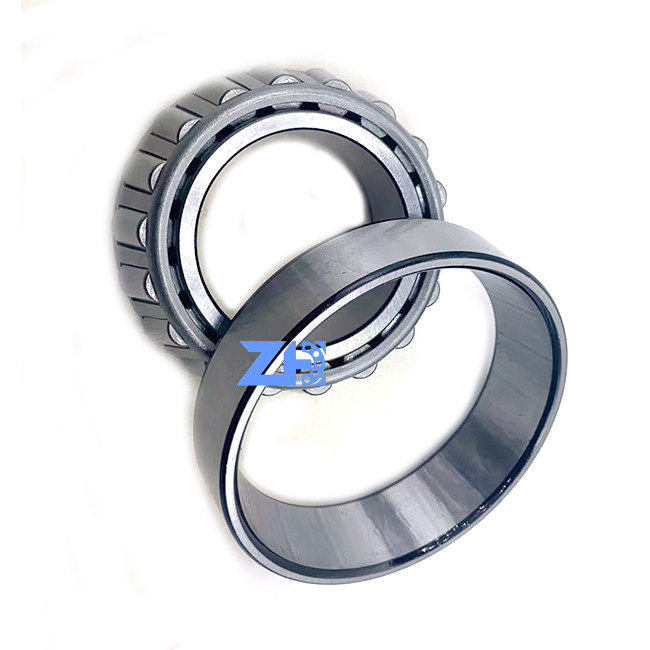

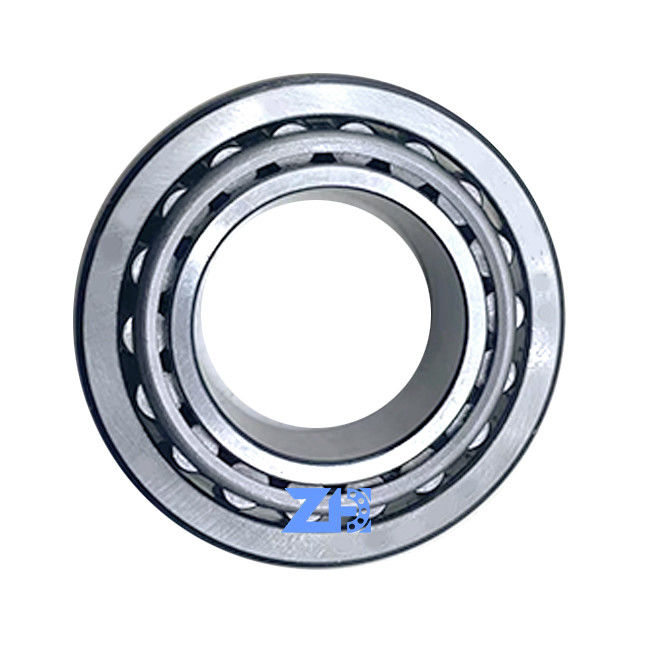

25584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard

25584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard

  • 25584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard
  • 25584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard
25584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard
Product Details:
Place of Origin: China
Brand Name: ZH
Model Number: 25584-25520
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiable
Packaging Details: neutral packing
Delivery Time: 2-5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 pieces/month
Contact Now
Detailed Product Description
Model Number: 25584-25520 Number Of Row: Single Column
Quality: Good Quality Color: Gray
Size: 44.983 *82.931 *25.4MM Material: CHROME STEEL
High Light:

JCM921 Excavator Hydraulic Sspare Part

,

JCM921 Swivel Joint Assembly

25584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard



Product Description



Product name 25584-25520
Material CHROME STEEL
Number Of Row single column
quality Good quality
Place of Origin China
Payment T/T Paypal Western Union Trade assurance
Packing bags,carcon box,wooden case or as requested




R25/26 SF4019PX1 SF4852PX1
R25/26 BA200-6A(SF4021) BA245-2
SF3240 SF3227PX1/SF3215 245BA35
BA195-3 165BA210/AC3321 BA246-1SA
SF4852/SF4815 BD165-6A(3321) BA246-2SA/SF4903


 25584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard 025584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard 1

structure in size

25584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard 2



Dimensions

d - Bore

1.7710 in44.983 mm

D - Cup Outer Diameter

3.2650 in82.931 mm

B - Cone Width

1 in25.4 mm

C - Cup Width

0.7500 in19.050 mm

T - Bearing Width

0.9375 in23.813 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius1 0.06 in1.5 mm
r - Cup Backface "To Clear" Radius2 0.03 in0.76 mm

da - Cone Frontface Backing Diameter

2.01 in51 mm

db - Cone Backface Backing Diameter

2.09 in53.0 mm

Da - Cup Frontface Backing Diameter

3.05 in77.00 mm

Db - Cup Backface Backing Diameter

2.91 in73.91 mm

Ab - Cage-Cone Frontface Clearance

0.06 in1.5 mm

Aa - Cage-Cone Backface Clearance

0.01 in0.3 mm
a - Effective Center Location3 -0.25 in-6.4 mm



25584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard 3

We can provide different types of deep groove ball bearings, including bearings, cylindrical roller deep groove ball bearings, tapered roller deep groove ball bearings, self-aligning ball deep groove ball bearings, angular contact ball deep groove ball bearings, thrust ball deep Groove ball bearings, thrust roller deep groove ball bearings, deep groove ball bearings with housings, needle roller deep groove ball bearings, joint deep groove ball bearings, high temperature resistant deep groove ball bearings, stainless steel deep groove ball bearings, plastic Deep groove ball bearings, ceramic deep groove ball bearings, adapter sleeves, linear deep groove ball bearings



Q1: I know only the excavator model, but can not offer parts No., what should I do ?
A1: If possible, you can send us the old photo, nameplate or the size for reference.


Q2: What is the warranty of the parts after I purchase?
A2: The warranty is 6/12 Months based on the item details.


Q3: How can I pay the order?
A3: We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.


Q4: When will get the items after I place order?
A4: Once your payment is confirmed, we will arrange the goods within 24 hours, if not in stock ,we will inform you before placing the order.


Q5: How can I do if there is something wrong with the items?
A5: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide the old photo for us. After it is confirmed, pls return to us , we will offer the correct item.


Q6: What is your main products?
A6: We are specialized in the excavator spare parts, such as travel motor gearbox/assy/parts, swing gearbox/assy/motor/parts, hydraulic pump assy/parts, gear parts. If you need other excavator parts, we also can supply as your requirements.
