Place of Origin:
CHINA
Brand Name:
ZH
Certification:
IS09001
Model Number:
32206

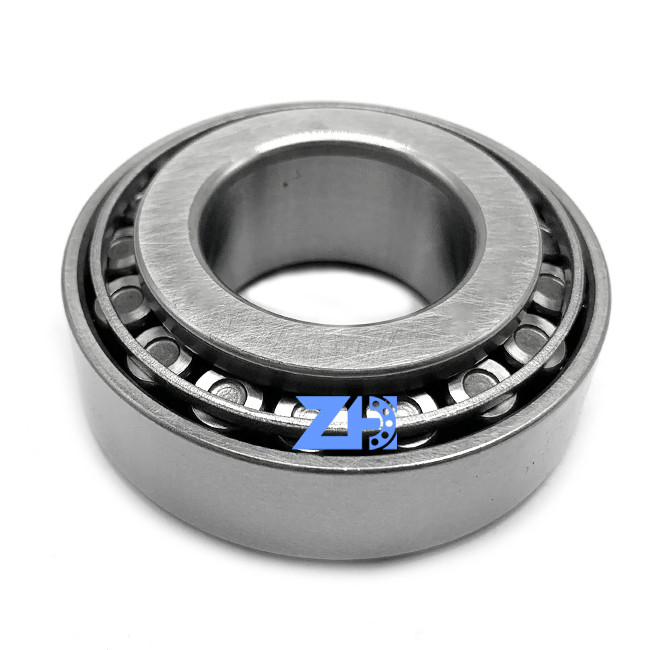

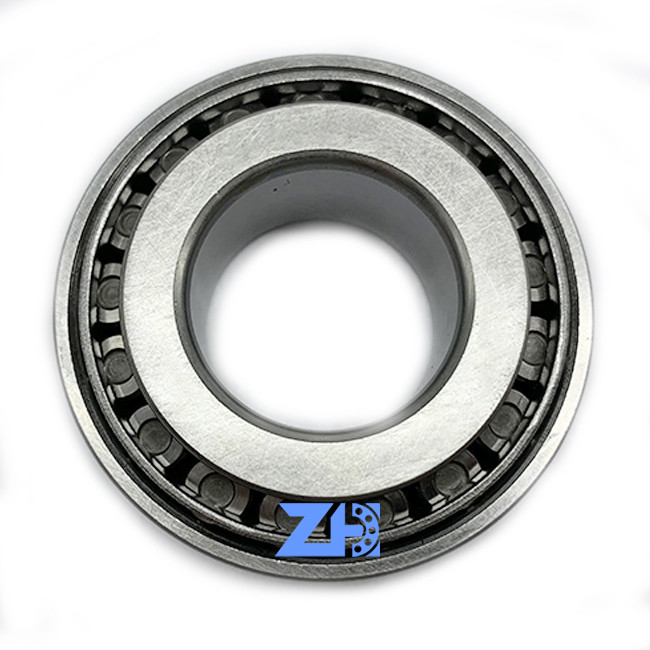

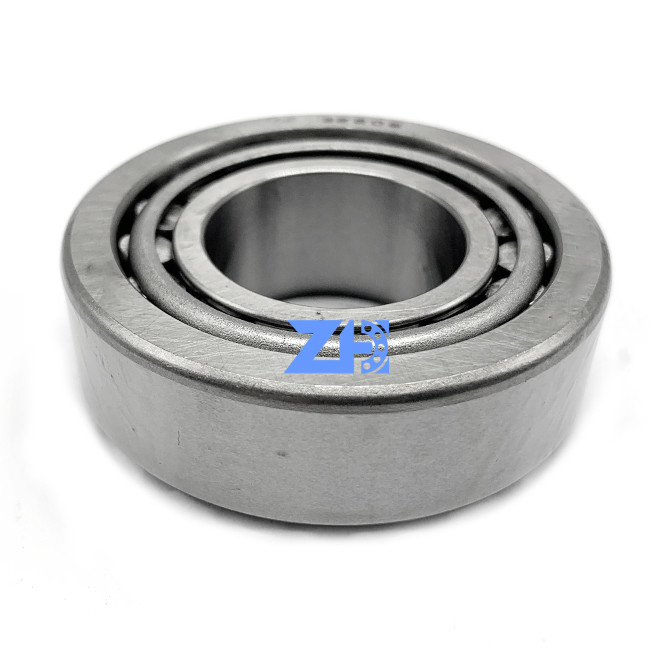

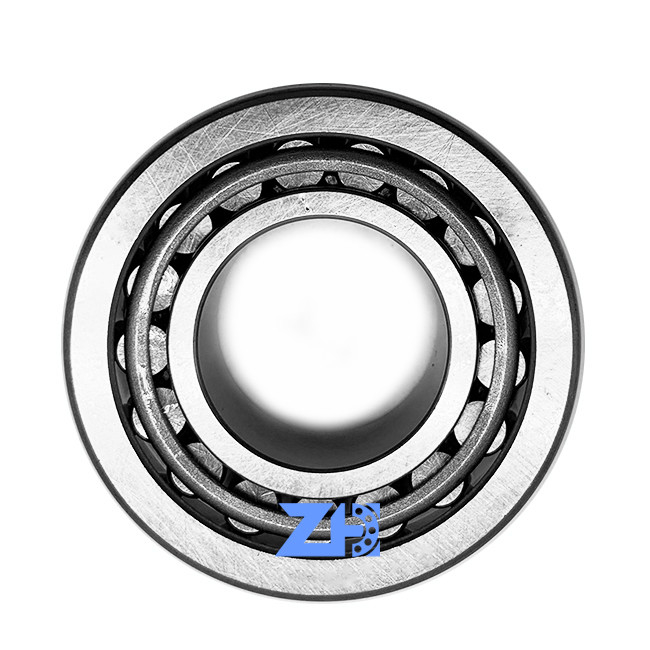

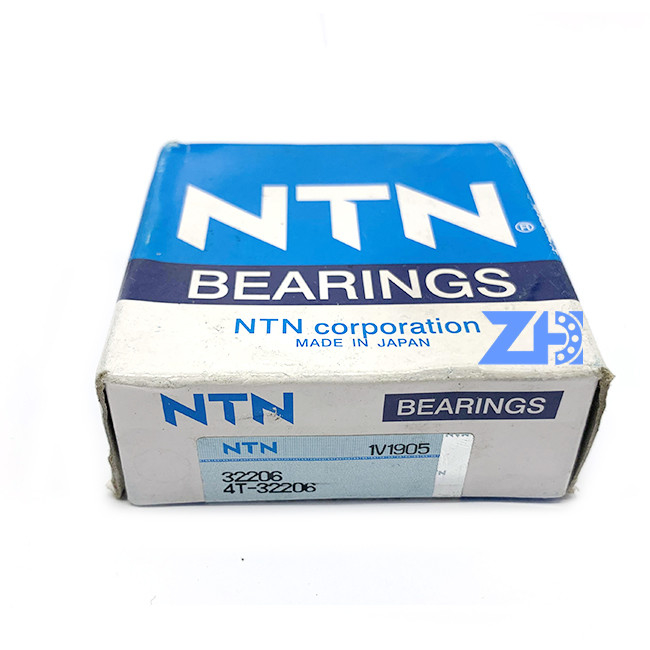

P0 P6 P5 P4 P3 QUALITY LEVER 32206 32206D 32206P6X 3206X2B 32206JR 32206DJR CHROME STEEL TAPPER ROLLER BEARING
| PRODUCT DEFINITION | |
|---|---|
| Brand | ZH |
| d - Internal diameter | 30 mm |
| D - External diameter | 62 mm |
| B - Bearing/Inner ring width | 16 mm |
| C - Outer ring width | 17 mm |
| T - Total width | 21,25 mm |
| d1 - External diameter inner ring | 45,5 mm |
| a - Charge load application point | 15,65 mm |
| rs - Min fillet radius | 1 mm |
| r1s - Min fillet radius | 1 mm |
| Mass | 0,21kg |
| ISO 355 reference | T3DC030 |
| PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load | 54,3 kN |
| A2 - Rating life coefficient | 1 |
| C0 - Static load | 63,7 kN |
| Cu - Fatigue limit load | 7,8 kN |
| e - Coefficient | 0.37 |
| Y0 - Static axial load coefficient | 0.88 |
| Y2 - Upper axial load coefficient | 1.6 |
| Nref - Reference thermal speed | 6700 tr/min |
| Nlim - Mechanical Limit Speed | 12000 tr/min |
| Tmin - Min operating temperature | -40 °C |
| Tmax - Max operating temperature | 120 °C |
| BEARING FREQUENCIES | |
|---|---|
| BPFO - Characteristic outer ring frequency (60 rpm) | 7,119 Hz |
| BPFI - Characteristic inner ring frequency (60 rpm) | 9,881 Hz |
| FTF - Characteristic cage frequency (60 rpm) | 0,419 Hz |
| BSF - Characteristic rolling element frequency (60 rpm) | 5,814 Hz |
WE CAN OFFER THESE 3220- MODEL
| 32201 | 32202 | 32203 |
| 32204 | 32205 | 32206 |
| 32207 | 32208 | 32209 |
Additive standard
| 2RS | Z | W | X2B |
| ZZ | Q | M | X |
| ZN | JQ | D | JR |
WE CAN OFFER THESE MODEL HYDRAILIC PUMP BEARINGS :
| HPV35 | HPV145 | K3V63DT | HPV95 | AP12 | A8V107 | K3V180DT | HPV091DW | A10VS063 |
| HPV75 | HPV116/145 | K3V63BDT | HPV95N | SBS140 | A8V115 | K5V140DTP | HPV091EW | .... |
| HPV55 | VRD63 | K3VL80DTP | HPV160 | SBS120 | A8V0107 | K5V160DTP | HPV091DS | |
| NVK45 | PVK-2B-505 | K5V80DTP | HPV132 | SBS80 | A8V0140 | K5V160DP | HPV091ES | |
| A8V055 | PVB92 | K3V112DT | HPV140 | AP2D25 | A8V0160 | K5V200DTH | HPV091/102 | |
| A8V86 | PSVD2-27 | K3V112DP | HPV165 | AP2D36 | A8V0200 | K5V200DPH | HPV0102 | |
| A8V0107 | K5V80 | K3V112BDP | HPK055K | A10VD17 | A10VO28 | NV111 | HPV0118 | |
| K3SP36C | A10VS071 | K3V140DT | HPV050 | A10VD43 | PSVD2-55 52 | K7V63 | HPV116 |
FOR MORE DETAIL PLS CONTACT US
We can supply you all kinds of excavator spare parts as following:
Hydraulic Parts:
Hydraulic pump, Travel motor, Swing motor, Travel gearbox, Swing gearbox, Main control valve, Hydraulic cylinder assy, Gear pump, Pump regulator,etc.
Undercarriage Parts:
Track link and shoe assy, Track roller, Carrier roller, Idler, Sprocket, Track link guide, Track Adjuster assy, etc.
Excavator Attachments:
Bucket ,mud bucket,earth bucket, heavy duty rock bucket , skeleton bucket,hydraulic breaker, hydraulic quick coupler,ripper,etc.
Cabin Parts:
Excavator cabin, Cabin door, Side door panel, Cabin seat, Cabin glass, Engine cover, Tool box, Door lock, etc.
Electric Parts:
Controller, Monitor, Panel, Throttle motor, Solenoid valve, Wire harness, etc.
Engine Parts:
Cylinder block, Cylinder head, Crankshaft, Engine assy, Injector, Fuel injection pump, Oil pump, Feed pump, Oil cooler, Filter, Turbocharger, Starter motor, Alternator, Water pump, Fan blade, Liner kits, Bearings, Valves, Gasket kit, etc.
Other Parts:
Seal kit, Floating seal, Joystick, Foot pedal valve, O-ring box, Coupling, etc.
| FAQ |
| Q1: I want to buy your products, how can I pay? |
| A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. |
| Q2: How can you guarantee the quality? |
| A: If you meet with quality problem, we promise to replace goods or return your funds. |
| Q3: If we don’t find what we want on your website, what should we do? |
| A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing. |
| Q4: Can we buy 1 pc of each item for quality testing? |
| A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock |
Send your inquiry directly to us
