| Place of Origin: | CN |
| Brand Name: | ZH |
| Model Number: | JP16049/JP16010 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |

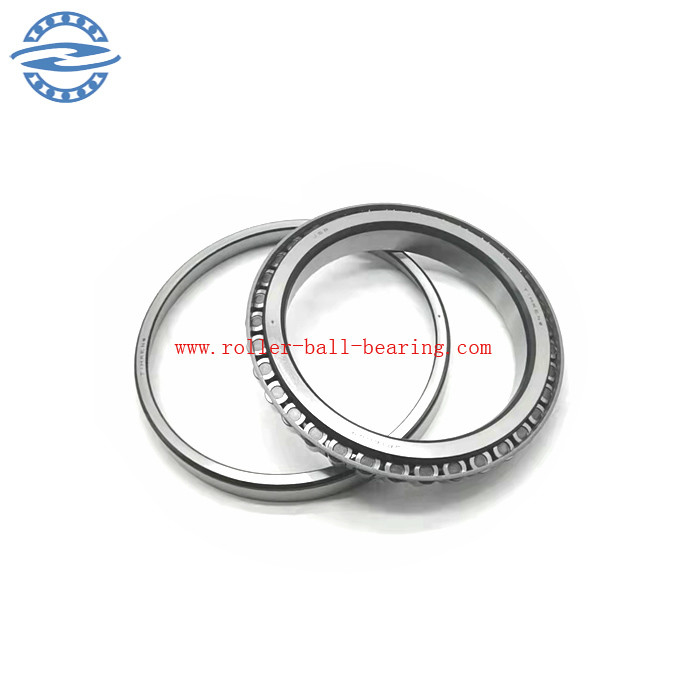

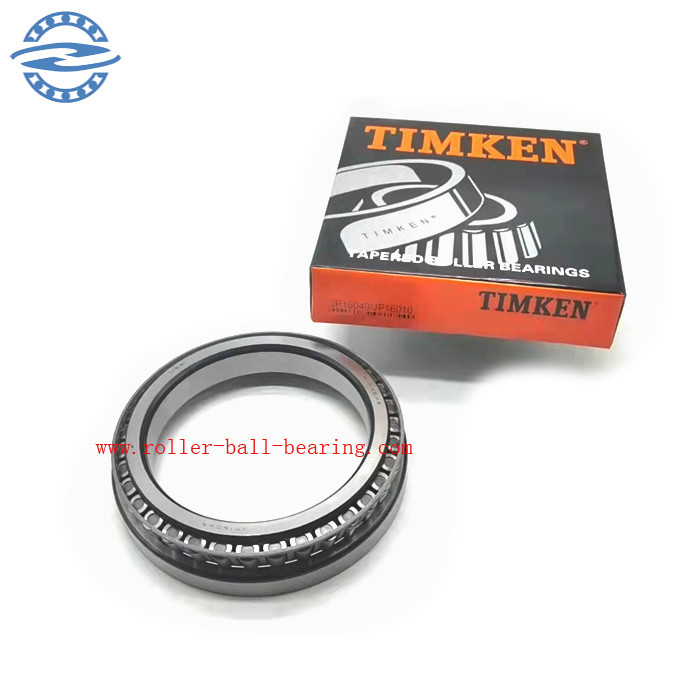

| Product Name: | Jp16049/Jp16010 | INNER DIAMETER: | 160 |
|---|---|---|---|
| OUTER DIAMETER: | 220 | WIDTH: | 32 |
| High Light: | Jp16049 Taper Roller Bearing,Jp16010 Taper Roller Bearing |
||
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
| Seals Types | 2RS,OPEN |
| Vibration Level | Z1V1,Z2V2,Z3V3 |
| Clearance | C2,C0,C3,C4,C5 |
| Tolerance Codes | ABEC-1,ABEC-3,ABEC-5 |
| Materral | GCr15-China/AISI52100-USA/Din100Cr6-Germany |
| MOQ | 1Set at least |
| Delivery Time | 15-45 days after contract |
| Payment Terms | TT/PAPAL/WESTERN UNION |
| Package | Tube package+outer carton+pallets; Single box+outer carton+pallets; Tube packge+middle box+outer carton+pallets; According to your requirement |
| Bearing 31304-31330 | Principal Dimensions (mm) | Mass | ||
| No. | d | D | B | kg |
| 31304 | 20 | 52 | 15 | 0.175 |
| 31305 | 25 | 62 | 17 | 0.26 |
| 31306 | 30 | 72 | 19 | 0.39 |
| 31307 | 35 | 80 | 21 | 0.52 |
| 31308 | 40 | 90 | 23 | 0.72 |
| 31309 | 45 | 100 | 25 | 0.95 |
| 31310 | 50 | 110 | 27 | 1.2 |
| 31311 | 55 | 120 | 29 | 1.55 |
| 31312 | 60 | 130 | 31 | 1.9 |
| 31313 | 65 | 140 | 33 | 2.35 |
| 31314 | 70 | 150 | 35 | 2.95 |
| 31315 | 75 | 160 | 37 | 3.5 |
| 31316 | 80 | 170 | 39 | 4.05 |
| 31317 | 85 | 180 | 41 | 4.6 |
| 31318 | 90 | 190 | 43 | 5.9 |
| 31319 | 95 | 200 | 45 | 6.95 |
| 31320 | 100 | 215 | 51 | 8.6 |
| 31321 | 105 | 225 | 53 | 9.65 |
| 31322 | 110 | 240 | 57 | 12 |
| 31324 | 120 | 260 | 62 | 15.3 |
| 31326 | 130 | 280 | 66 | 19.1 |
| 31328 | 140 | 300 | 70 | 23 |
| 31330 | 150 | 320 | 75 | 28 |
