Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | QIEAL ZH |
| Model Number: | CUP208 |
| Certifiexcavatorion: | ISO-9001 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Negotiation |
| Delivery Time: | 5-10 work days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 500 per day |
| Type: | Pillow Block | Applicable Industries: | Machinery Repair Shops |
|---|---|---|---|
| Material: | Gcr15 | Lubriexcavatorion: | Grease |
| Weight: | 1,89 KGS | Inner Diameter [d: | 8 |
| A: | 54 Mm | L: | 184 Mm |
| H: | 100 Mm | H1: | 49,2 Mm |
| J: | 137 Mm | N: | 19 Mm |
| High Light: | UCP208 Insert Ball Bearing,40mm Insert Ball Bearing |
||

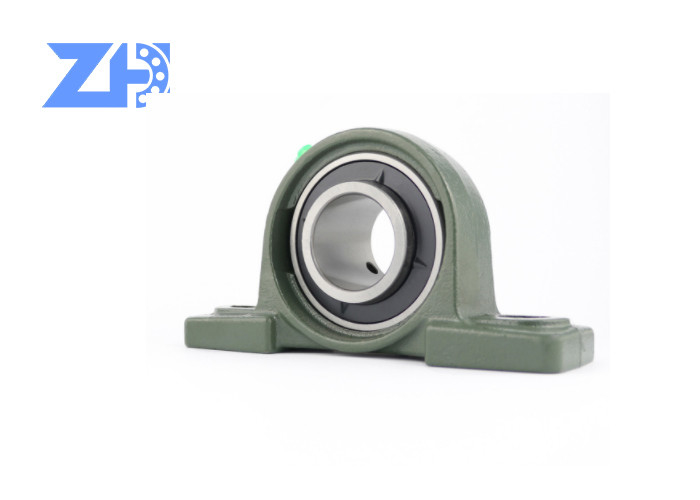

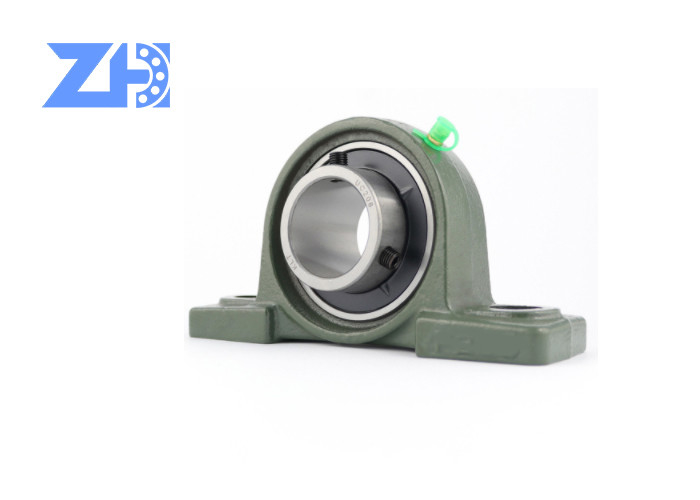

Insert Ball Bearing UCP208 40mm Pillow Block Housed Bearing Unit UCP 208
| d | 40 mm | |
| L | 184 mm | |
| H2 | 98 mm |
| A | 54 mm | |
| B | 49,2 mm | |
| H | 49,2 mm | |
| H1 | 18 mm | |
| J | 137 mm | |
| N | 17 mm | |
| N1 | 21 mm | |
| S1 | 30,2 mm |
| m | 1,84 kg | Mass |
| P208 | Designation, housing | |
| UC208 | Designation, radial insert ball bearing |
Other Pillow Block Bearing :
| Bearing Type | Length(mm) | Width(mm) | Thickness(mm) | Weight(kg) |
| UCP201 | 127 | 38 | 60.7 | 0.760 |
| UCP202 | 127 | 38 | 60.7 | 0.740 |
| UCP203 | 127 | 38 | 60.7 | 0.720 |
| UCP204 | 127 | 38 | 64 | 0.700 |
| UCP205 | 140 | 38 | 69.5 | 0.760 |
| UCP206 | 160 | 44 | 82 | 1.250 |
| UCP207 | 167 | 48 | 92 | 1.550 |
| UCP208 | 180 | 52 | 98 | 1.84 |
| UCP209 | 189 | 54 | 106 | 2.200 |
| UCP210 | 204 | 57 | 112 | 2.750 |
| UCP211 | 217 | 60 | 125 | 3.300 |
| UCP212 | 238 | 66 | 137 | 4.700 |
| UCP213 | 262 | 70 | 149 | 5.600 |
| UCP214 | 266 | 72 | 155 | 6.600 |
| UCP215 | 274 | 74 | 162 | 7.300 |
1. UCP pillow blocks are suggested for industrial appliexcavatorions where normal loads are encountered.
2. Compact, one-piece housing with two-bolt mounting can be installed in any position and makes bearing replacement easy.
3. These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
4.UCP series housed units feature the set screw locking (UC) bearing insert.
5. Bearing prelubriexcavatored and ready for immediate installation.
6. Grease fitting supplied for relubriexcavatorion.
7. The bonded seal design is well-suited for appliexcavatorions involving wet or dirty environments.
8. Bolt-hole spacing and base-to-center height dimensions are interchangeable with competitive units.
9. Housing designed for ease of bearing replacement.
