2580/2520 2580-2520 single row tapered roller bearings easy disassembly assembly Large axial load capacity

2580/2520 2580-2520 single row tapered roller bearings easy disassembly assembly Large axial load capacity

  • 2580/2520 2580-2520 single row tapered roller bearings easy disassembly assembly Large axial load capacity
  • 2580/2520 2580-2520 single row tapered roller bearings easy disassembly assembly Large axial load capacity
2580/2520 2580-2520 single row tapered roller bearings easy disassembly assembly Large axial load capacity
Product Details:
Place of Origin: CHINA
Brand Name: ZH
Model Number: 2580/2520 2580-2520
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: neutral packing ,standard exporting packing or as required
Delivery Time: 5-8 work day
Payment Terms: T/T, Western Union,,
Supply Ability: 1000
Contact Now
Detailed Product Description
Product Name: 2580/2520 2580-2520 Number Of Row: Single Column
Quality: High Quality Size: Standard Size
Color: Silver Material: CHROME STEEL
Place Of Origin: China Packing: Neutral Packing

2580/2520 2580-2520 single row tapered roller bearings easy disassembly assembly Large axial load capacity



Product Name 2580/2520 2580-2520
Number Of Row single column
Material CHROME STEEL
Place Of Origin China
Payment T/T Paypal Western Union Trade assurance
Payment Methods Bank / Western Union / Paypal



other products



BD155-6 SF4007PX1 BA222-1WSA
SF3235
/SF3240
SF4007PX1 BA222-5WSA
SF3235 SF4019PX1 BA4531
SF3227PX1 BA200-6A(SF4021) BA230-7ASA(AC4630)
SF3227PX1/SF3215 BA200-7SA AC4629
165BA210/AC3321 BA200-10 BA230-2
BD165-6A(3321) BA205-1 BA160-432348



Schematic and Dimensions

2580/2520 2580-2520 single row tapered roller bearings easy disassembly assembly Large axial load capacity 0

Specifications

Series

2500

Cone Part Number

2580

Cup Part Number

2520

Design Unit

Inch

Cage Material

Stamped Steel

Dimensions

d - Bore

1 1/4 in31.750 mm

D - Cup Outer Diameter

2.6150 in66.421 mm

B - Cone Width

0.9983 in25.357 mm

C - Cup Width

0.8125 in20.638 mm

T - Bearing Width

1.0000 in25.400 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius1 0.03 in0.8 mm
r - Cup Backface "To Clear" Radius2 0.13 in3.3 mm

da - Cone Frontface Backing Diameter

1.48 in37.5 mm

db - Cone Backface Backing Diameter

1.52 in38.5 mm

Da - Cup Frontface Backing Diameter

2.48 in62.99 mm

Db - Cup Backface Backing Diameter

2.24 in56.90 mm

Ab - Cage-Cone Frontface Clearance

0.06 in1.5 mm

Aa - Cage-Cone Backface Clearance

0.02 in0.5 mm
a - Effective Center Location3 -0.34 in-8.6 mm

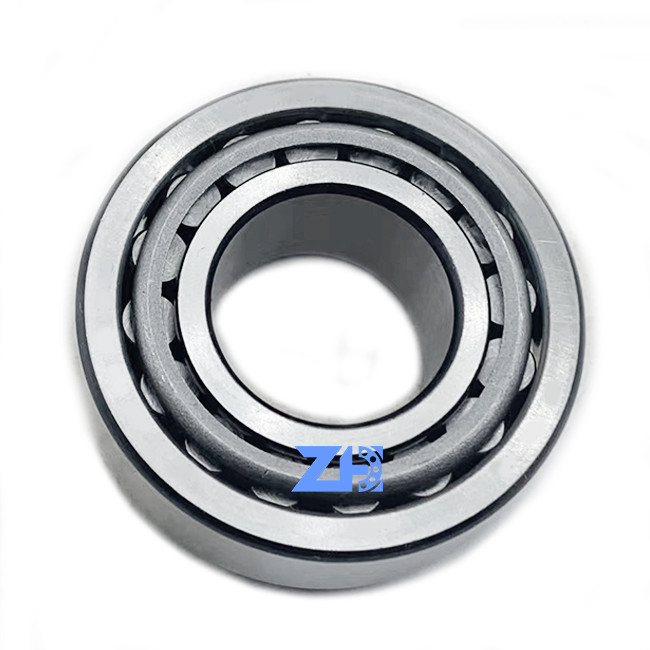

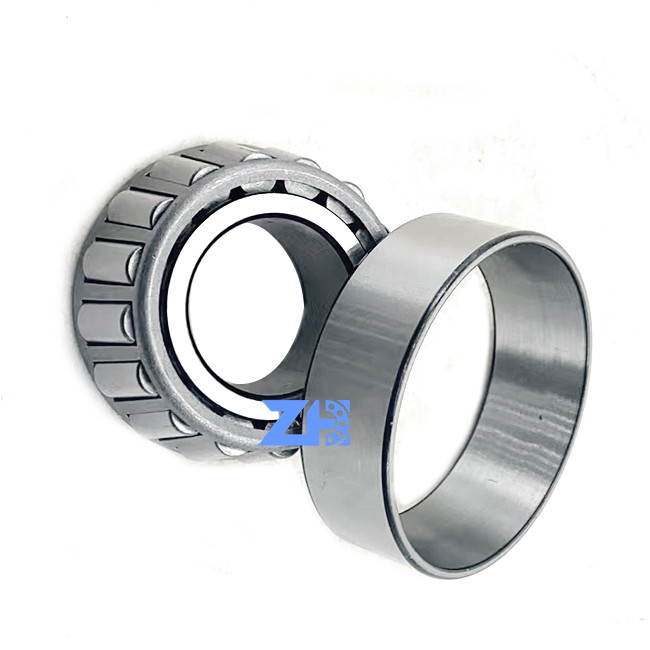

Product Image

2580/2520 2580-2520 single row tapered roller bearings easy disassembly assembly Large axial load capacity 12580/2520 2580-2520 single row tapered roller bearings easy disassembly assembly Large axial load capacity 2
