Good quality Taper Roller Bearing HM926745-924710 HM926745-924710RS V3 V5 12822549 goood Material

Product Details:

Place of Origin:	CHINA
Brand Name:	ZH
Certification:	IS09001
Model Number:	HM926745-924710

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	interview
Packaging Details:	neutral packing ,standard exporting packing or as required
Delivery Time:	5-8 work day
Payment Terms:	T/T, Western Union,,
Supply Ability:	30000 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	TAPPER ROLLER BEARING	Model:	HM926745-924710
MOQ:	1	Quality:	P0、P2、P4、p5、p6
Packaging:	Your Requirement	Material:	CHROME STEEL
Supply:	30000 Set/Sets Per Month	Size:	12822549
Weight:	13.26

HM926745-924710 HM926745-924710RS P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Taper Roller Bearing

Production introduction

The HM926745/HM926710 Timken is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The HM926745/HM926710 Timken is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.
Good quality Taper Roller Bearing HM926745-924710 HM926745-924710RS V3 V5 128*225*49 goood Material 0

Specifications

Series	HM926700
Cone Part Number	HM926745
Cup Part Number	HM926710
Design Unit	Inch
Cage Material	Stamped Steel

Dimensions

d - Bore	4.9330 in125.298 mm
D - Cup Outer Diameter	9.0000 in228.600 mm
B - Cone Width	1.9460 in49.428 mm
C - Cup Width	1.5000 in38.100 mm
T - Bearing Width	2.1250 in53.975 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius¹	0.14 in3.600 mm
r - Cup Backface "To Clear" Radius²	0.13 in3.3 mm
da - Cone Frontface Backing Diameter	5.63 in143 mm
db - Cone Backface Backing Diameter	6.06 in154 mm
Da - Cup Frontface Backing Diameter	8.64 in219.50 mm
Db - Cup Backface Backing Diameter	7.87 in199.90 mm
Ab - Cage-Cone Frontface Clearance	0.29 in7.4 mm
Aa - Cage-Cone Backface Clearance	0.31 in7.9 mm
a - Effective Center Location³	0.53 in13.5 mm

Basic Load Ratings

C90 - Dynamic Radial Rating (90 million revolutions)⁴	34200 lbf152000 N
C1 - Dynamic Radial Rating (1 million revolutions)⁵	132000 lbf586000 N
C0 - Static Radial Rating	151000 lbf673000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	43100 lbf192000 N

Factors

K - Factor⁷	0.79
e - ISO Factor⁸	0.74
Y - ISO Factor⁹	0.81
G1 - Heat Generation Factor (Roller-Raceway)	295.4
G2 - Heat Generation Factor (Rib-Roller End)	39
Cg - Geometry Factor¹⁰	0.142

Specifications

Availabilitypcs
BrandZH
Item NumberHM926745/HM926710 Timken
Also known asHM926745/710
HM926745-99401
CategoryTapered Roller Bearing Single Row

Weight and Dimensions

Outer (D) MM273,050
Outer (D) Inch10.7500
Weight (kg)13.26

Factory recommendation

T7FC055	NUP2207	4T-30307	30312	NUP307	30312D	30314D
32207	NUP207=120	NUP306	30312D	NUP2208	NUP2209	30312D
32205	NUP2209=160	NUP307	30312D	NUP2211	NUP2209	6008
T7FC060	NUP2207=140	HMK3525+IR	NUP310	NUP308	NUP2209	NUP307
NUP207	NUP2206=130	30309D	NUP308	NUP309	NUP2212	30311D
6213	NUP309=180	30210	NUP306	NUP309	NUP2212	T7FC055
NUP308	NUP309=180	30210	NUP307	NUP2212	NUP2211	NIP2310
NUP309	NUP310	30311D	NUP205E	30312D=155	30312D=155	NUP208E

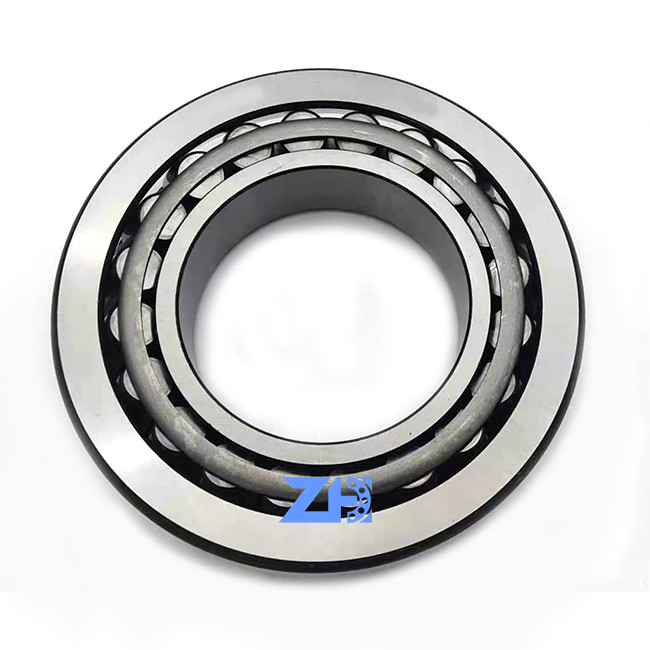

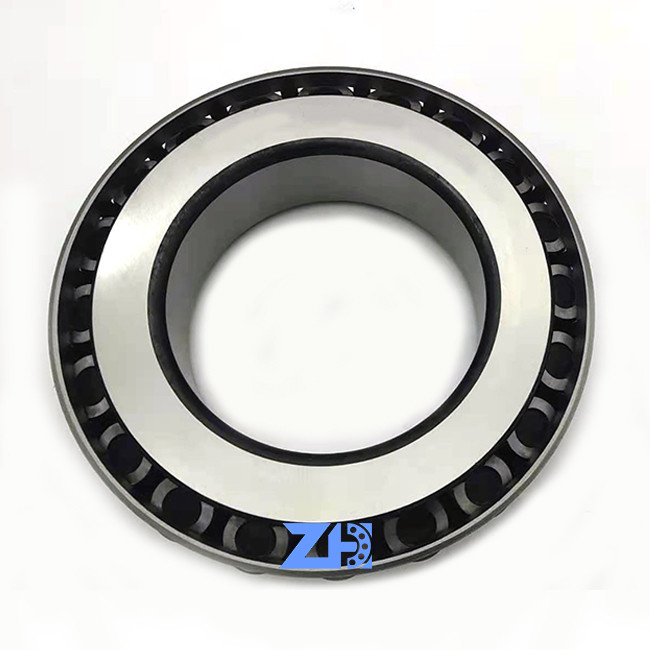

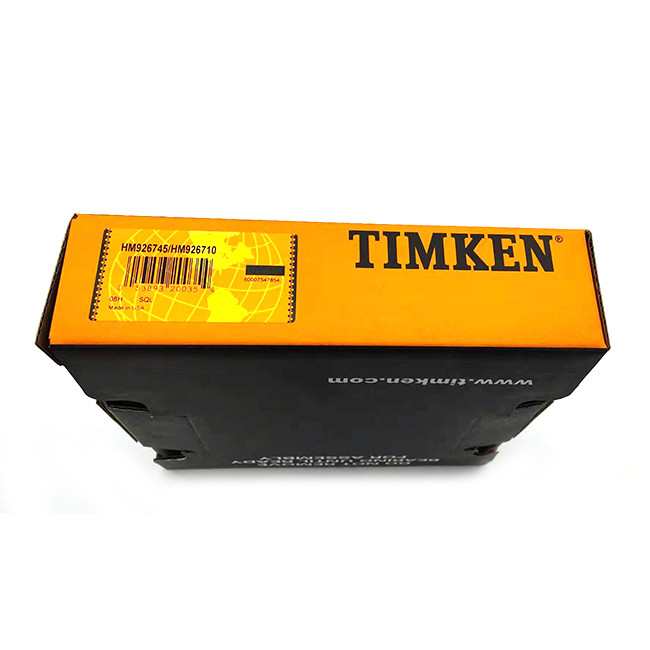

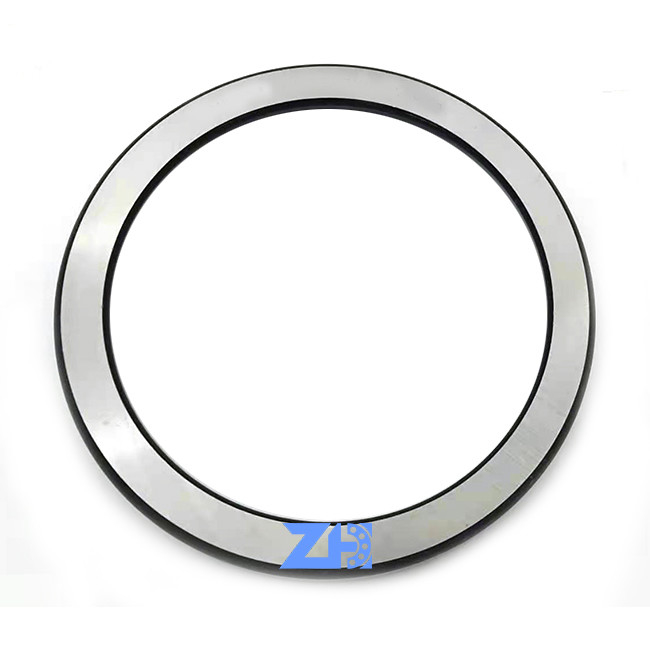

Picture show
Good quality Taper Roller Bearing HM926745-924710 HM926745-924710RS V3 V5 128*225*49 goood Material 1
