Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
JHM522649/JHM522610

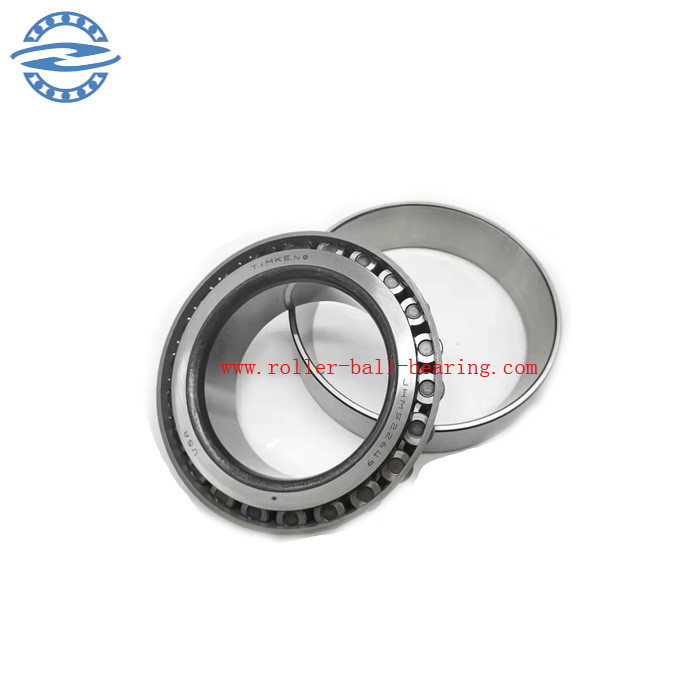

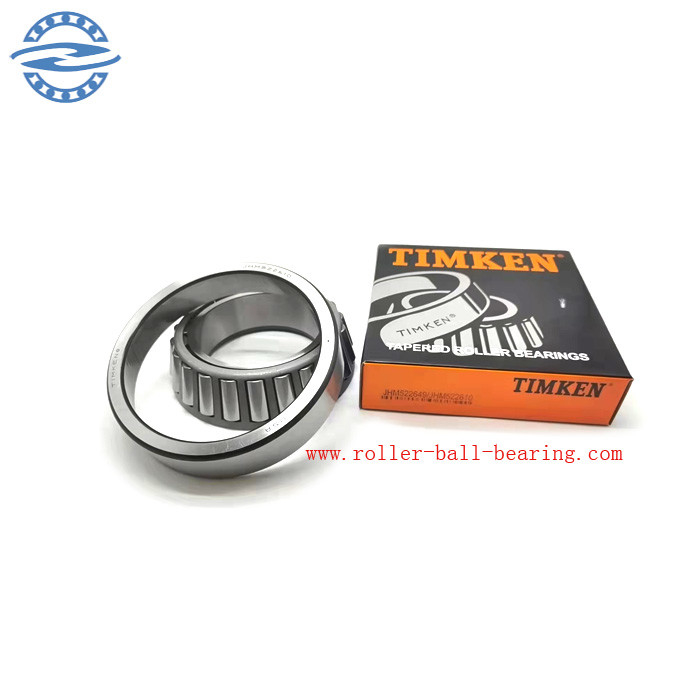

JHM522649/JHM522610 JHM522649/10 JHM522649 JHM522610Single Row Roller Bearing Size 110*180*47mm
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
| model | JHM522649-JHM522610 |
|---|---|
| d | 110 mm |
| D | 180 mm |
| T | 47 mm |
| a | 41 mm |
| B | 46 mm |
| C | 38 mm |
| Ca min | 5 mm |
| Cb min | 7 mm |
| Da min | 162 mm |
| Db min | 172 mm |
| d1 | 145 mm |
| da max | 169 mm |
| db min | 127 mm |
| r1,2 min | 3 mm |
| r3,4 min | 2.5 mm |
| ra max | 3 mm |
| rb max | 2.5 mm |
| Cr | 320000 N, Basic dynamic load rating, radial |
| C0r | 510000 N, Basic static load rating, radial |
| Limiting speed | 3750 1/min |
| Reference speed | 1/min |
| Cur | 58000 N, Fatigue limit load, radial |
| e | 0.41 |
| Y | 1.48 |
| Y0 | 0.81 |
| mass | 5.03 kg |
|
Tabela Referencia Cruzada de Rolamentos
|
|||||||
|
TIM
|
FAG
|
SKF
|
NSK
|
||||
|
TIMKEN
|
NAC
|
FAG
|
NAC
|
SKF
|
NAC
|
NSK
|
NAC
|
|
P/N
|
IMP
|
P/N
|
IMP
|
P/N
|
IMP
|
P/N
|
IMP
|
|
T138
|
IMP
|
532801C
|
NAC
|
||||
|
T144
|
IMP
|
532802C
|
NAC
|
||||
|
T152
|
IMP
|
576513
|
NAC
|
||||
|
T177XA
|
IMP
|
BFSB353118E
|
IMP
|
||||
|
368A/362A
|
NAC
|
805274
|
NAC
|
368A/362A/Q
|
IMP
|
368AR/362AR
|
IMP
|
|
368A/362X
|
NAC
|
368A/362X/Q
|
IMP
|
IMP
|
|||
|
387A/382A
|
NAC
|
K387A.382A
|
NAC
|
387ARG3/382ARG
|
IMP
|
||
|
482/472
|
IMP
|
482/Q/472/Q
|
IMP
|
||||
|
497/492A
|
IMP
|
K497.492A
|
NAC
|
497/K492A/Q
|
IMP
|
||
|
497/493
|
IMP
|
497/Q/493/Q
|
IMP
|
||||
|
498/492A
|
IMP
|
K498.492A
|
NAC
|
498/Q/492A/Q
|
IMP
|
||
|
537/532X
|
IMP
|
K537.532X
|
IMP
|
||||
|
559/552A
|
IMP
|
K559.552A
|
NAC
|
559R/552AR
|
IMP
|
||
|
580/572
|
NAC
|
K580.572
|
NAC
|
580/572/Q
|
IMP
|
580R/572R
|
IMP
|
