Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
30311

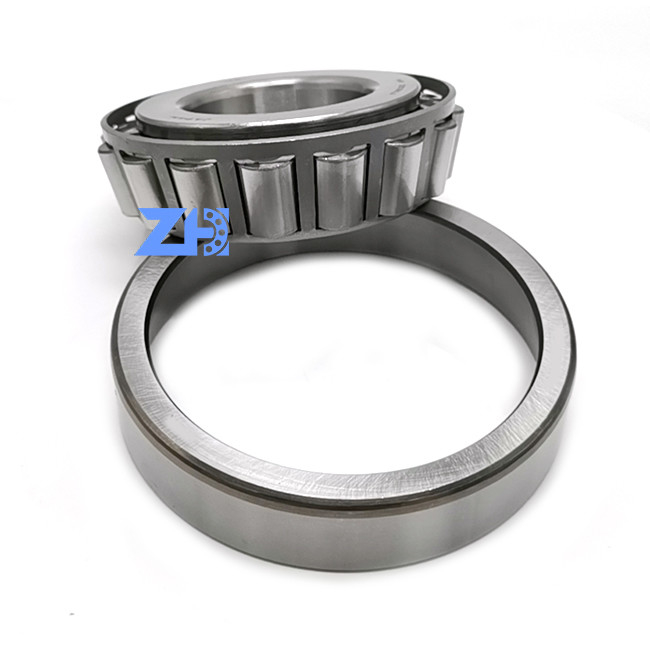

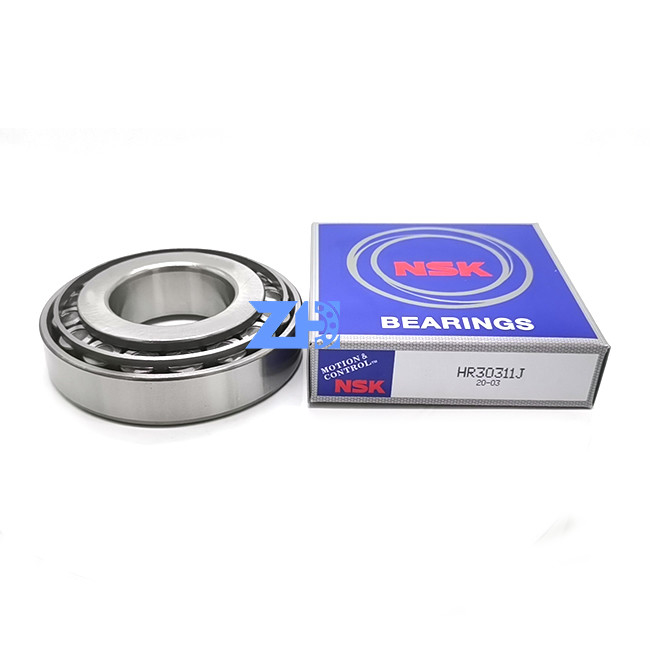

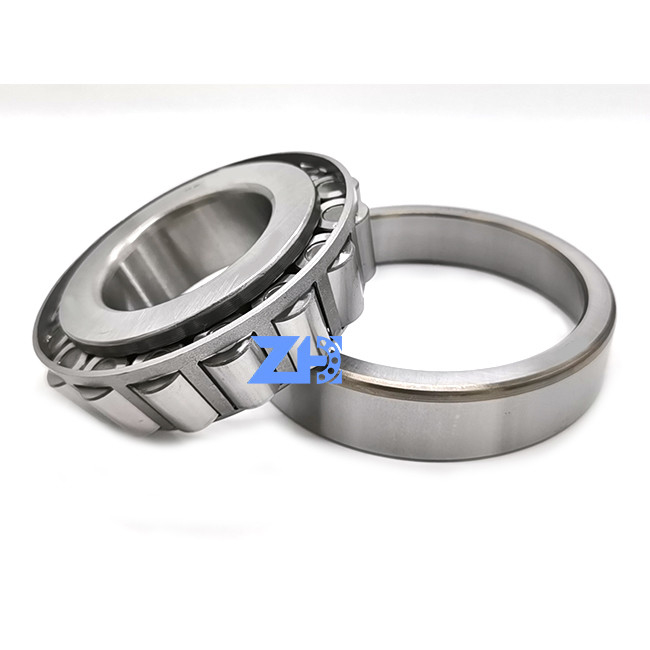

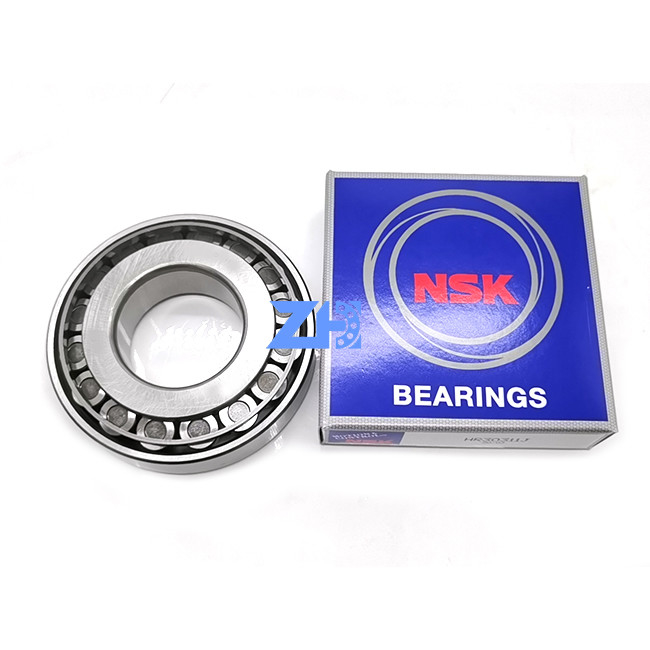

Professional production CHROME STEEL 30311 30311RS 30311C2 55*120*31.5mm TAPPER ROLLER BEARING
Product introduction
30311 ability of single row tapered roller bearing to bear axial load depends on the contact angle, that is,the outer ring raceway angle, the larger the angle, the greater the axial load capacity. Tapered roller bearings are mainly used to bear radial load mainly radial and axial combined load. Compared with the angular contact ball bearing,
Application of Inch tapered roller bearing:
Inch tapered roller bearings are widely used in automotive, rolling mills, mining, metallurgical,
plastic machinery, etc.
| Bore diameter | 55 mm |
| Outside diameter | 120 mm |
| Width, total | 31.5 mm |
| Width, inner ring | 29 mm |
| Width, outer ring | 25 mm |
| Contact angle | 12.953 ° |
| d |
55 mm
|
Bore diameter |
|---|---|---|
| D |
120 mm
|
Outside diameter |
| T |
31.5 mm
|
Total width |
| d1 |
≈84 mm
|
Shoulder diameter of inner ring |
| B |
29 mm
|
Width of inner ring |
| C |
25 mm
|
Width of outer ring |
| r1,2 |
min.2.5 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min.2 mm
|
Chamfer dimension of outer ring |
| a |
23.986 mm
|
Distance side face to pressure point |
| da |
max.72 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min.66.5 mm
|
Diameter of shaft abutment |
| Da |
min.104 mm
|
Diameter of housing abutment |
| Da |
max.110.5 mm
|
Diameter of housing abutment |
| Db |
min.111 mm
|
Diameter of housing abutment |
| Ca |
min.4 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min.6.5 mm
|
Minimum width of space required in housing on small side face |
| ra |
max.2.5 mm
|
Radius of shaft fillet |
| rb |
max.2 mm
|
Radius of housing fillet |
| Basic dynamic load rating | C |
176 kN
|
|---|---|---|
| Basic static load rating | C0 |
163 kN
|
| Fatigue load limit | Pu |
19.3 kN
|
| Reference speed |
4 800 r/min
|
|
| Limiting speed |
5 600 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y |
1.7
|
| Calculation factor | Y0 |
0.9
|
| da |
max.72 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min.66.5 mm
|
Diameter of shaft abutment |
| Da |
min.104 mm
|
Diameter of housing abutment |
| Da |
max.110.5 mm
|
Diameter of housing abutment |
| Db |
min.111 mm
|
Diameter of housing abutment |
| Ca |
min.4 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min.6.5 mm
|
Minimum width of space required in housing on small side face |
| ra |
max.2.5 mm
|
Radius of shaft fillet |
| rb |
max.2 mm
|
Radius of housing |
