Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | ZH |
| Model Number: | 30312 |
| Certifiexcavatorion: | IS09001:2008 |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Neutral packing |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 per day |
| Bearing Number: | 30312 | Bearing Name: | Tapered Roller Bearing |
|---|---|---|---|
| Appliexcavatorion: | Wide | Seal: | Open |
| Material: | GCR15 | Precision: | P0 P6 |
| High Light: | precision tapered roller bearings,tapered roller bearings |
||

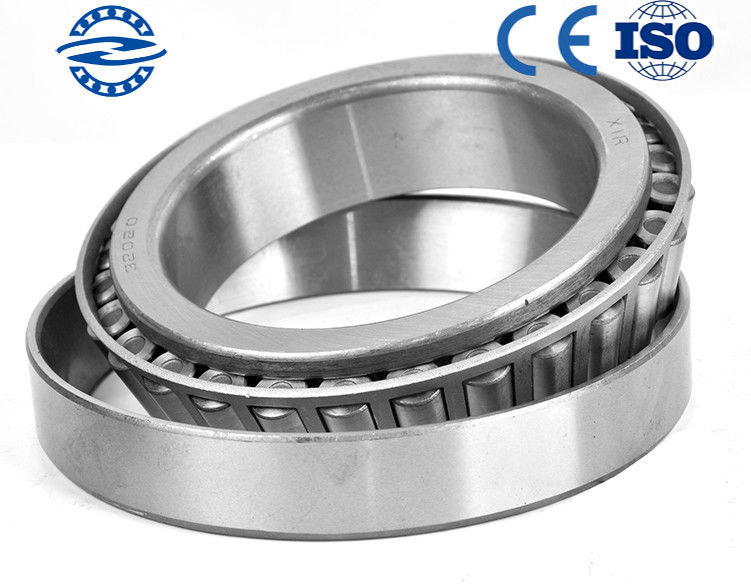

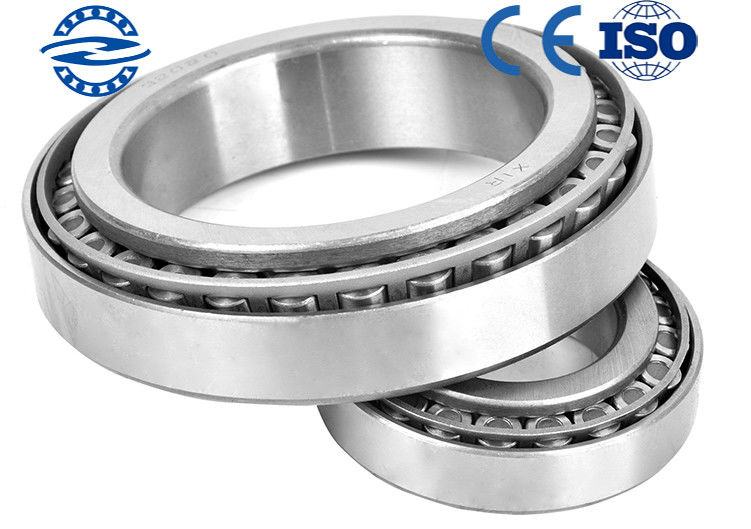

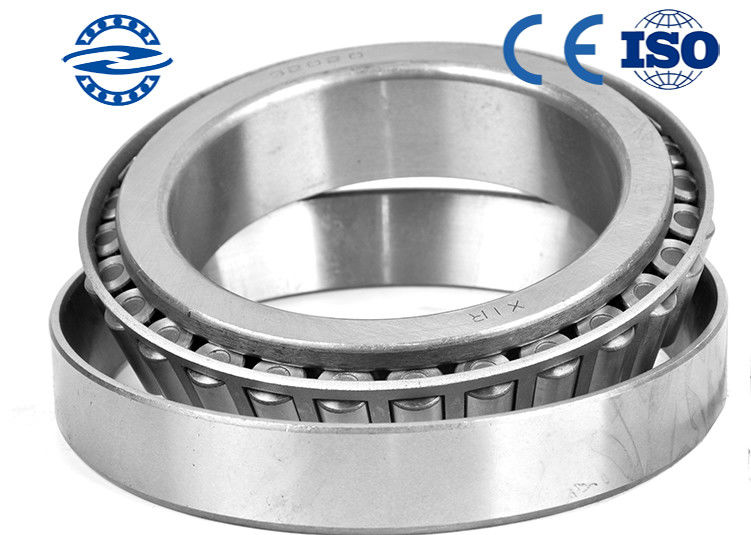

GCR15 30312 2kg Separable Taper Roller Bearing / Auto Wheel Bearings 60*130*33.5mm
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
Other type
| Single-Row Tapered Roller Bearings (metric) | |||||||||||
| Bearing No. | Boundary dimensions (mm) | Basic load ratings (KN) | Limiting speeds (rpm) | ||||||||
| d | D | T | B | C | r min | r1 min | Cr(KN) | Cor(KN) | Grease lub. | Oil lub | |
| 30302 | 15 | 42 | 14.25 | 13 | 11 | 1 | 1 | 21.9 | 19.2 | 10000 | 14000 |
| 30202 | 15 | 35 | 11.75 | 11 | 10 | 0.6 | 0.6 | 14.9 | 13.4 | 12000 | 16000 |
| 30203 | 17 | 40 | 13.25 | 16 | 11 | 1 | 1 | 20.8 | 20.7 | 10000 | 14000 |
| 30303 | 17 | 47 | 17.25 | 14 | 12 | 1 | 1 | 27.4 | 24.5 | 9200 | 12000 |
| 32303 | 17 | 47 | 15.25 | 19 | 16 | 1 | 1 | 31.9 | 29.9 | 9400 | 13000 |
| 32004 | 20 | 42 | 15 | 15 | 12 | 0.6 | 0.6 | 27.3 | 31.5 | 9700 | 13000 |
| 30204 | 20 | 47 | 15.25 | 14 | 12 | 1 | 1 | 27 | 27.2 | 8700 | 12000 |
| 32204 | 20 | 47 | 19.25 | 18 | 15 | 1 | 1 | 33.1 | 34.7 | 8900 | 12000 |
| 30304 | 20 | 52 | 16.25 | 15 | 13 | 1.5 | 1.5 | 35 | 33.5 | 7500 | 10000 |
| 32304 | 20 | 52 | 22.25 | 21 | 18 | 1.5 | 1.5 | 45.1 | 46.7 | 8400 | 11000 |
| 320/22 | 22 | 44 | 15 | 15 | 11.5 | 0.6 | 0.6 | 28.3 | 33.6 | 9100 | 12000 |
| 30305 | 25 | 62 | 18.25 | 17 | 15 | 1.5 | 1.5 | 48.2 | 46.9 | 6800 | 9000 |
| 30305D | 25 | 62 | 18.25 | 17 | 13 | 1.5 | 1.5 | 41.5 | 45 | 5700 | 8000 |
| TR0506R | 25 | 62 | 18.25 | 17 | 14 | 1.5 | 1.5 | 45 | 45.8 | 6700 | 9000 |
| 33205 | 25 | 52 | 22 | 22 | 18 | 1 | 1 | 48.9 | 58.5 | 7900 | 1000 |
| 30205 | 25 | 52 | 16.25 | 15 | 13 | 1 | 1 | 31.5 | 33.7 | 7800 | 10000 |
| 32005 | 25 | 47 | 15 | 15 | 11.5 | 0.6 | 0.6 | 30.2 | 37.7 | 8300 | 11000 |
| 33005 | 25 | 47 | 17 | 17 | 14 | 0.6 | 0.6 | 27.5 | 37 | 8000 | 10700 |
Packing
Industry package: Plastic paper + Carton + Pallet / Plywood box
Contact Person: Xiao
Tel: +8613561495066
