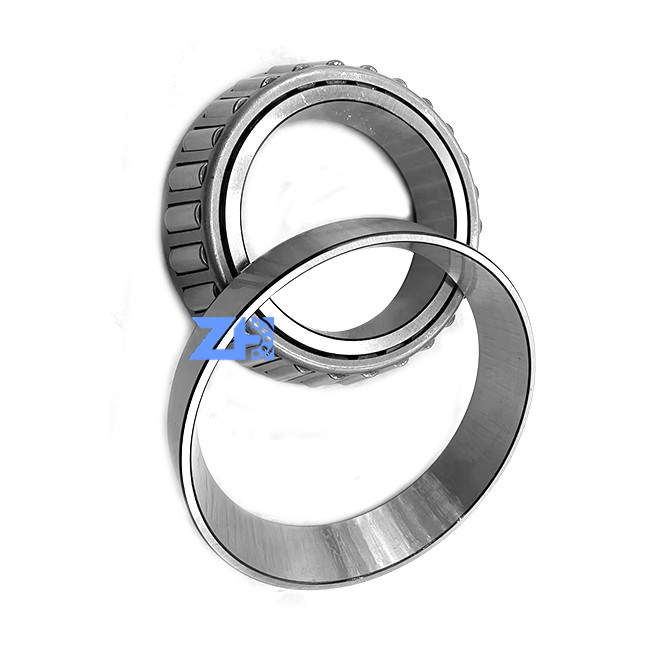

47890/47820 single row tapered roller bearing easy disassembly assembly standard precision high performance low wear

47890/47820 single row tapered roller bearing easy disassembly assembly standard precision high performance low wear

excavator components

excavator engine parts

Place of Origin:

China

Brand Name:

ZH

Model Number:

47890/47820

Contact Us
Request A Quote
Product Details
Name:
47890/47820
Number Of Row:
Single Column
Quality:
High Quality
Material:
CHROME STEEL
Color:
Gray
Size:
92.075 *146.05 * 33.3375mm
Highlight:

excavator components

,

excavator engine parts

Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
Negotiable
Packaging Details
neutral packing
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000 Pieces /month
Product Description

47890/47820 single row tapered roller bearing easy disassembly assembly standard precision high performance low wear



Product Details

Product Name: 47890/47820
Number Of Row: single column
Material: CHROME STEEL
Condition: Brand New
MOQ 1 Piece
Part name: Taper Roller Bearing
Supply Ability: 1000pcs Per Month



BA240-5SA 120BA-16 L540049/10
BA240-5ASA(BA240-8) HS05154 LM739749/10
SF4831PX1 BD130-1SA JM738249/10
SF4826PX1 BD130-2SA(DE2622) 4T-LL735449VI
SF4815VPX1 BA130-1SA LL641149/10
240BA32S1/SF4860 BD130-16SA M348449/10
SF4852PX1 BD135-6 L853049/10
BA245-2 135BA-6 310BN42-2
245BA35 135BA-16 BA345-1SA
BA246-1SA SF2812VPX 150BA-182



47890/47820 single row tapered roller bearing easy disassembly assembly standard precision high performance low wear 0

Dimensions

d - Bore

3.625 in92.075 mm

D - Cup Outer Diameter

5.7500 in146.050 mm

B - Cone Width

1.375 in34.925 mm

C - Cup Width

1.0313 in26.195 mm

T - Bearing Width

1.3125 in33.338 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius1 0.14 in3.600 mm
r - Cup Backface "To Clear" Radius2 0.13 in3.3 mm

da - Cone Frontface Backing Diameter

4.06 in103 mm

db - Cone Backface Backing Diameter

4.29 in109 mm

Da - Cup Frontface Backing Diameter

5.55 in140 mm

Db - Cup Backface Backing Diameter

5.16 in131.06 mm

Ab - Cage-Cone Frontface Clearance

0.03 in0.8 mm

Aa - Cage-Cone Backface Clearance

0.09 in2.3 mm
a - Effective Center Location3 -0.04 in-1 mm

47890/47820 single row tapered roller bearing easy disassembly assembly standard precision high performance low wear 147890/47820 single row tapered roller bearing easy disassembly assembly standard precision high performance low wear 2

More product as below:



We can provide different types of deep groove ball bearings, including bearings, cylindrical roller deep groove ball bearings, tapered roller deep groove ball bearings, self-aligning ball deep groove ball bearings, angular contact ball deep groove ball bearings, thrust ball deep Groove ball bearings, thrust roller deep groove ball bearings, deep groove ball bearings with housings, needle roller deep groove ball bearings, joint deep groove ball bearings, high temperature resistant deep groove ball bearings, stainless steel deep groove ball bearings, plastic Deep groove ball bearings, ceramic deep groove ball bearings, adapter sleeves, linear deep groove ball bearings

47890/47820 single row tapered roller bearing easy disassembly assembly standard precision high performance low wear 3

FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC.

Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.

Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.

Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock



47890/47820 single row tapered roller bearing easy disassembly assembly standard precision high performance low wear 447890/47820 single row tapered roller bearing easy disassembly assembly standard precision high performance low wear 547890/47820 single row tapered roller bearing easy disassembly assembly standard precision high performance low wear 647890/47820 single row tapered roller bearing easy disassembly assembly standard precision high performance low wear 7
