Place of Origin:
China Guangzhou
Brand Name:
ZH
Certification:
IS09001
Model Number:
32040
32040 32040W 32040X 32040P0VB 32040RS 32040ZZ 32040J2Q 32040W 32040ECK
32040V6 32040 EJ
P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL tapered roller bearing
Product introduction

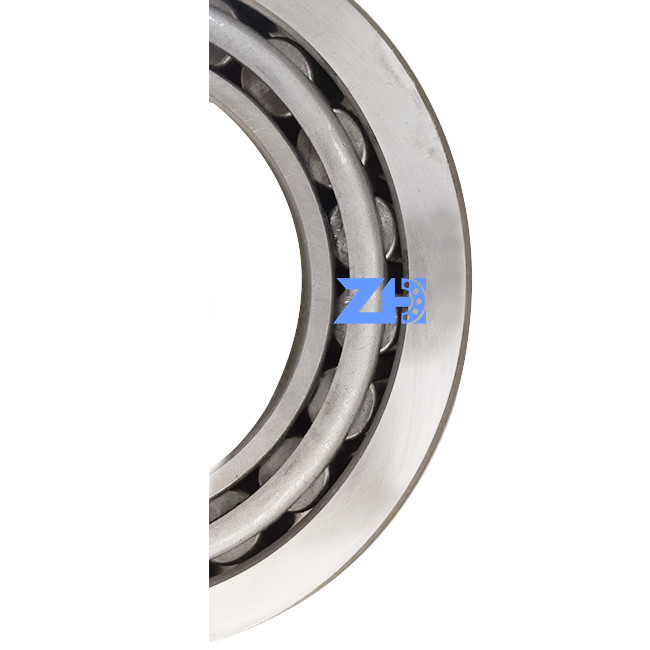

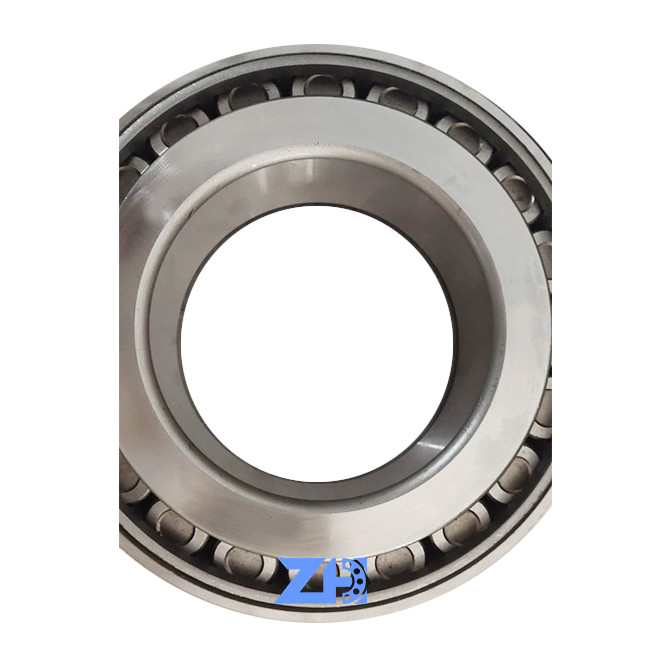

32040 Through Hardened Steel Tapered Roller Bearing is a superior component designed to deliver exceptional performance and durability in various industrial applications. This tapered roller bearing is crafted from through
(Good bearing, low price looking ZH)
hardened steel, providing outstanding strength, toughness, and resistance to wear and fatigue. With a size of 200 mm, this bearing is compatible with shafts of corresponding diameter, offering versatility and adaptability
to different machinery and equipment. Its tapered design enables efficient distribution of radial and axial loads, making it suitable for applications with combined loads or heavy axial loads. The 32040 tapered roller bearing is
engineered with precision to ensure smooth and precise operation. The through hardened steel construction enhances the bearing's ability to handle high loads and withstand demanding working conditions. This bearing's tapered
rollers and raceways are carefully designed to reduce friction, dissipate heat, and minimize wear, resulting in improved efficiency and extended service life. It is commonly used in industries such as automotive,
construction, and industrial equipment. The 32040 bearing is known for its reliable performance
| da |
max.222 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min.215.5 mm
|
Diameter of shaft abutment |
| Da |
min.273 mm
|
Diameter of housing abutment |
| Da |
max.296.5 mm
|
Diameter of housing abutment |
| Db |
min.297 mm
|
Diameter of housing abutment |
| Ca |
min.11 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min.17 mm
|
Minimum width of space required in housing on small side face |
| ra |
max.3 mm
|
Radius of shaft fillet |
| rb |
max.2.5 mm
|
Radius of housing fillet |
| Basic dynamic load rating | C |
800 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 370 kN
|
| Fatigue load limit | Pu |
127 kN
|
| Reference speed |
1 400 r/min
|
|
| Limiting speed |
1 900 r/min
|
|
| Limiting value | e |
0.43
|
| Calculation factor | Y |
1.4
|
| Calculation factor | Y0 |
0.8
|
| d |
200 mm
|
Bore diameter |
|---|---|---|
| D |
310 mm
|
Outside diameter |
| T |
70 mm
|
Total width |
| d1 |
≈254.78 mm
|
Shoulder diameter of inner ring |
| D1 |
999.99 mm
|
Diameter of flange |
| B |
70 mm
|
Width of inner ring |
| C |
53 mm
|
Width of outer ring |
| r1,2 |
min.3 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min.2.5 mm
|
Chamfer dimension of outer ring |
| a |
66 mm
|
Distance side face to pressure point |
Mix it up. It's better for the machine
| NUP2206 | NUP206 | NUP2208=210 | NUP207 | NUP207/NUP306 | NUP310 |
| NUP2207 | 6305M | NUP307=110 | NUP307 | 30309D | NUP310 |
| NUP2207 | 4T-30307 | NUP207=120 | NUP307 | 30312D | NUP308 |
| NUP2209 | HMK3525+IR | NUP2206=130 | NUP308 | 30312D | NUP306 |
| NUP2209 | NUP307 | NUP2207=140 | NUP2211 | 30312D | NUP307 |
| NUP2209 | NUP306 | NUP2209=160 | NUP2208 | 30312D | NUP205E |
| NUP2212 | 30309D | NUP309=180 | NUP309 | 6008 | NUP206E |
| NUP2212 | 30210 | NUP309=180 | NUP309 | T7FC065 | 15578 |
| NUP2211 | 30210 | 30312D=155 | NUP308 | 30312D | 11749/11710 |
| T7FC055=300 | 30311D | 30312D=155 | NUP309 | 30312 | 32207 |
| NUP308=140 | 30311D | 30314D=250 | NIP2310 | 30314D | NUP207 |
| 30309D=110 | T7FC055 | NUP2212=220 | NUP309 | 6213 | 32205 |
| 6305 | T7FC055 | NUP2211=250 | NUP2310 | NUP208E |
