Long service time 133*197*46mm TAPPER ROLLER BEARING 67390-67322 P0 P4 P2 Quality LEVEL

67390-67322 67390W 67322 X 67390VB 67322J2Q P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL tapered roller bearing


Product introduction
67390-67322Single row tapered roller bearings, inch sizes, are designed to accommodate combined radial and axial loads and provide low friction during operation.
(Buy bearings looking for ZH, High quality and cheap)

The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance.

By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.


• High radial and axial load carrying capacity
• Accommodate axial loads in one direction
• Low friction and long service life
• Separable and interchangeable components



  Dimensions

  d	133.35 mm	Bore diameter
  D	196.85 mm	Outside diameter
  T	46.038 mm	Total width
  d1	≈164.45 mm	Shoulder diameter of inner ring
  B	46.038 mm	Width of inner ring
  C	38.1 mm	Width of outer ring
  r1,2	min.8 mm	Chamfer dimension of inner ring
  r3,4	min.3.3 mm	Chamfer dimension of outer ring
  a	39.362 mm	Distance side face to pressure point



  Abutment dimensions

  da	max.146 mm	Diameter of shaft abutment
  db	min.157.5 mm	Diameter of shaft abutment
  Da	min.177 mm	Diameter of housing abutment
  Da	max.183 mm	Diameter of housing abutment
  Db	min.189 mm	Diameter of housing abutment
  Ca	min.7 mm	Minimum width of space required in housing on large side face
  Cb	min.7.5 mm	Minimum width of space required in housing on small side face
  ra	max.8 mm	Radius of shaft fillet
  rb	max.3.3 mm	Radius of housing fillet



  Calculation data

  Basic dynamic load rating	C	395 kN
  Basic static load rating	C0	585 kN
  Fatigue load limit	Pu	60 kN
  Reference speed		2 400 r/min
  Limiting speed		3 000 r/min
  Limiting value	e	0.35
  Calculation factor	Y	1.7
  Calculation factor	Y0	0.9

  Abutment dimensions

• With them, such as seeds get sunshine, bursting with youth and vitality

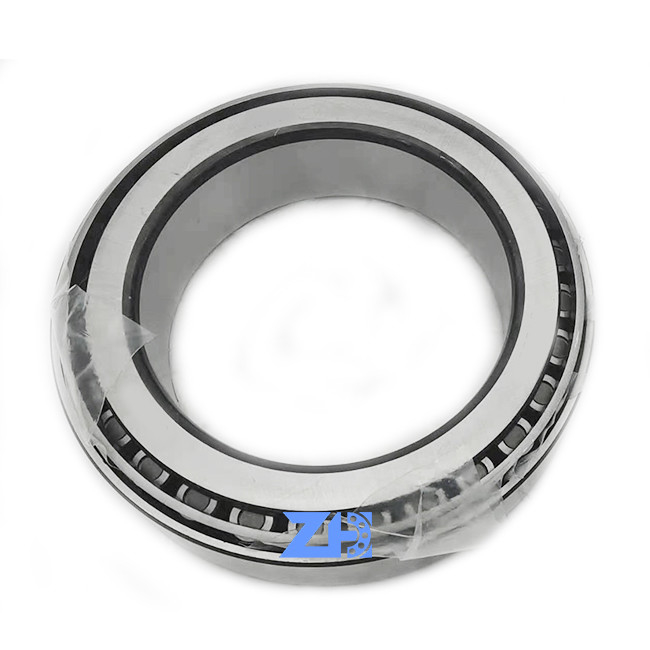

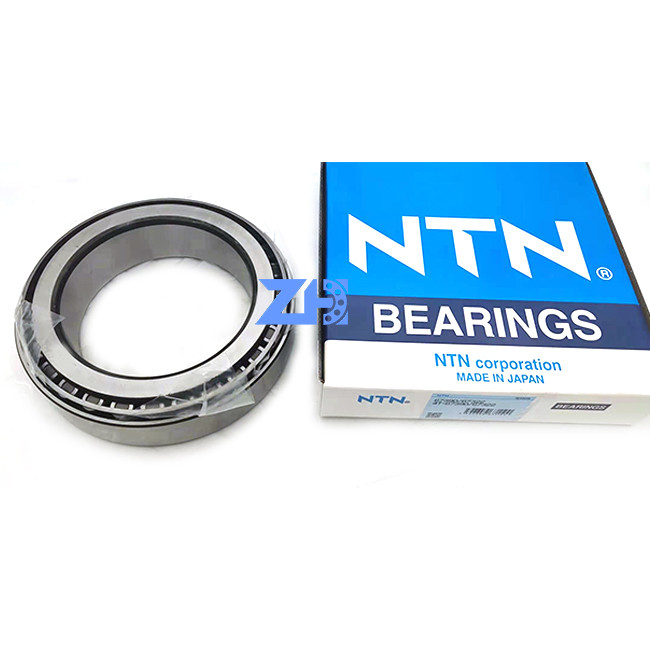

Photo show
