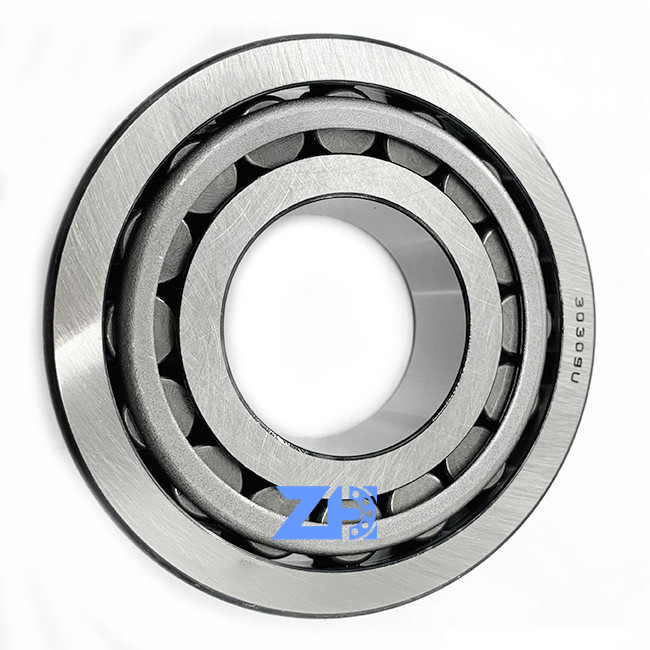

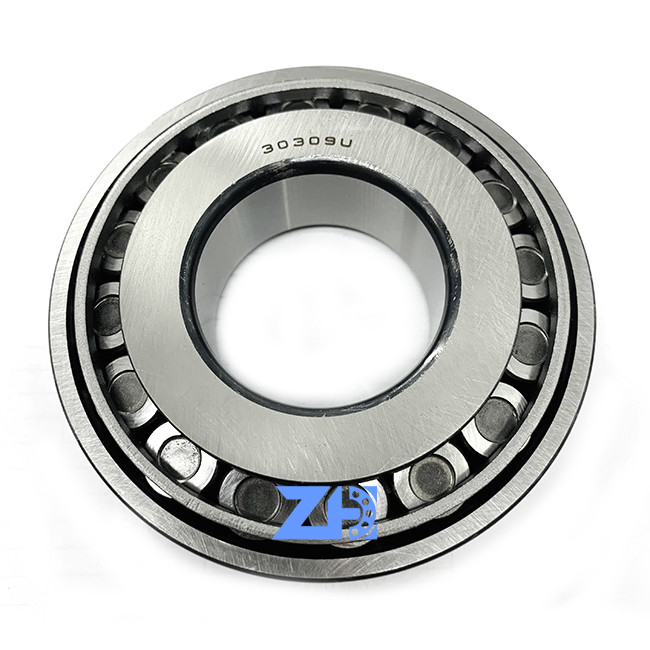

30309 30309P6X 30309X2B 30309JR 30309DJR CHROME STEEL P0 P6 P5 P4 P3 QUALITY ANK TAPPER ROLLER BEARING

30309 30309P6X 30309X2B 30309JR 30309DJR CHROME STEEL P0 P6 P5 P4 P3 QUALITY ANK TAPPER ROLLER BEARING

  • 30309 30309P6X 30309X2B 30309JR 30309DJR  CHROME STEEL P0 P6 P5 P4 P3 QUALITY  ANK  TAPPER  ROLLER BEARING
  • 30309 30309P6X 30309X2B 30309JR 30309DJR  CHROME STEEL P0 P6 P5 P4 P3 QUALITY  ANK  TAPPER  ROLLER BEARING
  • 30309 30309P6X 30309X2B 30309JR 30309DJR  CHROME STEEL P0 P6 P5 P4 P3 QUALITY  ANK  TAPPER  ROLLER BEARING
30309 30309P6X 30309X2B 30309JR 30309DJR  CHROME STEEL P0 P6 P5 P4 P3 QUALITY  ANK  TAPPER  ROLLER BEARING
Product Details:
Place of Origin: China
Brand Name: ZH
Certification: IS09001
Model Number: 30309D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: 1USD/pcs
Packaging Details: neutral packing
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces /Month
Contact Now
Detailed Product Description
Product Name: TAPPER ROLLER BEARING Model Number: 30309D
Material: CHROME STEEL Quality: P0、P2、P4、p5、p6
Weight: 0.98Kg Size: 45*100*25
Pressure: High Pressure MOQ: 1
Supply: 30000 Set/Sets Per Month
High Light:

excavator components

,

mini excavator parts


P0 P6 P5 P4 P3 QUALITY LEVER 30309 30309D 30309P6X 30309X2B 30309JR 30309DJR CHROME STEEL TAPPER ROLLER BEARING



Product introduction
Single row tapered roller bearings can withstand the axial load in one direction, and can limit the axial displacement of the shaft relative to the bearing seat in one direction, tapered roller bearings are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries




Product details

Type

Tapered Roller Bearing

Bore Type

Round

Material

Through Hardened Steel

Limiting Speed - Oil

4600 RPM

Limiting Speed - Grease

3500 RPM

Style

Cone & Cup

Precision Rating

Class 0

Configuration

One

Lubrication

w/o Oil Hole

e (Axial Load Factor)

0.83

Y2 (Axial Load Factor)

0.73

Y0 (Axial Load Factor)

0.40

Static Load Rating

24500 lbf109000 N109.00 kN

Dynamic Load Rating

21600 lbf96000 N96.00 kN

Enclosure

Open

Weight

2.112 lb0.958 kg

Operating Temperature Range

-40 to 250 ºF-40 to 120 ºC

d

1.7717 in45.000 mm

D

3.9370 in100.000 mm

C

0.7087 in18.000 mm

B

0.9843 in25.000 mm

a (Effective Load Center)

0.2067 in5.250 mm

T

1.0728 in27.250 mm

r

0.0600 in1.500 mm

R

0.08 in2.0 mm

da

2.17 in55.0 mm

db

2.20 in56.0 mm

Da

3.60 in91.5 mm

Da min

3.11 in79.0 mm

Db

3.78 in96.0 mm









WE CAN OFFER THESE 3030 MODEL


30301 30302 30303
30304 30305 30306
30307 30308 30309






Additive standard


2RS Z W X2B
ZZ Q M X
ZN JQ D JR







WE CAN OFFER THESE MODEL HYDRAILIC PUMP BEARINGS :

K3V180DT HPV091DW A10VS063 K3V63DT HPV95 AP12
K5V140DTP HPV091EW A10VS071 K3V63BDT HPV95N ….
K5V160DTP HPV091DS A8V0107 K3VL80DTP HPV160
K5V160DP HPV091ES K3SP36C K5V80DTP HPV132
K5V200DTH HPV091/102 PVK-2B-505 K3V112DT HPV140
K5V200DPH HPV0102 PVB92 K3V112DP HPV165
NV111 HPV0118 PSVD2-27 K3V112BDP HPK055K
A8V115 HPV35 HPV145 A8V080 K7V63
A8V0107 HPV75 HPV116/145 A10VD43 A8V86
A8V0140 HPV55 SPK10/10 PSVD2-55 52 AP2D25
A8V0160 HPV90 HPV050 A8V107 AP2D36
A8V0200 K3V140DT VRD63 HPV116 A10VD17







FOR MORE DETAIL PLS CONTACT US
