Home ProductsTaper Roller Bearing

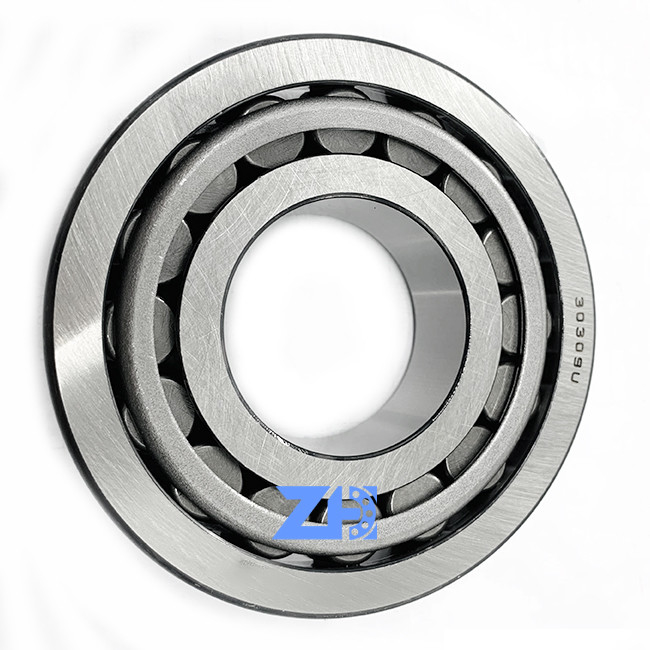

P0 P6 P5 P4 P3 QUALITY LEVER 30309 30309B 30309P6X 30309X2B 30309JR 30309DJR CHROME STEEL TAPPER ROLLER BEARING

P0 P6 P5 P4 P3 QUALITY LEVER 30309 30309B 30309P6X 30309X2B 30309JR 30309DJR CHROME STEEL TAPPER ROLLER BEARING

  • P0 P6 P5 P4 P3 QUALITY LEVER 30309 30309B 30309P6X 30309X2B 30309JR 30309DJR  CHROME STEEL  TAPPER  ROLLER BEARING
  • P0 P6 P5 P4 P3 QUALITY LEVER 30309 30309B 30309P6X 30309X2B 30309JR 30309DJR  CHROME STEEL  TAPPER  ROLLER BEARING
  • P0 P6 P5 P4 P3 QUALITY LEVER 30309 30309B 30309P6X 30309X2B 30309JR 30309DJR  CHROME STEEL  TAPPER  ROLLER BEARING
P0 P6 P5 P4 P3 QUALITY LEVER 30309 30309B 30309P6X 30309X2B 30309JR 30309DJR  CHROME STEEL  TAPPER  ROLLER BEARING
Product Details:
Place of Origin: China
Brand Name: ZH
Certification: IS09001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: 1USD/pcs
Packaging Details: neutral packing
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces per month
Contact Now
Detailed Product Description
Model Number: 30309 Product Name: TAPPER ROLLER BEARING
Quality: P0、P2、P4、p5、p6 Weight: 0.98Kg
Size: 45*100*25 Material: CHROME STEEL
MOQ: 1 Supply: 30000 Set/Sets Per Month
High Light:

excavator spare parts

,

mini excavator parts


P0 P6 P5 P4 P3 QUALITY LEVER 30309 30309B 30309P6X 30309X2B 30309JR 30309DJR CHROME STEEL TAPPER ROLLER BEARING



Product introduction
Single row tapered roller bearings can withstand the axial load in one direction, and can limit the axial displacement of the shaft relative to the bearing seat in one direction, tapered roller bearings are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries






detailed parameters

Installation related dimensions mm
  • da(max)59
  • db(min)54
  • Da(min)86
  • Da(max)91
  • Db(min)94
  • Ca(min)4
  • Cb(min)8.5
Weightkg
  • Weight Kg0.987
Bearing Code
  • Bearing Code30309
Basic size mm
  • d45
  • D.100
  • T27.25
  • B25
  • Ctwenty two
  • R Radial2
  • R axis2
  • r radial1.5
  • r axial1.5
Calculation coefficient
  • e0.35
  • Y1.7
  • Yo0.96
  • atwenty one
Limiting speed r/min
  • grease lubrication4000
  • oil lubrication5300
Basic rated load KN
  • Cr103
  • Cor107
Product parameters
new model 30309
old model 7309E
brand ZH
Classification Tapered Roller Bearings
the inside diameter of 45mm
outer diameter 100mm
thickness 25mm
weight 0.984kg




  • Selling the same and similar models at low prices,



30301 30302 30303
30304 30305 30306
30307 30308 30309






Additive standard


2RS Z W X2B
ZZ Q M X
ZN JQ X JR








  • Hot-selling low-cost bearing

332055ZC 33207ZC 30205ZC 2209ZC 6208ZC 309ZC 2207ZC 6014ZC 306ZC
332060ZC 345233ZC 30209ZC 2211ZC 6213ZC 309ZC 2208ZC 6206ZC 308ZC
332065ZC 354520ZC 3020ZC 2212ZC 6905ZC 32012ZC 208ZC 5904ZC 30314ZC
332070ZC 502515ZC 30211ZC 2304ZC 6906ZC 32013ZC 209ZC 5908ZC 304020ZC
332205ZC 503303ZC 30212ZC 2305ZC 6922ZC 32207ZC GE35ZC 32212ZC 2820ZC
332206ZC 503806ZC 30213ZC 243320ZC 6932ZC 32211ZC 6008ZC 305ZC 2206ZC
332207ZC 503807ZC 30302ZC
332208ZC 553830ZC 30305ZC


FOR MORE DETAIL PLS CONTACT US
