Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
33216

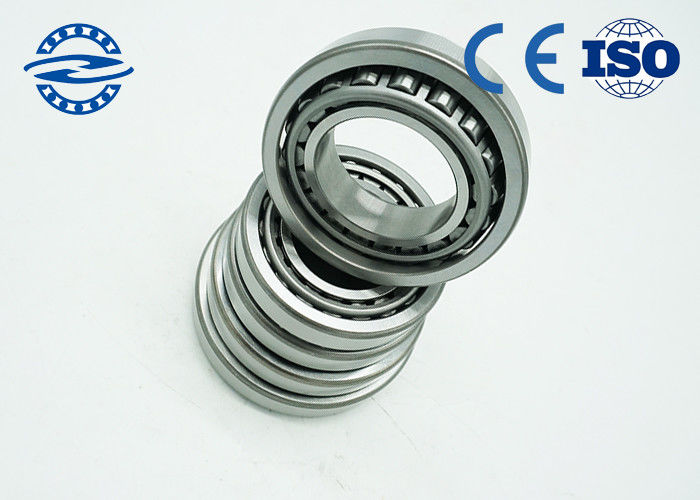

Reliable Imperial Taper Roller Bearings 33216 80 * 140 * 46 For Rolling Mill
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
1 . Ptoduct description
The single-row tapered roller bearings are able to carry radial and axial load in one direction simultaneously
Cylindrical roller and roller for line contact bearing .
Large load capacity , mainly bearing radial load .
The rolling body friction with the ring is small , suitable for high-speed rotation .
According to the ring of the ring , it can be divided into single row cylindrical roller bearings , such as NU , N J , NUP , N , NF , etc . and NNU , NN and other two columns roller bearings .
The bearing is an inner ring and a separable structure
2 . Features :
High quality through hardened bearing steel
Optimized , engineered internal geometry
Highly consistent , reliable , and flexible manufacturing
Globally interchangeable inch and metric designs
Available integrated seal
| Single-Row Tapered Roller Bearings (metric) | ||||||||||
| Bearing No. | Boundary dimensions (mm) | Basic load ratings (KN) | Weight(KG) | |||||||
| d | D | B | C | T | R min | rmin | Cr(KN) | Cor(KN) | ||
| 33111 | 55 | 95 | 30 | 23 | 26 | 1.5 | 1.5 | 164 | 114 | 0.843 |
| 33112 | 60 | 100 | 30 | 23 | 30 | 1.5 | 1.5 | 173 | 117 | 0.9 |
| 33113 | 65 | 110 | 34 | 26 | 34 | 1.5 | 1.5 | 220 | 143 | 1.3 |
| 33114 | 70 | 120 | 37 | 30 | 37 | 2 | 1.5 | 270 | 173 | 1.7 |
| 33115 | 75 | 125 | 37 | 30 | 37 | 2 | 1.5 | 280 | 179 | 1.8 |
| 33116 | 80 | 130 | 37 | 29 | 37 | 2 | 1.5 | 59 | 47 | 1.87 |
| 33205 | 25 | 52 | 22 | 18 | 22 | 1 | 1 | 55 | 47 | 0.216 |
| 33206 | 30 | 62 | 20 | 17 | 22 | 1 | 1 | 64 | 52 | 0.29 |
| 33207 | 35 | 72 | 23 | 19 | 25 | 1.5 | 1.5 | 90 | 71 | 0.45 |
| 33208 | 40 | 80 | 23 | 19 | 26 | 2 | 1.5 | 97 | 78 | 0.54 |
| 33209 | 45 | 85 | 23 | 19 | 25 | 1.5 | 1.5 | 107 | 83 | 0.65 |
| 33210 | 50 | 90 | 23 | 19 | 25 | 1.5 | 1.5 | 142 | 108 | 0.85 |
| 33211 | 55 | 100 | 25 | 21 | 26 | 2 | 1.5 | 142 | 108 | 0.85 |
| 33212 | 60 | 110 | 28 | 24 | 29 | 2 | 1.5 | 179 | 132 | 1.17 |
| 33213 | 65 | 120 | 28 | 24 | 30 | 2 | 1.5 | 221 | 160 | 1.55 |
| 33214 | 70 | 125 | 31 | 27 | 33 | 2 | 1.5 | 237 | 169 | 1.64 |
| 33215 | 75 | 130 | 41 | 31 | 41 | 2 | 1.5 | 299 | 207 | 2.17 |
| 33216 | 80 | 140 | 46 | 31 | 46 | 2 | 1.5 | 361 | 245 | 2.83 |
4 . Packaging
1 . Single box packing, then in carton then in Pallet .
2 . Standard export packing .
3 . According customer demand .
