Place of Origin:
CHINA
Brand Name:
ZH NTN KOYO
Model Number:
32017X

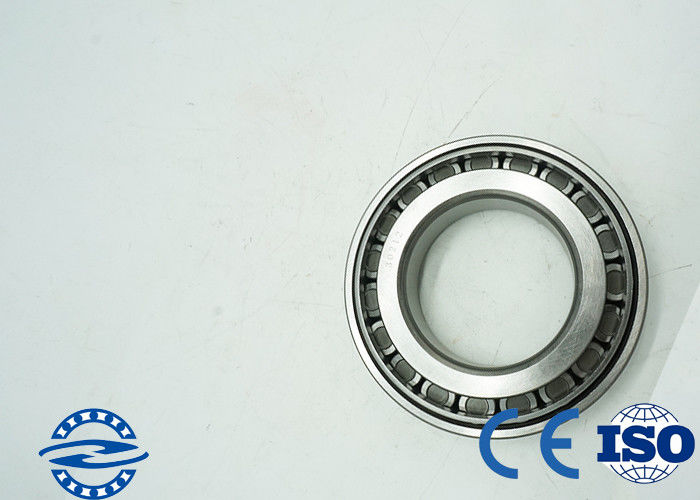

ZH Brand Automotive Taper Roller Bearing Inched Type Nostandard 32017X 85*130* 29 mm
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
1 . Product description
The tapered roller bearing is assembled through a rolling element . Guided by the sidewall of an inner ring , it can bear radial load and axial load in one direction .
As a kind of thrust bearing , this product is mostly applied in the car differential , front wheel , rear wheel , machine tool , axle , construction machinery , various vehicle

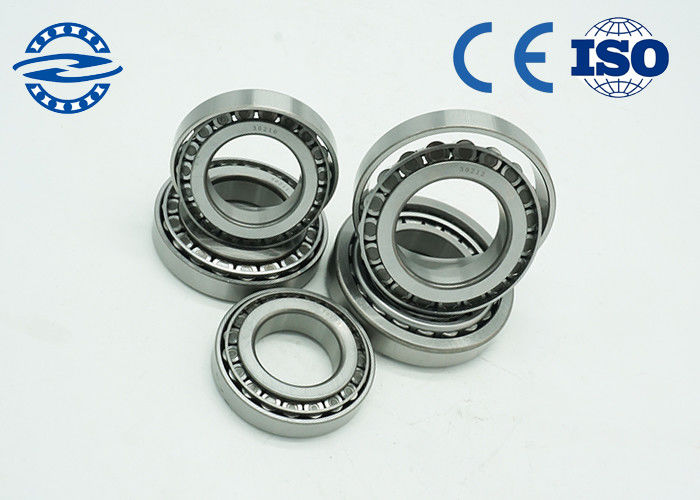

2 . Other size
| Single-Row Tapered Roller Bearings (metric) | ||||||||||
| Bearing No. | Boundary dimensions (mm) | Basic load ratings (KN) | ||||||||
| d | D | B | C | T | R min | rmin | Cr(KN) | Cor(KN) | Weight(KG) | |
| 32018X | 90 | 140 | 32 | 24 | 32 | 2 | 1.5 | 271 | 171.1 | 1.72 |
| 32019X | 95 | 145 | 32 | 24 | 32 | 2 | 1.5 | 281.3 | 174.6 | 1.79 |
| 32020 | 100 | 150 | 32 | 24 | 32 | 2 | 1.5 | 281.7 | 173.1 | 1.85 |
| 32021 | 105 | 160 | 35 | 26 | 35 | 2.5 | 2 | 335.6 | 205.4 | 2.4 |
| 32022X | 110 | 170 | 38 | 29 | 38 | 2.5 | 2 | 403.4 | 245.6 | 3.02 |
| 32024X | 120 | 180 | 38 | 29 | 38 | 2.5 | 2 | 404.4 | 242.1 | 3.18 |
| 32026X | 130 | 200 | 45 | 34 | 45 | 2.5 | 2 | 567.1 | 333.7 | 4.94 |
| 32028X | 140 | 210 | 45 | 34 | 45 | 2.5 | 2 | 567.8 | 329.8 | 5.15 |
| 32030X | 150 | 225 | 48 | 36 | 48 | 3 | 2.5 | 635.8 | 367.8 | 6.25 |
| 32032X | 160 | 240 | 51 | 38 | 51 | 3 | 2.5 | 734.5 | 419.6 | 7.66 |
| 32203 | 17 | 40 | 16 | 14 | 17.25 | 1.5 | 1 | 31.5 | 30.4 | 0.1 |
| 32204 | 20 | 47 | 18 | 15 | 19.25 | 1 | 1 | 35 | 33.2 | 0.157 |
| 32205 | 25 | 52 | 18 | 16 | 19.25 | 1 | 1 | 49.2 | 41.3 | 0.199 |
| 32206 | 30 | 62 | 20 | 17 | 21.5 | 1 | 1 | 63.7 | 51.8 | 0.287 |
| 32207 | 35 | 72 | 23 | 19 | 34.25 | 1.5 | 1.5 | 89.5 | 70.6 | 0.445 |
| 32208 | 40 | 80 | 23 | 19 | 24.75 | 1.5 | 1.5 | 97.2 | 77.9 | 0.532 |
| 32209 | 45 | 85 | 23 | 19 | 24.75 | 1.5 | 1.5 | 104 | 80.7 | 0.573 |
| 32210 | 50 | 90 | 23 | 19 | 1.5 | 1.5 | 107.6 | 82.3 | 24.75 | |
Before-sales service :
1 . Offer bearing related consultation about technology and appliexcavatorion ;
2.Help customers about bearing choice , force analysis , clearance configuration , products’ life and reliability analysis ;
3 . Offer highly cost-effective and complete solution program according to site conditions ;
4 . Offer localized program on introduced equipment to save running cost
5 . Design and develop non-standard bearing to support customers’ technology innovation
After-sales service :
1 . Offer training about bearing installation and maintenance ;
2 . Offer guidance about bearing installation , adjustment and testing at site ;
3 . Help customers with trouble diagnosis and failure analysis ;
4 . Visit customers regularly and feedback their rational suggestions and requirements to company
