Place of Origin: | CHINA |
Brand Name: | ZH |
Model Number: | RB2008 RB2508 RB3010 RB3510 RB4010 RB4510 RB5013 RB6013 RB7013 RB8016 RB9016 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 2-7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces |
Stock: | Extensive | Model: | RB2008 RB2508 RB3010 RB3510 RB4010 RB4510 RB5013 RB6013 RB7013 RB8016 RB9016 |
---|---|---|---|
Size(d*D*B): | Standard Size | Type: | Crossed Roller Bearings |
Structure: | Spherical | Material: | GCR15 |
Feature: | High Precision And Load Capacity | Precision Industries: | P0 P6 P5 P4 |
Applicable Industries: | Coal Mines Railways Petroleum Printing Power Plantss And Other Industrial Equipment | Packing: | Standard Export Package,Clients Requested |
After-sales Service: | Online Support, Professional Service | ||
High Light: | GCR15 Crossed Roller Bearings,RB4010 Crossed Roller Bearings,RB5013 Crossed Roller Bearings |

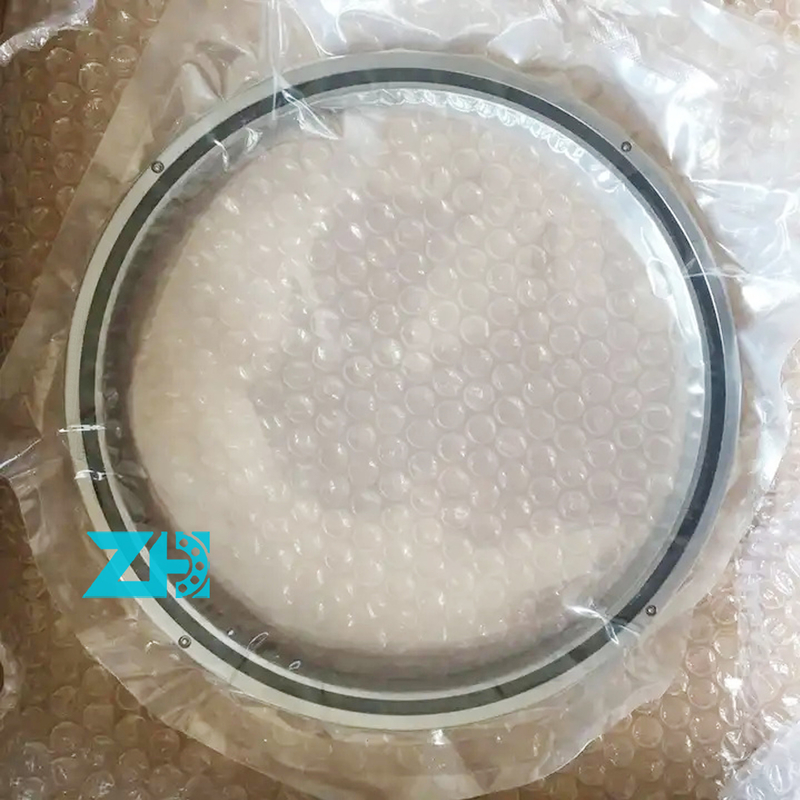

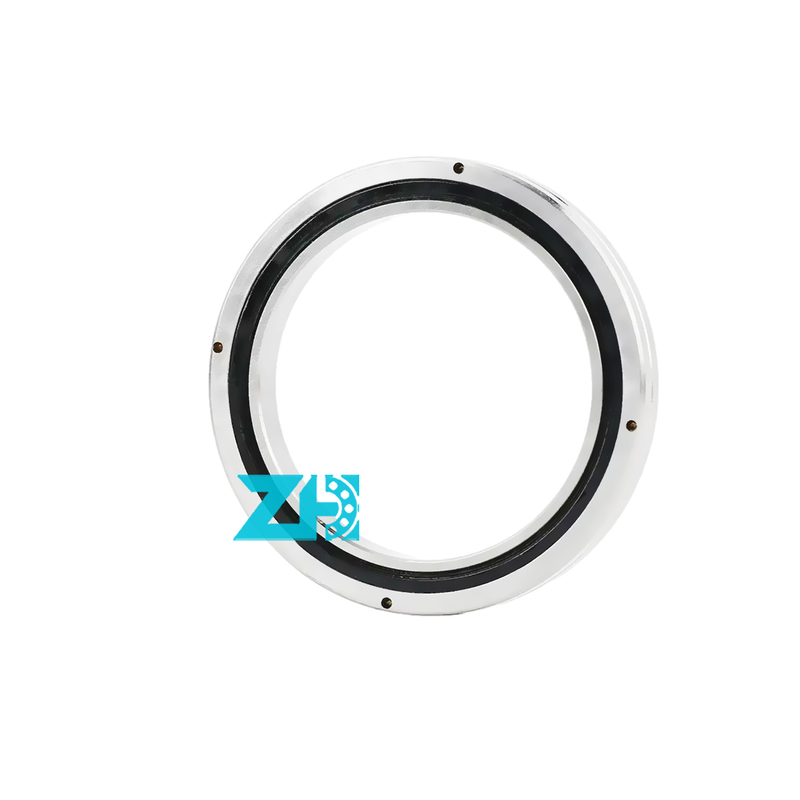

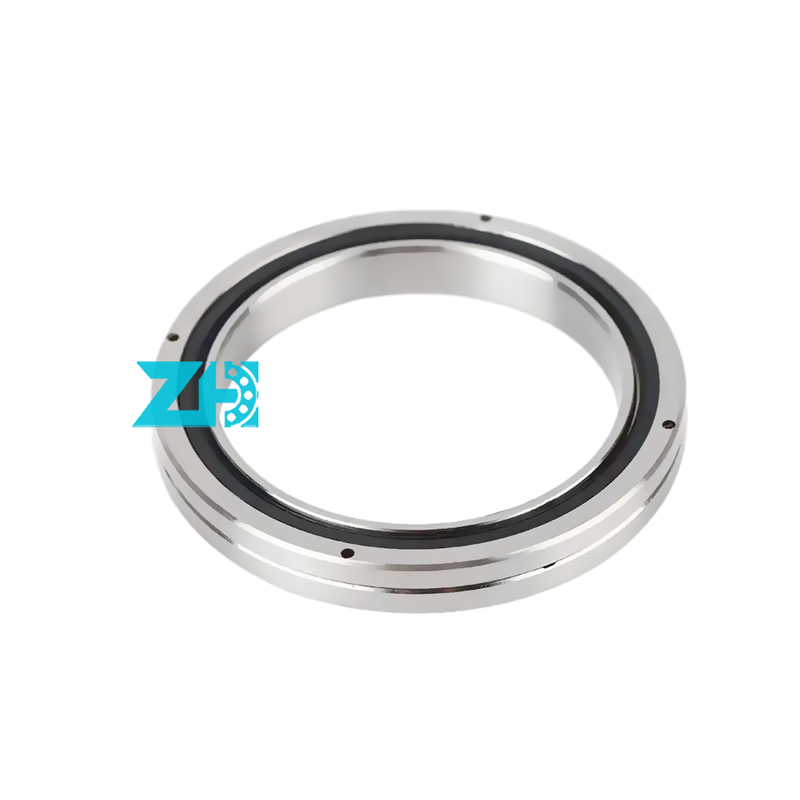

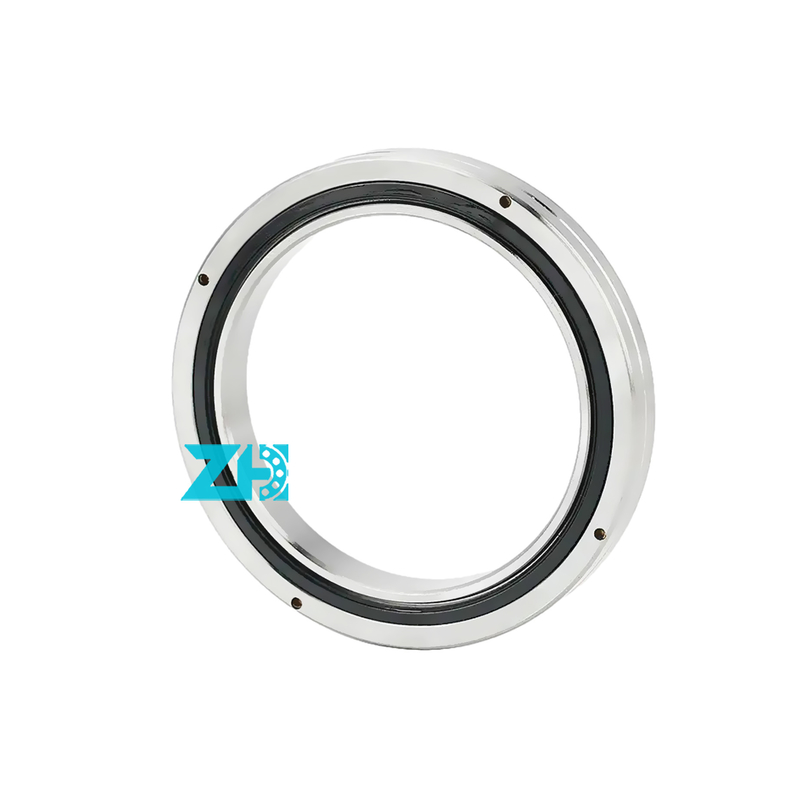

Crossed Roller Bearings RB2008 RB2508 RB3010 RB3510 RB4010 RB4510 RB5013 RB6013 RB7013 RB8016 RB9016
single-row crossed roller bearing slewing ring
Technical Parameters:
model |
RB2008 RB2508 RB3010 RB3510 RB4010 RB4510 RB5013 RB6013 RB7013 RB8016 RB9016 |
Size(d*D*B) |
Standard size |
Type | Crossed Roller Bearings |
Precision | P0/P6/P5/P4 |
Feature |
Long Life,Stable Performance and Durable |
Material | GCR15 |
After-sales Service |
Online Support Professional Service |
Stock |
Sufficient |
Product Description
Crossed roller bearings, also known as crossed roller slewing bearings or crossed roller slide bearings, are a specialized type of rolling element bearing. They are designed to handle both radial and axial loads while providing high rotational accuracy and stiffness.
Crossed roller bearings are designed to minimize noise and vibration during operation. Factors such as the precision of manufacturing, bearing design, and proper installation contribute to reducing noise and vibration levels. In applications where low noise and vibration are critical, selecting bearings with appropriate noise and vibration characteristics, using proper mounting techniques, and maintaining optimal bearing conditions are important considerations.
Crossed roller bearings can compensate for certain amounts of angular misalignment between the shaft and housing. This feature helps in accommodating installation errors, shaft deflections, and thermal expansions. However, excessive misalignment can lead to increased stress and reduced bearing life. It is important to consider the allowable misalignment limits specified by the manufacturer and ensure proper alignment during installation.
Other bearing model catalog:
Type | Main dimensions | Basic load rating | |||
(Radial) | |||||
Inner diameter | Outer diameter | Width | Dynamic rating | Static rating | |
d | D | H | C | C0 | |
mm | mm | mm | kN | kN | |
RB 2008 | 20 | 36 | 8 | 3.23 | 3.1 |
RB 2508 | 25 | 41 | 8 | 3.63 | 3.83 |
RB 3010 | 30 | 55 | 10 | 7.35 | 8.36 |
RB 3510 | 35 | 60 | 10 | 7.64 | 9.12 |
RB 4010 | 40 | 65 | 10 | 8.33 | 10.6 |
RB 4510 | 45 | 70 | 10 | 8.62 | 11.3 |
RB 5013 | 50 | 80 | 13 | 16.7 | 20.9 |
RB 6013 | 60 | 90 | 13 | 18 | 24.3 |
RB 7013 | 70 | 100 | 13 | 19.4 | 27.7 |
RB 8016 | 80 | 120 | 16 | 30.1 | 42.1 |
RB 9016 | 90 | 130 | 16 | 31.4 | 45.3 |
RB 10016 | 100 | 140 | 16 | 31.7 | 48.6 |
RB 10020 | 100 | 150 | 20 | 33.1 | 50.9 |
RB 11012 | 110 | 135 | 12 | 12.5 | 24.1 |
RB 11015 | 110 | 145 | 15 | 23.7 | 41.5 |
RB 11020 | 110 | 160 | 20 | 34 | 54 |
RB 12016 | 120 | 150 | 16 | 24.2 | 43.2 |
RB 12025 | 120 | 180 | 25 | 66.9 | 100 |
RB 13015 | 130 | 160 | 15 | 25 | 46.7 |
RB 13025 | 130 | 190 | 25 | 69.5 | 107 |
RB 14016 | 140 | 175 | 16 | 25.9 | 50.1 |
RB 14025 | 140 | 200 | 25 | 74.8 | 121 |
RB 15013 | 150 | 180 | 13 | 27 | 53.5 |
RB 15025 | 150 | 210 | 25 | 76.8 | 128 |
RB 15030 | 150 | 230 | 30 | 100 | 156 |
RB 16025 | 160 | 220 | 25 | 81.7 | 135 |
RB 17020 | 170 | 220 | 20 | 29 | 62.1 |
RB 18025 | 180 | 240 | 25 | 84 | 143 |
RB 19025 | 190 | 240 | 25 | 41.7 | 82.9 |
RB 20025 | 200 | 260 | 25 | 84.2 | 157 |
RB 20030 | 200 | 280 | 30 | 114 | 200 |
RB 20035 | 200 | 295 | 35 | 151 | 252 |
RB 22025 | 220 | 280 | 25 | 92.3 | 171 |
RB 24025 | 240 | 300 | 25 | 68.3 | 145 |
RB 25025 | 250 | 310 | 25 | 69.3 | 150 |
RB 25030 | 250 | 330 | 30 | 126 | 244 |
RB 25040 | 250 | 355 | 40 | 195 | 348 |
RB 30025 | 300 | 360 | 25 | 76.3 | 178 |
RB 30035 | 300 | 395 | 35 | 183 | 367 |
RB 30040 | 300 | 405 | 40 | 212 | 409 |
Support and Services:
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port
