Place of Origin: | CHINA |
Brand Name: | ZH |
Model Number: | RA20013UUCC0 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 2-7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces |
Stock: | Extensive | Model: | RA20013UUCC0 |
---|---|---|---|
Size(d*D*B): | 200x226x13mm | Type: | Crossed Roller Bearings |
Structure: | Spherical | Material: | GCR15 |
Feature: | High Precision And Load Capacity | Precision Industries: | P0 P6 P5 P4 |
Applicable Industries: | Coal Mines Railways Petroleum Printing Power Plantss And Other Industrial Equipment | Packing: | Standard Export Package,Clients Requested |
After-sales Service: | Online Support, Professional Service | ||
High Light: | RA20013UUCC0 Crossed Roller Bearings,High Load Capacity Crossed Roller Bearings |

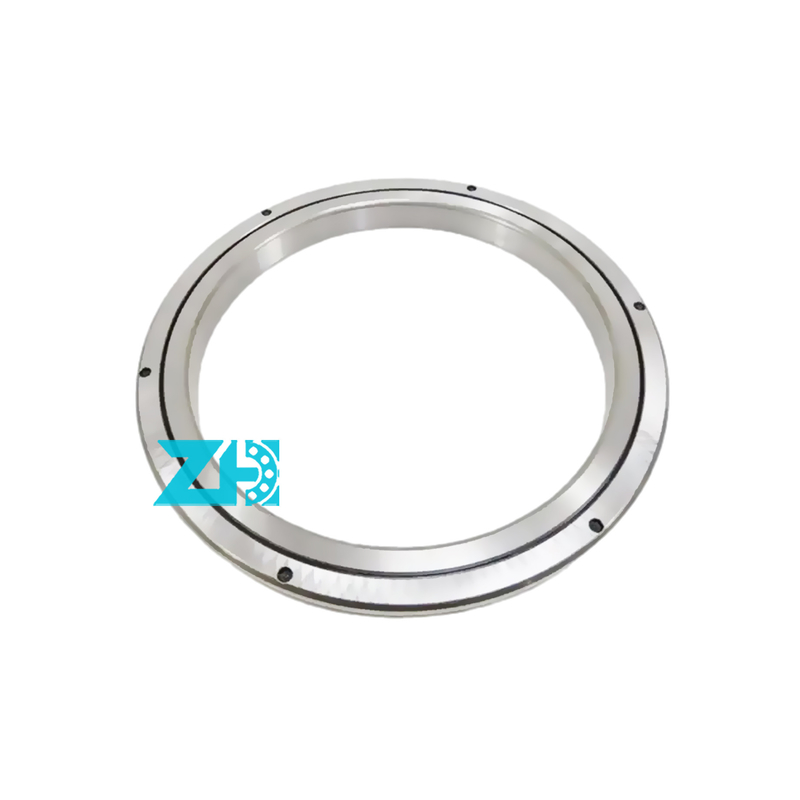

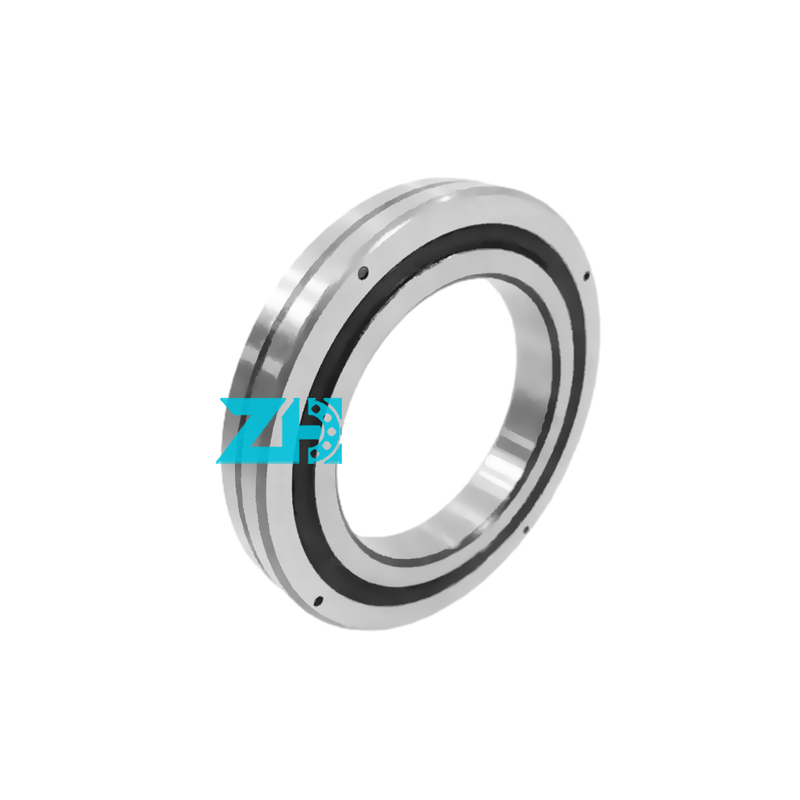

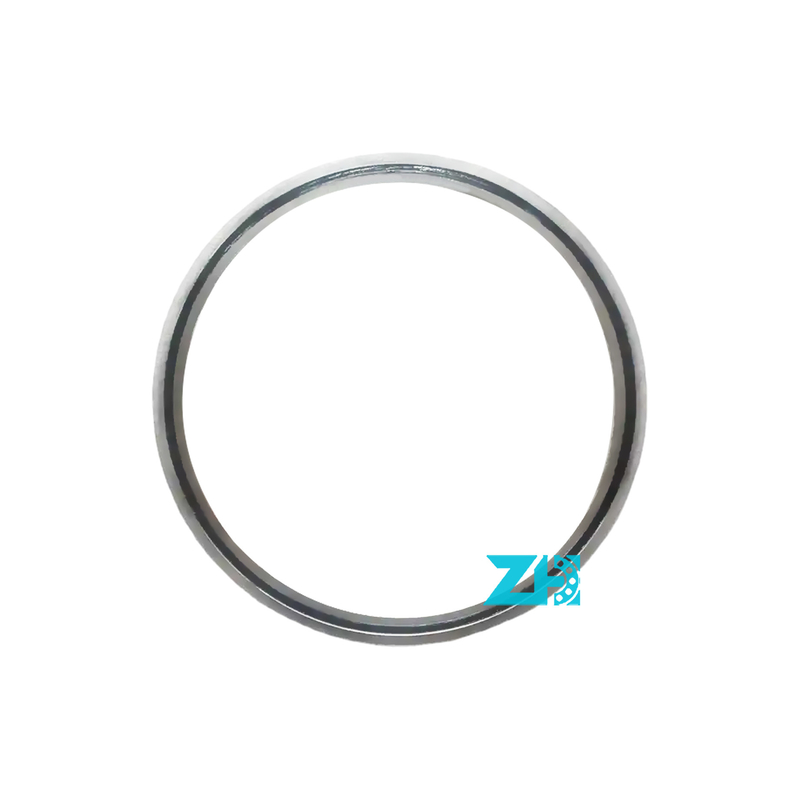

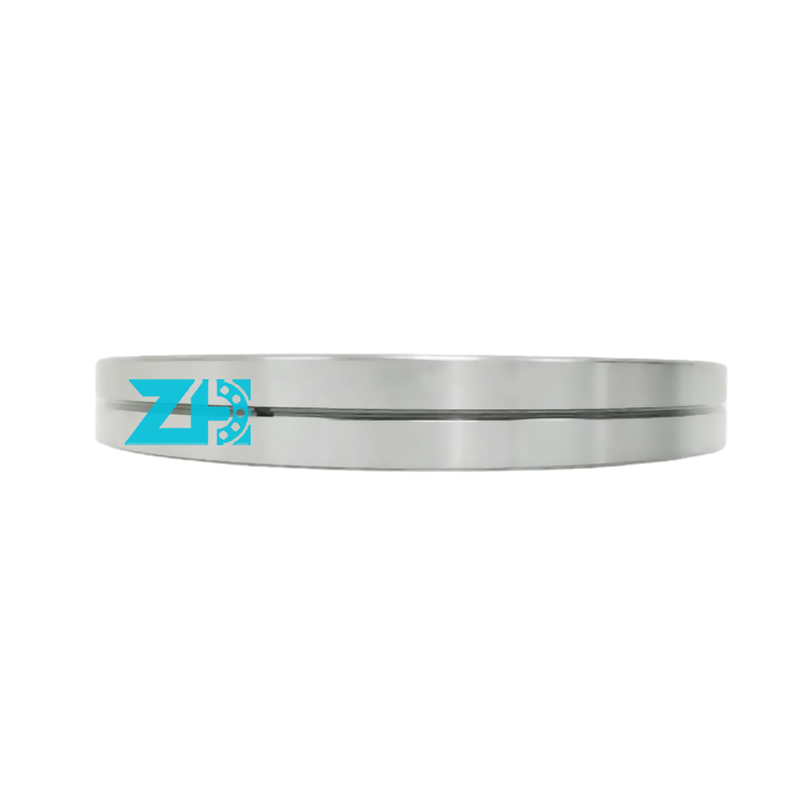

Crossed Roller Bearings RA20013UUCC0 size 200x226x13mm
single-row crossed roller bearing slewing ring
High Load-Bearing Capacity RA20013UUCC0 Crossed Roller Bearings 200x226x13mm Cross Roller Bearing
Technical Parameters:
model |
RA20013UUCC0 |
Size(d*D*B) |
200x226x13mm |
Type | Crossed Roller Bearings |
Precision | P0/P6/P5/P4 |
Feature |
Long Life,Stable Performance and Durable |
Material | GCR15 |
After-sales Service |
Online Support Professional Service |
Stock |
Sufficient |
Product Description
Crossed roller bearings, also known as crossed roller slewing bearings or crossed roller slide bearings, are a specialized type of rolling element bearing. They are designed to handle both radial and axial loads while providing high rotational accuracy and stiffness.
Crossed roller bearings are designed to handle limited misalignment between the shaft and the housing. The crossed roller design allows for slight angular misalignment and axial displacement, which can occur due to mounting errors or shaft deflection. However, excessive misalignment can lead to increased stress and premature bearing failure. It's important to ensure proper alignment during installation to maximize the bearing's performance and service life.
Crossed roller bearings are designed to operate with minimal vibration and noise. Excessive vibration or noise can indicate issues such as misalignment, inadequate lubrication, damaged rolling elements, or operating conditions beyond the bearing's capacity. Monitoring vibration and noise levels can help detect potential problems and allow for timely maintenance or troubleshooting.
Other bearing model catalog:
Type | Main dimensions | Basic load rating | |||
(Radial) | |||||
Inner diameter | Outer diameter | Width | Dynamic rating | Static rating | |
d | D | H | C | C0 | |
mm | mm | mm | kN | kN | |
RB 2008 | 20 | 36 | 8 | 3.23 | 3.1 |
RB 2508 | 25 | 41 | 8 | 3.63 | 3.83 |
RB 3010 | 30 | 55 | 10 | 7.35 | 8.36 |
RB 3510 | 35 | 60 | 10 | 7.64 | 9.12 |
RB 4010 | 40 | 65 | 10 | 8.33 | 10.6 |
RB 4510 | 45 | 70 | 10 | 8.62 | 11.3 |
RB 5013 | 50 | 80 | 13 | 16.7 | 20.9 |
RB 6013 | 60 | 90 | 13 | 18 | 24.3 |
RB 7013 | 70 | 100 | 13 | 19.4 | 27.7 |
RB 8016 | 80 | 120 | 16 | 30.1 | 42.1 |
RB 9016 | 90 | 130 | 16 | 31.4 | 45.3 |
RB 10016 | 100 | 140 | 16 | 31.7 | 48.6 |
RB 10020 | 100 | 150 | 20 | 33.1 | 50.9 |
RB 11012 | 110 | 135 | 12 | 12.5 | 24.1 |
RB 11015 | 110 | 145 | 15 | 23.7 | 41.5 |
RB 11020 | 110 | 160 | 20 | 34 | 54 |
RB 12016 | 120 | 150 | 16 | 24.2 | 43.2 |
RB 12025 | 120 | 180 | 25 | 66.9 | 100 |
RB 13015 | 130 | 160 | 15 | 25 | 46.7 |
RB 13025 | 130 | 190 | 25 | 69.5 | 107 |
RB 14016 | 140 | 175 | 16 | 25.9 | 50.1 |
RB 14025 | 140 | 200 | 25 | 74.8 | 121 |
RB 15013 | 150 | 180 | 13 | 27 | 53.5 |
RB 15025 | 150 | 210 | 25 | 76.8 | 128 |
RB 15030 | 150 | 230 | 30 | 100 | 156 |
RB 16025 | 160 | 220 | 25 | 81.7 | 135 |
RB 17020 | 170 | 220 | 20 | 29 | 62.1 |
RB 18025 | 180 | 240 | 25 | 84 | 143 |
RB 19025 | 190 | 240 | 25 | 41.7 | 82.9 |
RB 20025 | 200 | 260 | 25 | 84.2 | 157 |
RB 20030 | 200 | 280 | 30 | 114 | 200 |
RB 20035 | 200 | 295 | 35 | 151 | 252 |
RB 22025 | 220 | 280 | 25 | 92.3 | 171 |
RB 24025 | 240 | 300 | 25 | 68.3 | 145 |
RB 25025 | 250 | 310 | 25 | 69.3 | 150 |
RB 25030 | 250 | 330 | 30 | 126 | 244 |
RB 25040 | 250 | 355 | 40 | 195 | 348 |
RB 30025 | 300 | 360 | 25 | 76.3 | 178 |
RB 30035 | 300 | 395 | 35 | 183 | 367 |
RB 30040 | 300 | 405 | 40 | 212 | 409 |
Support and Services:
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port
