Place of Origin: | CHINA |
Brand Name: | ZH |
Model Number: | RA20013 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 2-7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces |
Stock: | Plentiful | Model: | RA20013 |
---|---|---|---|
Size(d*D*B): | 200x226x13mm | Type: | Crossed Roller Bearings |
Structure: | Spherical | Material: | GCR15 |
Feature: | Strong Bearing Capacity. | Precision Industries: | P0 P6 P5 P4 |
Applicable Industries: | Coal Mines Railways Petroleum Printing Power Plantss And Other Industrial Equipment | Packing: | Standard Export Package,Clients Requested |
After-sales Service: | Online Support, Professional Service | ||
High Light: | Crossed Roller Bearings RA20013,RA20013UUC0 Crossed Roller Bearings |

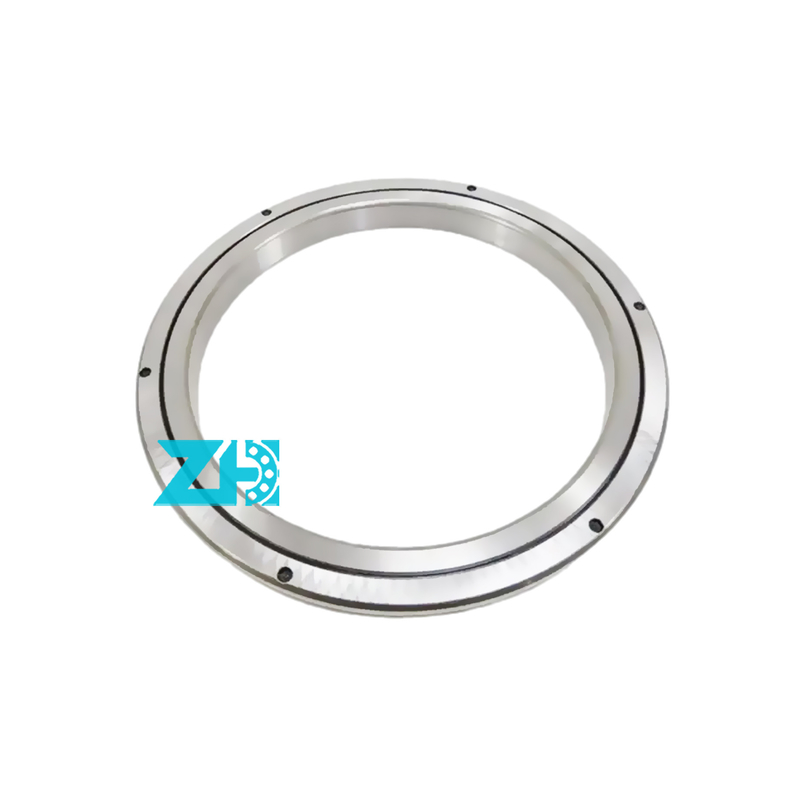

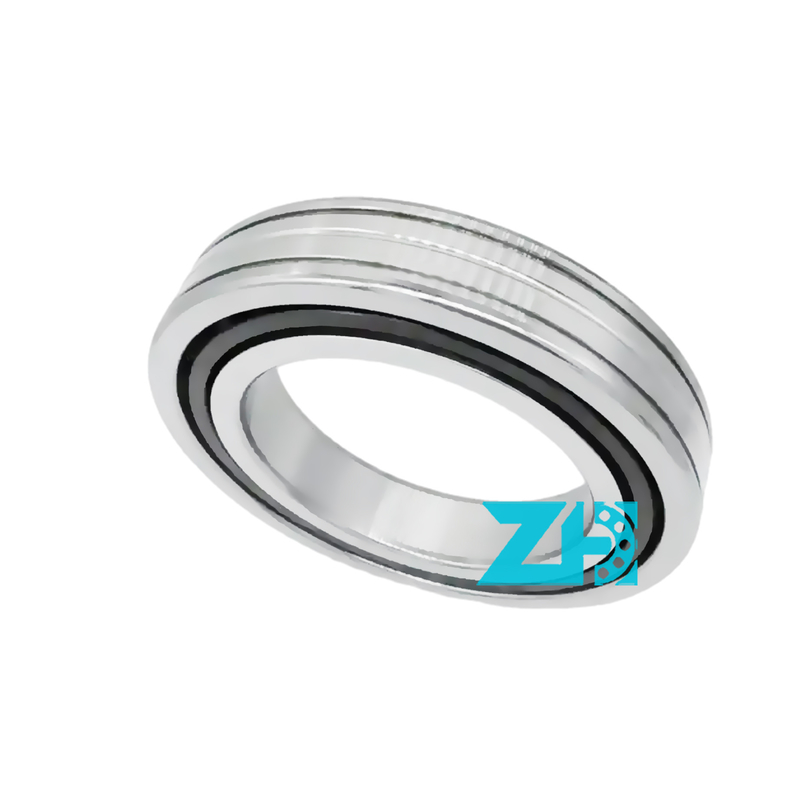

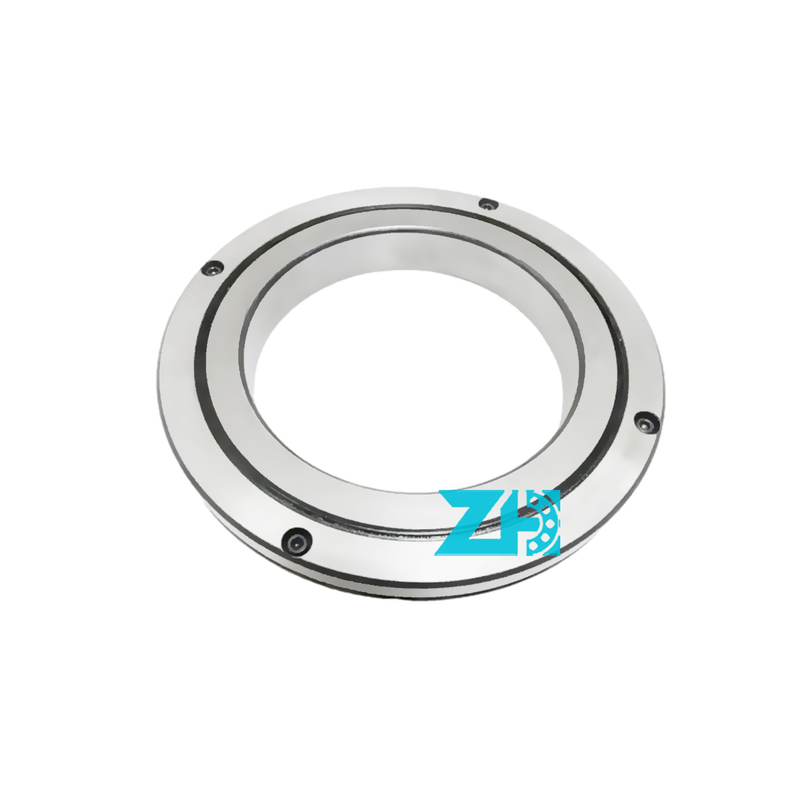

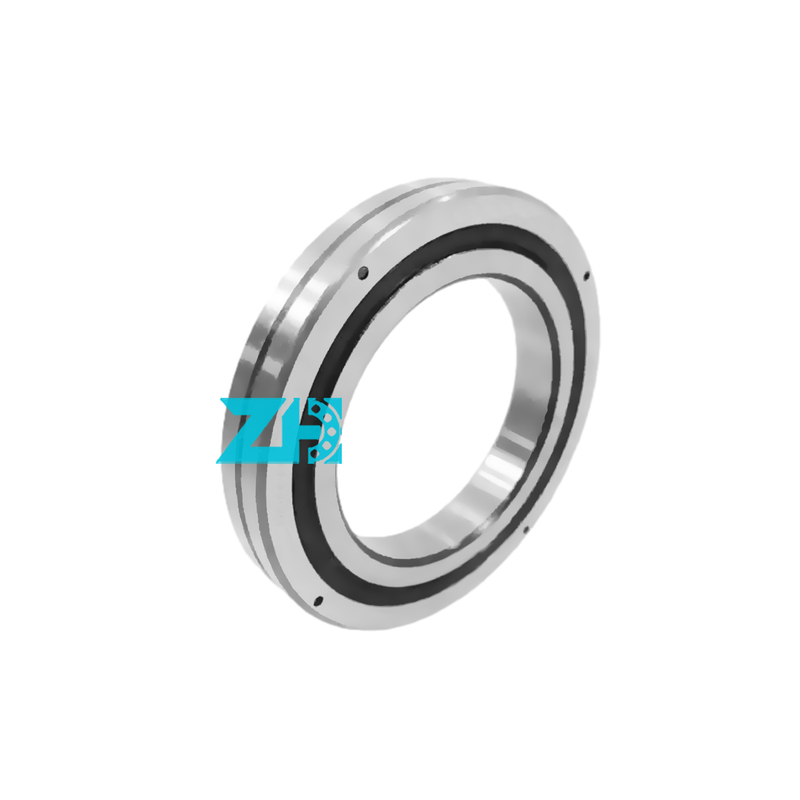

Crossed Roller Bearings RA20013 size 200x226x13mm
single-row crossed roller bearing slewing ring
High Limiting Speed Crossed Roller Bearings RA20013 Size 200x226x13mm RA20013 RA20013UU RA20013UUC0
Technical Parameters:
model |
RA20013 |
Size(d*D*B) |
200x226x13mm |
Type | Crossed Roller Bearings |
Precision | P0/P6/P5/P4 |
Feature |
Long Life,Stable Performance and Durable |
Material | GCR15 |
After-sales Service |
Online Support Professional Service |
Stock |
Sufficient |
Product Description
Crossed roller bearings, also known as crossed roller slewing bearings or crossed roller slide bearings, are a specialized type of rolling element bearing. They are designed to handle both radial and axial loads while providing high rotational accuracy and stiffness.
Crossed roller bearings have dynamic load ratings and static load ratings that indicate their load-carrying capabilities. The dynamic load rating represents the maximum load that the bearing can sustain for a specified number of rotations (often one million) without experiencing excessive fatigue. The static load rating indicates the maximum load that the bearing can support without permanent deformation. These ratings help in selecting the appropriate bearing size and determining its suitability for a specific application.
Crossed roller bearings can be mounted in various arrangements to meet different application requirements. Common mounting arrangements include single bearing arrangements, back-to-back arrangements, face-to-face arrangements, and combinations of these. The choice of mounting arrangement depends on factors such as load direction, stiffness requirements, axial and radial space limitations, and ease of assembly.
Other bearing model catalog:
Type | Main dimensions | Basic load rating | |||
(Radial) | |||||
Inner diameter | Outer diameter | Width | Dynamic rating | Static rating | |
d | D | H | C | C0 | |
mm | mm | mm | kN | kN | |
RB 2008 | 20 | 36 | 8 | 3.23 | 3.1 |
RB 2508 | 25 | 41 | 8 | 3.63 | 3.83 |
RB 3010 | 30 | 55 | 10 | 7.35 | 8.36 |
RB 3510 | 35 | 60 | 10 | 7.64 | 9.12 |
RB 4010 | 40 | 65 | 10 | 8.33 | 10.6 |
RB 4510 | 45 | 70 | 10 | 8.62 | 11.3 |
RB 5013 | 50 | 80 | 13 | 16.7 | 20.9 |
RB 6013 | 60 | 90 | 13 | 18 | 24.3 |
RB 7013 | 70 | 100 | 13 | 19.4 | 27.7 |
RB 8016 | 80 | 120 | 16 | 30.1 | 42.1 |
RB 9016 | 90 | 130 | 16 | 31.4 | 45.3 |
RB 10016 | 100 | 140 | 16 | 31.7 | 48.6 |
RB 10020 | 100 | 150 | 20 | 33.1 | 50.9 |
RB 11012 | 110 | 135 | 12 | 12.5 | 24.1 |
RB 11015 | 110 | 145 | 15 | 23.7 | 41.5 |
RB 11020 | 110 | 160 | 20 | 34 | 54 |
RB 12016 | 120 | 150 | 16 | 24.2 | 43.2 |
RB 12025 | 120 | 180 | 25 | 66.9 | 100 |
RB 13015 | 130 | 160 | 15 | 25 | 46.7 |
RB 13025 | 130 | 190 | 25 | 69.5 | 107 |
RB 14016 | 140 | 175 | 16 | 25.9 | 50.1 |
RB 14025 | 140 | 200 | 25 | 74.8 | 121 |
RB 15013 | 150 | 180 | 13 | 27 | 53.5 |
RB 15025 | 150 | 210 | 25 | 76.8 | 128 |
RB 15030 | 150 | 230 | 30 | 100 | 156 |
RB 16025 | 160 | 220 | 25 | 81.7 | 135 |
RB 17020 | 170 | 220 | 20 | 29 | 62.1 |
RB 18025 | 180 | 240 | 25 | 84 | 143 |
RB 19025 | 190 | 240 | 25 | 41.7 | 82.9 |
RB 20025 | 200 | 260 | 25 | 84.2 | 157 |
RB 20030 | 200 | 280 | 30 | 114 | 200 |
RB 20035 | 200 | 295 | 35 | 151 | 252 |
RB 22025 | 220 | 280 | 25 | 92.3 | 171 |
RB 24025 | 240 | 300 | 25 | 68.3 | 145 |
RB 25025 | 250 | 310 | 25 | 69.3 | 150 |
RB 25030 | 250 | 330 | 30 | 126 | 244 |
RB 25040 | 250 | 355 | 40 | 195 | 348 |
RB 30025 | 300 | 360 | 25 | 76.3 | 178 |
RB 30035 | 300 | 395 | 35 | 183 | 367 |
RB 30040 | 300 | 405 | 40 | 212 | 409 |
