Place of Origin: | CHINA |
Brand Name: | ZH |
Model Number: | F-809281 |
Minimum Order Quantity: | 1piece |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 2-7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces |
Stock: | Substantial | Model: | F-809281 |
---|---|---|---|
Size(d*D*B): | 120*215*76/98mm | Type: | Spherical Roller Bearing |
Structure: | Spherical | Material: | GCR15 |
Feature: | Able To Carry High Loads | Precision Industries: | P0 P6 P5 P4 |
Applicable Industries: | Coal Mines Railways Petroleum Printing Power Plants, Ships Airlines And Other Industrial Equipment | Packing: | Standard Export Package,Clients Requested |
After-sales Service: | Supply Of Spare Parts | ||
High Light: | Concrete Mixer Spherical Roller Bearing,F-809281 Concrete Mixer Spherical Roller Bearing |

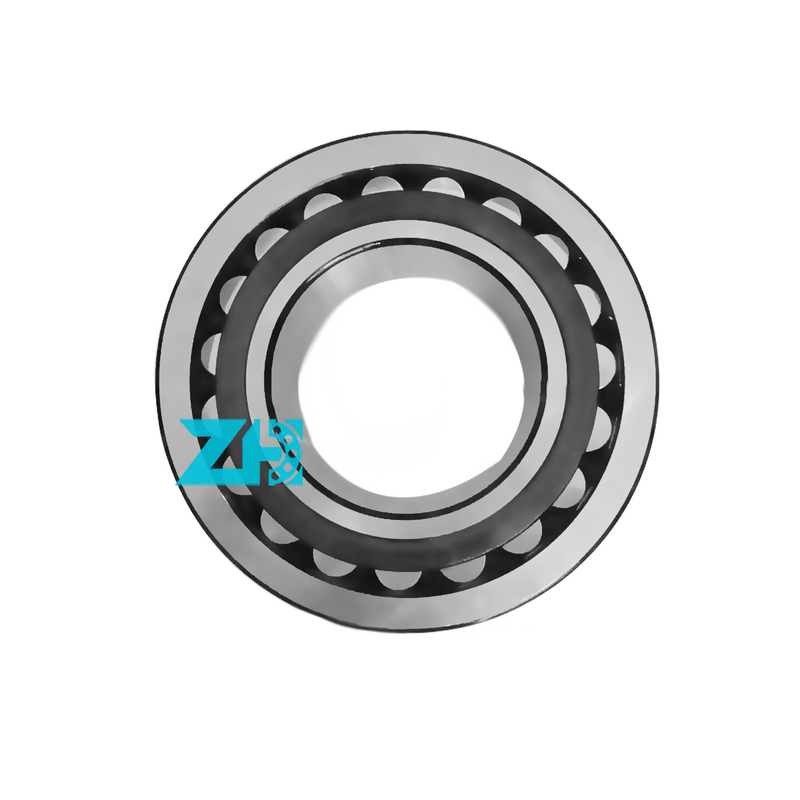

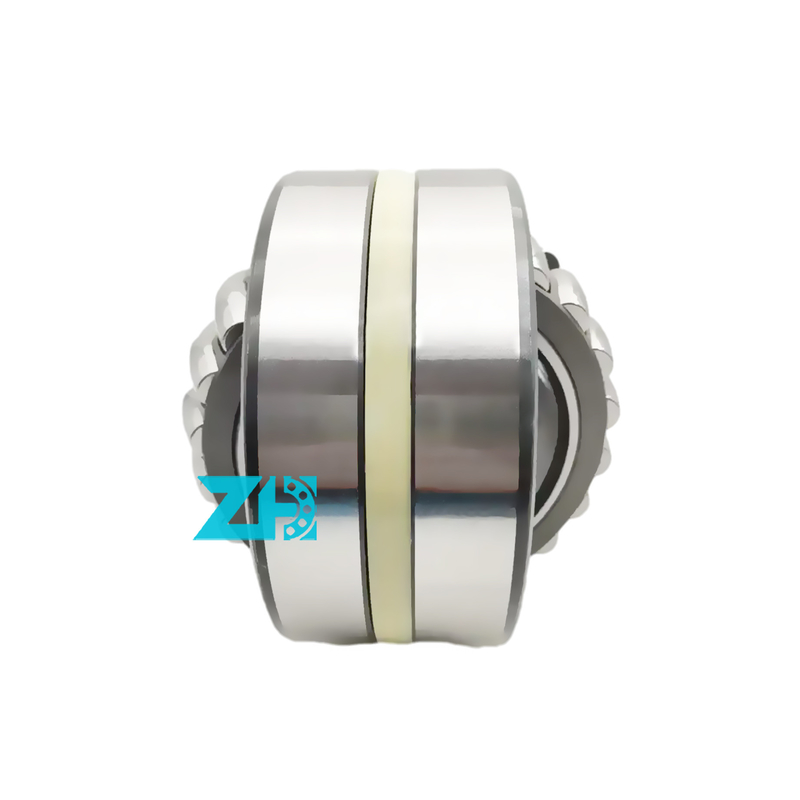

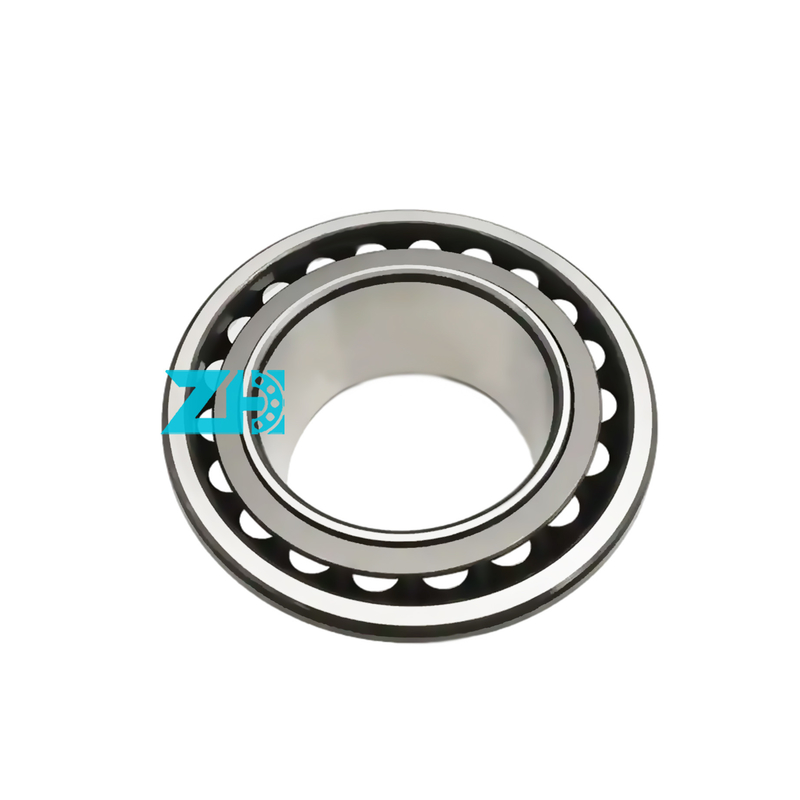

F-809281 Size 120*215*76/98mm High Speed Mixer Truck Bearings Concrete Mixer Spherical Roller Bearing
F-809281 Spherical Roller Bearing size 120*215*76/98mm Concrete mixer truck bearing
Technical Parameters:
model | F-809281 |
Size(d*D*B) |
120*215*76/98mm |
Type | Spherical Roller Bearing |
Precision | P0/P6/P5/P4 |
Feature |
Able to Carry High Loads |
Material | GCR15 |
After-sales Service |
Online Support Professional Service |
Stock |
Substantial |
A spherical roller bearing is a type of rolling element bearing that is designed to accommodate heavy radial loads and moderate to high axial loads in both directions. It consists of an inner ring with two raceways, an outer ring with a spherical raceway, and barrel-shaped rollers that are positioned between the raceways. The rollers are guided by a cage, which maintains their spacing and orientation.
Monitoring the operating temperature of spherical roller bearings can provide valuable insights into their condition and help detect potential issues. Excessive heat can indicate problems such as inadequate lubrication, misalignment, overloading, or bearing damage. Temperature monitoring can be done using handheld infrared thermometers, thermal imaging cameras, or embedded temperature sensors in advanced bearing systems.
When designing a system that incorporates spherical roller bearings, several factors need to be considered. These include bearing selection, bearing arrangement and spacing, shaft and housing design, lubrication method, sealing arrangements, and compatibility with other system components. Taking these factors into account ensures optimal performance, reliability, and longevity of the bearing system.
Excavator Bearings Catalog:
Designation | Principal Dimension | ||
d | D | B | |
22308CA/W33 | 40 | 90 | 33 |
22309CA/W33 | 45 | 100 | 36 |
22310CA/W33 | 50 | 110 | 40 |
22311CA/W33 | 55 | 120 | 43 |
22312CA/W33 | 60 | 130 | 46 |
22313CA/W33 | 65 | 140 | 48 |
22314CA/W33 | 70 | 150 | 51 |
22315CA/W33 | 75 | 160 | 55 |
22316CA/W33 | 80 | 170 | 58 |
22317CA/W33 | 85 | 180 | 60 |
22318CA/W33 | 90 | 190 | 64 |
22319CA/W33 | 95 | 200 | 67 |
22320CA/W33 | 100 | 215 | 73 |
22322CA/W33 | 110 | 240 | 80 |
22324CA/W33 | 120 | 260 | 86 |
22326CA/W33 | 130 | 280 | 93 |
22328CA/W33 | 140 | 300 | 102 |
22330CA/W33 | 150 | 320 | 108 |
22332CA/W33 | 160 | 340 | 114 |
22334CA/W33 | 170 | 360 | 120 |
22336CA/W33 | 180 | 380 | 126 |
Support and Services:
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port
