Place of Origin: | CHINA |
Brand Name: | ZH |
Model Number: | F-804182 |
Minimum Order Quantity: | 1piece |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 2-7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces |
Stock: | Abundant | Model: | F-804182 |
---|---|---|---|
Size(d*D*B): | 110X180X69/82mm | Type: | Spherical Roller Bearing |
Structure: | Spherical | Material: | GCR15 |
Feature: | Less Energy Consumption | Precision Industries: | P0 P6 P5 P4 |
Applicable Industries: | Coal Mines Railways Petroleum Printing Power Plants, Ships Airlines And Other Industrial Equipment | Packing: | Standard Export Package,Clients Requested |
After-sales Service: | Supply Of Spare Parts | ||
High Light: | GCR15 Material Spherical Roller Bearing,F-804182 Spherical Roller Bearing |

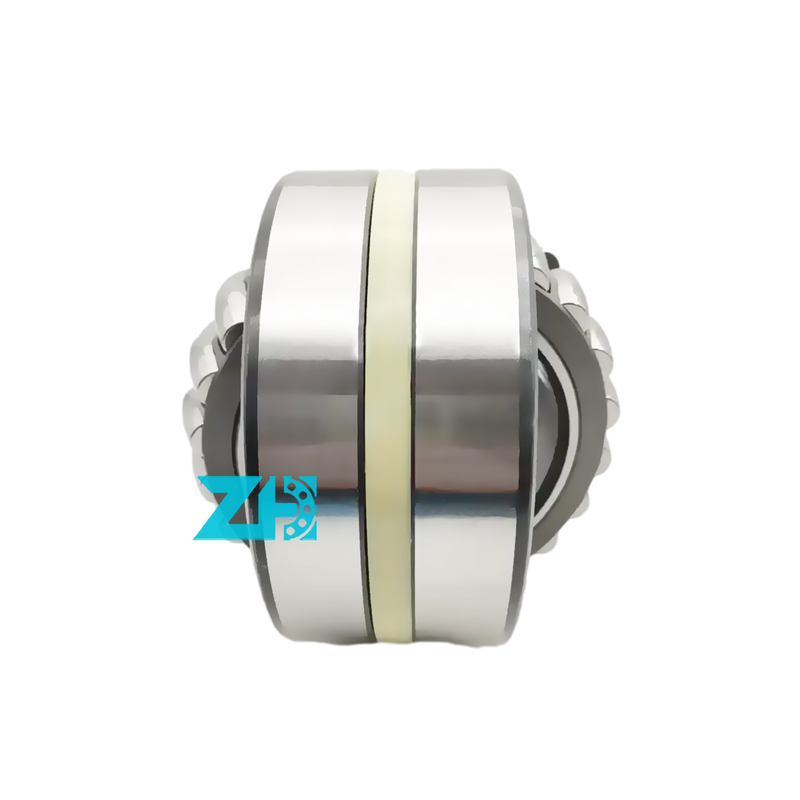

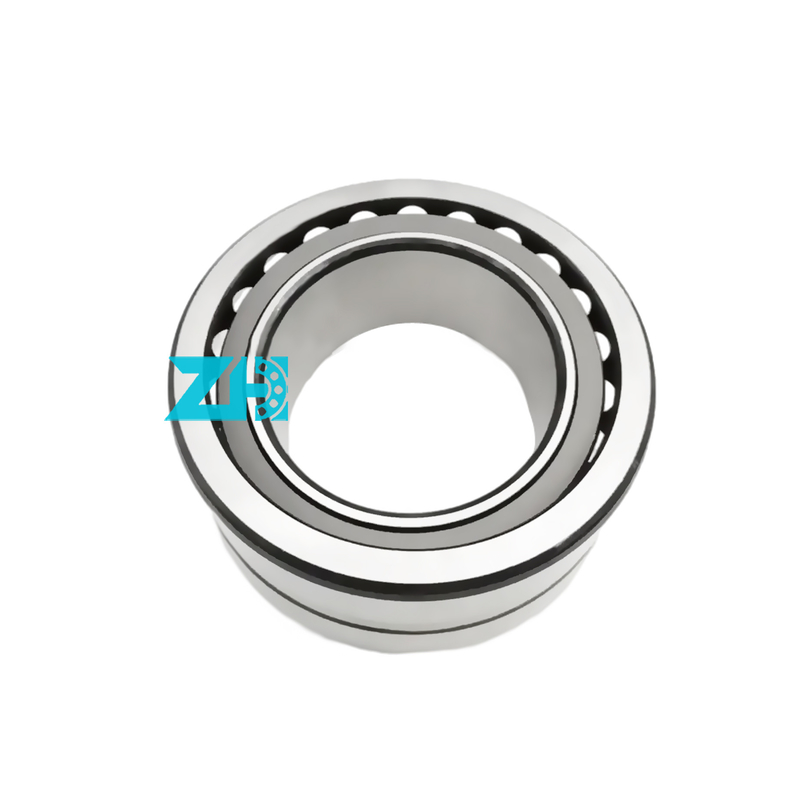

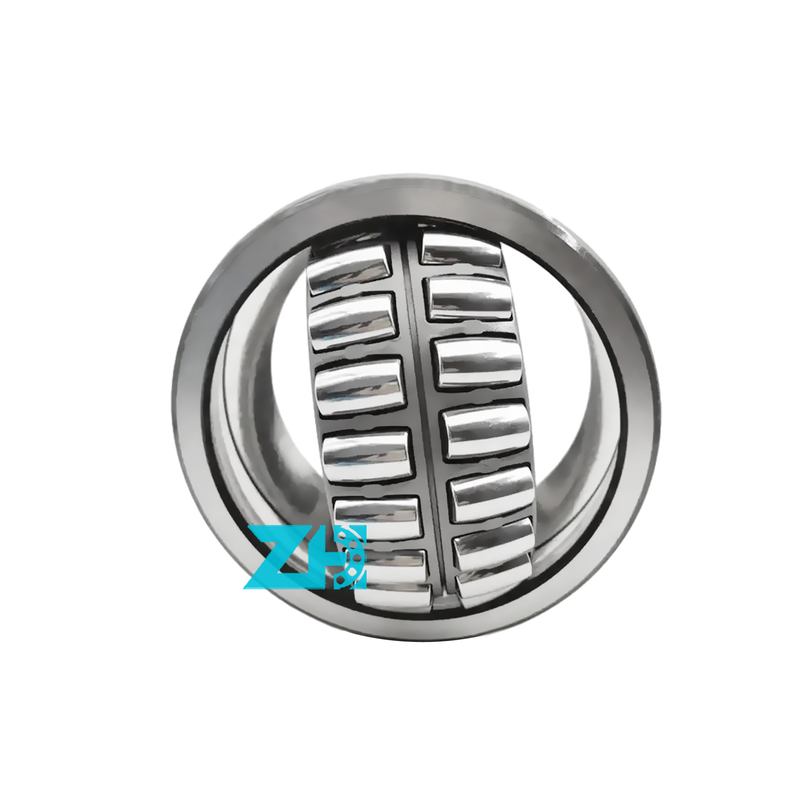

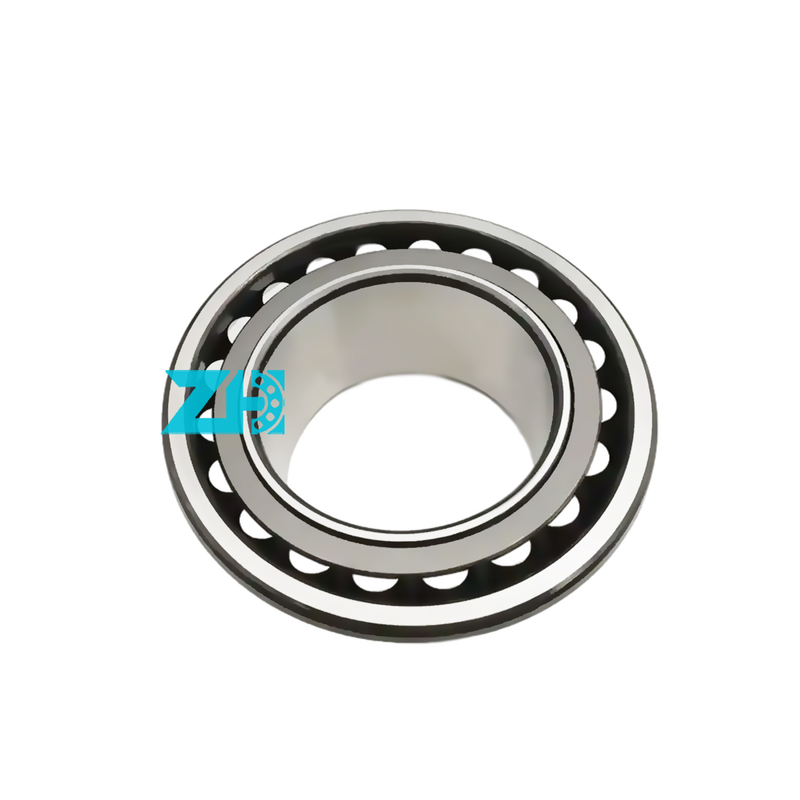

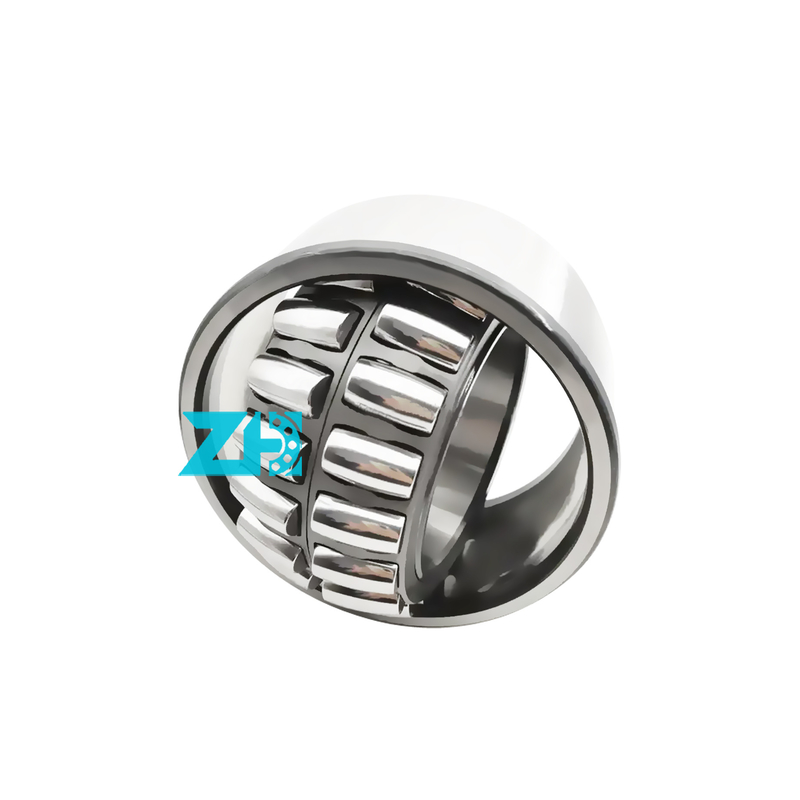

Spherical Roller Bearing 110X180X69/82mm, High Limiting Speed, F-804182 GCR15 Material
F-804182 Spherical Roller Bearing size 110X180X69/82mm Concrete mixer truck bearing
Technical Parameters:
model | F-804182 |
Size(d*D*B) |
110X180X69/82mm |
Type | Spherical Roller Bearing |
Precision | P0/P6/P5/P4 |
Feature |
High limiting speed |
Material | GCR15 |
After-sales Service |
Online Support Professional Service |
Stock |
Adequate |
A spherical roller bearing is a type of rolling element bearing that is designed to accommodate heavy radial loads and moderate to high axial loads in both directions. It consists of an inner ring with two raceways, an outer ring with a spherical raceway, and barrel-shaped rollers that are positioned between the raceways. The rollers are guided by a cage, which maintains their spacing and orientation.
Spherical roller thrust bearings are a specialized type of spherical roller bearing designed to accommodate axial loads in one direction. They have a spherical raceway in the housing washer and a self-aligning capability, allowing them to compensate for misalignment. Spherical roller thrust bearings are commonly used in applications where heavy axial loads and moderate radial loads need to be supported, such as in gearboxes and industrial gear sets.
Spherical roller bearings are manufactured to specific tolerances to ensure proper fit and performance. The tolerances define the allowable deviations in dimensions, form, and running accuracy of the bearing components. Common tolerance classes for spherical roller bearings include P0 (normal), P6 (higher precision), and P5/P4 (even higher precision). The appropriate tolerance class depends on the application requirements and the desired level of precision.
Excavator Bearings Catalog:
Designation | Principal Dimension | ||
d | D | B | |
22308CA/W33 | 40 | 90 | 33 |
22309CA/W33 | 45 | 100 | 36 |
22310CA/W33 | 50 | 110 | 40 |
22311CA/W33 | 55 | 120 | 43 |
22312CA/W33 | 60 | 130 | 46 |
22313CA/W33 | 65 | 140 | 48 |
22314CA/W33 | 70 | 150 | 51 |
22315CA/W33 | 75 | 160 | 55 |
22316CA/W33 | 80 | 170 | 58 |
22317CA/W33 | 85 | 180 | 60 |
22318CA/W33 | 90 | 190 | 64 |
22319CA/W33 | 95 | 200 | 67 |
22320CA/W33 | 100 | 215 | 73 |
22322CA/W33 | 110 | 240 | 80 |
22324CA/W33 | 120 | 260 | 86 |
22326CA/W33 | 130 | 280 | 93 |
22328CA/W33 | 140 | 300 | 102 |
22330CA/W33 | 150 | 320 | 108 |
22332CA/W33 | 160 | 340 | 114 |
22334CA/W33 | 170 | 360 | 120 |
22336CA/W33 | 180 | 380 | 126 |
