Place of Origin: | CHINA |
Brand Name: | ZH |
Model Number: | 800730 |
Minimum Order Quantity: | 1piece |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 2-7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces |
Stock: | Abundant | Model: | 800730 |
---|---|---|---|
Size(d*D*B): | 100X160X66mm | Type: | Spherical Roller Bearing |
Structure: | Spherical | Material: | GCR15 |
Feature: | High Precision And Load Capacity | Precision Industries: | P0 P6 P5 P4 |
Applicable Industries: | Coal Mines Railways Petroleum Printing Power Plants, Ships Airlines And Other Industrial Equipment | Packing: | Standard Export Package,Clients Requested |
After-sales Service: | Supply Of Spare Parts | ||
High Light: | Self Aligning Spherical Roller Bearing,800730 Spherical Roller Bearing |

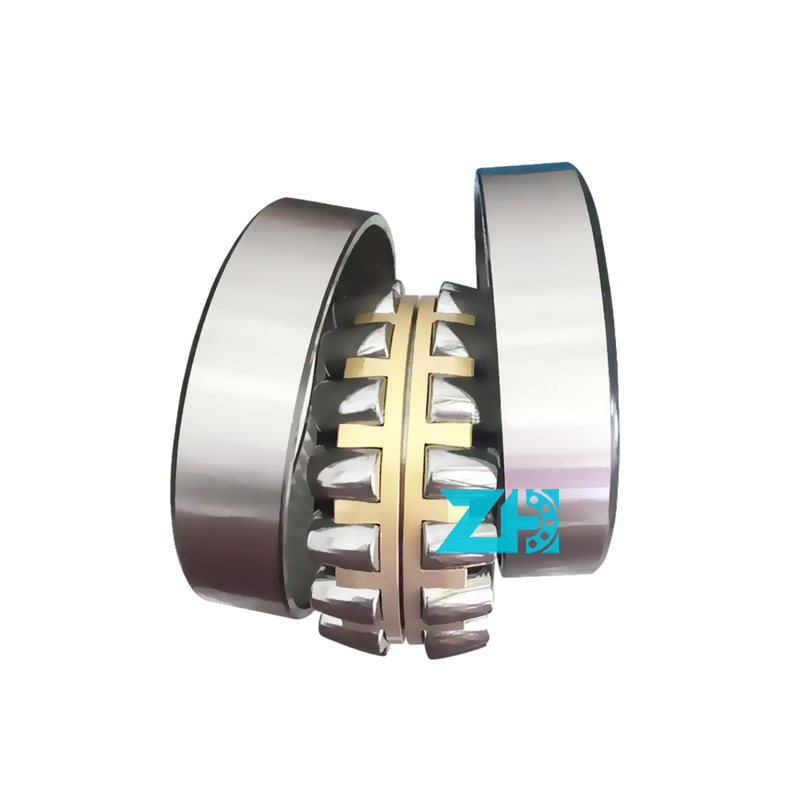

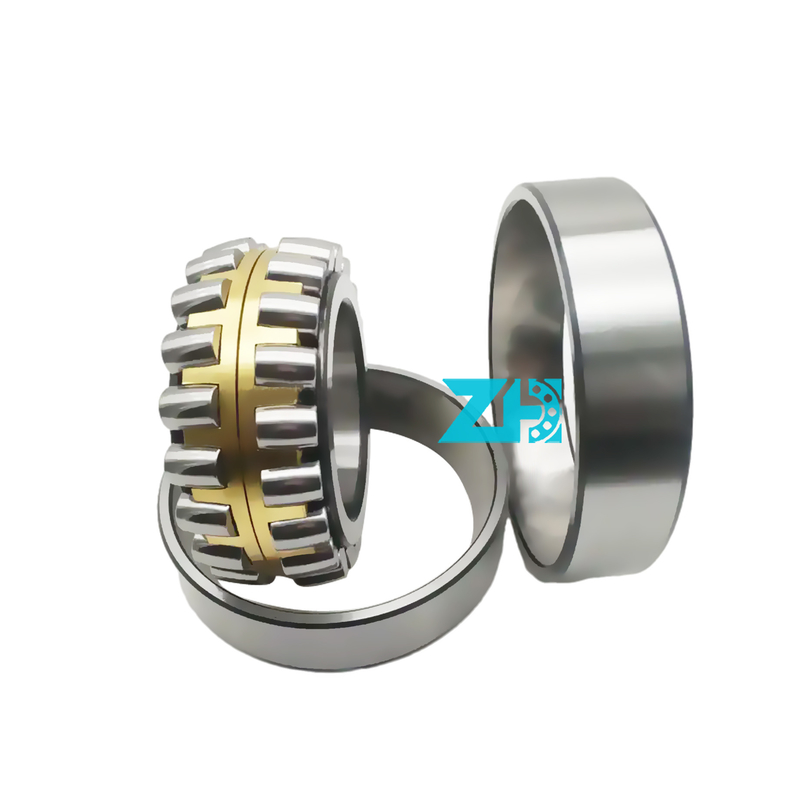

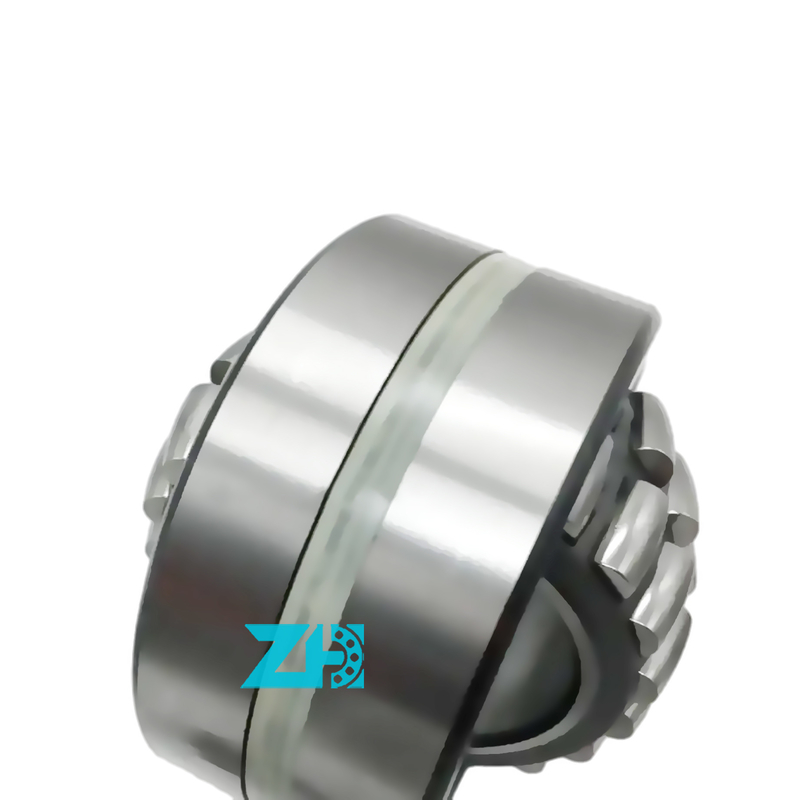

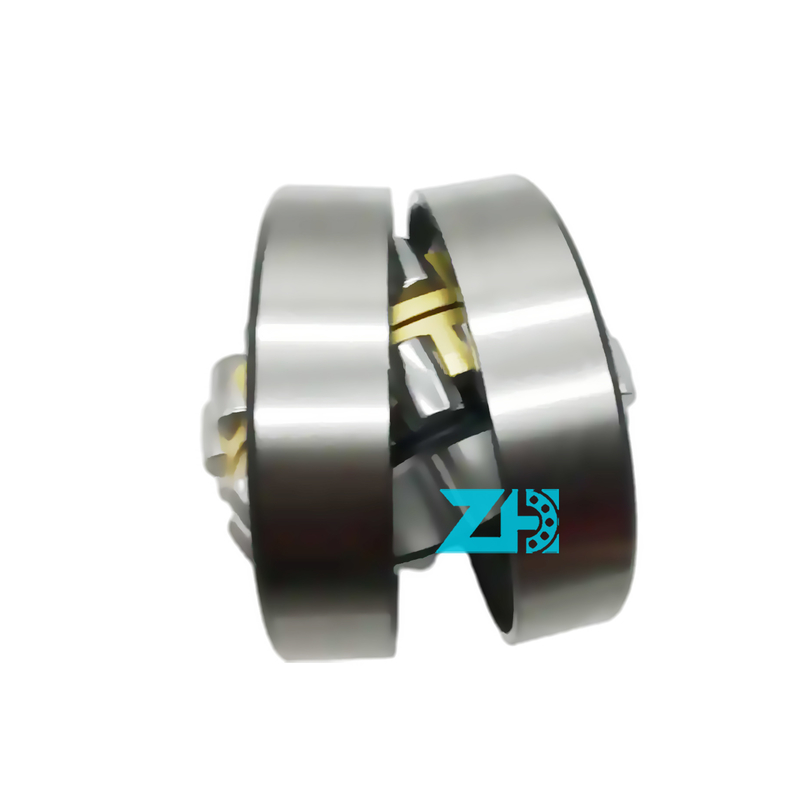

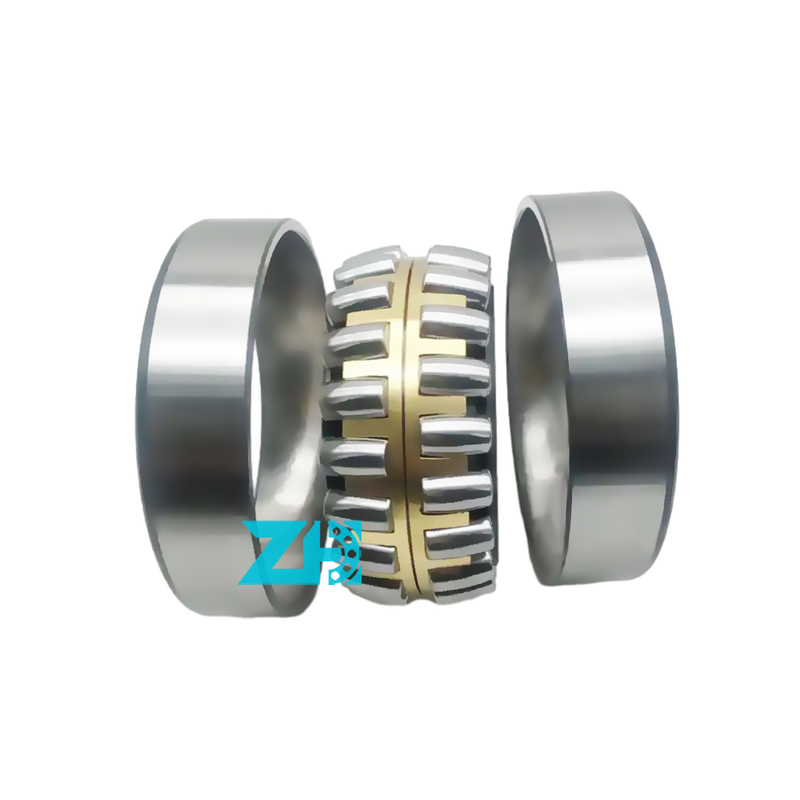

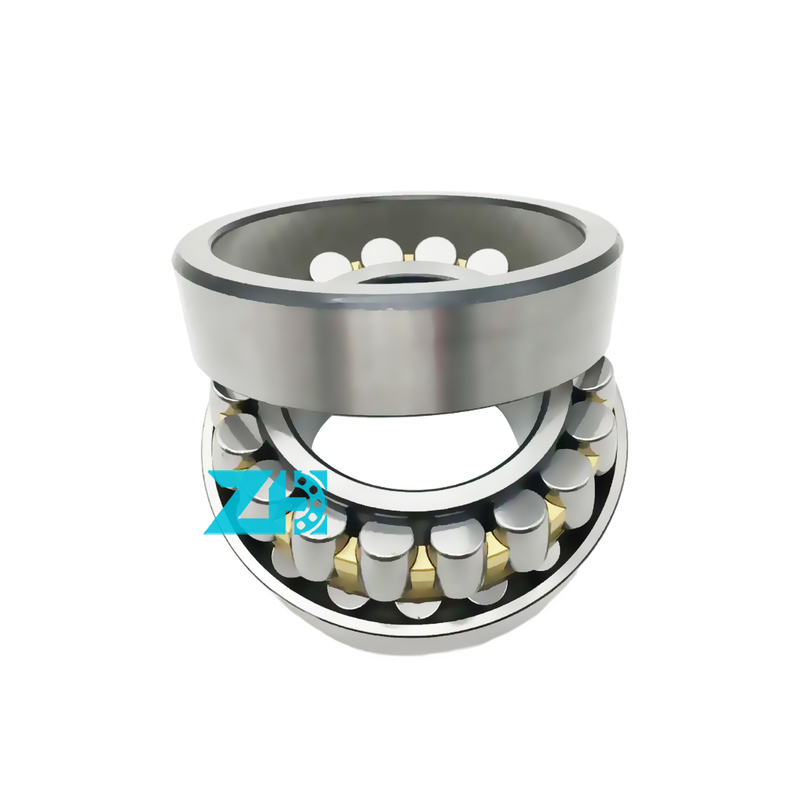

800730 Spherical Roller Bearing size 100X160X66mm Concrete mixer truck bearing
Spherical Roller Bearing 800730 Size 100X160X66mm Double Row Spherical Roller Bearing
Technical Parameters:
model | 800730 |
Size(d*D*B) |
100X160X66mm |
Type | Spherical Roller Bearing |
Precision | P0/P6/P5/P4 |
Feature |
Self-aligning capability |
Material | GCR15 |
After-sales Service |
Online Support Professional Service |
Stock | Rich |
A spherical roller bearing is a type of rolling element bearing that is designed to accommodate heavy radial loads and moderate to high axial loads in both directions. It consists of an inner ring with two raceways, an outer ring with a spherical raceway, and barrel-shaped rollers that are positioned between the raceways. The rollers are guided by a cage, which maintains their spacing and orientation.
The unique design of spherical roller bearings allows them to self-align, compensating for misalignment or shaft deflection. This self-aligning capability helps to reduce friction, heat generation, and stress on the bearing components. Spherical roller bearings are commonly used in applications with high radial loads, such as heavy machinery, mining equipment, paper mills, and industrial gearboxes.
The rotational speed at which a spherical roller bearing can operate reliably without excessive heat generation or premature wear is known as its speed limitation. Factors that affect the bearing's speed limit include its internal design, lubrication, cage material, and operating conditions. Exceeding the speed limit can result in reduced bearing life and potential failure.
Excavator Bearings Catalog:
Designation | Principal Dimension | ||
d | D | B | |
22308CA/W33 | 40 | 90 | 33 |
22309CA/W33 | 45 | 100 | 36 |
22310CA/W33 | 50 | 110 | 40 |
22311CA/W33 | 55 | 120 | 43 |
22312CA/W33 | 60 | 130 | 46 |
22313CA/W33 | 65 | 140 | 48 |
22314CA/W33 | 70 | 150 | 51 |
22315CA/W33 | 75 | 160 | 55 |
22316CA/W33 | 80 | 170 | 58 |
22317CA/W33 | 85 | 180 | 60 |
22318CA/W33 | 90 | 190 | 64 |
22319CA/W33 | 95 | 200 | 67 |
22320CA/W33 | 100 | 215 | 73 |
22322CA/W33 | 110 | 240 | 80 |
22324CA/W33 | 120 | 260 | 86 |
22326CA/W33 | 130 | 280 | 93 |
22328CA/W33 | 140 | 300 | 102 |
22330CA/W33 | 150 | 320 | 108 |
22332CA/W33 | 160 | 340 | 114 |
22334CA/W33 | 170 | 360 | 120 |
22336CA/W33 | 180 | 380 | 126 |
Support and Services:
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port
