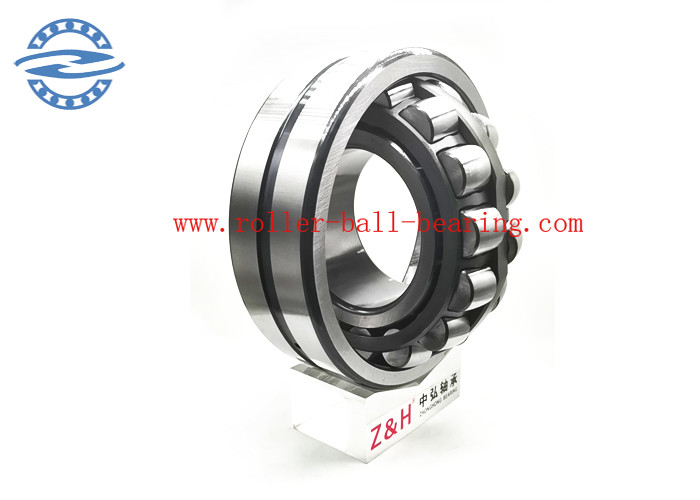

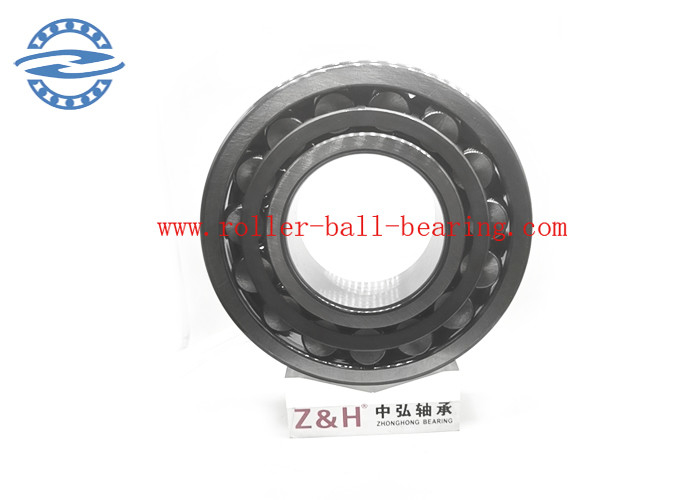

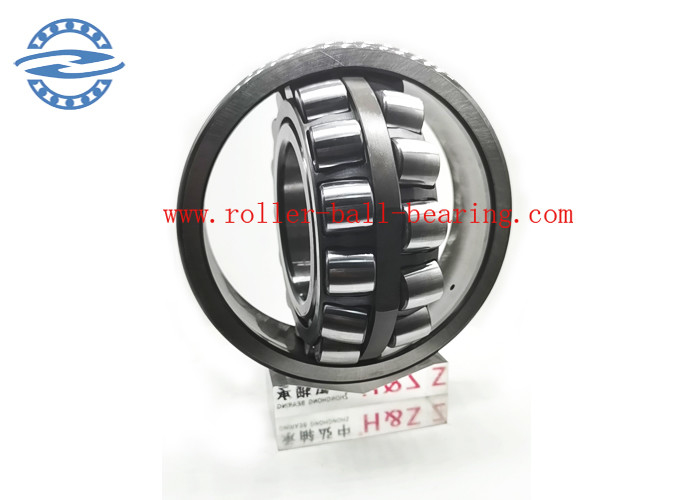

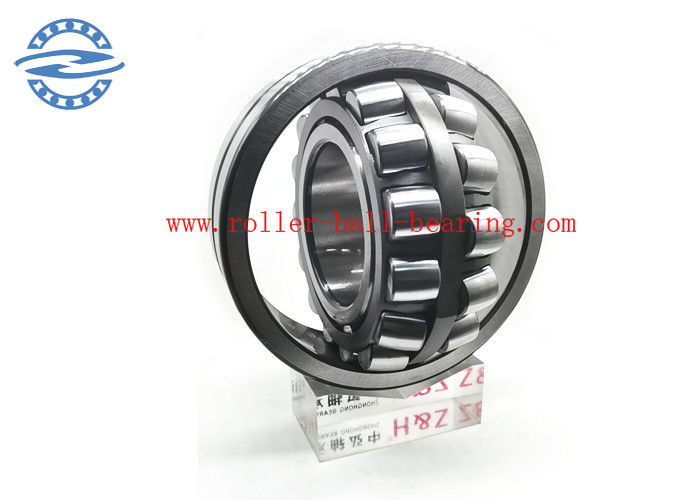

22318CCJA/W33 VA405 Vibrating screen Spherical Roller Bearing 90x190x64mm

Product description

The 22318CCJA/W33VA405 is a spherical roller bearing. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions.

The 22318CCJA/W33VA405  is designed for use in vibrating machines such as road rollers, saw frames and vibratory screens. This particularly robust bearing can withstand very high loads, speeds, accelerations, and centrifugal forces. This bearing guarantees top performance under demanding operating conditions.

Specifications

Availability                   1 pcs

Brand                           ZH

Item Number                22318CCJA/W33VA405 ZH

Category                      Spherical Roller Bearing

Weight and Dimensions

 Inner (d) MM90

Outer (D) MM190

Width (B) MM64

Inner (d) Inch3.5433

Outer (D) Inch7.4803

Width (B) Inch2.5197

Weight (kg)8.06

Product Properties

 Bore                                                       C - Cylindrical Bore

 Lubrication Enhancement                      W33 - Lubrication Groove and 3 Holes

 Seal                                                        No Seal

Cage Type                                              S - Steel or Standard Cage

Radial Internal Play                                 C4 Internal Play (Higher than C3)

Precision                                                Standard Precision

Heat Stabilization                                   No Heat Stabilization - Temperatures up to 120 °C

Vibrating Screen Execution                     Vibrating Screen Execution

FQA

Q1: What is Spherical Roller Bearing?
A1: Spherical Roller Bearing is a type of rolling-element bearing that permits rotation with low friction, and permits angular misalignment.

Q2: What is the brand and model of this product?
A2: The brand of this product is ZH and the model number is 22318CCJA

Q3: Where is this product from?

A3: This product is from Guangzhou.

Q4: What are the advantages of Spherical Roller Bearing?
A4: Spherical Roller Bearing has low friction, high load capacity, and can accommodate misalignments.

Q5: What are the applications of Spherical Roller Bearing?
A5: Spherical Roller Bearing can be used in heavy-duty applications such as gearboxes, motors, and conveyor systems.
