Place of Origin:
Shandong
Brand Name:
ZH
Model Number:
22310CA/W33

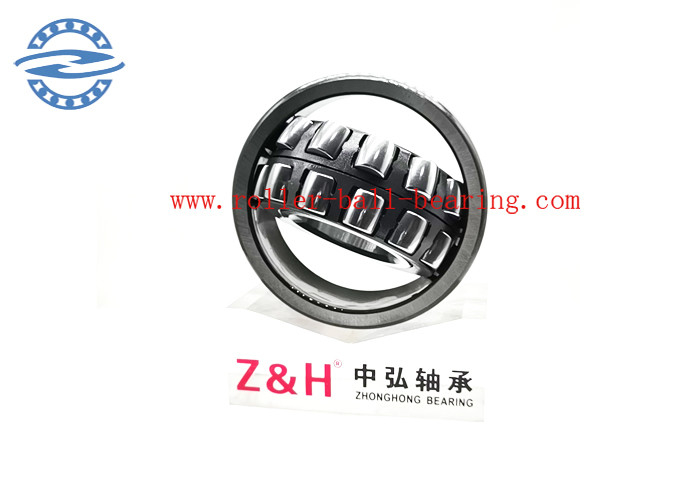

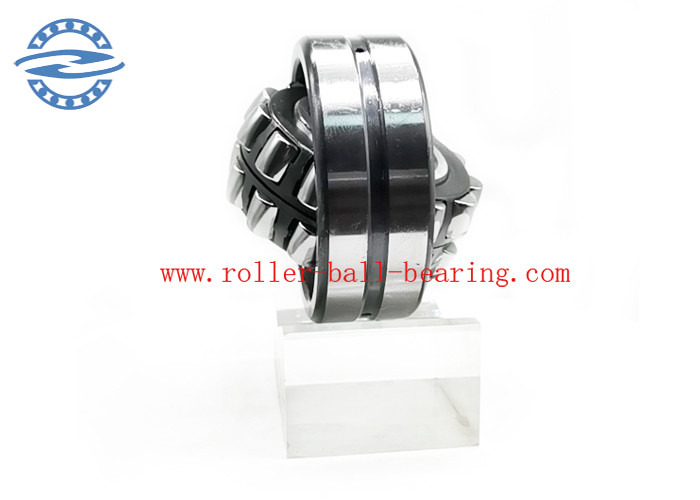

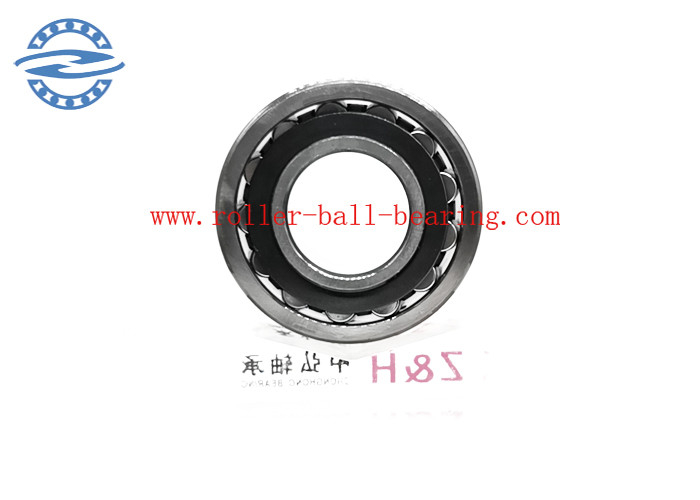

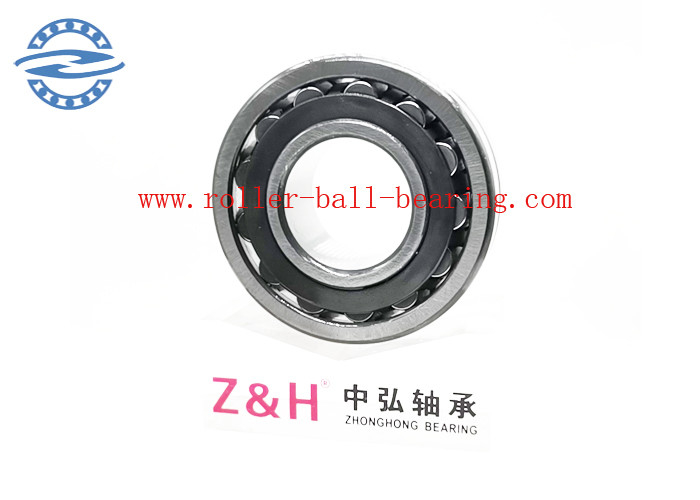

22310CA/W33 double radial spherical plain bearing 50x110x40 mm
Spherical roller bearings have double-row rollers, the outer ring has a common spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis. This ingenious structure makes it have self-aligning performance, so it is not easy to be affected by the angle of the shaft and the bearing box seat on the error or shaft bending. It is suitable for the occasions where the installation error or the shaft deflection causes the angle error. In addition to being able to withstand radial loads, the bearing can also withstand bidirectional axial loads.
Spherical roller bearings have cylindrical and conical bores. The taper of the conical cone bore is 1:30 and 1:12. This conical bore bearing is equipped with an adapter sleeve or a withdrawal sleeve. The tapered inner hole self-aligning ball bearing can be easily and quickly assembled on the optical shaft or the stepper shaft.
| Name | 22310 bearing 50*110*40mm 22310CA/W33 spherical roller bearing | |||||||
| Model No. | 22310 | |||||||
| Material | Chrome steel GCR15 bearing with brass cage | |||||||
| Packing | ZYSL brand single box | |||||||
| Delivery time | In stock,within 24 hours after receiivng payment | |||||||
| ID (mm) | OD (mm) | B (mm) | Cr (kN) |
Cor (kN) |
Grease lubrication speed (r/min) |
Oil lubrication speed (r/min) |
Weight | Brand |
| 50 | 110 | 40 | 228 | 224 | 4800 | 6300 | 1.9kg | ZYSL |
1.Excellent and high quality control,high speed,low noise,long life
2.Prompt delivery
3.Competitive price
4.Small order accepted
5.Customers' drawing or samples accepted
6.OEM service
7.Professional:12 years manufacture bearing
| 22300series | ||
| Bearing Number | Dimension (mm ) | Weight (kg) |
| 22306 | 30X72X19 | 0.37 |
| 22307 | 35X80X31 | 0.75 |
| 22308 | 40X90X33 | 1.03 |
| 22309 | 45X90X33 | 1.4 |
| 22310 | 50X110X40 | 1.85 |
| 22311 | 55X120X43 | 2.42 |
| 22312 | 60X130X46 | 3 |
| 22313 | 65X140X48 | 3.65 |
| 22314 | 70X150X51 | 4.4 |
| 22315 | 75X160X55 | 5.47 |
| 22316 | 80X170X58 | 6.63 |
| 22317 | 85X180X60 | 7.07 |
| 22318 | 90X190X64 | 8.76 |
| 22319 | 95X200X67 | 9.93 |
| 22320 | 100X215X73 | 13.7 |
| 22322 | 110X240X80 | 17.7 |
| 22324 | 120X260X86 | 22.9 |
| 22326 | 130X280X93 | 28.5 |
| 22328 | 140X300X102 | 35.5 |
| 22330 | 150X320X108 | 42 |
| 22332 | 160X340X114 | 52.2 |
| 22334 | 170X360X120 | 60.7 |
| 22336 | 180X380X126 | 72.6 |
| 22338 | 190X400X132 | 84.2 |
| 22340 | 200X420X138 | 94.4 |
| 22344 | 220X460X145 | 119 |
Spherical roller bearings for automotive, construction machinery, oil drilling, coal mining industrial, motion industrial bearing, for rear-wheel, transmission and electric equipment parts for car making; electromotor, home appliances; instrument, combustion engines, building machinery, railway vehicle, loading/unloading machine, farm machinery and various industrial usage.
Q1.What’s your advantage? Why we choose you?
A:1)More than 10 Years experience of bearing production and R&D.We have the most professional techniques and team. More advantage in price.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.
Q2.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
