Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | QIEAL ZH |
| Certifiexcavatorion: | ISO-9001 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | According to customer requirements |
| Delivery Time: | 2-7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 per day |
| Model Number: | NK22/16 | Bore Size: | 5 - 160 Mm |
|---|---|---|---|
| Type: | Needle | Outside Diameter: | 10 - 200 Mm |
| Precision Rating: | Normal | Seals Type: | Open |
| Number Of Row: | Single Row | Package: | Plastic Bag And Box |
| High Light: | NK22/16 Needle Roller Bearing,Needle Roller Bearing Without Inner Ring |
||

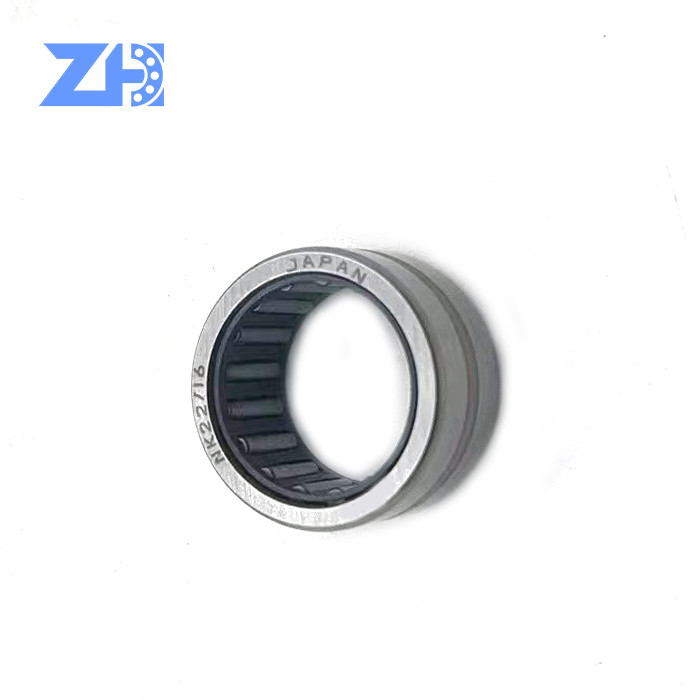

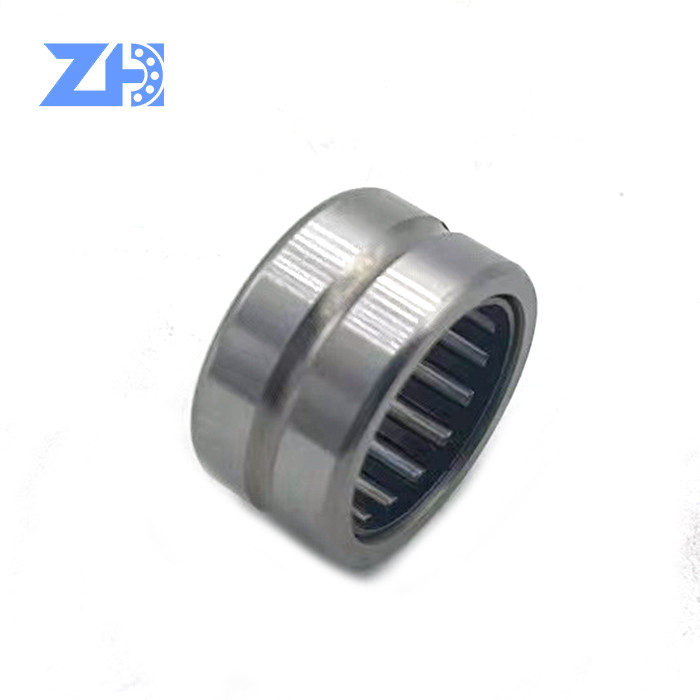

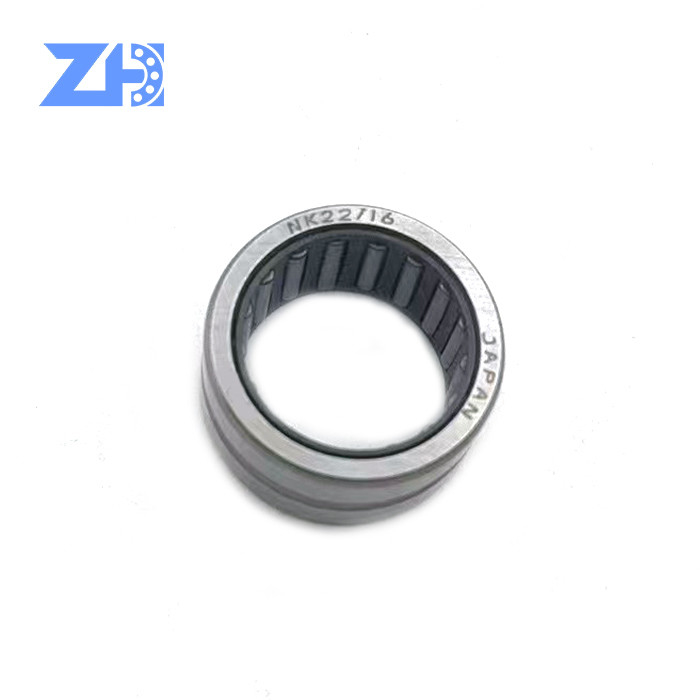

Good Quality NK22/16 Needle Roller Bearing Without Inner Ring Size 22x30x16 Mm
Bearing Data
| P/N | NK22/16 | ||
| Brand |
Z H |
||
| Dimension | Standard | ||
| Precision | Normal | ||
| Type | Needle Roller Bearings | ||
| Lubriexcavatorion | Oil | ||
| Material | 52100 Chrome Steel | ||
| Package | Plastic Bag and Box |
||
Appliexcavatorion: Needle roller bearings are widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.
Needle roller bearings with ribs:
The outer ring forms a self-retaining unit with the needle roller and cage assembly. These radially compact bearings with high load capacity are highly suitable for designs with limited radial space. The bearings are available with and without inner ring and in both sealed and open versions.
Bearings without an inner ring are the best solution for bearing arrangements where the shaft can be hardened and ground.
Needle roller bearings with an inner ring are used if the shaft is not configured as a rolling bearing raceway.
Dimensions:
Fw: 22mm
D: 30mm
C: 16mm
r min: 0.3mm
Basic dynamic load rating, radial: 15800 N
Basic static load rating, radial: 19900 N
Fatigue limit load, radial: 3650 N
Limiting speed: 18800 1/min
Reference speed: 10900 1/min
Mass: 30.0g
| Package | Plastic Tube for bearings, and carton package outside | ||||||
| Shipping | Express,air shipment, and sea shipment are available | ||||||
| Service | OEM Service, and can print your onw logo after authorization | ||||||
We can get back to you quickly, usually within 1 business day and try our best to meet your requirements of package, shipping and other points you concern
