Place of Origin:
CHINA
Brand Name:
QIEAL ZH
Model Number:
NK22-16

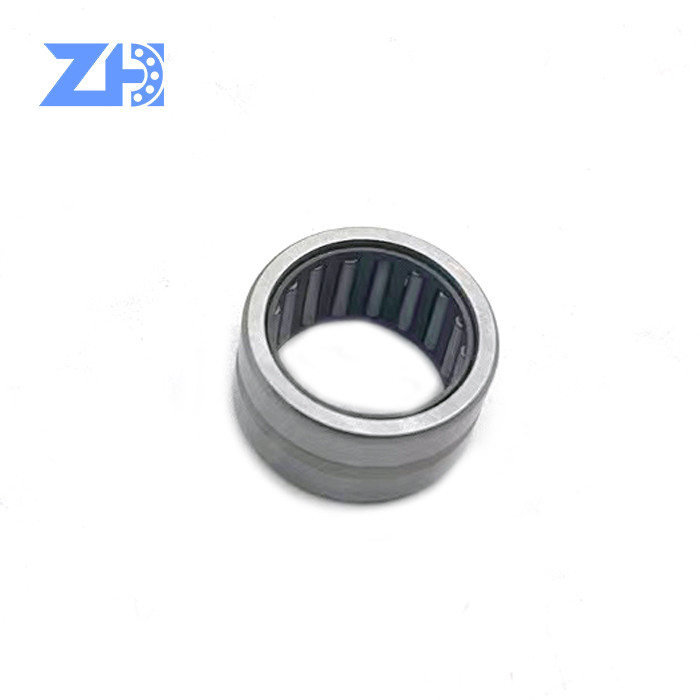

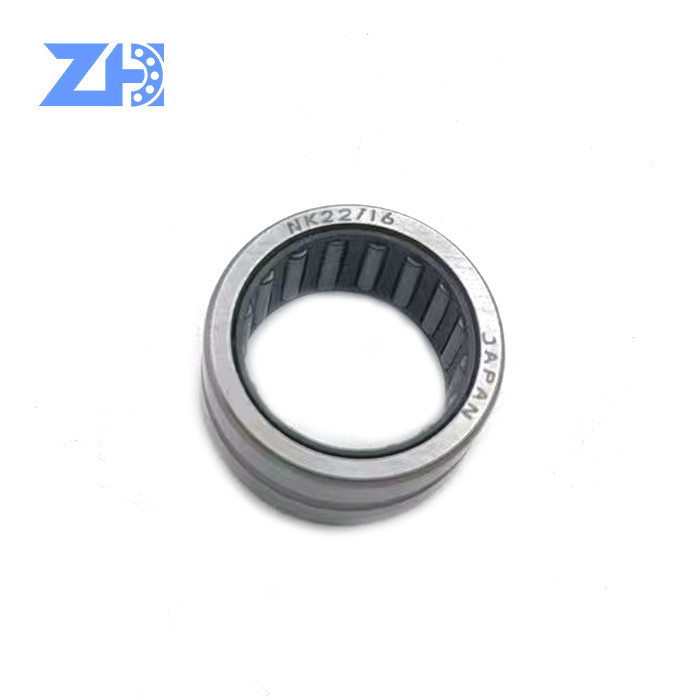

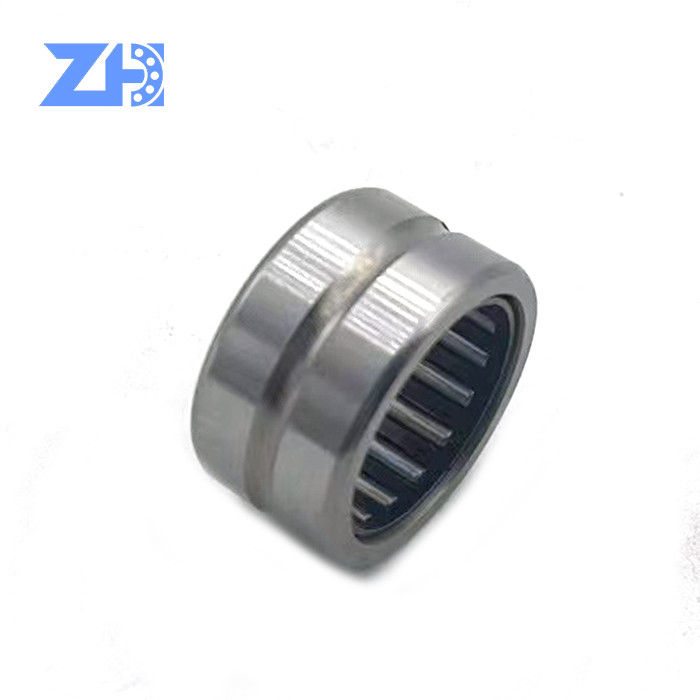

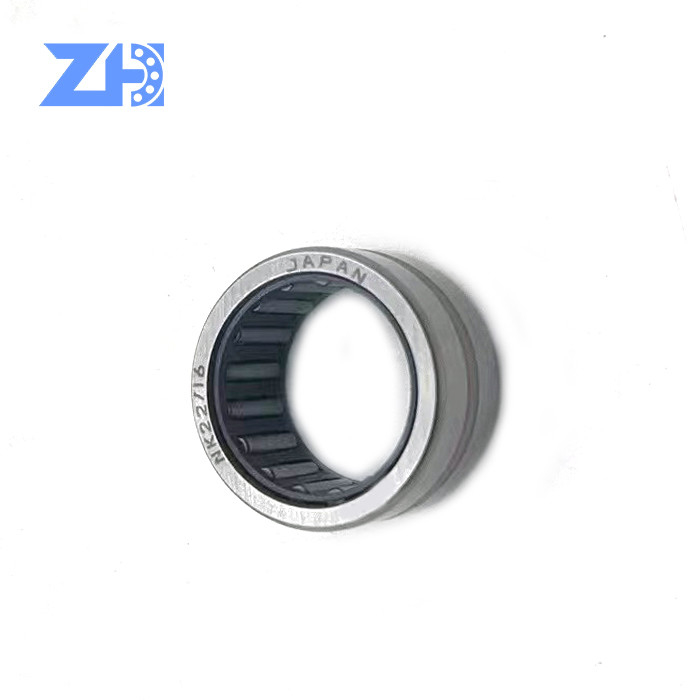

Needle Roller Bearings Bearings With Cylindrical NK22/16 Bearing Size 22X33X16 Mm
Needle roller bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified roller/raceway profile prevents stress peaks to extend bearing service life. We supplies needle roller bearings in many different designs, series and in a wide range of sizes, which make them appropriate for a wide variety of operating conditions and appliexcavatorions.
| Product name | NK22/16 needle roller bearing |
| Brand | Z H |
| FW(mm) | 22 |
| D(mm) | 30 |
| C(mm) | 16 |
| Weight(kg) | 0.029 |
| Material | Chrome steel |
| Precision rate | P0 P6 P4 P5 |
| Delivery time | <5000,within 5 days after payment |
| Package | Plastic Tube for bearings, and carton package outside | ||||||
| Shipping | Express,air shipment, and sea shipment are available | ||||||
| Service | OEM Service, and can print your onw logo after authorization | ||||||
| Product Name | High Quality Needle Bearing |
| Brand | As Your Request |
| Model Number | NK20/16 0 NK22/16 NK25/16 NK30/20 NK35/20 NK40/20 |
| Ring Material | Steel |
| Cage Material | Steel only |
| Precision | P0, P6, P5, P4, P2 or as requested |
| Vibration | ZV1, ZV2, ZV3, or as requested |
| Clearance | C0,C2,C3, or as requested |
| Type | We have all types |
| Features |
Low friction ,Long service life ,Enhanced operational reliability ,Consistency of roller profiles and sizes ,Rigid bearing appliexcavatorion,Running-in period with reduced temperature peaks ,Separable and interchangeable With low and smoothly coefficient of friction and without stick-slip effects Suitable for dirty, corrosion, impact load and edge loading The base material provided a good shock-absorbing capacity Can be used over a large temperature range. |
| Quality standard | ISO9001:2000 / SGS / CE |
| Quality Control Process | 1.Assembly 2.Windage test 3.Cleaning 4.Rotary test 5.Greasing and gland 6.Noise inspection 7.Appearance inspection 8.Rust prevention 9.Product packaging |
| Service | OEM or customer logo acceptable |
| Installation Guide | 1. Clean bearings and related components; 2. Check the size of connected components; 3. Installation; 4. Inspection of the bearings after installed; 5. Supply lubricant periodically. |
| Appliexcavatorion | Used in Precision instrument,low noise machine,automobile,motorcycle,and the general machinery and so on,it is the most widely used bearing type in the machinery industry. |
SOME BEARING MODELS
| MODEL NO | d(mm) | D(mm) | B(mm) |
| NA4822 | 110 | 140 | 30 |
| NA4824 | 120 | 150 | 30 |
| NA4826 | 130 | 165 | 35 |
| NA4828 | 140 | 175 | 35 |
| NA4830 | 150 | 190 | 40 |
| NA4832 | 160 | 200 | 40 |
| NA4834 | 170 | 215 | 45 |
| NA4836 | 180 | 225 | 45 |
| NA4838 | 190 | 240 | 50 |
| NA4840 | 200 | 250 | 50 |
| NA4844 | 220 | 270 | 50 |
| NA4848 | 240 | 300 | 60 |
| NA4852 | 260 | 320 | 60 |
| NA4856 | 280 | 350 | 69 |
| NA4860 | 300 | 380 | 80 |
| NA4864 | 320 | 400 | 80 |
| NA4868 | 340 | 420 | 80 |
| NA4872 | 360 | 440 | 80 |
| NA49/22 | 22 | 39 | 17 |
| NA49/28 | 28 | 45 | 17 |
| NA49/32 | 32 | 52 | 20 |
| NA49/5 | 5 | 13 | 10 |
| NA49/6 | 6 | 15 | 10 |
| NA49/7 | 7 | 17 | 10 |
| NA49/8 | 8 | 19 | 11 |
| NA49/9 | 9 | 20 | 11 |
| NA4900 | 10 | 22 | 13 |
| NA4901 | 12 | 24 | 13 |
| NA4902 | 15 | 28 | 13 |
| NA4903 | 17 | 30 | 13 |
| NA4904 | 20 | 37 | 17 |
| NA4905 | 25 | 42 | 17 |
| NA4906 | 30 | 47 | 17 |
| NA4907 | 35 | 55 | 20 |
| NA4908 | 40 | 62 | 22 |
| NA4909 | 45 | 68 | 22 |
| NA4910 | 50 | 72 | 22 |
| NA4911 | 55 | 80 | 25 |
| NA4912 | 60 | 85 | 25 |
| NA4913 | 65 | 90 | 25 |
| NA4914 | 70 | 100 | 30 |
| NA4915 | 75 | 105 | 30 |
| NA4916 | 80 | 110 | 30 |
| NA4917 | 85 | 120 | 35 |
| NA4918 | 90 | 125 | 35 |
| NA4919 | 95 | 130 | 35 |
| NA4920 | 100 | 140 | 40 |
| NA4922 | 110 | 150 | 40 |
| NA4924 | 120 | 165 | 45 |
| NA4926 | 130 | 180 | 50 |
| NA4928 | 140 | 190 | 50 |
| NA69/22 | 22 | 39 | 30 |
| NA69/28 | 28 | 45 | 30 |
| NA69/32 | 32 | 52 | 36 |
| NA6901 | 12 | 24 | 22 |
| NA6902 | 15 | 28 | 23 |
| NA6903 | 17 | 30 | 23 |
| NA6904 | 20 | 37 | 30 |
| NA6905 | 25 | 42 | 30 |
| NA6906 | 30 | 47 | 30 |
| NA6907 | 35 | 55 | 36 |
| NA6908 | 40 | 62 | 40 |
| NA6909 | 45 | 68 | 40 |
| NA6910 | 50 | 72 | 40 |
| NA6911 | 55 | 80 | 45 |
| NA6912 | 60 | 85 | 45 |
| NA6913 | 65 | 90 | 45 |
| NA6914 | 70 | 100 | 54 |
| NA6915 | 75 | 105 | 54 |
| NA6916 | 80 | 110 | 54 |
| NA6917 | 85 | 120 | 63 |
| NA6918 | 90 | 125 | 63 |
| NA6919 | 95 | 130 | 63 |
| NA6920 | 100 | 140 | 71 |
| NK10/12 | 7 | 17 | 12 |
| NK10/16 | 7 | 17 | 16 |
| NK100/26 | 90 | 120 | 26 |
| NK100/36 | 90 | 120 | 36 |
| NK105/26 | 95 | 125 | 26 |
| NK105/36 | 95 | 125 | 36 |
| NK110/30 | 100 | 130 | 30 |
| NK110/40 | 100 | 130 | 40 |
| NK14/16 | 10 | 22 | 16 |
| NK14/20 | 10 | 22 | 20 |
| NK15/16 | 0 | 23 | 16 |
| NK15/20 | 0 | 23 | 20 |
| NK16/16 | 12 | 24 | 16 |
| NK16/20 | 12 | 24 | 20 |
| NK17/16 | 0 | 25 | 16 |
| NK17/20 | 0 | 25 | 20 |
| NK18/16 | 0 | 26 | 16 |
| NK18/20 | 0 | 26 | 20 |
| NK19/16 | 15 | 27 | 16 |
| NK19/20 | 15 | 27 | 20 |
| NK20/16 | 0 | 28 | 16 |
| NK20/20 | 0 | 28 | 20 |
| NK21/16 | 17 | 29 | 16 |
| NK21/20 | 17 | 29 | 20 |
| NK22/16 | 0 | 30 | 16 |
| NK22/20 | 0 | 30 | 20 |
| NK24/16 | 20 | 32 | 16 |
| NK24/20 | 20 | 32 | 20 |
| NK25/16 | 0 | 33 | 16 |
| NK25/20 | 0 | 33 | 20 |
| NK26/16 | 22 | 34 | 16 |
| NK26/20 | 22 | 34 | 20 |
| NK28/20 | 0 | 37 | 20 |
| NK28/30 | 0 | 37 | 30 |
| NK29/20 | 25 | 38 | 20 |
| NK29/30 | 25 | 38 | 30 |
| NK30/20 | 30 | 40 | 20 |
| NK30/30 | 0 | 40 | 30 |
| NK32/20 | 28 | 42 | 20 |
| NK32/30 | 28 | 42 | 30 |
| NK35/20 | 30 | 45 | 20 |
| NK35/30 | 30 | 45 | 30 |
| NK37/20 | 32 | 47 | 20 |
| NK37/30 | 32 | 47 | 30 |
| NK38/20 | 0 | 48 | 20 |
| NK38/30 | 0 | 48 | 30 |
| NK40/20 | 35 | 50 | 20 |
| NK40/30 | 35 | 50 | 30 |
| NK42/20 | 0 | 52 | 20 |
| NK42/30 | 0 | 52 | 30 |
| NK43/20 | 38 | 53 | 20 |
| NK43/30 | 38 | 53 | 30 |
| NK45/20 | 40 | 55 | 20 |
| NK45/30 | 40 | 55 | 30 |
| NK47/20 | 42 | 57 | 20 |
| NK47/30 | 42 | 57 | 30 |
| NK5/10 | 0 | 10 | 10 |
| NK5/12 | 0 | 10 | 12 |
| NK50/25 | 45 | 62 | 25 |
| NK50/35 | 45 | 62 | 35 |
| NK55/25 | 50 | 68 | 25 |
| NK55/35 | 50 | 68 | 35 |
| NK6/10 | 0 | 12 | 10 |
| NK6/12 | 0 | 12 | 12 |
| NK60/25 | 55 | 72 | 25 |
| NK60/35 | 55 | 72 | 35 |
| NK65/25 | 0 | 78 | 25 |
| NK65/35 | 0 | 78 | 35 |
| NK68/25 | 60 | 82 | 25 |
| NK68/35 | 60 | 82 | 35 |
| NK7/10 | 0 | 14 | 10 |
| NK7/12 | 0 | 14 | 12 |
| NK70/25 | 0 | 85 | 25 |
| NK70/35 | 0 | 85 | 35 |
| NK73/25 | 65 | 90 | 25 |
| NK73/35 | 65 | 90 | 35 |
| NK75/25 | 0 | 92 | 25 |
| NK75/35 | 0 | 92 | 35 |
| NK8/12 | 5 | 15 | 12 |
| NK8/16 | 5 | 15 | 16 |
| NK80/25 | 70 | 95 | 25 |
| NK80/35 | 70 | 95 | 35 |
| NK85/25 | 75 | 105 | 25 |
| NK85/35 | 75 | 105 | 35 |
| NK9/12 | 9 | 16 | 12 |
| NK9/16 | 9 | 16 | 16 |
| NK90/25 | 80 | 110 | 25 |
| NK90/35 | 80 | 110 | 35 |
| NK95/26 | 85 | 115 | 26 |
| NK95/36 | 85 | 115 | 36 |
