Place of Origin: | CHINA |
Brand Name: | QIEAL ZH |
Certifiexcavatorion: | ISO-9001 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | Negotiable |
Packaging Details: | According to customer requirements |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1600 per day |
Model Number: | NA69/32 | Bore Size: | 5 - 68 Mm |
---|---|---|---|
Type: | Needle | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Printing |
Precision Rating: | P6 | Seals Type: | Open |
Material: | Chrome Steel | Outer Him.: | 11-85 Mm |
Package: | Roller Pack + Carton Box | Appliexcavatorion: | Agriculture Machine, Etc |
Width: | 10-45 Mm | Inner Him: | 5-68 Mm |
High Light: | NA69-32 Needle Roller Engineer Bearings,40X52X36mm Needle Roller Engineer Bearings,Heavy Duty Needle Roller Bearing |

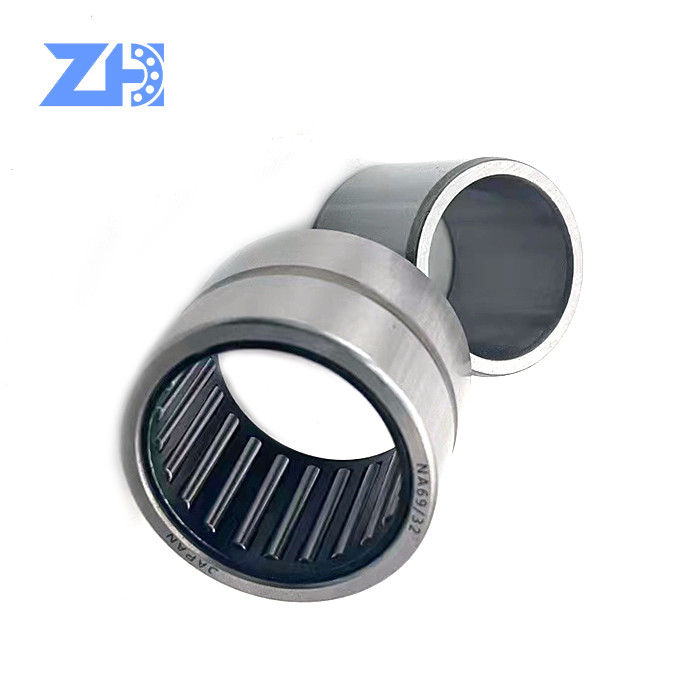

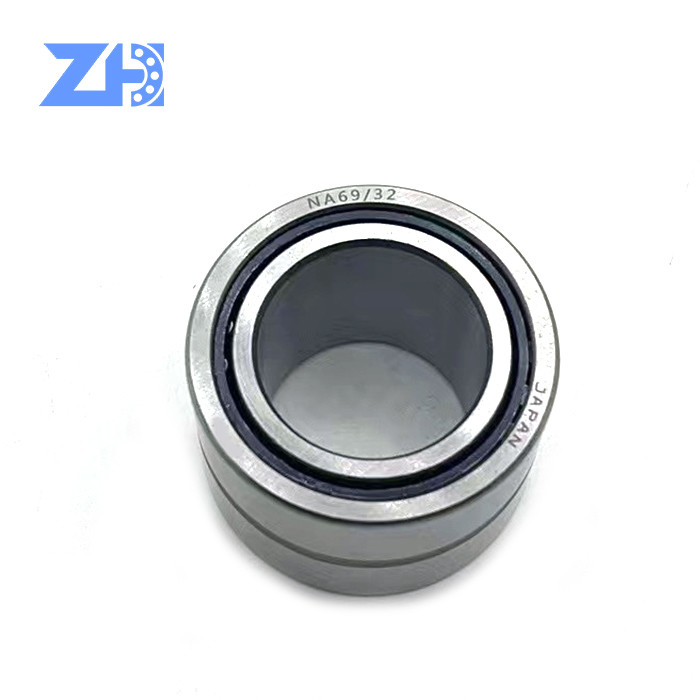

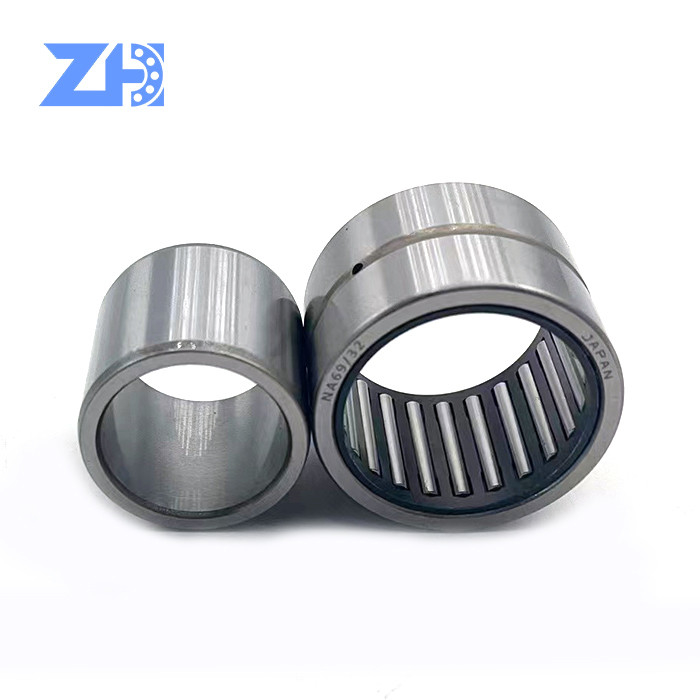

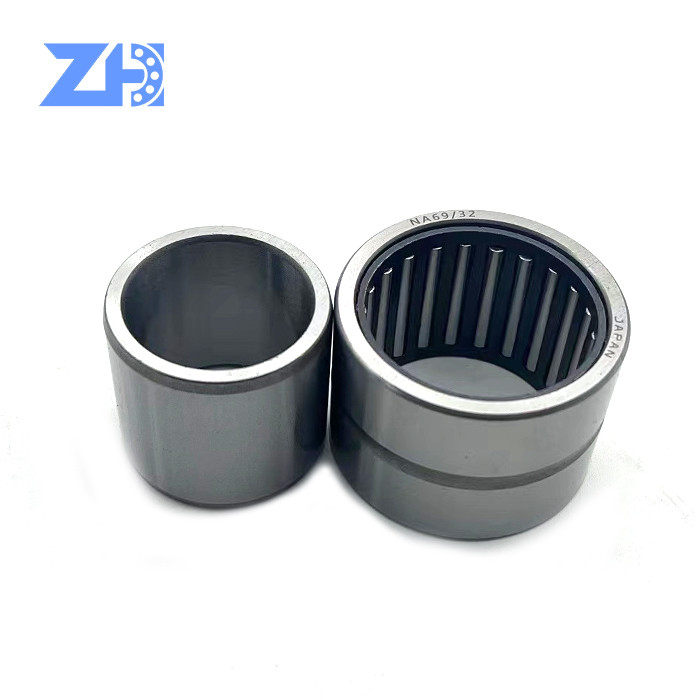

NA69-32 Size 40X52X36mm Heavy Duty Needle Roller Engineer Bearings RNA 69/32
RNA49 Series:
RNA4900,RNA4901,RNA4902,RNA4903,RNA4904,RNA4905,RNA4906,RNA4907,RNA4908,RNA4909,RNA4910,RNA4911,RNA4912,RNA4913,RNA4914,RNA4915,RNA4916,RNA4917,RNA4918,RNA4919,RNA4920
NA69 Series:
NA6900,NA6901,NA6902,NA6903,NA6904,NA6905,NA6906,NA6907,NA6908,NA6909,NA6910,NA6911,NA6912,NA6913,NA6914,NA6915,NA6916,NA6917,NA6918,NA6919,NA6920
NA59 Series:
NA5901,NA5902,NA5903,NA5904,NA5905,NA5906,NA5907,NA5908,NA5909,NA5910
NA48 Series:
NA4801,NA4802,NA4803,NA4804,NA4805,NA4806,NA4807,NA4808,NA4809,NA4810
Description
NA NK NKI NKIS Needle roller bearings are consisted of outer ring, inner ring, needle and cages, are one of the most widely used needle bearings. It mainly used on automobiles, machinery tool, printing machinery, textile machinery etc.
Technical Parameter
His shaft. | Model No. | D | C | rsmin | da max | Your. C | Sta. C | Rotation Speed rpm | Weight |
5 | RNA493 | 11 | 10 | 0.15 | 9.8 | 2420 | 1950 | 80 000 | 4.6 |
6 | RNA494 | 12 | 10 | 0.15 | 10.8 | 2700 | 2320 | 70 000 | 5.3 |
7 | RNA495 | 13 | 10 | 0.15 | 11.8 | 2960 | 2690 | 60 000 | 5.9 |
8 | RNA496 | 15 | 10 | 0.15 | 13.8 | 3960 | 3420 | 50 000 | 7.4 |
9 | RNA497 | 17 | 10 | 0.15 | 15.8 | 4530 | 3650 | 45 000 | 9.3 |
10 | RNA498 | 19 | 11 | 0.2 | 17.4 | 6180 | 5030 | 40 000 | 12.6 |
12 | RNA499 | 20 | 11 | 0.3 | 18 | 6600 | 6310 | 35 000 | 13.6 |
14 | RNA4900 | twenty two | 13 | 0.3 | 20 | 9230 | 10100 | 30 000 | 16.5 |
16 | RNA4901 | twenty four | 13 | 0.3 | twenty two | 9660 | 11100 | 25 000 | 18.1 |
16 | RNA6901 | twenty four | twenty two | 0.3 | twenty two | 17100 | 23000 | 25 000 | 30 |
18 | RNA49/14 | 26 | 13 | 0.3 | twenty four | 10600 | 12800 | 20 000 | 19.9 |
20 | RNA4902 | 28 | 13 | 0.3 | 26 | 10900 | 13800 | 20 000 | 21.5 |
20 | RNA6902 | 28 | twenty three | 0.3 | 26 | 19300 | 28800 | 20 000 | 37 |
twenty two | RNA4903 | 30 | 13 | 0.3 | 28 | 11700 | 15600 | 18 000 | 23.5 |
twenty two | RNA6903 | 30 | twenty three | 0.3 | 28 | 20800 | 32500 | 18 000 | 40.5 |
25 | RNA4904 | 37 | 17 | 0.3 | 35 | 21000 | 25000 | 16 000 | 55.5 |
25 | RNA6904 | 37 | 30 | 0.3 | 35 | 35400 | 48900 | 16 000 | 95.5 |
28 | RNA49/22 | 39 | 17 | 0.3 | 37 | 21400 | 28900 | 14 000 | 56.5 |
28 | RNA69/22 | 39 | 30 | 0.3 | 37 | 36300 | 56900 | 14 000 | 97.5 |
30 | RNA4905 | 42 | 17 | 0.3 | 40 | 23700 | 30700 | 13 000 | 64 |
30 | RNA6905 | 42 | 30 | 0.3 | 40 | 42100 | 64300 | 13 000 | 111 |
32 | RNA 49/28 | 45 | 17 | 0.3 | 43 | 24500 | 32700 | 12 000 | 76.5 |
32 | RNA 69/28 | 45 | 30 | 0.3 | 43 | 41800 | 64800 | 12 000 | 133 |
35 | RNA 4906 | 47 | 17 | 0.3 | 45 | 25200 | 34700 | 11 000 | 72.5 |
35 | RNA 6906 | 47 | 30 | 0.3 | 45 | 43000 | 69000 | 11 000 | 125 |
40 | RNA 49/32 | 52 | 20 | 0.6 | 48 | 31200 | 47800 | 10 000 | 96 |
40 | RNA 69/32 | 52 | 36 | 0.6 | 48 | 53500 | 95700 | 10 000 | 172 |
42 | RNA 4907 | 55 | 20 | 0.6 | 51 | 32000 | 50100 | 9 500 | 113 |
42 | RNA 6907 | 55 | 36 | 0.6 | 51 | 54900 | 100000 | 9 500 | 200 |
45 | RNA 49/38 | 58 | 20 | 0.6 | 54 | 33600 | 54600 | 9 000 | 120 |
48 | RNA4908 | 62 | twenty two | 0.6 | 58 | 41600 | 67400 | 8 500 | 152 |
48 | RNA6908 | 62 | 40 | 0.6 | 58 | 71300 | 135000 | 8 500 | 275 |
50 | RNA49/42 | 65 | twenty two | 0.6 | 61 | 42500 | 70300 | 8 000 | 174 |
52 | RNA4909 | 68 | twenty two | 0.6 | 64 | 43500 | 73300 | 7 500 | 197 |
52 | RNA6909 | 68 | 40 | 0.6 | 64 | 74600 | 147000 | 7 500 | 355 |
55 | RNA49/48 | 70 | twenty two | 0.6 | 66 | 44300 | 76300 | 7 500 | 188 |
58 | RNA4910 | 72 | twenty two | 0.6 | 68 | 46200 | 82100 | 7 000 | 179 |
58 | RNA6910 | 72 | 40 | 0.6 | 68 | 79200 | 164000 | 7 000 | 320 |
60 | RNA49/52 | 75 | twenty two | 0.6 | 71 | 47100 | 85100 | 6 500 | 205 |
63 | RNA4911 | 80 | 25 | 1 | 75 | 57600 | 97200 | 6 500 | 265 |
63 | RNA6911 | 80 | 45 | 1 | 75 | 98700 | 194000 | 6 500 | 475 |
65 | RNA49/58 | 82 | 25 | 1 | 77 | 58900 | 101000 | 6 000 | 275 |
68 | RNA4912 | 85 | 25 | 1 | 80 | 60200 | 105000 | 6 000 | 285 |
68 | RNA6912 | 85 | 45 | 1 | 80 | 103000 | 211000 | 6 000 | 510 |
