| Place of Origin: | CHINA JAPAN |
| Brand Name: | QIEAL ZH |
| Model Number: | F-846067.01 |
| Certifiexcavatorion: | ISO-9001 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packaging according to customer requirements |
| Delivery Time: | 3-7work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 per day |
| Bore Size: | 56MM | Outside Diameter: | 86MM |
|---|---|---|---|
| Thickness: | 22/25mm | Number Of Row: | Single Row |
| Regular Export Packing: | Plastic Drum+ZYSL Box+ Carton | Precision Rating: | ABEC1,ABEC3,ABEC5 |
| Type: | Gearbox Bearing | Appliexcavatorion: | MARCH Gearbox |
| High Light: | Automobile Gearbox Bearing Spare Parts,F-846067 Bearing Spare Parts |
||
Brand F-846067 Automobile Car Gearbox Bearing F-846067.01
| Product | ZYSL brand F-846067 Automobile Car Gearbox Bearing F-846067.01 |
| Type | Gearbox bearing |
| Precision Rating | ABEC1,ABEC3,ABEC5 |
| Clearance | C0,C2,C3,C4,C5 is available |
| Sealed Cap | Rubber or Metal |
| Appliexcavatorion | MARCH gearbox |
| Bearing material | Chrome steel |
| Paypal | Acceptable |
| OEM | Accept |
| Vibration Level code | V1,V2.V3 |
| Material | Gcr15 |
| Seals Type | ZZ/ZRS.RZ/RS. Open |
| Bore Size | 56MM |
| Outside Diameter | 86MM |
| Thickness | 22/25mm |
| Number of row | single row |
| Regular export packing | Plastic drum+ZYSL box+ carton |
| Packing | ZYSL packaging or as your requirement. |
| MOQ | 1 pcs |
| Delivery Time | 3-5 days after receiving your payment |
| Payment Terms | T/T,Western Union,Offical bank account,Paypal |
| Port of shippment by sea | Shanghai,Guangzhou,Shenzhen,Hongkong |
| Place of Origin | Shandong, China |
| Samples | available |
Introduction
Angular contact ball bearings have raceways in the inner and outer rings that are displaced
with respect to each other in the direction of the bearing axis. This means that they are
designed to accommodate combined loads, i. E. Simultaneously acting radial and axial loads.
The axial load carrying capacity of angular contact ball bearings increases with increasing
contact angle.
Ceramic ball especially silicon nitride ceramic ball have the following performance as low
density, high strength, low friction coeffecient, electrical and magnetism resistance, wear
resistance, well rigidity, lubriexcavatorion and maintenance free when working, ceramic angular
contact ball bearing has the characteristics of high temperature resistance, cold resistance,
abrasion resistance, corrosion resistance and insulation, and can be used in extremely bad
environment and special conditions.it's the best choice for rollers and rings for bearing wich
are used in high speed, long accuracy and long life environments. So they are widely used in
aviation, aerospace, marine, petroleum, chemical, automotive, electronics, metallurgy, electric
power, textile, medical equipment and other fields.
Rings
The inside and outside rings are made by chrome steel (GCr15)/stainless steel/Silicon Nitride
/ZrO2;
Rollers:
The balls are made of silicon nitride ceramic/ZrO2;
Retainers:
The retainers are made by PEEK or PTFE.

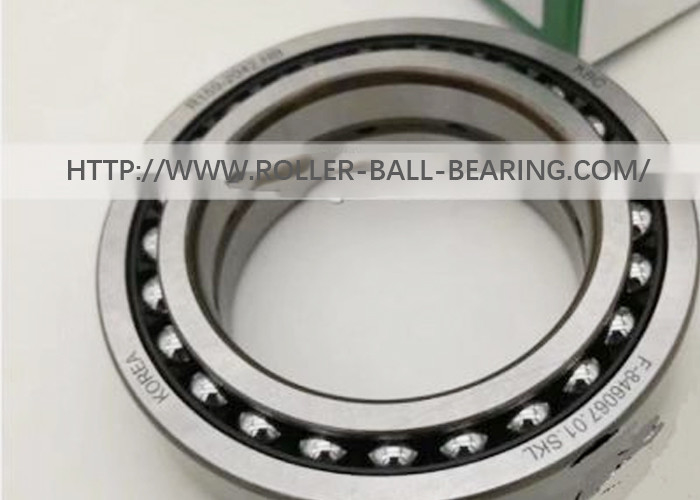

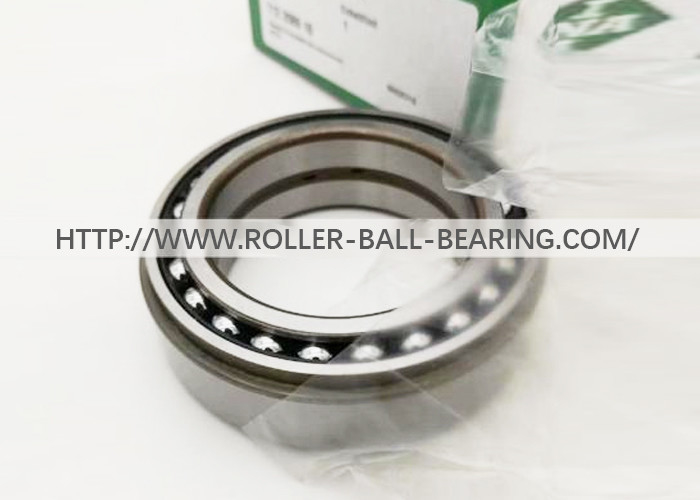

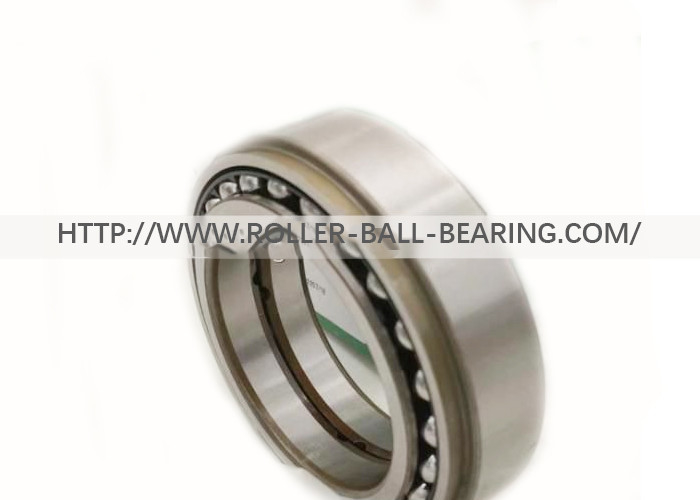

Car gear bearing f-846067 pictures show:
Reference drawing of Car Gearbox Bearing F-846067.01
Why us
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Appliexcavatorions
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specifiexcavatorion is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
