7320DB Angular Contact Ball Bearing 2 Row Single Cage Material Copper 7320BDB

Product Details:

Place of Origin:	CHINA JAPAN
Brand Name:	QIEAL ZH
Model Number:	7320BDB
Certifiexcavatorion:	ISO-9001

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Packaging according to customer requirements
Delivery Time:	3-7work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300pieces per day

Contact Now

Detailed Product Description

Features:	Long Life	ID:	100 Mm
OD:	215 Mm	B:	94 Mm
Product Weight:	15.2 Kg	Name:	High Precision Bearing 7320BDB Angular Contact Ball Bearing B-XL-MP
Cage Material:	Phenolic Resin	Ball Material:	Chrome Steel
High Light:	7320DB Angular Contact Ball Bearing , 2 Row Angular Contact Ball Bearing , Single Cage Angular Contact Ball Bearing

7320DB Bearing ball type angular contact ROW 2single cage materialcopper7320BDB

Product Description

Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
Bearing Designation system

A :30° contact angle

AB:20° contact angle (inch bearing

AC:25° contact angle

B:40° contact angle

E:Optimized internal design

B : Modified internal construction
JP : Sheet steel cage
MP :Solid brass cage
TVH / TVP : Solid cage made from glass fibre reinforced polyamide
UA :Universal design for fitting in pairs, bearing pair has small axial internal clearance in O and X arrangement
UL: Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangement
UO: Universal design for fitting in pairs, bearing pair is clearance-free in O and X arrangement

2RS :Contact seals on both sides
Open angular contact ball bearings can be used at operating temperatures from –30 °C to +150 °C. Bearings with a diameter D ＞ 240 mm are dimensionally stable up to +200 °C.
Angular contact ball bearings with cages made from glass fibre reinforced polyamide are suitable for operating temperatures up to+120 °C, restricted by the cage material.

Bearing sets, matched bearings

DB:Two bearings matched for mounting back-to-back

DF:Two bearings matched for mounting face-to-face

DT:Two bearings matched formounting in tandem

Common Appliexcavatorions:
* Machine tools* Gearboxes* Pumps* Printing machinery* Motors* CNC machinery

name	high Precision Bearing 7320BDB Angular contact ball bearing B-XL-MP
ID	100 mm
OD	215 mm
B	94 mm
Product weight	15.2 kg
Cage Material:	Phenolic Resin
ball material	chrome steel
mail	lbc001 at
Tel	+86-18753110215

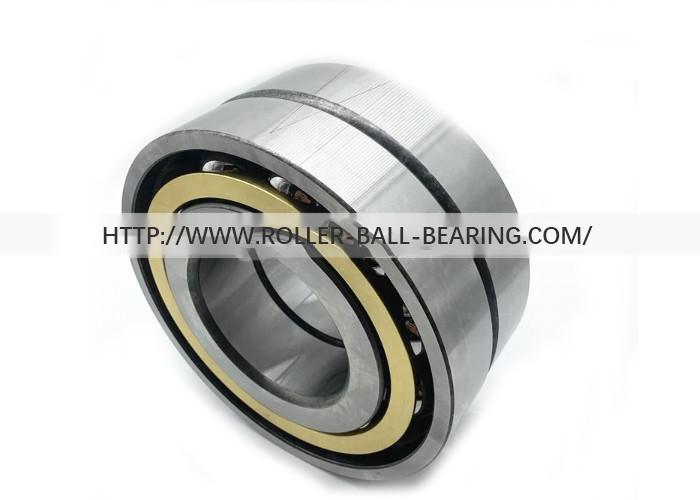

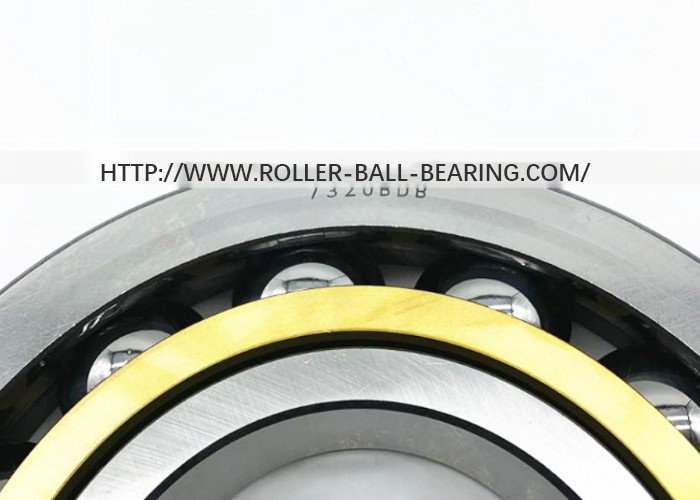

Details Images

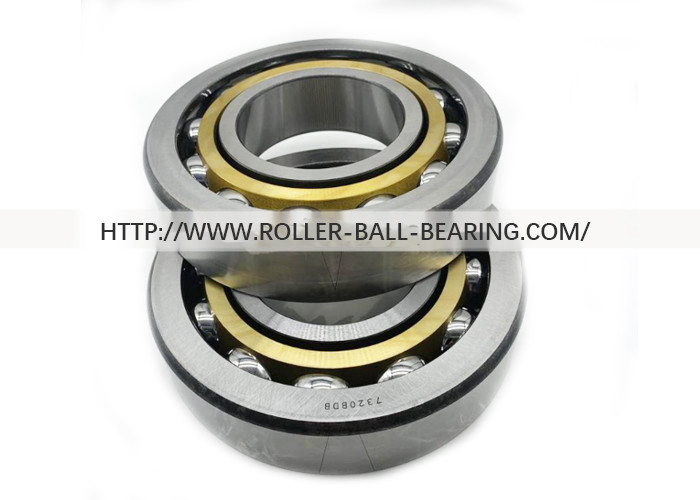

7320DB 7320BDB back to back angular contact ball bearing copper cage 100x215x94mm

if you want to order,pls contact with us first to give a good price and good freight.

Related Products

Angular contact ball bearing single row

Dimension (mm)					Single row code	Back-to-Back	Face-to-Face	Weight
d	D	B		DB	DF	kgs
100	150	24	7020	7020DB	7020DF	1.37
100	150	24	7020B	7020BDB	7020BDF	1.37
100	180	34	7220	7220DB	7220DF	3.32
100	180	34	7220B	7220BDB	7220BDF	3.32
100	215	47	7320	7320DB	7320DF	7.53
100	215	47	7320B	7320BDB	7320BDF	7.53
105	160	26	7021	7021DB	7021DF	1.73
105	190	36	7221	7221DB	7221DF	3.95
105	190	36	7221B	7221BDB	7221BDF	3.95
105	225	49	7321	7321DB	7321DF	8.62
105	225	49	7321B	7321BDB	7321BDF	8.62
110	170	28	7022	7022DB	7022DF	2.14
110	170	28	7022B	7022BDB	7022BDF	2.14
110	200	38	7222	7222DB	7222DF	4.65
110	200	38	7222B	7222BDB	7222BDF	4.65
110	240	50	7322	7322DB	7322DF	10.1
110	240	50	7322B	7322BDB	7322BDF	10.1
120	180	28	7024	7024DB	7024DF	2.27
120	180	28	7024B	7024BDB	7024BDF	2.27
120	215	40	7224	7224DB	7224DF	5.49
120	215	40	7224B	7224BDB	7224BDF	5.49
120	260	55	7324	7324DB	7324DF	12.6
120	260	55	7324B	7324BDB	7324BDF	12.6
130	200	33	7026	7026DB	7026DF	3.43
130	200	33	7026B	7026BDB	7026BDF	3.43
130	230	40	7226	7226DB	7226DF	6.21
130	230	40	7226B	7226BDB	7226BDF	6.21
130	280	58	7326	7326DB	7326DF	15.4
130	280	58	7326B	7326BDB	7326BDF	15.4
140	190	24	7928	7928DB	7928DF	1.9
140	190	24	7928B	7928BDB	7928BDF	1.8
140	210	33	7028	7028DB	7028DF	3.64
140	210	33	7028B	7028BDB	7028BDF	3.64
140	250	42	7228	7228DB	7228DF	7.76
140	250	42	7228B	7228BDB	7228BDF	7.76
140	300	62	7328	7328DB	7328DF	18.8
140	300	62	7328B	7328BDB	7328BDF	18.8
145	220	38	AC2922	AC2922DB	AC2922DF	4.82
150	210	28	7930	7930DB	7930DF	2.9
150	210	28	7930B	7930BDB	7930BDF	2.9
150	210	25	AC3021B	AC3021BDB	—	2.73
150	225	35	7030	7030DB	7030DF	4.43
150	225	35	7030B	7030BDB	7030BDF	4.43
150	229.9	35	AC302335B	AC302335BDB	—	4.7
150	270	45	7230	7230DB	7230DF	9.75
150	270	45	7230B	7230BDB	7230BDF	9.75
150	320	65	7330	7330DB	7330DF	22.4
150	320	65	7330B	7330BDB	7330BDF	22.4

Product packaging

Packing : 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
