Name: 7308-B-XL-MP Angular Contact Ball Bearing FAG 7308BMP Rotary Drilling Rig Bearing
Brand: QIEAL ZH
SKU: 7308-B-XL-MP
Rating: 4.8 (147 reviews)

Home Products Angular Contact Ball Bearing

7308-B-XL-MP Angular Contact Ball Bearing FAG 7308BMP Rotary Drilling Rig Bearing

Product Details:

Place of Origin:	CHINA JAPAN
Brand Name:	QIEAL ZH
Model Number:	7308-B-XL-MP
Certifiexcavatorion:	ISO-9001

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Packaging according to customer requirements
Delivery Time:	3-7work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 per day

Contact Now

Detailed Product Description

ID:	40 Mm	OD:	90 Mm
B:	23 Mm	Product Weight:	0.66 Kg
Cage Material:	Phenolic Resin	Ball Material:	Chrome Steel
High Light:	7308-B-XL-MP Angular Contact Ball Bearing , Drilling Rig Angular Contact Ball Bearing

Angular Contact Ball Bearing FAG 7308BMP Rotary Drilling Rig Bearing 7308-B-XL-MP

Product Description

Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
Bearing Designation system

A :30° contact angle

AB:20° contact angle (inch bearing

AC:25° contact angle

B:40° contact angle

E:Optimized internal design

B : Modified internal construction
JP : Sheet steel cage
MP :Solid brass cage
TVH / TVP : Solid cage made from glass fibre reinforced polyamide
UA :Universal design for fitting in pairs, bearing pair has small axial internal clearance in O and X arrangement
UL: Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangement
UO: Universal design for fitting in pairs, bearing pair is clearance-free in O and X arrangement

2RS :Contact seals on both sides
Open angular contact ball bearings can be used at operating temperatures from –30 °C to +150 °C. Bearings with a diameter D ＞ 240 mm are dimensionally stable up to +200 °C.
Angular contact ball bearings with cages made from glass fibre reinforced polyamide are suitable for operating temperatures up to+120 °C, restricted by the cage material.

Bearing sets, matched bearings

DB:Two bearings matched for mounting back-to-back

DF:Two bearings matched for mounting face-to-face

DT:Two bearings matched formounting in tandem

Common Appliexcavatorions:
* Machine tools* Gearboxes* Pumps* Printing machinery* Motors* CNC machinery

name	high Precision Bearing 7308B.MP Angular contact ball bearing B-XL-MP
ID	40 mm
OD	90 mm
B	23 mm
Product weight	0.66 kg
Cage Material:	Phenolic Resin
ball material	chrome steel
mail	qireal220929@163.com
Tel	+86-18620602705

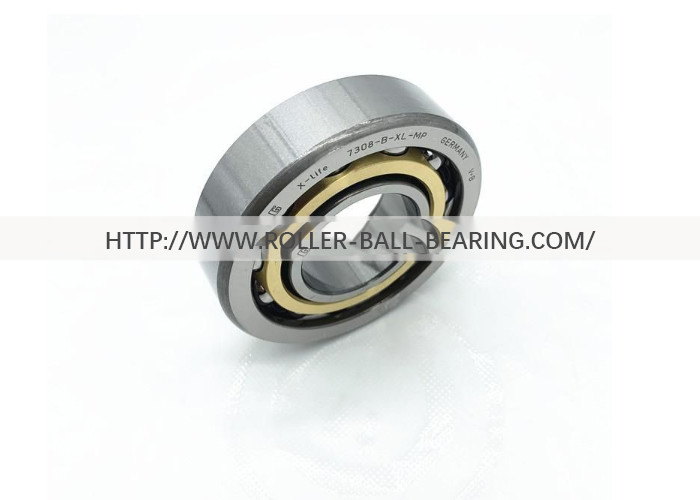

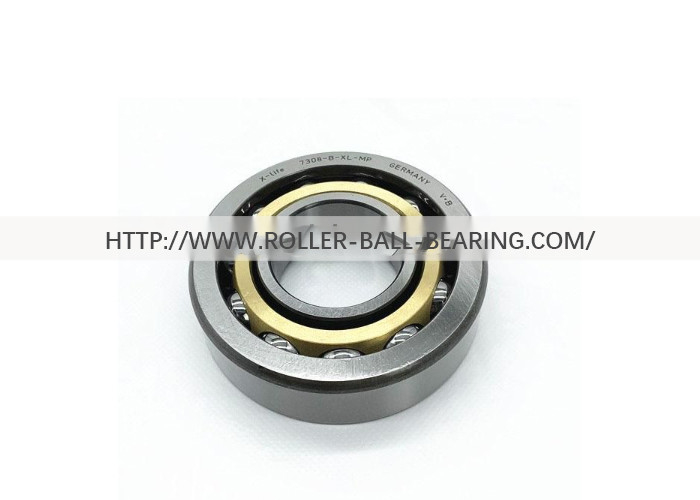

Details Images

7308-B-MP 7308-B-XL-MP Angular contact ball bearing 7308B 7308BMP

7308B angular contact ball bearing 40*90*23

Related Products

Angular contact ball bearing single row

Bearing	d	D	B
	mm	mm	mm
7301-B-XL-JP	12	37	12
7301-B-XL-TVP	12	37	12
7302-B-XL-JP	15	42	13
7302-B-XL-MP	15	42	13
7302-B-XL-TVP	15	42	13
7303-B-XL-JP	17	47	14
7303-B-XL-TVP	17	47	14
7304-B-XL-JP	20	52	15
7304-B-XL-MP	20	52	15
7304-B-XL-TVP	20	52	15
7305-B-XL-JP	25	62	17
7305-B-XL-MP	25	62	17
7305-B-XL-TVP	25	62	17
7306-B-XL-JP	30	72	19
7306-B-XL-MP	30	72	19
7306-B-XL-TVP	30	72	19
7307-B-XL-JP	35	80	21
7307-B-XL-MP	35	80	21
7307-B-XL-TVP	35	80	21
7308-B-XL-JP	40	90	23
7308-B-XL-MP	40	90	23
7308-B-XL-TVP	40	90	23
7309-B-XL-JP	45	100	25
7309-B-XL-MP	45	100	25
7309-B-XL-TVP	45	100	25
7310-B-XL-JP	50	110	27
7310-B-XL-MP	50	110	27
7310-B-XL-TVP	50	110	27
7311-B-XL-JP	55	120	29
7311-B-XL-MP	55	120	29
7311-B-XL-TVP	55	120	29
7312-B-XL-JP	60	130	31
7312-B-XL-MP	60	130	31
7312-B-XL-TVP	60	130	31
7313-B-XL-JP	65	140	33
7313-B-XL-MP	65	140	33
7313-B-XL-TVP	65	140	33
7314-B-XL-JP	70	150	35
7314-B-XL-MP	70	150	35
7314-B-XL-TVP	70	150	35
7315-B-XL-JP	75	160	37
7315-B-XL-MP	75	160	37
7315-B-XL-TVP	75	160	37
7316-B-XL-JP	80	170	39
7316-B-XL-MP	80	170	39
7316-B-XL-TVP	80	170	39
7317-B-XL-JP	85	180	41
7317-B-XL-MP	85	180	41
7317-B-XL-TVP	85	180	41
7318-B-XL-JP	90	190	43
7318-B-XL-MP	90	190	43
7318-B-XL-TVP	90	190	43
7319-B-XL-JP	95	200	45
7319-B-XL-MP	95	200	45
7319-B-XL-TVP	95	200	45
7320-B-XL-JP	100	215	47
7320-B-XL-MP	100	215	47
7320-B-XL-TVP	100	215	47
7321-B-XL-MP	105	225	49
7322-B-XL-JP	110	240	50
7322-B-XL-MP	110	240	50
7322-B-XL-TVP	110	240	50
7324-B-XL-MP	120	260	55
7324-B-XL-TVP	120	260	55
7326-B-XL-MP	130	280	58
7326-B-XL-TVP	130	280	58
7328-B-MP	140	300	62
7330-B-MP	150	320	65
7332-B-MP	160	340	68
7334-B-MP	170	360	72
7336-B-MP	180	380	75
7338-B-MP	190	400	78
7340-B-MP	200	420	80
7344-B-MP	220	460	88
7348-B-MP	240	500	95
7352-B-MP	260	540	102
7356-B-MP	280	580	108
7360-B-MP	300	620	109
7364-B-MP	320	670	112
7368-B-MPB	340	710	118

Product packaging

Packing : 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
