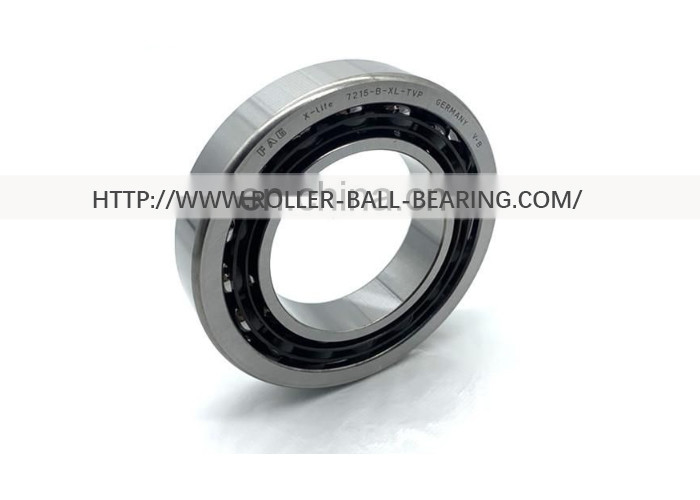

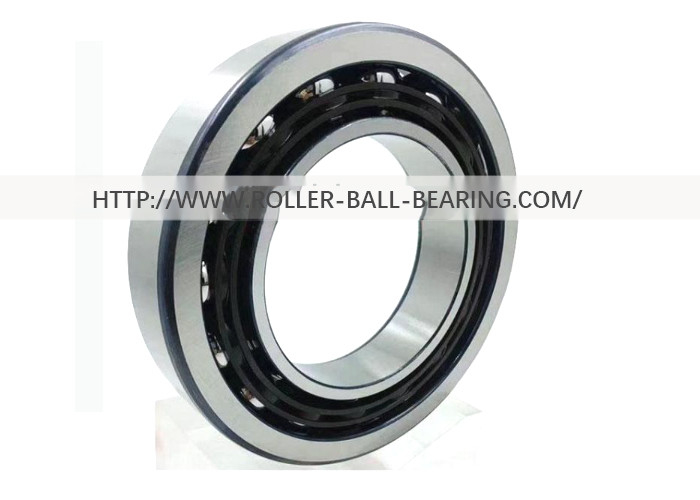

Name: 7215B Angular Contact Ball Bearing F A G 7215-B-TVP 7215-B-XL-TVP 75x130x25mm
Brand: QIEAL ZH
SKU: 7215-B-XL-TVP
Rating: 4.9 (125 reviews)

Home Products Angular Contact Ball Bearing

7215B Angular Contact Ball Bearing F A G 7215-B-TVP 7215-B-XL-TVP 75x130x25mm

Product Details:

Place of Origin:	CHINA JAPAN
Brand Name:	QIEAL ZH
Model Number:	7215-B-XL-TVP
Certifiexcavatorion:	ISO-9001

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Packaging according to customer requirements
Delivery Time:	4-7work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300pieces per day

Contact Now

Detailed Product Description

Name:	High Precision Bearing 7215.B.TVP Angular Contact Ball Bearing BECBP	ID:	70 Mm
OD:	125 Mm	B:	Modified Internal Construction
Product Weight:	1.16 Kg	Cage Material:	Phenolic Resin
Ball Material:	Chrome Steel
High Light:	7215B Angular Contact Ball Bearing , 7215-B-XL-TVP Angular Contact Ball Bearing

7215B Angular Contact Ball Bearing F A G 7215-B-TVP 7215-B-XL-TVP 75x130x25

Product Description

Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
Bearing Designation system

A :30° contact angle

AB:20° contact angle (inch bearing

AC:25° contact angle

B:40° contact angle

E:Optimized internal design

B : Modified internal construction
JP : Sheet steel cage
MP :Solid brass cage
TVH / TVP : Solid cage made from glass fibre reinforced polyamide
UA :Universal design for fitting in pairs, bearing pair has small axial internal clearance in O and X arrangement
UL: Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangement
UO: Universal design for fitting in pairs, bearing pair is clearance-free in O and X arrangement

2RS :Contact seals on both sides
Open angular contact ball bearings can be used at operating temperatures from –30 °C to +150 °C. Bearings with a diameter D ＞ 240 mm are dimensionally stable up to +200 °C.
Angular contact ball bearings with cages made from glass fibre reinforced polyamide are suitable for operating temperatures up to+120 °C, restricted by the cage material.

Bearing sets, matched bearings

DB:Two bearings matched for mounting back-to-back

DF:Two bearings matched for mounting face-to-face

DT:Two bearings matched formounting in tandem

Common Appliexcavatorions:
* Machine tools* Gearboxes* Pumps* Printing machinery* Motors* CNC machinery

name	high Precision Bearing 7215.B.TVP Angular contact ball bearing BECBP
ID	70 mm
OD	125 mm
B	24 mm
Product weight	1.16 kg
Cage Material:	Phenolic Resin
ball material	chrome steel
mail	qireal220929@163.com
Tel	+86-18620602705

Details Images

Related Products

Bearing	d	D	B
Bearing		mm	mm	mm
7200-B-XL-JP	10	30	9
7200-B-XL-MP	10	30	9
7200-B-XL-TVP	10	30	9
7201-B-XL-JP	12	32	10
7201-B-XL-TVP	12	32	10
7202-B-XL-JP	15	35	11
7202-B-XL-TVP	15	35	11
7203-B-XL-JP	17	40	12
7203-B-XL-MP	17	40	12
7203-B-XL-TVP	17	40	12
7204-B-XL-JP	20	47	14
7204-B-XL-TVP	20	47	14
7205-B-XL-JP	25	52	15
7205-B-XL-MP	25	52	15
7205-B-XL-TVP	25	52	15
7206-B-XL-JP	30	62	16
7206-B-XL-MP	30	62	16
7206-B-XL-TVP	30	62	16
7207-B-XL-JP	35	72	17
7207-B-XL-MP	35	72	17
7207-B-XL-TVP	35	72	17
7208-B-XL-JP	40	80	18
7208-B-XL-MP	40	80	18
7208-B-XL-TVP	40	80	18
7209-B-XL-JP	45	85	19
7209-B-XL-MP	45	85	19
7209-B-XL-TVP	45	85	19
7210-B-XL-JP	50	90	20
7210-B-XL-MP	50	90	20
7210-B-XL-TVP	50	90	20
7211-B-XL-JP	55	100	21
7211-B-XL-MP	55	100	21
7211-B-XL-TVP	55	100	21
7212-B-XL-JP	60	110	22
7212-B-XL-MP	60	110	22
7212-B-XL-TVP	60	110	22
7213-B-XL-JP	65	120	23
7213-B-XL-MP	65	120	23
7213-B-XL-TVP	65	120	23
7214-B-XL-JP	70	125	24
7214-B-XL-MP	70	125	24
7214-B-XL-TVP	70	125	24
7215-B-XL-JP	75	130	25
7215-B-XL-MP	75	130	25
7215-B-XL-TVP	75	130	25
7216-B-XL-JP	80	140	26
7216-B-XL-MP	80	140	26
7216-B-XL-TVP	80	140	26
7217-B-XL-JP	85	150	28
7217-B-XL-MP	85	150	28
7217-B-XL-TVP	85	150	28
7218-B-XL-JP	90	160	30
7218-B-XL-MP	90	160	30
7218-B-XL-TVP	90	160	30
7219-B-XL-MP	95	170	32
7219-B-XL-TVP	95	170	32
7220-B-XL-JP	100	180	34
7220-B-XL-MP	100	180	34
7220-B-XL-TVP	100	180	34
7221-B-XL-MP	105	190	36
7222-B-XL-JP	110	200	38
7222-B-XL-MP	110	200	38
7222-B-XL-TVP	110	200	38
7224-B-XL-MP	120	215	40
7224-B-XL-TVP	120	215	40
7226-B-XL-MP	130	230	40
7226-B-XL-TVP	130	230	40
7228-B-XL-MP	140	250	42
7230-B-XL-MP	150	270	45
7232-B-MP	160	290	48
7234-B-MP	170	310	52
7236-B-MP	180	320	52
7238-B-MP	190	340	55
7240-B-MP	200	360	58
7244-B-MP	220	400	65
7248-B-MP	240	440	72
7252-B-MP	260	480	80
7256-B-MP	280	500	80
7260-B-MP	300	540	85
7264-B-MP	320	580	92
7268-B-MP	340	620	92
7272-B-MP	360	650	95
7280-B-MPB	400	720	103
7284-B-MPB	420	760	109
7292-B-MPB	460	830	118

Product packaging

Packing : 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader .

Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
