Place of Origin: | CHINA JAPAN |
Brand Name: | QIEAL ZH |
Model Number: | 70BNR10STYNDBBELP4 |
Certifiexcavatorion: | ISO-9001 |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Packaging according to customer requirements |
Delivery Time: | 3-7work days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 500 per day |
ID: | 70 Mm | OD: | 110 Mm |
---|---|---|---|
B: | 20 Mm | Product Weight: | 0.645kg |
Material: | Cage Phenolic Resin | Structure: | Angular Contact Ball Bearings |
High Light: | 70BNR10 Angular Contact Ball Bearing,BNR10 Angular Contact Ball Bearing |

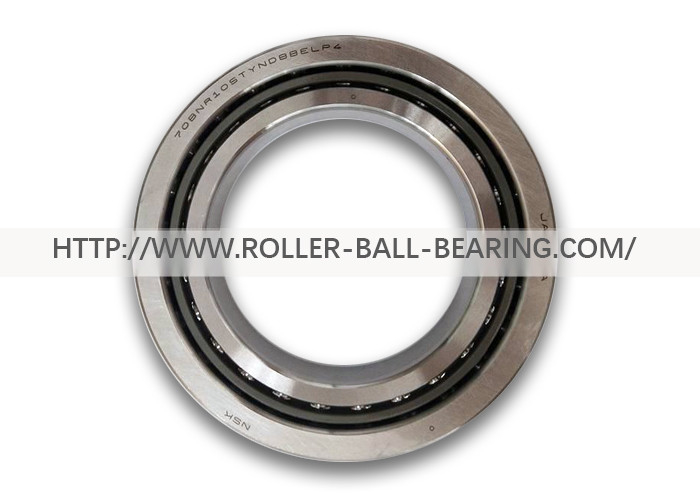

Angular Contact Ball Bearings BNR10 70BNR10/70BNR10STYNDBBELP4 Series70x110x20
it is suitable for high radial and axial loads in one direction
it has also an axial load carrying capacity on both sides in the X- or O-arrangement in pairs
medium series for a broad range of appliexcavatorions
accuracy grade: P4S (main dimensions at least according to ISO-tolerance class 4)
all running tolerances are classified according to ISO-tolerance class 2
it is designed for a high running accuracy and high speeds with maximum rigidity and operational safety
not separable
The mounting orientation is identifiable by the colour of the seals. The side with the higher shoulder is marked by a red seal, the opposite seal is black. This colour coding of the seals allows to see and check the mounting orientation, even when the bearing is already assembled.
material: 100Cr6 (rolling bearing steel), phenol resin (cage)
seal: 2RSD (2-side non contact rubber seal)
temperature resistance up to circa 80°C in the long run, temporarily up to circa 120°C
name | NSK 70BNR10STYNDBBELP4 Super Precision Spindle Bearing |
ID | 70 mm |
OD | 110 mm |
B | 20 mm |
Product weight | 0.645kg |
Material: | Cage Phenolic Resin |
skype | QIEAL bearing |
qireal220929@163.com | |
+86 18620602705 |
Bearing Numbers | Boundary Dimensions (mm) |
|
|
|
Mass (kg) (approx) | LimrtingSpwds f) |
|
||||
|
d | D | B | r (min) |
|
Grease | Oil | ||||
30BNR10S | 30 | 55 | 13 | 1.0 | 0.124 | 33000 | 47100 | ||||
30BNR10H | 30 | 55 | 13 | 1.0 | 0.116 | 42400 | 65900 | ||||
30BNR10X | 30 | 55 | 13 | 1.0 | 0.116 | 49500 | 77700 | ||||
30BER10S | 30 | 55 | 13 | 1.0 | 0.124 | 28300 | 40000 | ||||
30BER10H | 30 | 55 | 13 | 1.0 | 0.116 | 37700 | 58900 | ||||
30BER10X | 30 | 55 | 13 | 1.0 | 0.116 | 44800 | 70600 | ||||
35BNR10S | 35 | 62 | 14 | 1.0 | 0.164 | 28900 | 41300 | ||||
35BNR10H | 35 | 62 | 14 | 1.0 | 0.154 | 37200 | 57800 | ||||
35BNR10X | 35 | 62 | 14 | 1.0 | 0.154 | 43300 | 68100 | ||||
35BER10S | 35 | 62 | 14 | 1.0 | 0.164 | 24800 | 35100 | ||||
35BER10H | 35 | 62 | 14 | 1.0 | 0.154 | 33000 | 51600 | ||||
35BER10X | 35 | 62 | 14 | 1.0 | 0.154 | 39200 | 61900 | ||||
40BNR10S | 40 | 68 | 15 | 1.0 | 0.204 | 26000 | 37100 | ||||
40BNR10H | 40 | 68 | 15 | 1.0 | 0.193 | 33400 | 51900 | ||||
40BNR10X | 40 | 68 | 15 | 1.0 | 0.193 | 38900 | 61200 | ||||
40BER10S | 40 | 68 | 15 | 1.0 | 0.204 | 22300 | 31500 | ||||
40BER10H | 40 | 68 | 15 | 1.0 | 0.193 | 29700 | 46300 | ||||
40BER10X | 40 | 68 | 15 | 1.0 | 0.193 | 35200 | 55600 | ||||
45BNR10S | 45 | 75 | 16 | 1.0 | 0.259 | 23400 | 33400 | ||||
45BNR10H | 45 | 75 | 16 | 1.0 | 0.246 | 30000 | 46700 | ||||
45BNR10X | 45 | 75 | 16 | 1.0 | 0.246 | 35000 | 55000 | ||||
45BER10S | 45 | 75 | 16 | 1.0 | 0.259 | 20000 | 28400 | ||||
45BER10H | 45 | 75 | 16 | 1.0 | 0.246 | 26700 | 41700 | ||||
45BER10X | 45 | 75 | 16 | 1.0 | 0.246 | 31700 | 50000 | ||||
50BNR10S | 50 | 80 | 16 | 1.0 | 0.281 | 21600 | 30800 | ||||
50BNR10H | 50 | 80 | 16 | 1.0 | 0.266 | 27700 | 43100 | ||||
50BNR10X | 50 | 80 | 16 | 1.0 | 0.266 | 32400 | 50800 | ||||
50BER10S | 50 | 80 | 16 | 1.0 | 0.281 | 18500 | 26200 | ||||
50BER10H | 50 | 80 | 16 | 1.0 | 0.266 | 24700 | 38500 | ||||
50BER10X | 50 | 80 | 16 | 1.0 | 0.266 | 29300 | 46200 | ||||
55BNR10S | 55 | 90 | 18 | 1.1 | 0.414 | 19400 | 27600 | ||||
55BNR10H | 55 | 90 | 18 | 1.1 | 0.393 | 24 900 | 38 700 | ||||
55BNR10X | 55 | 90 | 18 | 1.1 | 0.393 | 29 000 | 45 600 | ||||
55BER10S | 55 | 90 | 18 | 1.1 | 0.414 | 16 600 | 23 500 | ||||
55BER10H | 55 | 90 | 18 | 1.1 | 0.393 | 22 100 | 34 500 | ||||
55BER10X | 55 | 90 | 18 | 1.1 | 0.393 | 26 300 | 41 400 | ||||
60BNR10S | 60 | 95 | 18 | 1.1 | 0.443 | 18 100 | 25 900 | ||||
60BNR10H | 60 | 95 | 18 | 1.1 | 0.419 | 23 300 | 36 200 | ||||
60BNR10X | 60 | 95 | 18 | 1.1 | 0.419 | 27 100 | 42 600 | ||||
60BER10S | 60 | 95 | 18 | 1.1 | 0.443 | 15 500 | 22 000 | ||||
60BER10H | 60 | 95 | 18 | 1.1 | 0.419 | 20 700 | 32 300 | ||||
60BER10X | 60 | 95 | 18 | 1.1 | 0.419 | 24 600 | 38 800 | ||||
65BNR10S | 65 | 100 | 18 | 1.1 | 0.472 | 17 000 | 24 300 | ||||
65BNR10H | 65 | 100 | 18 | 1.1 | 0.447 | 21 900 | 34 000 | ||||
65BNR10X | 65 | 100 | 18 | 1.1 | 0.447 | 25 500 | 40 000 | ||||
65BER10S | 65 | 100 | 18 | 1.1 | 0.472 | 14 600 | 20 700 | ||||
65BER10H | 65 | 100 | 18 | 1.1 | 0.447 | 19 400 | 30 400 | ||||
65BER10X | 65 | 100 | 18 | 1.1 | 0.447 | 23 100 | 36 400 | ||||
70BNR10S | 70 | 110 | 20 | 1.1 | 0.645 | 15 600 | 22 300 | ||||
70BNR10H | 70 | 110 | 20 | 1.1 | 0.605 | 20 000 | 31 200 | ||||
70BNR10X | 70 | 110 | 20 | 1.1 | 0.605 | 23 400 | 36 700 | ||||
70BER10S | 70 | 110 | 20 | 1.1 | 0.645 | 13 400 | 18 900 | ||||
70BER10H | 70 | 110 | 20 | 1.1 | 0.605 | 17 800 | 27 800 | ||||
70BER10X | 70 | 110 | 20 | 1.1 | 0.605 | 21 200 | 33 400 | ||||
75BNR10S | 75 | 115 | 20 | 1.1 | 0.679 | 14 800 | 21 100 | ||||
75BNR10H | 75 | 115 | 20 | 1.1 | 0.638 | 19 000 | 29 500 | ||||
75BNR10X | 75 | 115 | 20 | 1.1 | 0.638 | 22 200 | 34 800 | ||||
75BER10S | 75 | 115 | 20 | 1.1 | 0.679 | 12 700 | 17 900 | ||||
75BER10H | 75 | 115 | 20 | 1.1 | 0.638 | 16 900 | 26 400 | ||||
75BER10X | 75 | 115 | 20 | 1.1 | 0.638 | 20 000 | 31 600 | ||||
80BNR10S | 80 | 125 | 22 | 1.1 | 0.921 | 13 700 | 19 600 | ||||
80BNR10H | 80 | 125 | 22 | 1.1 | 0.867 | 17 600 | 27 400 | ||||
80BNR10X | 80 | 125 | 22 | 1.1 | 0.867 | 20 500 | 32 200 | ||||
80BER10S | 80 | 125 | 22 | 1.1 | 0.921 | 11 800 | 16 600 | ||||
80BER10H | 80 | 125 | 22 | 1.1 | 0.867 | 15 700 | 24 400 | ||||
80BER10X | 80 | 125 | 22 | 1.1 | 0.867 | 18 600 | 29 300 |
