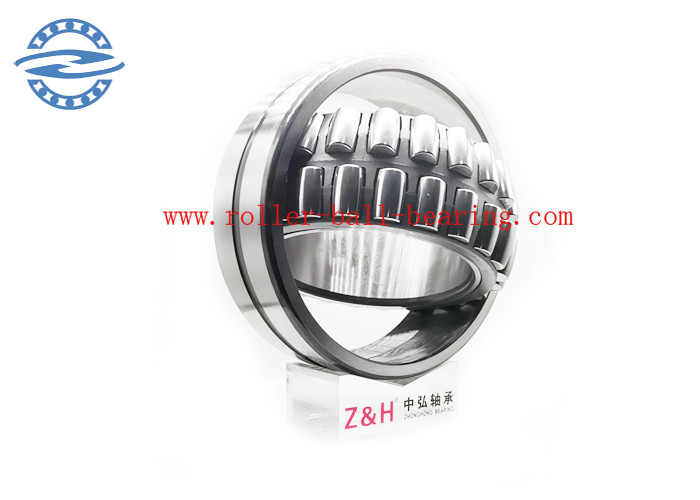

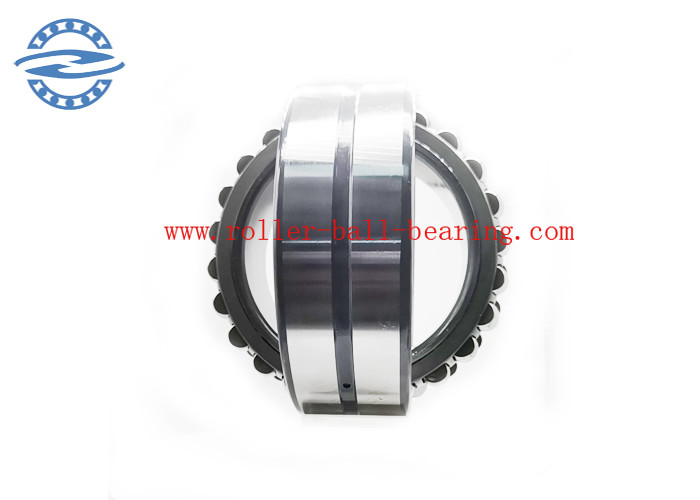

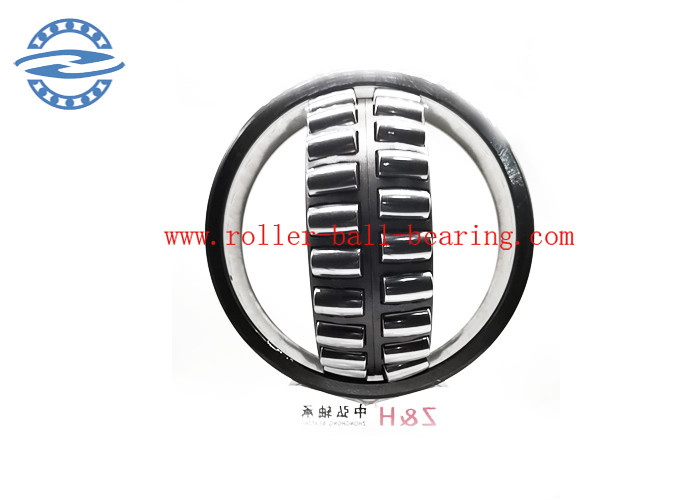

23026CC Spherical Roller Bearing Elevators Food Processing Machines Cranes

23026CC Spherical Roller Bearing Elevators Food Processing Machines Cranes

  • 23026CC Spherical Roller Bearing Elevators Food Processing Machines Cranes
  • 23026CC Spherical Roller Bearing Elevators Food Processing Machines Cranes
  • 23026CC Spherical Roller Bearing Elevators Food Processing Machines Cranes
  • 23026CC Spherical Roller Bearing Elevators Food Processing Machines Cranes
23026CC Spherical Roller Bearing Elevators Food Processing Machines Cranes
Product Details:
Place of Origin: CHINA
Brand Name: CN&ZH
Certification: ISO9001,ISO14001
Model Number: 23026CC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: standard exporting packing or as required
Delivery Time: 5-8 work days
Payment Terms: L/C, D/P, Western Union, MoneyGram, T/T
Supply Ability: 500 per day
Contact Now
Detailed Product Description
Precision Rating: PO P6 P5 P4 Bearing Material: S - Steel Or Standard Cage
Application: Elevators, Textile Machines, Food Processing Machines, Cranes Etc. Seals Type: Optional
Brand: GBZHB Or OEM Structure: Spherical Roller Bearing
High Light:

23026CC Spherical Roller Bearing

,

Elevators Spherical Roller Bearing

,

Textile Machines Spherical Roller Bearing

 23026CC Spherical Roller Bearing,quality Products



Overview

Spherical Roller Bearing

The 23026CC is a spherical roller bearing with an open design. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.

Why spherical roller bearings?
Spherical roller bearings offer an attractive combination of design features, which are making them irreplaceable in many demanding applications.


Self-aligning
Spherical roller bearings accommodate misalignment between the shaft and housing without increasing friction or reducing bearing service life.


Very high load carrying capacity
 Optimized internal geometry within the available cross section provides maximum radial and axial load carrying capacity.


Robust
Insensitive to misalignment caused by shaft or housing deflections as a result of heavy loads.


Easily fitted for loads in all directions
The bearings are non-separable and ready to install, having a choice of mounting methods.





23026CC Spherical Roller Bearing Elevators Food Processing Machines Cranes 0



Technical Parameters:



Basic dynamic load rating C
452 kN
Basic static load rating C0
610 kN
Fatigue load limit Pu
61 kN
Reference speed
2 800 r/min
Limiting speed
3 600 r/min
Limiting value e
0.23
Axial load factor Y1
2.9
Axial load factor Y2
4.4
Axial load factor Y0
2.8
