P6 24122CC Spherical Roller Bearing for Textile Machines

P6 24122CC Spherical Roller Bearing for Textile Machines

  • P6 24122CC Spherical Roller Bearing for Textile Machines
  • P6 24122CC Spherical Roller Bearing for Textile Machines
  • P6 24122CC Spherical Roller Bearing for Textile Machines
  • P6 24122CC Spherical Roller Bearing for Textile Machines
P6 24122CC Spherical Roller Bearing for Textile Machines
Product Details:
Place of Origin: CHINA
Brand Name: CN&ZH
Certification: ISO9001,ISO14001
Model Number: 24122CC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: standard exporting packing or as required
Delivery Time: 5-8 work days
Payment Terms: L/C, D/P, Western Union, MoneyGram, T/T
Supply Ability: 500 per day
Contact Now
Detailed Product Description
Precision Rating: PO P6 P5 P4 Bearing Material: S - Steel Or Standard Cage
Application: Elevators, Textile Machines, Food Processing Machines, Cranes Etc. Seals Type: Optional
Brand: GBZHB Or OEM Structure: Spherical Roller Bearing
High Light:

24122CC Spherical Roller Bearing

,

Spherical Roller Bearing P6

,

Textile Machines Spherical Roller Bearing

 24122CC Spherical Roller Bearing,quality Products

24122CC Spherical Roller Bearing,Elevators, Textile Machines, Food Processing Machines, Cranes Etc.

Overview

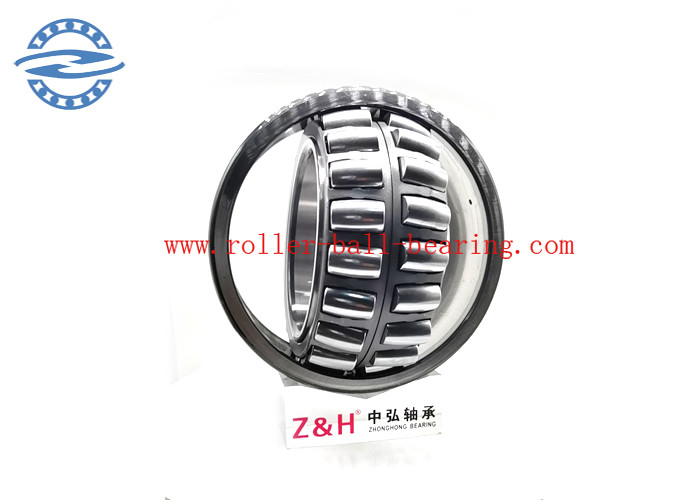

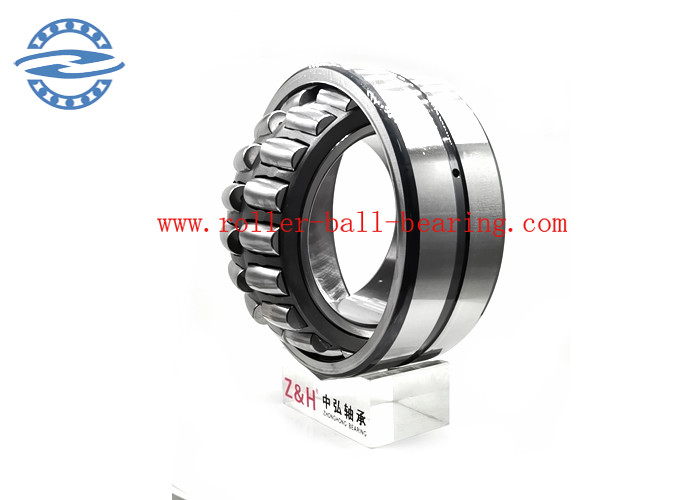

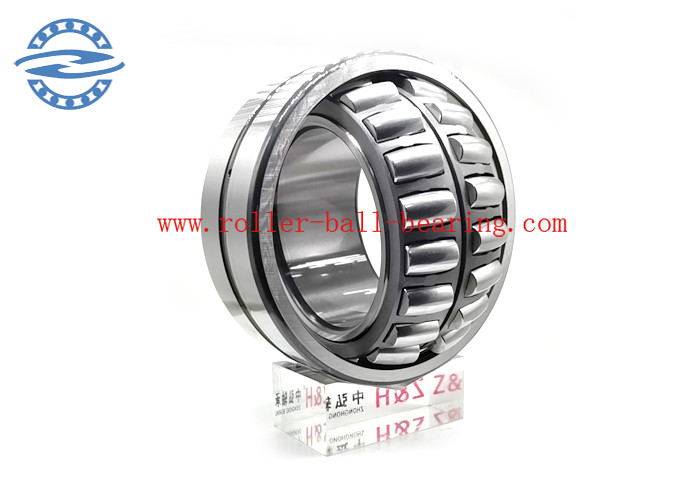

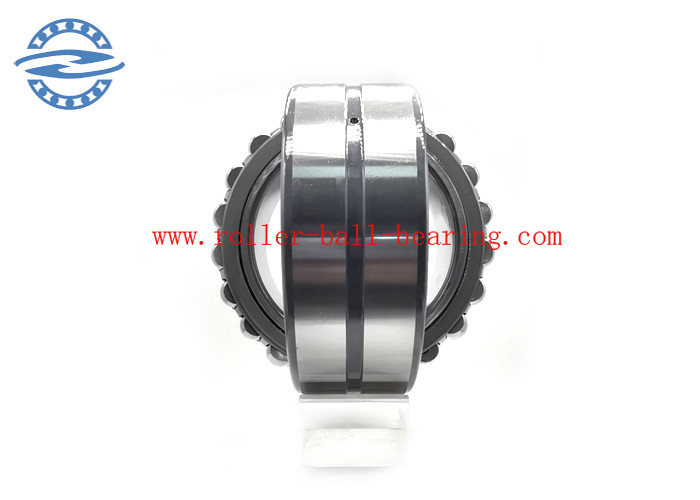

Spherical Roller Bearing

The 24122CC/W33 SKF is a spherical roller bearing with an open design. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.

Why spherical roller bearings?
Spherical roller bearings offer an attractive combination of design features, which are making them irreplaceable in many demanding applications.

Self-aligning
Spherical roller bearings accommodate misalignment between the shaft and housing without increasing friction or reducing bearing service life.

Very high load carrying capacity
 Optimized internal geometry within the available cross section provides maximum radial and axial load carrying capacity.

Robust
Insensitive to misalignment caused by shaft or housing deflections as a result of heavy loads.

Easily fitted for loads in all directions
The bearings are non-separable and ready to install, having a choice of mounting methods.





P6 24122CC Spherical Roller Bearing for Textile Machines 0



Technical Parameters:



Principal dimensions mm
Inside d: 110
Outside D: 180
Width B: 69

Basic load ratings kN
Dynamic: 520
static: 750
Fatigue load limit: 78 kN

Speed ratings r/min
Reference speed: 2 200
Limiting speed: 3 000

Mass: 7,10 kg

Dimensions mm
d2: 123
D1: 153
b: 5,5
K: 3
r1,2 min: 2



Other models

TY-SKF 24122CCK30/W33 4453722 110MM 180MM 69MM
TY-SKF 24122CC/W33 4053722 110MM 180MM 69MM
TY-SKF 24122CCK30/W33 4453722 110MM 180MM 69MM
TY-SKF 24122CC/W33 4053722 110MM 180MM 69MM
TY-SKF 24122CCK30/W33 4453722 110MM 180MM 69MM
TY-NSK 24122CK30E4 4453722 110MM 180MM 69MM
TY-NSK 24122CE4 4053722 110MM 180MM 69MM
TY-NSK 24122CK30E4 4453722 110MM 180MM 69MM
TY-NSK 24122CE4 4053722 110MM 180MM 69MM
TY-NSK 24122CK30E4 4453722 110MM 180MM 69MM
TY-NTN 24122BK30D1 4453722 110MM 180MM 69MM
TY-NTN 24122BD1 4053722 110MM 180MM 69MM
TY-NTN 24122BK30D1 4453722 110MM 180MM 69MM
TY-NTN 24122BD1 4053722 110MM 180MM 69MM
TY-NTN 24122BK30D1 4453722 110MM 180MM 69MM
TY-NTN 24122BD1 4053722 110MM 180MM 69MM
TY-SKF 24122 CC/W33 4053722 110MM 180MM 69MM
TY-NTN 24122 CC/W33 4053722 110MM 180MM 69MM
TY-FAG 24122 CC/W33 4053722 110MM 180MM 69MM
TY-NSK 24122 CC/W33 4053722 110MM 180MM 69MM
TY-NACHI 24122 CC/W33 4053722 110MM 180MM 69MM
TY-TORRINGTON 24122 CC/W33 4053722 110MM 180MM 69MM
TY-KOYO 24122 CC/W33 4053722 110MM 180MM 69MM
TY-SKF 24122 CCK30/W33 4453722 110MM 180MM 69MM
TY-NTN 24122 CCK30/W33 4453722 110MM 180MM 69MM
TY-FAG 24122 CCK30/W33 4453722 110MM 180MM 69MM
TY-NSK 24122 CCK30/W33 4453722 110MM 180MM 69MM
TY-NACHI 24122 CCK30/W33 4453722 110MM 180MM 69MM
TY-TORRINGTON 24122 CCK30/W33 4453722 110MM 180MM 69MM
TY-KOYO 24122 CCK30/W33 4453722 110MM 180MM 69MM
TY-SKF 24122CC/W33 4053722 110MM 180MM 69MM
TY-NTN 24122CC/W33 4053722 110MM 180MM 69MM
TY-FAG 24122CC/W33 4053722 110MM 180MM 69MM
TY-NSK 24122CC/W33 4053722 110MM 180MM 69MM
TY-NACHI 24122CC/W33 4053722 110MM 180MM 69MM
TY-TORRINGTON 24122CC/W33 4053722 110MM 180MM 69MM
TY-KOYO 24122CC/W33 4053722 110MM 180MM 69MM
TY-SKF 24122CCK30/W33 4453722 110MM 180MM 69MM
TY-NTN 24122CCK30/W33 4453722 110MM 180MM 69MM
TY-FAG 24122CCK30/W33 4453722 110MM 180MM 69MM
TY-NSK 24122CCK30/W33 4453722 110MM 180MM 69MM
TY-NACHI 24122CCK30/W33 4453722 110MM 180MM 69MM
TY-TORRINGTON 24122CCK30/W33 4453722 110MM 180MM 69MM
TY-KOYO 24122CCK30/W33 4453722 110MM 180MM 69MM
