204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings

204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings

  • 204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings
  • 204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings
  • 204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings
  • 204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings
  • 204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings
204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings
Product Details:
Place of Origin: CHINA
Brand Name: QIEAL ZH
Model Number: 204KRR8
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Packaging Details: carton;
Delivery Time: 2-5 work days
Payment Terms: L/C, D/A, D/P, T/T, Money Gram
Supply Ability: 800 per day
Contact Now
Detailed Product Description
Weight: 0,12 KGS Inner Diameter [d: 8
Outer Diameter [D: 8 Inner Ring Width [B: 8
Outer Ring Width [C: 8 Packing: Carton Packing
Bore Type: Cylindrical Bearing Type: Ball Bearing
High Light:

04272956 Stop Solenoid Valve

,

BF3L2011 Stop Solenoid Valve

,

Deutz Stop Solenoid Valve



204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings

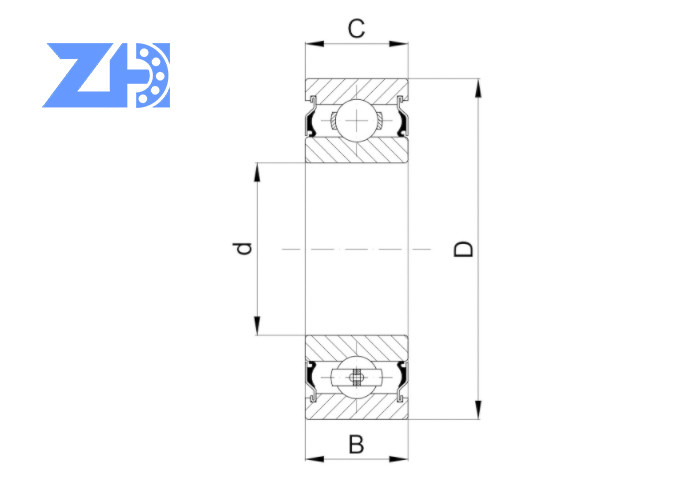

BEARING P/N Size(mm)
d D B C
805093 12 35 15.4 10
8267/1/2 12.7 34.925 17.463 11.112
8267/5/8 15.875 34.925 17.463 11.112
202NPP9 12.8 38.1 11 11
202KRRAH 15 35 14.4 11
99502H 15.875 34.925 11 11
203KRR2 16.256 40 18.25 12
203KRR3 15.951 50.8 15 15
203KRR5 13.081 40 18.3 12
203KRRAH02 17 40 18.25 12
204KRR2 20 47 17.7 14
205KRR2 25 52 twenty one 15
AG2565 16.07 53.08 19.5 17.1
SC203 17 40 12 12
B17-99D 17 52 17 17
Z9504AB 19.05 45.212 15.494 15.494
Z9504-2RST 19.05 45.212 15.494 15.494
559339 19.05 52 twenty one twenty one
304C3-H1 25.4 52 twenty one twenty one
411280 30 72 28 25
K6205 25 52 15 15
K6206 30 62 16 16
K6207 35 72 17 17
K6208 40 80 18 18

Bearing No. Boundary dimensions
d D B C
5203KYY2 16.256 40 44 39
204RY2(838607A) 16 45.225 18.67 15.94
5206KPP3 30.15 62 50 37
RX84 17.64 53.97 20.19 15.78
202NPP9 12.827 38.1 11 11
202RRE 15 35 22.352 11
203JD 17 40 14 12
203KRR3 15.951 50.8 15 15
203NPP9 15.9 40 12.95 12.95
Z9504-2RST 19.05 45.225 15.494 15.494
Z9504AB 19.06 45.225 15.494 15.494
204RR8 16.027 45.225 15.494 15.494
204RY2 16.027 45.225 18.669 15.494
205E-2RST 19.202 52 21.107 15
205KP6 19.202 52 23.393 17.78
205KRR6 13.081 52 34.925 15
205KRR7 13 52 38.1 15
G205PPB7 23.813 52 35 15
205PPB7 23.813 52 35 15
205PP8 12.964 52 34.925 15
205PP9 19.202 52 34.925 15
205PP10 16 52 34.925 15
205PP12 16.129 52 38.1 15
206KRRB 19.25 62 twenty four 16
206PD2 31.75 65.088 18.524 17
207KYY 35 72 25 17
FHR208-25CD 39.688 80 30.2 18
W213-8445 55.575 120 55.55 28.905
88120-C4 20 47 20.8 14
88128R 38.892 80 27.5 twenty one
206GGH 19.2 62 twenty four 16
206KRD4 25 62 22.225 18
205GP 16 53 19.4 18.2
205DDS3/4" 19.05 53 19.4 18.2
205RVA 19.2 52 21.03 15





200 SERIES
Bearing No. TYPE d D With a Be Load Ratings (lbf) Wt. Lbs.
inch/mm inch/mm inch/mm inch/mm Dynamic Static
203KR2 3 .6253 1.5748 .5510 .4724 2,160 889 .18
15.883 40.000 14.000 12.000
BB203KRR2* 1 .6400 1.5748 .7200 .4724 1,900 825 .16
16.260 40.000 18.288 12.000
203KRR2 1 .6400 1.5748 .7200 .4724 2,160 889 .16
16.260 40.000 18.288 12.000
BB203KRR2FD** 4 .6400 1.5748 .7200 .4724 1,900 825 .17
16.260 40.000 18.288 12.000
203KRR5 1 .5150 1.5748 .7200 .4724 2,160 889 .twenty two
13.081 40.000 18.288 12.000





204RR8 Special Ag Bearings 204 RR8 15.9x45.2374x15.494mm Grain Drill Round Bore Radial Wheel Bearings



Bearings. Parts#     Hugs NTN
204FREN 204PY3 204FVMN   SX03A18LULC3PX1
204KRD4 204FGB 204KRD4 204KRD4
205RVA 205RVA, 205RTAN 205KRP2 205KRP2 SBX05A55LMLSQ1
205KRR2 HPC014GP 205KRR2 205KRR2 1AH05-7/8
205KRRB2 HPS014GP 205KRRB2 205KRRB2 2AH05-7/8
206GGH 206GGH 206KPP16 206KPP16 SBX044LLSC3Q1
206KPR4 206 RTQ 206KRP4 206KPR4 SBX06A64LMLSC3Q1
5206KPP3   5206KPP3 5206KPP3 205KRP2



Gauge Wheel/Closing Wheel Bearings

Bearings. Parts#     Hugs NTN
203KRR2 203RRR10 203KRR2 203KRR2 SBX0340Q1
203KRR3 203RR3     SBX0339LLMQ1
5203KYY2 5203KVVAN 5203KYY2 5203KYY2
204RR6 204BBAR Z9504-2RSTFP P204RR6 SC0440LLC3/5C







Packaging & delivery
Packaging Details
1. Industrial packaging: Plastic tube (10pcs in one tube)+ carton + plywood pallets; plastic bag + kraft paper + carton + plywood pallets;
2.Commercial packing: 1pc/plastic bag+ single color box+ carton + plywood pallets;
3.According to customer's requirements
Port
Qingdao, Tianjin, Shanghai, etc

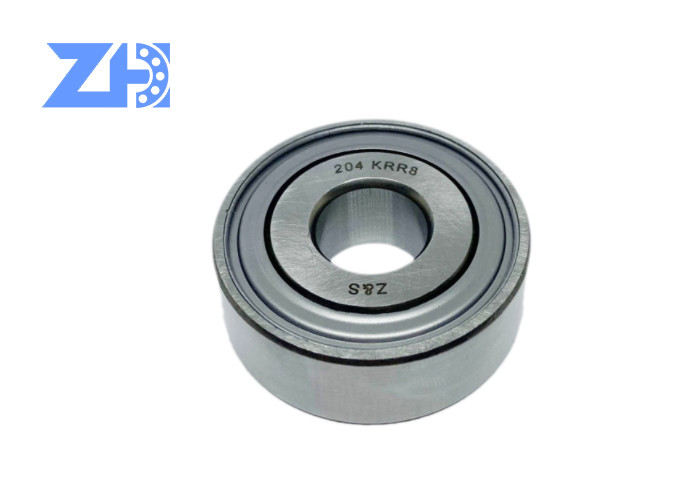

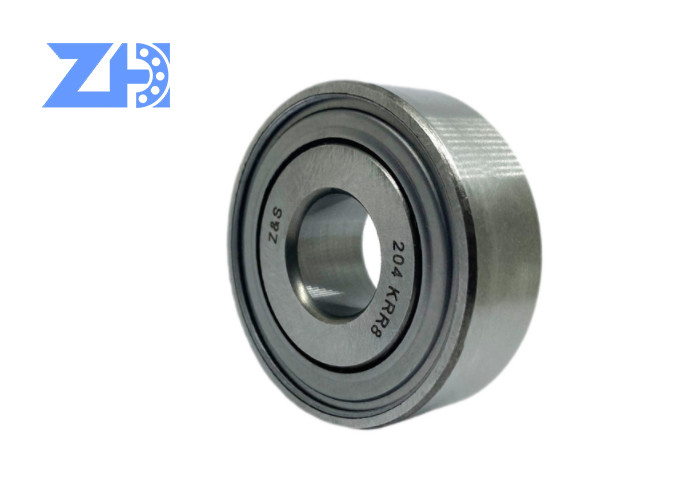

Picture Example:

Lead time:
Quantity(pieces) 1 - 100 >100
Lead time (days) 8 To be negotiated

204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings 1204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings 2204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings 3204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings 4204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings 5

204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings 6

204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings 7
204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings 8

204KRR8 Special Ag Bearings 204KRR8 Grain Drill Round Bore Radial Wheel Bearings 9

APPLIexcavatorION

Appliexcavatorion for industrial bearings :

Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.

a. Auto wheel hub, Auto engine, Auto axle

b. Agricultural machinery, Rotary plow bearings, Tractor, Water pump, Oil engine harvester, Seeder, Tricycle, Farm vehicle, Cultivator

c.Engineering machinery, Excavator, Dozer, Paver, Loader, Hoisting machinery, Piling soil machinery

d. Steel mill machinery, Oil field machinery, Motorship machinery

e. Hardware tool, Electric power tool, Household appliance industry

f. Electronic toys, Fitness equipment, Building machinery

g. Series Of Pumps, Antiseptic Pump, Water pump, Submersible pump, Sewage pump
