Place of Origin: | CHINA |
Brand Name: | QIEAL ZH |
Model Number: | 114-728 3L |
Certifiexcavatorion: | ISO-9001 |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Packaging Details: carton; |
Delivery Time: | 2-5 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Money Gram |
Supply Ability: | 500 per day |
Weight: | 0,98 KGS | Inner Diameter [d]: | 40 Mm |
---|---|---|---|
Outer Diameter [D]: | 90 Mm | Inner Ring Width [B]: | 52 Mm |
Outer Ring Width [C]: | 28 Mm | Packing: | Carton Packing |
Bore Type: | Cylindrical | Outer Ring Shape: | Spherical |
High Light: | Standard Excavator Turbocharger,314334 Excavator Turbocharger,Komatsu Excavator Turbocharger |

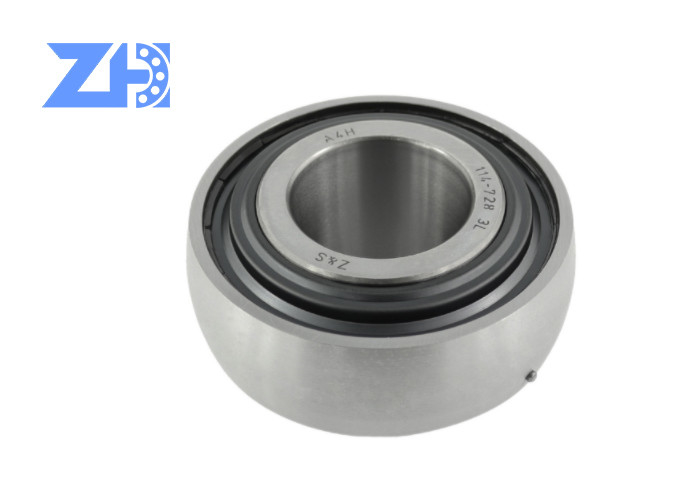

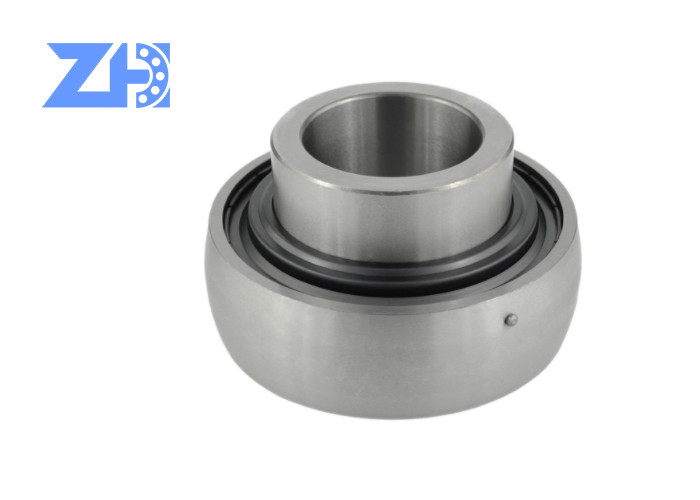

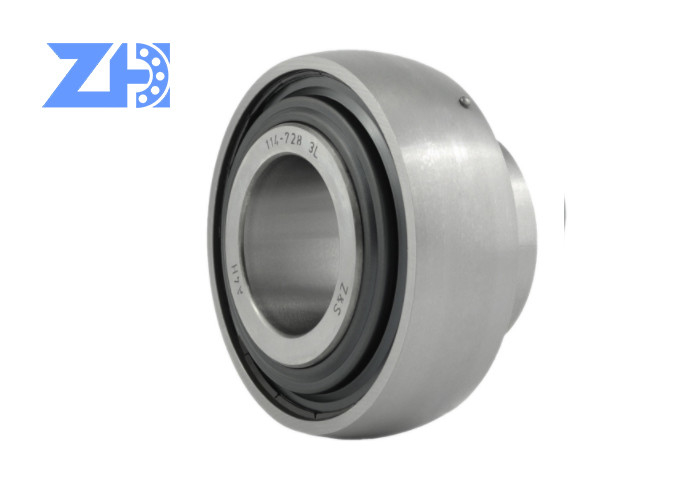

Insert ball bearing 114-728 3L
Insert bearings are designed to fit into bearing housings. they are often sold assembled
into a suitable bearing housing, but can also be purchased separately. They are characterized by
Self-aligning, can be easily installed in a housing block. There are various types of housing
configure.
Insert bearings with housings are bearing units with rolling bearings and housings. most
Insert bearings with housings are made from spheres with an outside diameter, the same as
Bearing housing with spherical bore. Various forms of structure, good versatility and inter
ability to change.
At the same time, the design of this bearing also has a certain adjustable mind, easy to install,
The sealing device with double structure can work under harsh conditions. housing is usually
Formed by casting. Typically used for vertical (P), (F), square convex brackets
(FS), circular convex (FC) and rhombus (FL), ring (C), eg slider (T).
The insert ball bearing unit is divided into heart and bearing seat, the term on the bearing is to add heart
Bearing housing, e.g. with set screw insert spherical bearing UC205 with vertical UCP205
Say. Insert bearings with bearing seats are divided into heart bearings and bearing seats, adding the term bearing
Center bearing housing, such as outer spherical bearing UC205 with set screw and vertical
UCP205 said. The heart of the shelled insert bearing due to strong interchangeability
Different shapes can be mounted on bearings of the same specifiexcavatorion.
Housing bearings are one of the most popular bearings at home and abroad. pillow block
Bearings are widely used in various industries and machines, such as car washing equipment,
construction machinery, fans, HVAC, food processing, metal processing machinery, textile machinery,
Paper and papermaking equipment and woodworking machinery.
Housing bearings can be mounted on different flanges and plummer bearings
Inch and metric sizes. Pillow block bearings are designed to support the shaft. Features include installation
Axis-parallel surfaces and extended bolt holes in the base or unit feet for adjustment
Pillow bearing installation. Pillow housing bearings range in bore diameter from 1/2 in.
to 10 inches.
appliexcavatorion
Insert bearings and bearing housings for motors, chain belts, cars, sprockets,
Mining, metallurgy, mechanical transmission dyeing, chemical industry, textile machinery,
Agricultural machinery, food processing and packaging machinery.
Stainless steel insert and pillow bearings, the products are widely used in electrical equipment,
Medical equipment, household appliances, food machinery, chemical industry, light industry and
Lightweight textiles.
Precision
Insert Bearing: The precision meets ABEC-1 and ABEC-3, and the vibration level meets Z1 and Z2 groups.
Quality complies with ISO standards.
Features of insert bearings:
Accuracy meets ABEC-1 and ABEC-7
Vibration level meets Z1 group and Z2 group
Low vibration and noise
High precision rotation
Low friction torque and high speed operation
Acid and alkali resistance
Can withstand corrosive and corrosive medium work, such as sea water , water, distilled water,
Standby for nitric acid, marine climate, steam, etc.
Can work in high or low temperature environments in the range of -253°C-350°ctemperature
usage
Related models and specifiexcavatorions
D (mm) | D (mm) | B (mm) | Weight (kg) | |
UC201 | 12 | 47 | 31 | 0.21 |
UC202 | 15 | 47 | 31 | 0.2 |
UC203 | 17 | 47 | 31 | 0.18 |
UC204 | 20 | 47 | 31 | 0.17 |
UC205 | 25 | 52 | 34.1 | 0.2 |
UC206 | 30 | 62 | 38.1 | 0.32 |
UC207 | 35 | 72 | 42.9 | 0.46 |
UC208 | 40 | 80 | 49.2 | 0.64 |
UC209 | 45 | 85 | 49.2 | 0.68 |
UC210 | 50 | 90 | 51.6 | 0.78 |
UC211 | 55 | 100 | 55.6 | 1.04 |
UC212 | 60 | 110 | 65.1 | 1.46 |
UC213 | 65 | 120 | 65.1 | 1.86 |
UC214 | 70 | 125 | 74.6 | 2.1 |
UC215 | 75 | 130 | 77.8 | 2.34 |
UC216 | 80 | 140 | 82.6 | 2.78 |
UC217 | 85 | 150 | 85.7 | 3.54 |
UC218 | 90 | 160 | 96 | 4.4 |
UC305 | 25 | 62 | 38 | 0.35 |
UC306 | 30 | 72 | 43 | 0.56 |
UC307 | 35 | 80 | 48 | 0.7 |
UC308 | 40 | 90 | 52 | 0.96 |
UC309 | 45 | 100 | 57 | 1.28 |
UC310 | 50 | 110 | 61 | 1.68 |
UC311 | 55 | 120 | 66 | 2.08 |
UC312 | 60 | 130 | 71 | 2.6 |
UC313 | 65 | 140 | 75 | 3.25 |
UC314 | 70 | 150 | 78 | 3.86 |
UC315 | 75 | 160 | 82 | 4.7 |
UC316 | 80 | 170 | 86 | 5.6 |
UC317 | 85 | 180 | 96 | 6.7 |
UC318 | 90 | 190 | 96 | 7.6 |
UC319 | 95 | 200 | 103 | 8.7 |
UC320 | 100 | 215 | 108 | 10.8 |
UC321 | 105 | 225 | 112 | 12.2 |
UC322 | 110 | 240 | 117 | 14.3 |
UC324 | 120 | 260 | 126 | 18.5 |
UC326 | 130 | 280 | 135 | twenty three |
UC328 | 140 | 300 | 145 | 28.5 |
UCX05 | 25 | 62 | 38.1 | 0.39 |
UCX06 | 30 | 72 | 42.9 | 0.68 |
UCX07 | 35 | 80 | 49.2 | 0.74 |
UCX08 | 40 | 85 | 49.2 | 0.8 |
UCX09 | 45 | 90 | 51.6 | 0.94 |
UCX10 | 50 | 100 | 55.6 | 1.22 |
UCX11 | 55 | 110 | 65.1 | 1.72 |
UCX12 | 60 | 120 | 65.1 | 2.1 |
UCX13 | 65 | 125 | 74.6 | 2.45 |
UCX14 | 70 | 130 | 77.8 | 2.47 |
UCX15 | 75 | 140 | 82.6 | 3.11 |
UCX16 | 80 | 150 | 85.7 | 3.96 |
UCX17 | 85 | 160 | 96 | 4.72 |
UCX18 | 90 | 170 | 104 | 5.5 |
UCX20 | 100 | 190 | 117.5 | 8.06 |
A: 30% in advance by T/T. 70% against copy of B/L
B.30% T/T.70% against L/C at sight in advance
C. Western Union
D.Paypal
E: 50% in advance, the balance should be paid after seeing the picture of the total amount of goods.
F: Official bank account
Why choose us
1. High speed, high precision, low noise, long service life
2. Wide appliexcavatorion
3. Large stock
4. Small order accepted
5. Competitive price and high quality
6. Various brands
7. Need little maintenance
8. Support OEM
9. Our company adheres to the "quality first, credit first" business philosophy and our product specifiexcavatorions are well-founded. With our perfect service and sufficient supply, we enjoy a good reputation in the international market.
