Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Z&H |
| Model Number: | 22316 CC |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case,By carton ,Customer Requirement |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C,,D/P,T/T, Alibaba online payment,Paypal,etc. |
| Supply Ability: | 500 per day |
| Name: | Spherical Roller Bearing | Material: | Chrome Steel,carbon Steel,bearing Steel |
|---|---|---|---|
| Number Of Row: | Double Row | Cage: | Steel Brass Nylon Cage |
| Clearance: | C0.C1.C2.C3.C4.C5.etc | Precision Rating: | P0 P6 P5 P4 P2 |
| Size: | 80x170x58mm | Weight: | 6.32KG |
| Seals Type: | Open | Feature: | Long Life,low Noise |
| High Light: | GCR15 Spherical Roller Bearing,22316 CC Spherical Roller Bearing,80x170x58mm Spherical Roller Bearing |
||

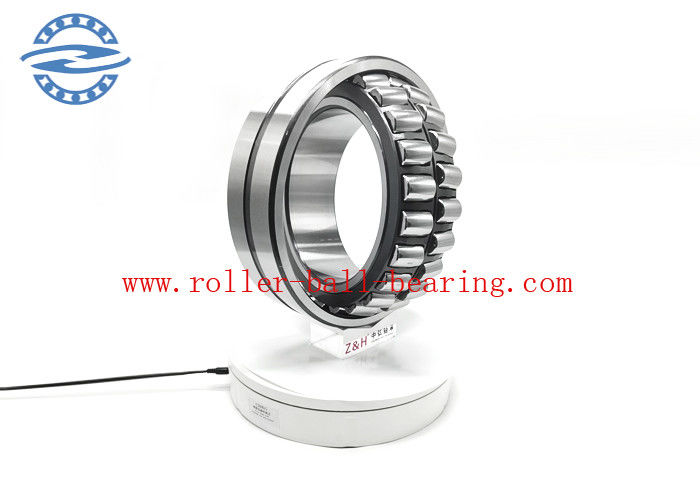

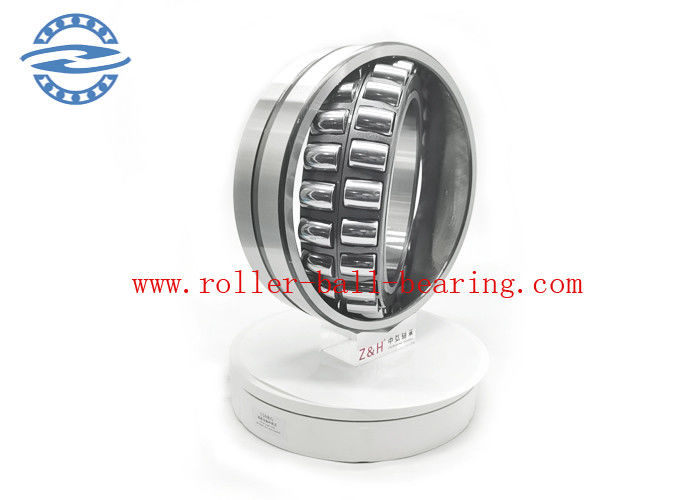

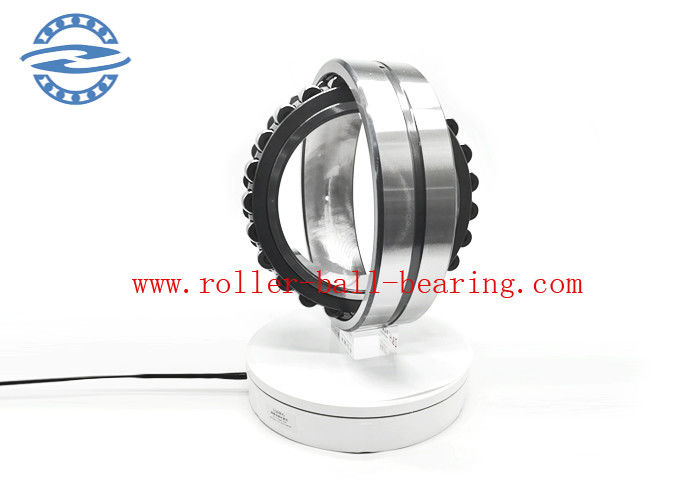

22316 CC Spherical Roller Bearing Double Row Size 80x170x58 mm
Product Overviews
| Designations : | 22316 EK CCK/W33 CAK/W33 |
| inside : | 80 mm |
| outside : | 170 mm |
| width : | 58 mm |
| product mass : | ≈ 6.6 kg |
| bore : | Tapered bore, taper |
| ring material : | GCR15/ Chrome Steel |
| roller material : | GCR15/ Chrome Steel |
| cage material : | Stamped Steel or Brass |
| lubriexcavatorion design : | Annular groove and three lubriexcavatorion holes in the outer ring. |
| sealed : | Open |
| number of row : | Double Row |
| precision rating : | P0 P6 P5 P4 |
| appliexcavatorion industries : | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining etc. |
| price list : | Negotiate |
| service : | OEM or Customer Logo Acceptable and Sample Offer |
| package : | as Customer Required |
| more Data : | plz Contact Us . The contact address is at the bottom. |
.
CA Design Bearings have a machined double prong-type brass cage, an inner ring with a retaining flange on both sides and a floating guide ring centred on the inner ring .
E Design Bearings have two stamped window-type steel cages, an inner ring without flanges and a floating guide ring centred on the inner ring (d ≤ 65 mm) or on the cages(d > 65 mm).
Details
213 series: from 21305 to 21340
222 series: from 22205 to 22272
223 series: from 22308 to 22380
230 series: from 23020 to 23096 230/500 230/530 230/600 230/670 230/710 230/750 230/800 230/850 230/900 230/950 230/1000 230/1060 230/1250
231 series: from 23120 to 23196 231/500 231/530 231/560 231/600 231/630 231/670 231/710 231/750 231/800 231/850 231/1000
232 series: from 23218 to 23296 232/500 232/530 232/560 232/600 232/630 232/670 232/710 232/750
238 series: 238/630 238/670 238/710 238/750 238/800 238/850 238/1000 238/1060 238/1180
239 series: from 23936 to 23996 239/500 239/530 239/560 239/600 239/630 239/670 239/710 239/750 239/800 239/850 239/900 239/950 239/1060 239/1180
240 series: from 24020 to 24096 240/500 240/530 240/560 240/600 240/630 240/670 240/710 240/750 240/800 240/850 240/900 240/950 240/1060 240/1120
241 series: from 24120 to 24196 241/500 241/530 241/560 241/600 241/630 241/670 241/710 241/750 241/800 241/850 241/900 241/950 241/1000
248 series: 24892 248/530 248/670 248/800 248/900 248/1060 248/1120 248/1180 248/1320 248/1500 248/1800
249 series: 249/710 249/750 249/800 249/850 249/950 249/1000 249/1060 249/1120 249/1180 249/1320
Others spherical roller bearings models
| Bearings NO. | d/mm | D/mm | B/mm | C/kN | C0/kN | Weight/kg |
| 22326 CC/W33 | 130 | 280 | 93 | 1120 | 1320 | 29 |
| 22326 CCJA/W33VA405 | 130 | 280 | 93 | 1120 | 1320 | 29 |
| 22326 CCK/W33 | 130 | 280 | 93 | 1120 | 1320 | 28.5 |
| 23028 CC/W33 | 140 | 210 | 53 | 465 | 680 | 6.55 |
| 23028 CCK/W33 | 140 | 210 | 53 | 465 | 680 | 6.35 |
| 24028 CC/W33 | 140 | 210 | 69 | 570 | 900 | 8.55 |
| 24028 CCK30/W33 | 140 | 210 | 69 | 570 | 900 | 8.4 |
| 23128 CC/W33 | 140 | 225 | 68 | 630 | 900 | 10.5 |
| 23128 CCK/W33 | 140 | 225 | 68 | 630 | 900 | 10 |
| 24128 CC/W33 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 24128 CCK30/W33 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 24128-2CS2/VT143 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 22228 CC/W33 | 140 | 250 | 68 | 710 | 900 | 14 |
| 22228 CCK/W33 | 140 | 250 | 68 | 710 | 900 | 13.5 |
| 23228 CC/W33 | 140 | 250 | 88 | 915 | 1250 | 19 |
| 23228 CCK/W33 | 140 | 250 | 88 | 915 | 1250 | 18.5 |
FAQ
Q1.Do you have MOQ? Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it? For the delivery fee,many samples are be requested to be sent,so we must get delivery fee. If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express. If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service? 1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers. 2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery. 3)We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.
Q4.When can I get a price? We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
Contact Person: Xiao
Tel: +8613561495066
