Place of Origin: | China |
Brand Name: | Z&H |
Model Number: | 22234 CA CC MB /W33 |
Certifiexcavatorion: | ISO9001:2008 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case,By carton or on request. |
Delivery Time: | 2-8 work days |
Payment Terms: | L/C,,D/P,T/T, Alibaba online payment,Paypal,etc. |
Supply Ability: | 500 per day |
Bearing Name: | Spherical Roller Bearing | Bearing No.: | 22234 |
---|---|---|---|
Number Of Row: | Double Row | Size: | 170*310*86 Mm |
Weight: | 28KG | Precision Rating: | P0 P6 P5 P4 P2 |
Clearance: | C0.C1.C2.C3.C4.C5.etc | Material: | Chrome Steel,bearing Steel |
Cage: | Brass,nylon,steel,E Type | Package: | Standard |
High Light: | C5 Spherical Roller Bearing,Chrome Steel Spherical Roller Bearing |

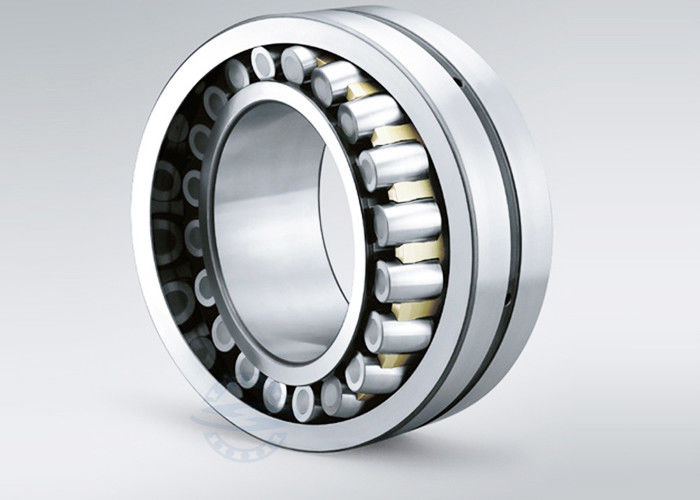

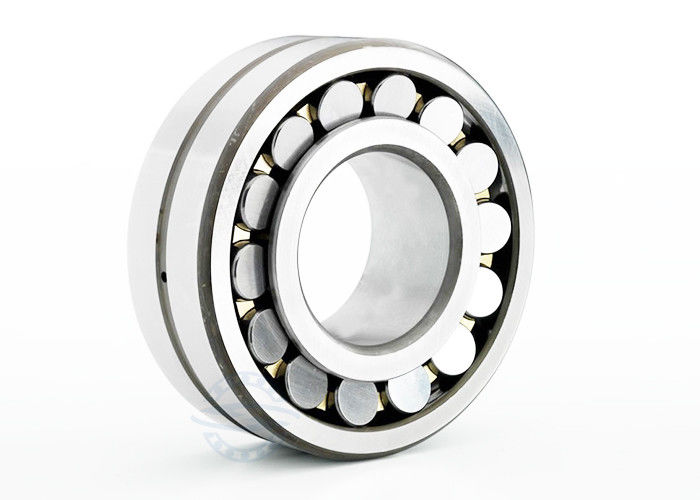

22234 CA CC MB /W33 Spherical Roller Bearing Size 170*310*86 mm
Product Name | |
Material | chrome steel Gcr15 (stainless steel SUS440 also have ) |
Color | Original steel color (if need black color also have ) |
Standard | DIN GB ISO JIS BA ANSI |
Tolereance | 0.001mm |
Used | Universal industry machinery,reducer,motorcycle bearing |
Brand | Z&H |
Spherical roller bearings are mainly used to bear radial load,and can also bear a certain amount of axial load, but generally cannot bear pure axial load. The outer ring raceway of this type of bearing is spherical, so it has self-aligning performance.When the shaft is bent or tilted and the centerline of the inner ring and the centerline of the outer ring are not more than 0.5°~2°,the bearing can still be normal work.
Deep groove ball bearing;Cylindrical roller bearing;Spherical roller bearing;
Angular contact ball bearing;Taper roller bearing;Thrust ball bearing;
Thrust roller bearing etc.
Ball Bearing | Deep Groove Ball Bearing |
60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, 160 **(70001 ) |
Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series | |
Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. | |
Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used inSteel Industry. |
