Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
22328CA
Production introduction
| d |
140 mm
|
Bore diameter |
|---|---|---|
| D |
300 mm
|
Outside diameter |
| B |
102 mm
|
Width |
| d2 |
≈175 mm
|
Shoulder diameter of inner ring |
| D1 |
≈247 mm
|
Shoulder/recess diameter of outer ring |
| b |
16.7 mm
|
Width of lubrication groove |
| K |
9 mm
|
Diameter of lubrication hole |
| r1,2 |
min.4 mm
|
Chamfer dimension |
| Basic dynamic load rating | C |
1 357 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 560 kN
|
| Fatigue load limit | Pu |
132 kN
|
| Reference speed |
1 700 r/min
|
|
| Limiting speed |
2 200 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| Number of rows | 2 |
| Locating feature, bearing outer ring | Without |
| Bore type | Tapered 1:12 |
| Cage | Sheet metal |
| Radial internal clearance | CN |
| Tolerance class for dimensions | Normal |
| Tolerance class for run-out | P5 |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
| Candidate for remanufacturing | Yes |
| Bore diameter | 140 mm |
| Outside diameter | 300 mm |
| Width | 102 mm |
Performance
| Basic dynamic load rating | 1 357 kN |
| Basic static load rating | 1 560 kN |
| Reference speed | 1 700 r/min |
| Limiting speed | 2 200 r/min |
22328CA Collection
| 30314D | KMF41-PC60-7 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | NUP309=180 |
| NUP309 | KMF90-PC200-6 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP2207=140 | |
| JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP2206=130 | |
| JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | NUP309=180 | |
| JMF151 | GM38VB | M2X146 | T7FC060 | 30312 | NUP309 | ||
| JMF195 | JMV-53/31 | HMT36FA | M2X150 | NUP207 | 30312D | NUP310 | |
| JMF250 | MAG85 | HMGC32 | M2X170 | 6213 | 30312D | NUP2310 | |
| M2X55 | MAG120 | HMGF35 | M2X210 | NUP308 | NUP308 | NUP2212 | |
| M2X63 | MAG150 | HMGF36 | SG20 | NUP2207 | DNB50/60 | NUP206 | |
| KMF125-PC200-8 | NUP206E | HMGC48 | HMS072 | 6305 | NUP308 | NUP308=140 | |
| KMF160-PC360-7 | 15578 | NUP309 | AP5S67 | NUP2211=250 | 30309D=110 | NUP309 | |
| MSG-27P | NUP306 | T7FC055 | 11749/11710 | NUP207 | NUP207 | NUP206 | |
| AP5S53 | NUP307 | T7FC055 | NUP310 | NUP307 | 30309D | 6305M | |
| M5X130 | NUP205E | NUP306 | NUP208E | NUP307 | 30312D | 4T-30307 |

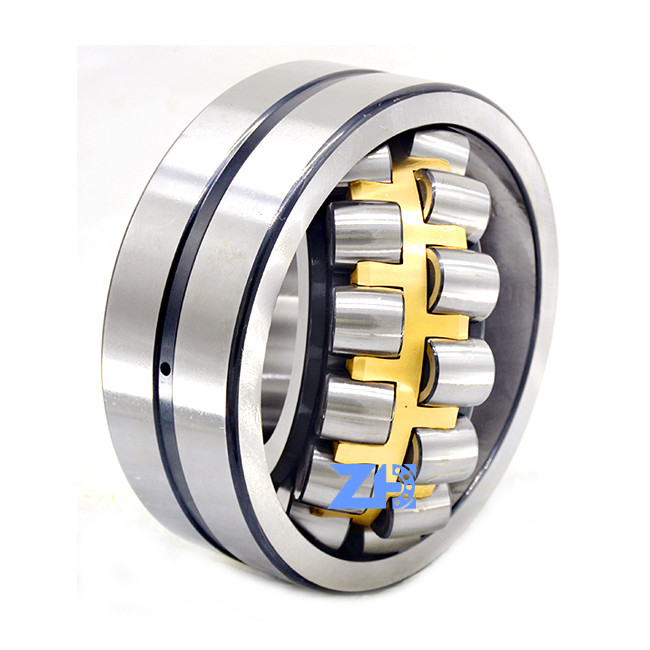

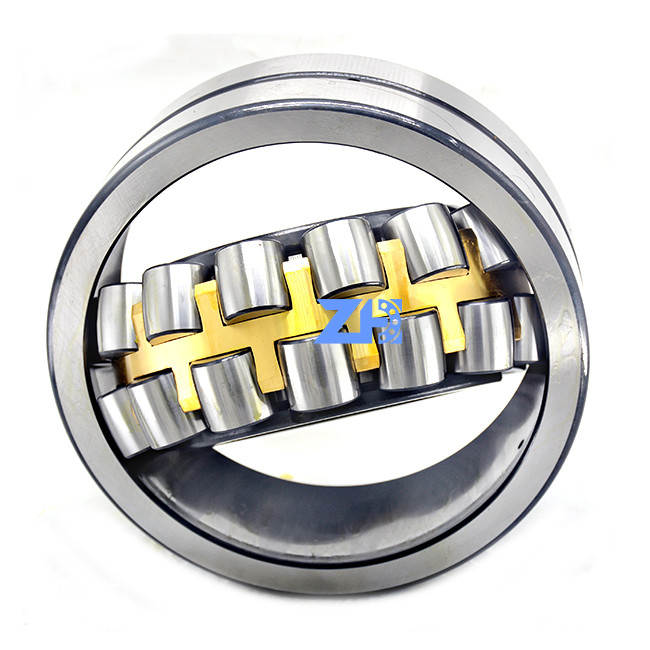

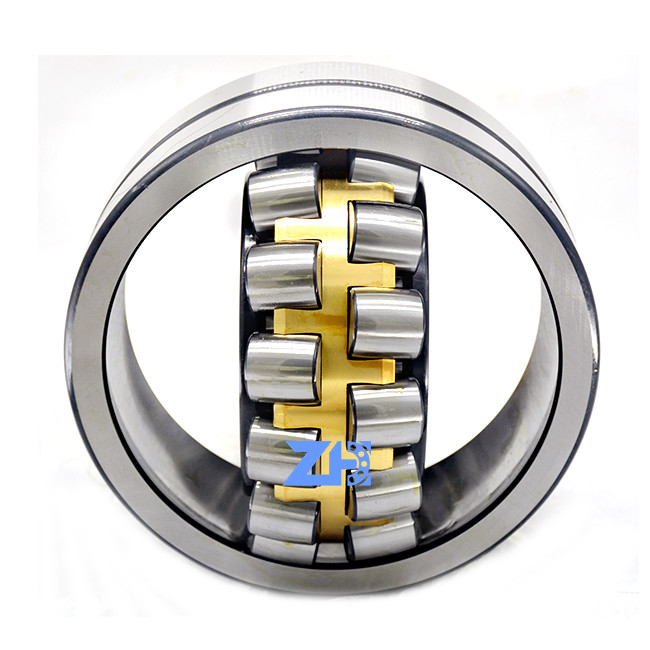

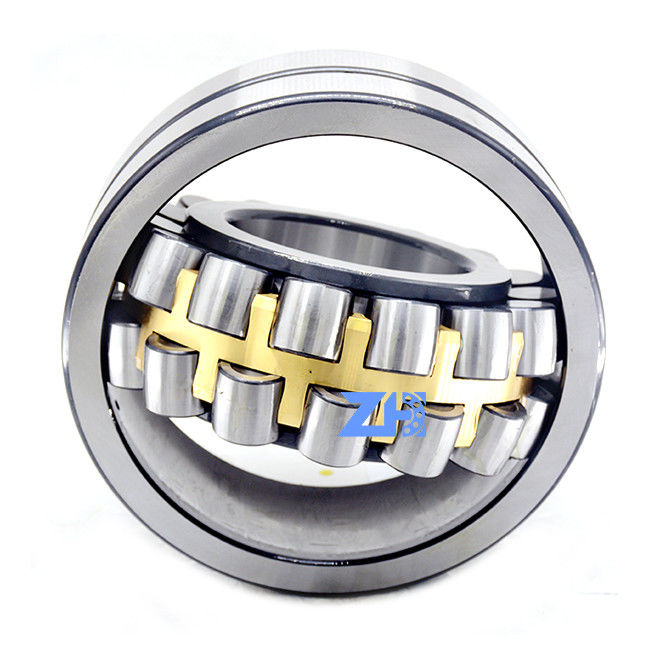

Picture show
