Place of Origin:
China
Brand Name:
ZH / Qireal
Model Number:
29326E

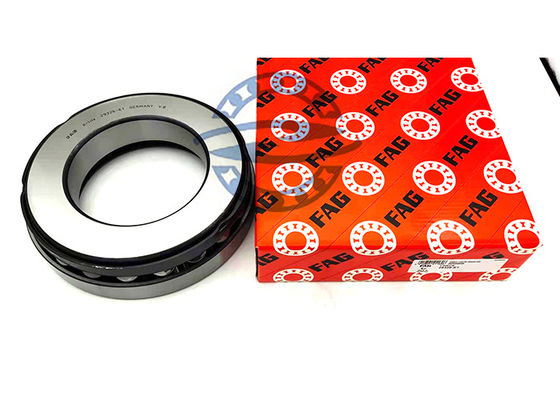

29326E thrust roller bearing
Suffix:
CA: Integral brass cage, double row symmetrical roller, inner ring ride
CC: Two window-type steel cages, double row symmetrical roller, inner ring ride
MA: Machined brass cage, outer ring ride
MB: Machined brass cage, inner ring ride
K: Tapered bore, taper 1:12
K30: Tapered bore, taper 1:30
S: With a groove, lubriexcavatorion holes in out rings.
W: Without annular groove and lubriexcavatorion holes in outer ring
W20: Three lubriexcavatorion holes in outer ring
W26: Six lubriexcavatorion holes in inner ring
W33: Annular groove and three lubriexcavatorion holes in outer ring
W77: Plugged W33 lubriexcavatorion holes
ZhongHong Bearing Manufacturing Co.Ltd., produces a wide range of ball and roller bearings for automotive making, Ferrous Metallurgy, Chemical Machinery and Machine Manufacturing in its primary plants in China mainland. Our main bearing products include deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, spherical ball bearings, spherical roller bearings, single row angular contact bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings, pump bearings, and many non-standard bearings are also in our product range. The annual output is more than 10 million sets.
1. in the same price , our quality is higher , in the same quality , our price is lower
2.high precision , long life.
1.Cylindrical roller bearing
2.Thrust ball bearing
3.Thrust roller bearing
4.Tapered roller bearing
5.Spherical roller bearing
6.Self-aligning ball bearing
7.Angular contact ball bearing
8.Joint bearing
Designation | d | D | B | Weight(kg) |
BS2-2205-2CS | 25 | 52 | 23 | 0.26 |
BS2-2206-2CS | 30 | 62 | 25 | 0.34 |
BS2-2207-2CS | 35 | 72 | 28 | 0.52 |
BS2-2208-2CS | 40 | 80 | 28 | 0.57 |
BS2-2209-2CS | 45 | 85 | 28 | 0.66 |
BS2-2210-2CS | 50 | 90 | 28 | 0.7 |
BS2-2211-2CS | 55 | 100 | 31 | 1 |
BS2-2212-2CS | 60 | 110 | 34 | 1.3 |
BS2-2213-2CS | 65 | 120 | 38 | 1.6 |
BS2-2214-2CS | 70 | 125 | 38 | 1.8 |
BS2-2215-2CS | 75 | 130 | 38 | 2.1 |
BS2-2216-2CS | 80 | 140 | 40 | 2.4 |
BS2-2217-2CS | 85 | 150 | 44 | 3 |
BS2-2218-2CS | 90 | 160 | 48 | 3.7 |
BS2-2219-2CS | 95 | 170 | 51 | 4.6 |
BS2-2220-2CS | 100 | 180 | 55 | 5.5 |
BS2-2222-2CS | 110 | 200 | 63 | 7.6 |
BS2-2224-2CS | 120 | 215 | 69 | 9.75 |
BS2-2226-2CS | 130 | 230 | 75 | 11 |
BS2-2228-2CS | 140 | 250 | 80 | 15.7 |
BS2-2308-2CS | 40 | 90 | 38 | 1.2 |
BS2-2309-2CS | 45 | 100 | 42 | 1.6 |
BS2-2310-2CS | 50 | 110 | 45 | 2.1 |
BS2-2311-2CS | 55 | 120 | 49 | 2.8 |
BS2-2312-2CS | 60 | 130 | 53 | 3.4 |
BS2-2313-2CS | 65 | 140 | 53 | 4.15 |
BS2-2314-2CS | 70 | 150 | 60 | 5.1 |
BS2-2315-2CS | 75 | 160 | 64 | 6.5 |
